Hummer H2. Manual - part 469

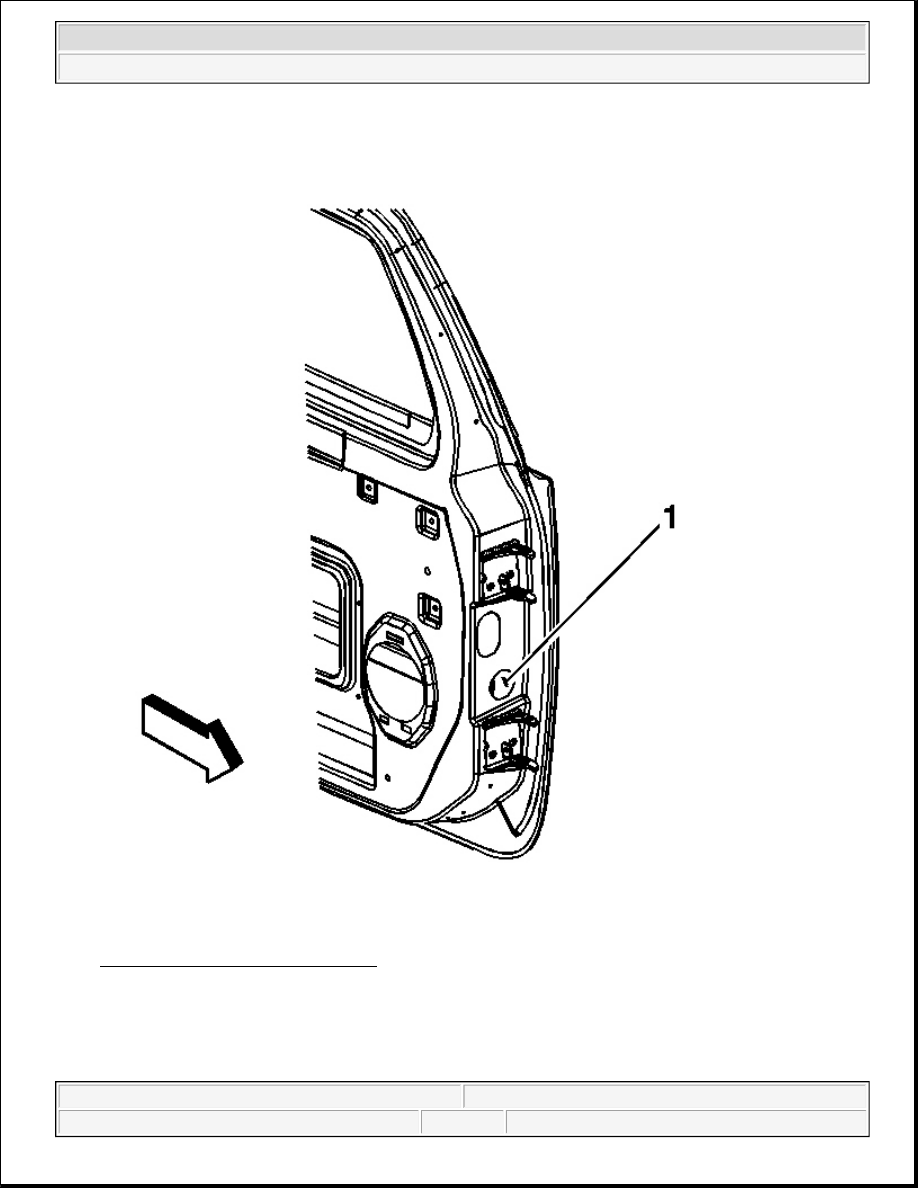

Fig. 91: Front Door Wiring Harness
Courtesy of GENERAL MOTORS CORP.

6. Remove the wiring harness from the door through the pass-through hole (1) by releasing all retainers and

noting their location for reinstallation.

7. Disconnect the wiring harness from the body harness.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Installation Procedure

1. Connect the wiring harness to the body harness.

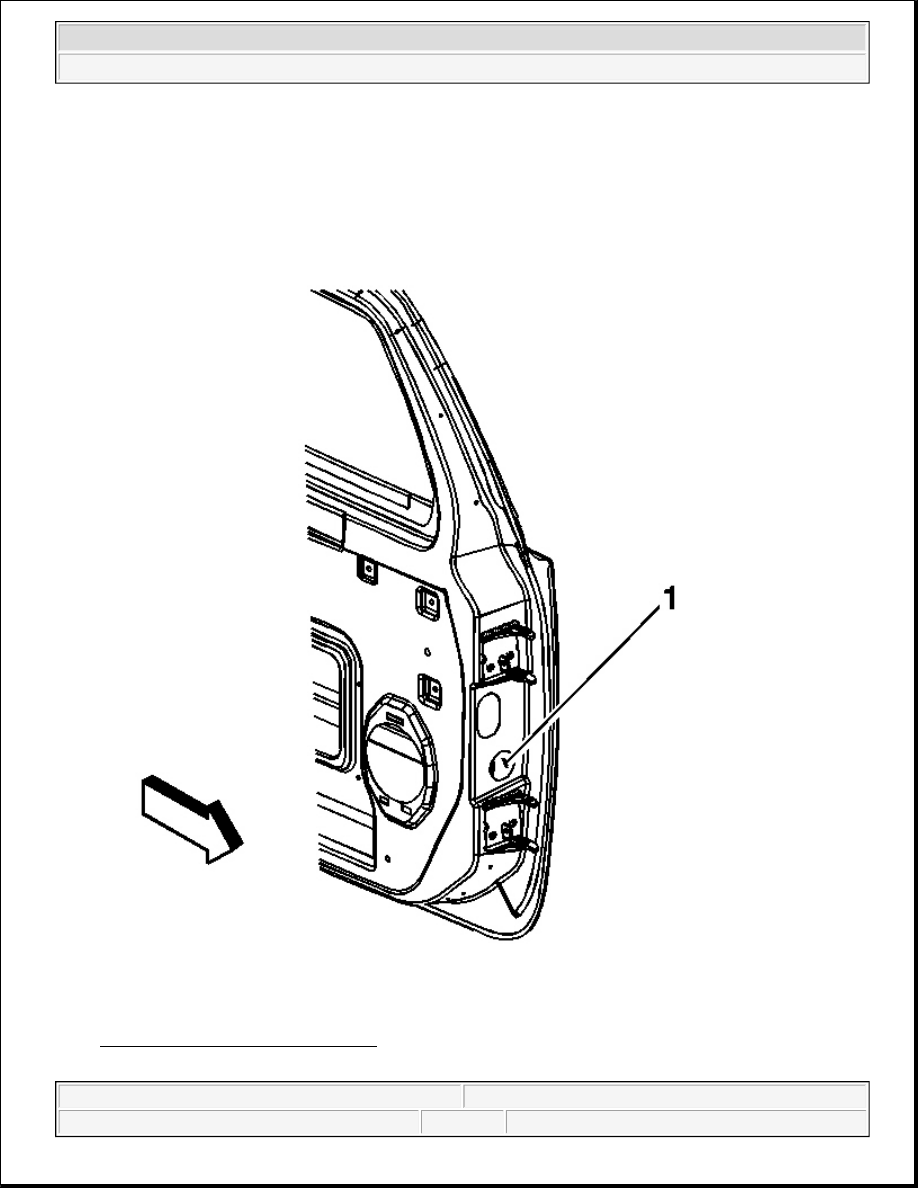

Fig. 92: Front Door Wiring Harness
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Route the wiring harness through the pass-through hole (1), ensuring that the rubber grommet seal is fully

seated.

3. Fasten the wiring harness to the door by attaching all retainers in their proper location.

4. Connect the power mirror electrical connector.

5. Connect the door lock actuator electrical connector.

6. Connect the window motor electrical connector.

7. Connect the speaker electrical connector.

8. Operate all electrical door components to ensure proper operation.

9. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

10. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

WIRING HARNESS REPLACEMENT - REAR DOOR

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

3. Disconnect the speaker electrical connector.

4. Disconnect the window motor electrical connector.

5. Disconnect the door lock actuator electrical connector.

6. Remove the wiring harness from door through the pass through hole (2) by releasing all retainers, noting

their location for reinstallation.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

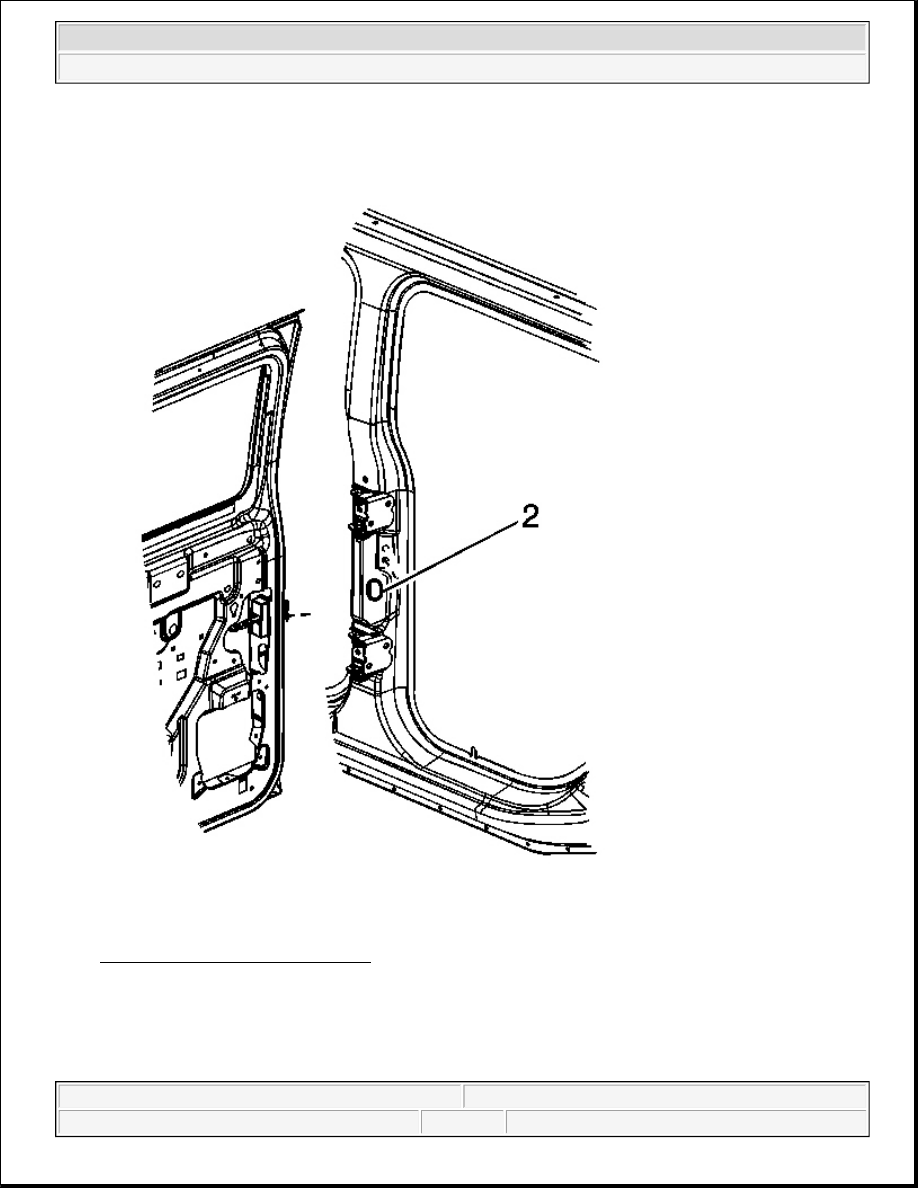

Fig. 93: Rear Door Wiring Harness
Courtesy of GENERAL MOTORS CORP.

7. Disconnect the door harness from the body harness (2).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
