1. Route the wiring harness through the pass through hole (2), ensuring that the rubber grommet seal is fully

seated.

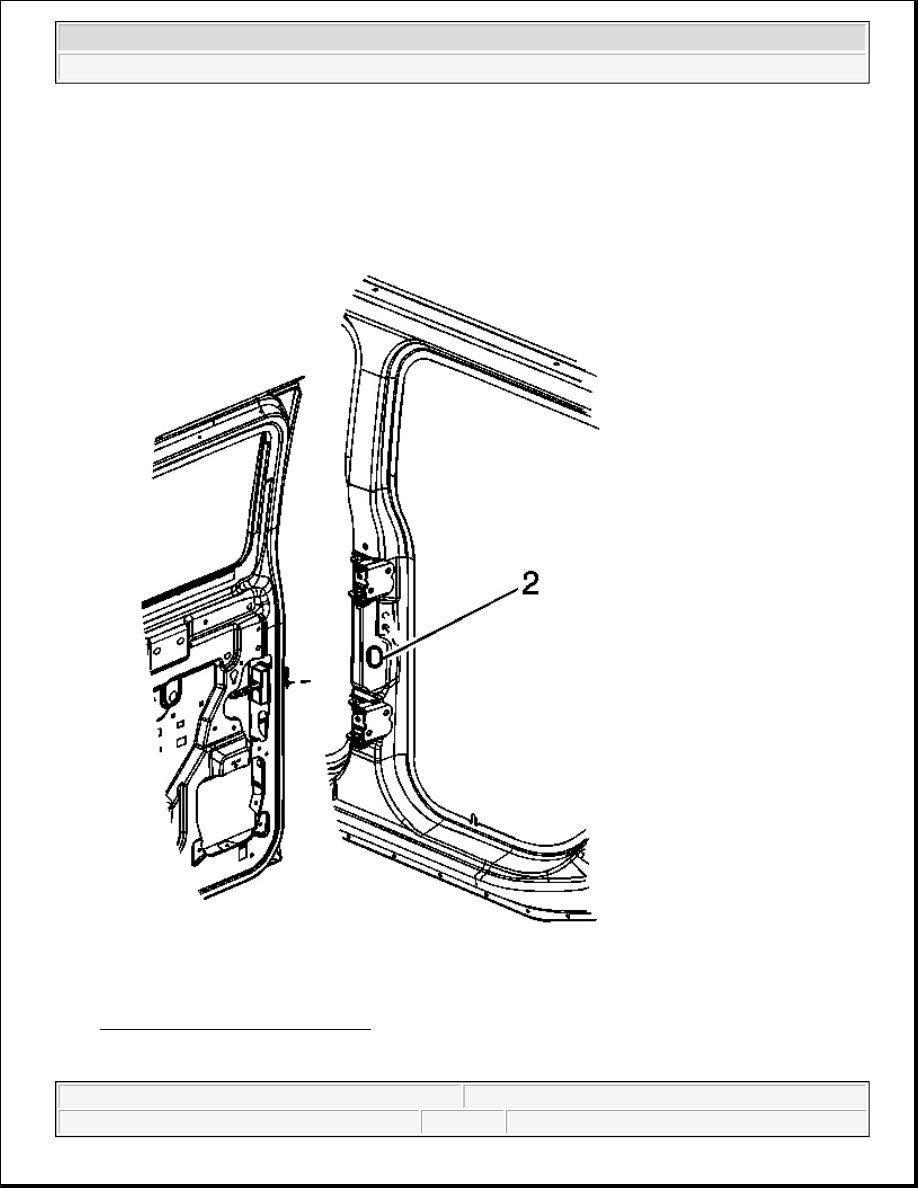

Fig. 94: Rear Door Wiring Harness
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Connect the door harness to the body harness (2).

3. Fasten the wiring harness to the door by attaching all retainers in their proper location.

4. Connect the door lock actuator electrical connector.

5. Connect the window motor electrical connector.

6. Connect the speaker electrical connector.

7. Operate all electrical door components to ensure proper operation.

8. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .

9. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

MODULE REPLACEMENT - FRONT POWER WINDOW

Removal Procedure

1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

3. Position the window in a position that allows access to the window clamp bolts.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



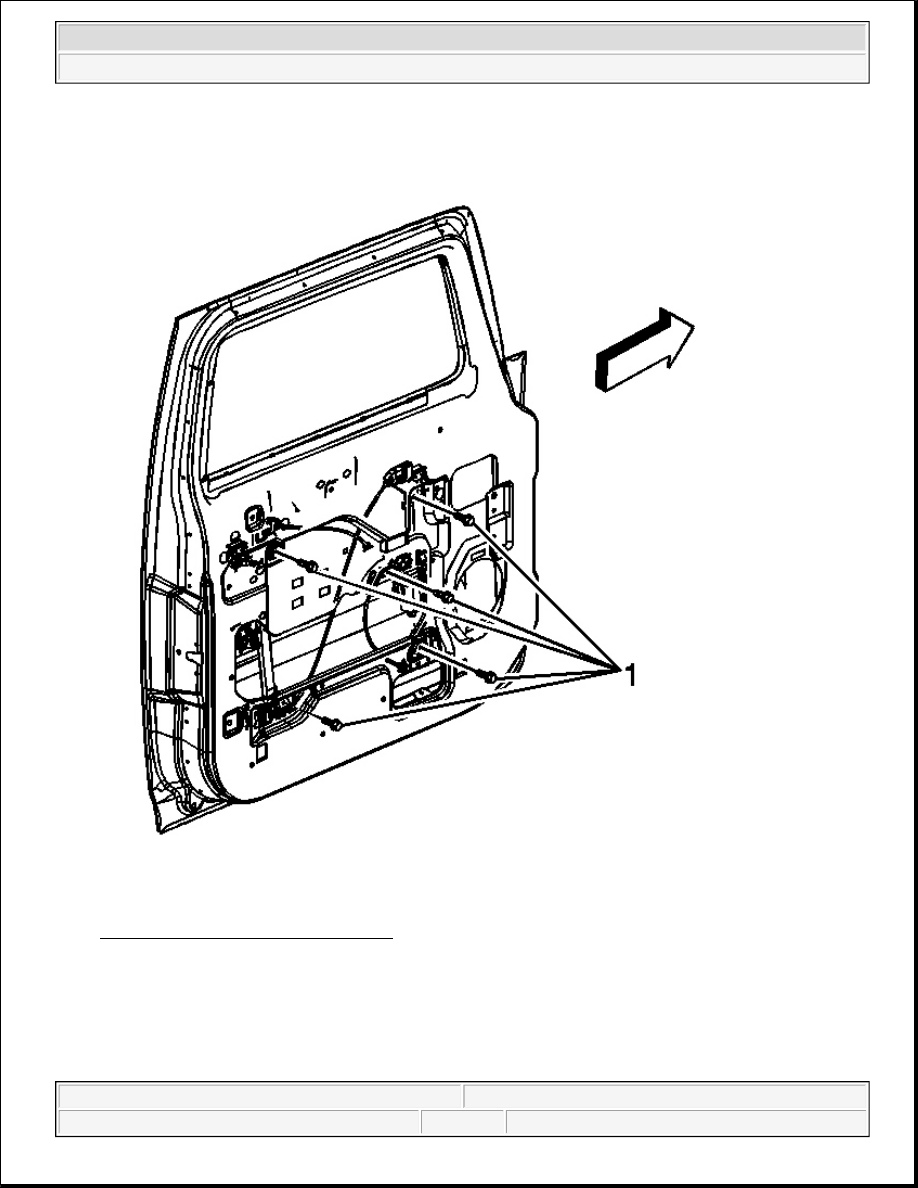

Fig. 95: Front Power Window Module
Courtesy of GENERAL MOTORS CORP.

4. Loosen the fasteners on the window clamps.

5. Position the window in the full up position and tape in place.

6. Disconnect the window motor electrical connector.

7. Remove the 5 fasteners (1) retaining the window module to the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



8. Remove the window module from the door.

Installation Procedure

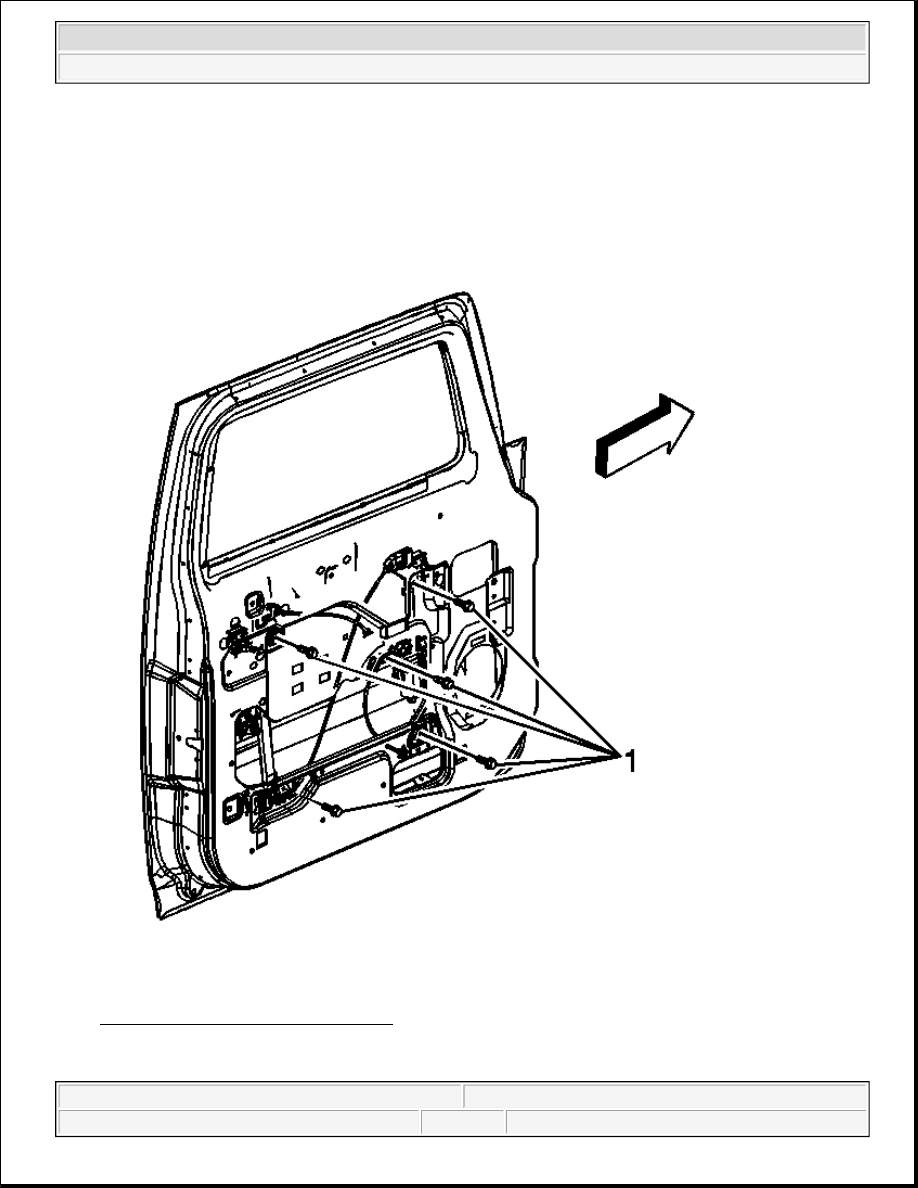

Fig. 96: Front Power Window Module
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
