Hummer H2. Manual - part 426

Outside Rear View Mirror - Passenger (Front Passenger Door Module (FPDM) Terminal Identification -
C3)

Connector Part Information

z

6383393-5

z

10-Way F 0.64 mm Unsealed AMP (BK)

Pin

Wire Color

Circuit No.

Function

1

YE

-

Driver Folding Mirror Motor Extend Control

2

OG

-

Mirror Heating Element Supply Voltage

3

RD

-

Driver Mirror Horizontal Position Sensor Signal

4

D-GN

-

5-Volt Reference

5

D-BU

-

Driver Mirror Vertical Position Sensor Signal

6

L-BU

-

Driver Folding Mirror Motor Retract Control

7

YE/WH

-

Driver Mirror Right/Down Motors Common

8

L-BU

-

Driver Mirror Motor Right Control

9

L-GN

-

Driver Mirror Motor Down Control

10

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Outside Rear View Mirror - Passenger (Front Passenger Door Module (FPDM) Terminal Identification -
C4)

Connector Part Information

z

6383393-7

z

10-Way F 0.64 mm Unsealed AMP (BU)

Pin

Wire Color

Circuit No.

Function

1

RD/WH

-

Passenger Mirror Motor Right Control

2

WH

-

Passenger Mirror Right/Down Motors Common

3

YE

-

Passenger Folding Mirror Motor Extend Control

4

L-BU

-

Passenger Folding Mirror Motor Retract Control

5

-

-

Not Used

6

PU/WH

-

Passenger Mirror Motor Down Control

7

OG

-

Mirror Heating Element Supply Voltage

8

BK

-

Mirror Heating Element Low Reference

9-10

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Window Terminal Identification Motor - Driver

Connector Part Information

z

6383393-5

z

10-Way F 0.64 mm Unsealed AMP (BK)

Pin

Wire Color

Circuit No.

Function

1

D-GN

-

5-Volt Reference

2

RD

-

Passenger Mirror Vertical Position Sensor Signal

3

PU

-

Low Reference

4

D-BU

-

Passenger Mirror Horizontal Position Sensor Signal

5-10

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



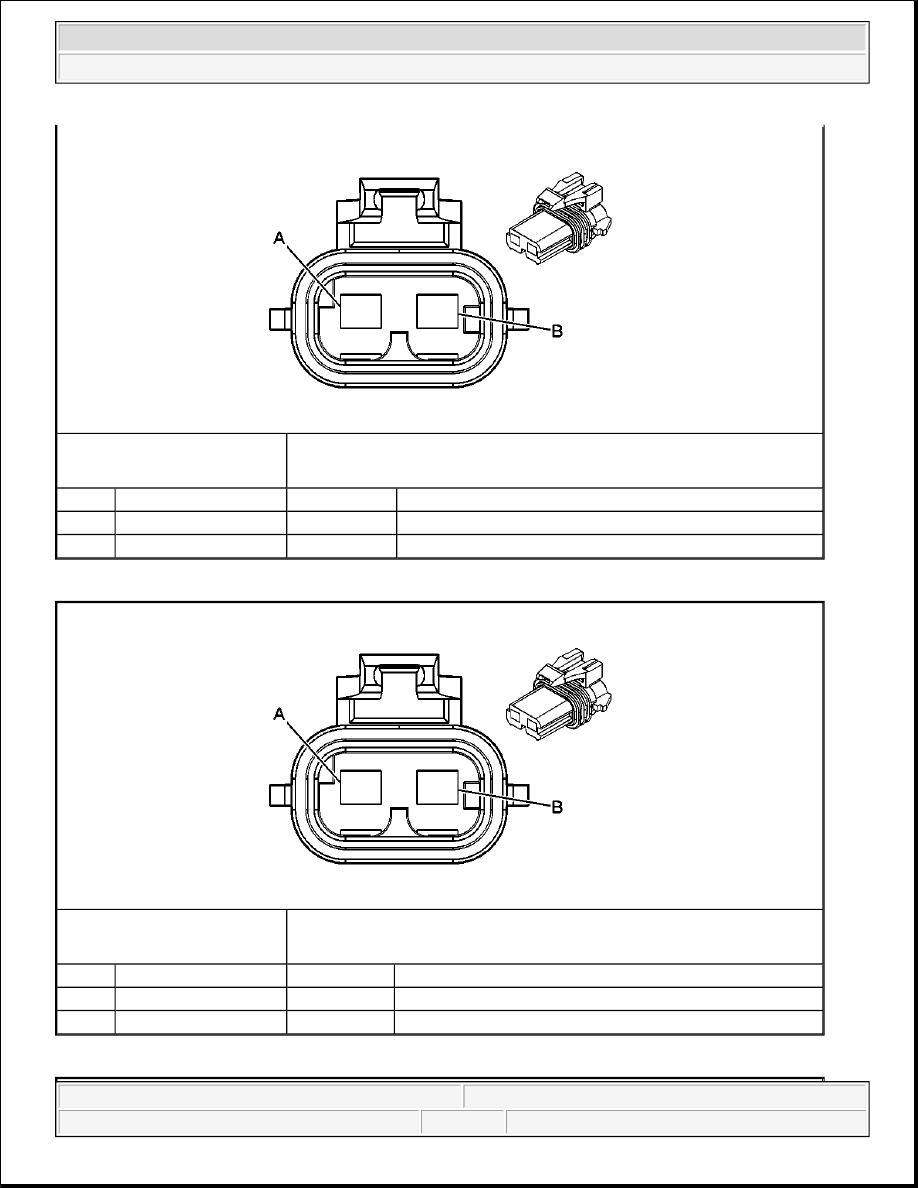

Window Terminal Identification Motor - Front Passenger

Window Terminal Identification Motor - LR

Connector Part Information

z

12129487

z

2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)

Pin

Wire Color

Circuit No.

Function

A

D-BU

164

Power Window Motor Left Front Up Control

B

BN

165

Power Window Motor Left Front Down Control

Connector Part Information

z

12129487

z

2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)

Pin

Wire Color

Circuit No.

Function

A

D-BU

666

Power Window Motor Right Front Up Control

B

BN

667

Power Window Motor Right Front Down Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
