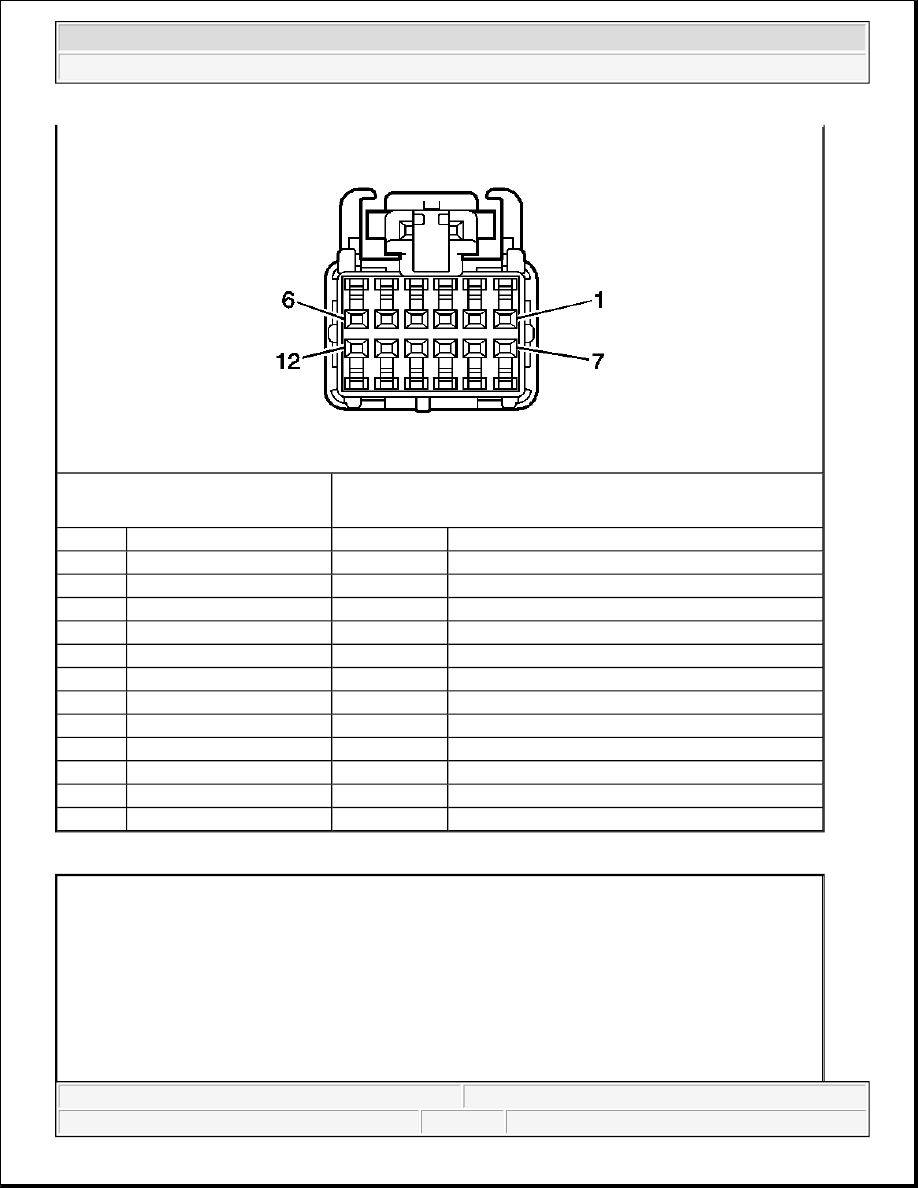

Front Passenger Door Module (FPDM) Terminal Identification - C1

Connector Part Information

z

6383393-4

z

12-Way F AMP 0.64 mm Unsealed (GN)

Pin

Wire Color

Circuit No.

Function

1

WH/BK

-

Medium Heat Indicator Control

2

YE

-

Low Heat Indicator Control

3

GY

-

Back Only Select

4

L-BU

-

Memory/Heated Seat Backlight

5

PK

-

Memory 2 Switch Signal

6

-

-

Not Used

7

D-GN

-

High Heat Indicator Control

8

BK

-

Back Only Indicator

9

D-BU

-

Back and Cushion Select

10

RD

-

Memory 1 Switch Signal

11

BN

-

Memory/Heated Switch Supply Voltage

12

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



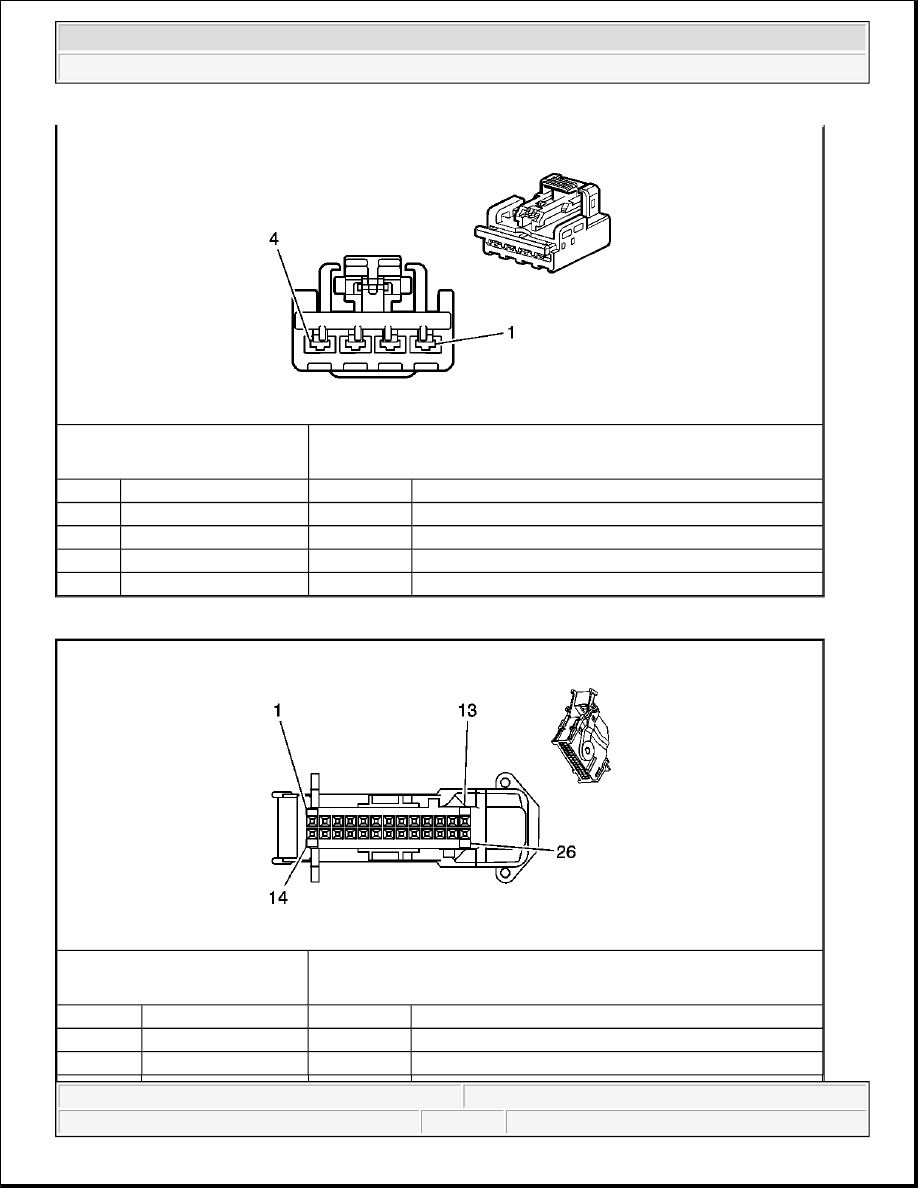

Front Passenger Door Module (FPDM) Terminal Identification - C2

Connector Part Information

z

15393410

z

4-Way F 2.8 mm Sealed AMP (BK)

Pin

Wire Color

Circuit No.

Function

1

BN

667

Power Window Motor Right Front Down Control

2

OG

1340

Battery Positive Voltage

3

BK

1050

Ground

4

D-BU

666

Power Window Motor Right Front Up Control

Connector Part Information

z

15398841

z

26-Way F AMP Lever Assist (BK)

Pin

Wire Color

Circuit No.

Function

1-4

-

-

Not Used

5

BK/WH

746

Right Front Door Ajar Switch Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Front Passenger Door Module (FPDM) Terminal Identification - C3

6-7

-

-

Not Used

8

WH

156

Courtesy Lamp-Right Front Door Supply Voltage

9

-

-

Not Used

10

GY

295

Door Lock Actuator Lock Control

11

TN

294

Door Lock Actuator Unlock Control

12-13

-

-

Not Used

14

OG

4240

Battery Positive Voltage

15-18

-

-

Not Used

19

L-BU

661

Right Front Door Courtesy Lamp Control

20

D-GN

1178

Right Front Door Switch Low Reference

21

-

-

Not Used

22

TN

1047

PDM Class 2 Serial Data

23

-

-

Not Used

24

L-GN

265

Passenger Door Key Switch Signal

25-26

-

-

Not Used

Connector Part Information

z

6383393-7

z

10-Way F 0.64 mm Unsealed AMP (BU)

Pin

Wire Color

Circuit No.

Function



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



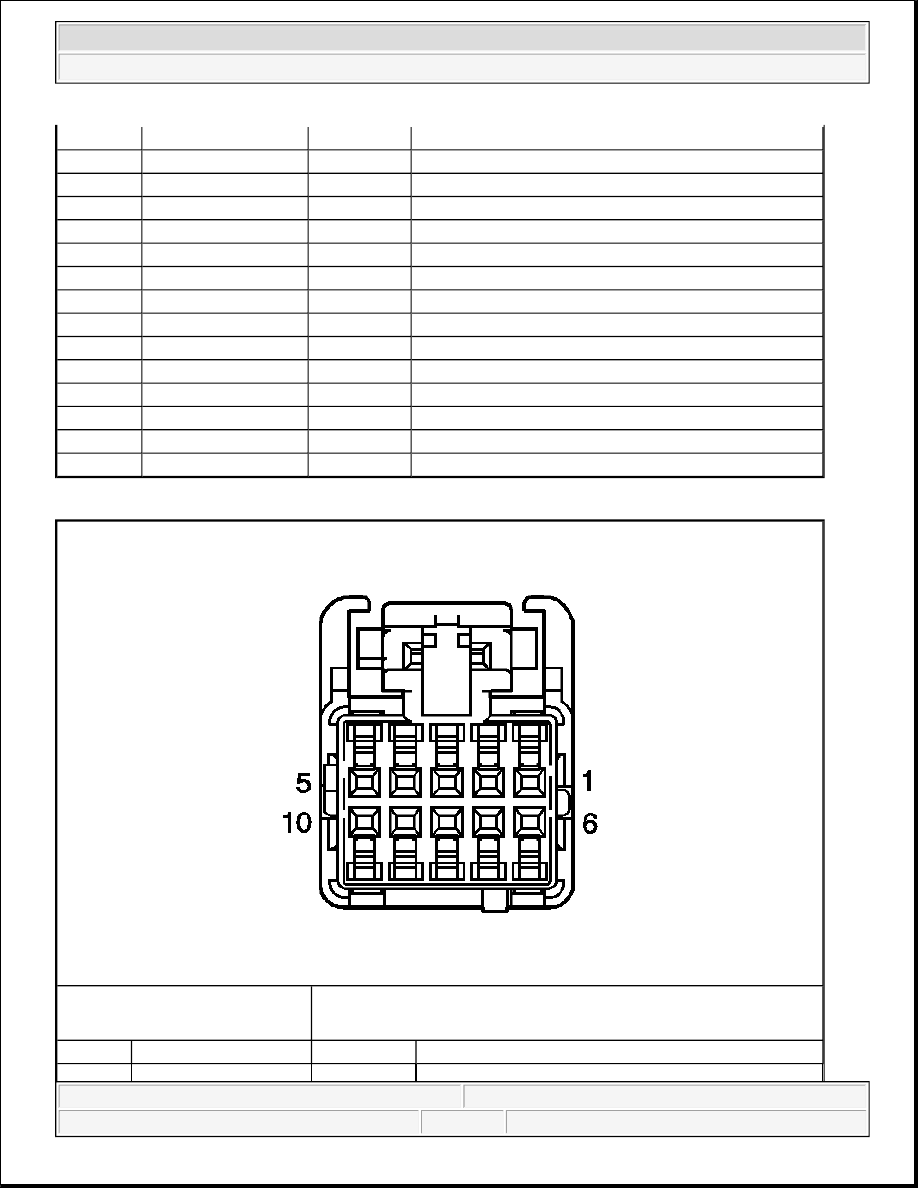

Front Passenger Door Module (FPDM) Terminal Identification - C4

1

RD/WH

-

Passenger Mirror Motor Right Control

2

WH

-

Passenger Mirror Right/Down Motors Common

3

YE

-

Passenger Folding Mirror Motor Extend Control

4

L-BU

-

Passenger Folding Mirror Motor Retract Control

5

-

-

Not Used

6

PU/WH

-

Passenger Mirror Motor Down Control

7

OG

-

Mirror Heating Element Supply Voltage

8

BK

-

Mirror Heating Element Low Reference

9-10

-

-

Not Used

Connector Part Information

z

6383393-5

z

10-Way F 0.64 mm Unsealed AMP (BK)

Pin

Wire Color

Circuit No.

Function

1

D-GN

-

5-Volt Reference

2

RD

-

Passenger Mirror Vertical Position Sensor Signal

3

PU

-

Low Reference

4

D-BU

-

Passenger Mirror Horizontal Position Sensor Signal

5-10

-

-

Not Used
