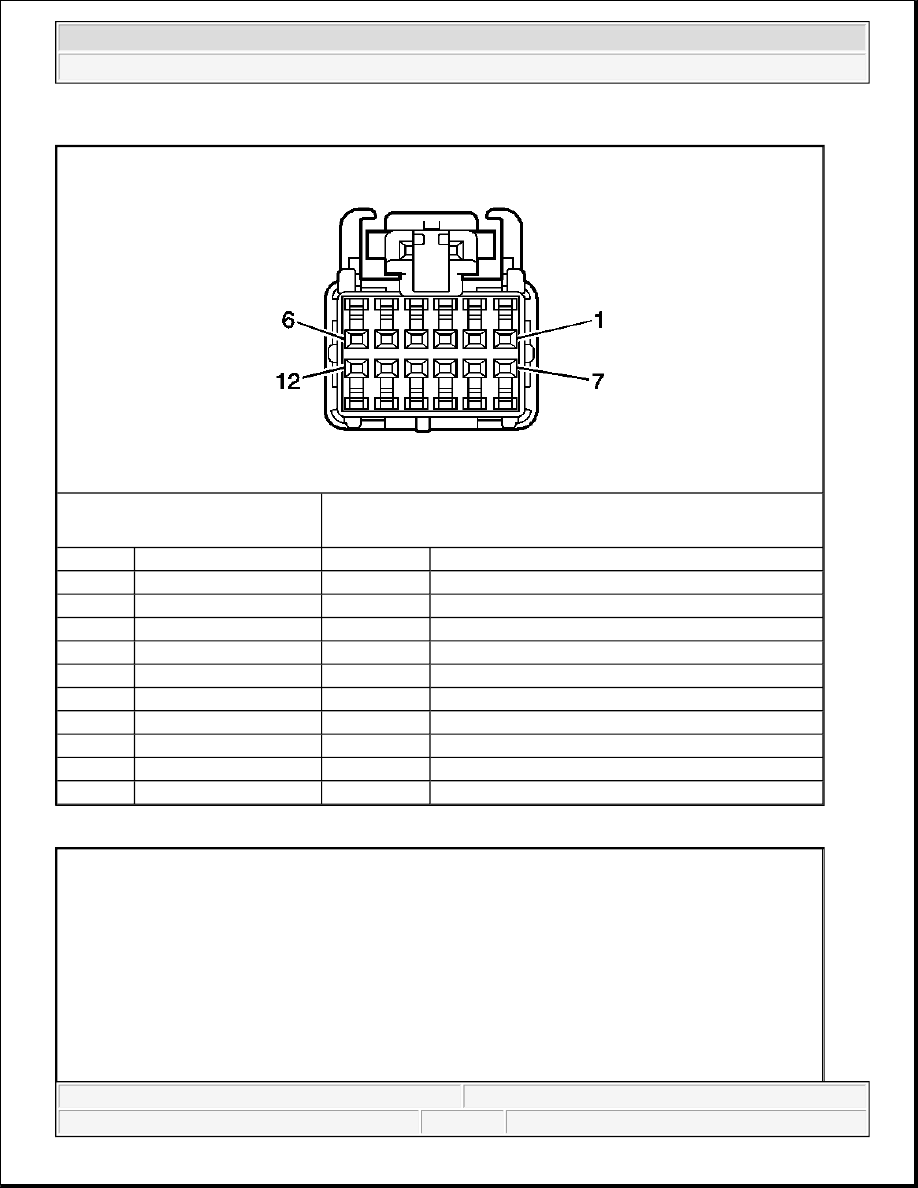

Front Passenger Door Module (FPDM) Terminal Identification - C5

Liftgate Ajar Terminal Identification Switch - Left

Connector Part Information

z

6383393-4

z

12-Way F AMP 0.64 mm Unsealed (GN)

Pin

Wire Color

Circuit No.

Function

1

YE

-

Low Heat Indicator Control

2

D-GN

-

High Heat Indicator Control

3

D-BU

-

Back Only Select

4

GY

-

Back and Cushion Select

5

-

-

Not Used

6

BN

-

Memory/Heated Seat Switch Supply Voltage

7

BK

-

Back Only Indicator Control

8

WH/BK

-

Medium Heat Indicator Control

9-11

-

-

Not Used

12

L-BU

-

Heated Seat Switch Backlight



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



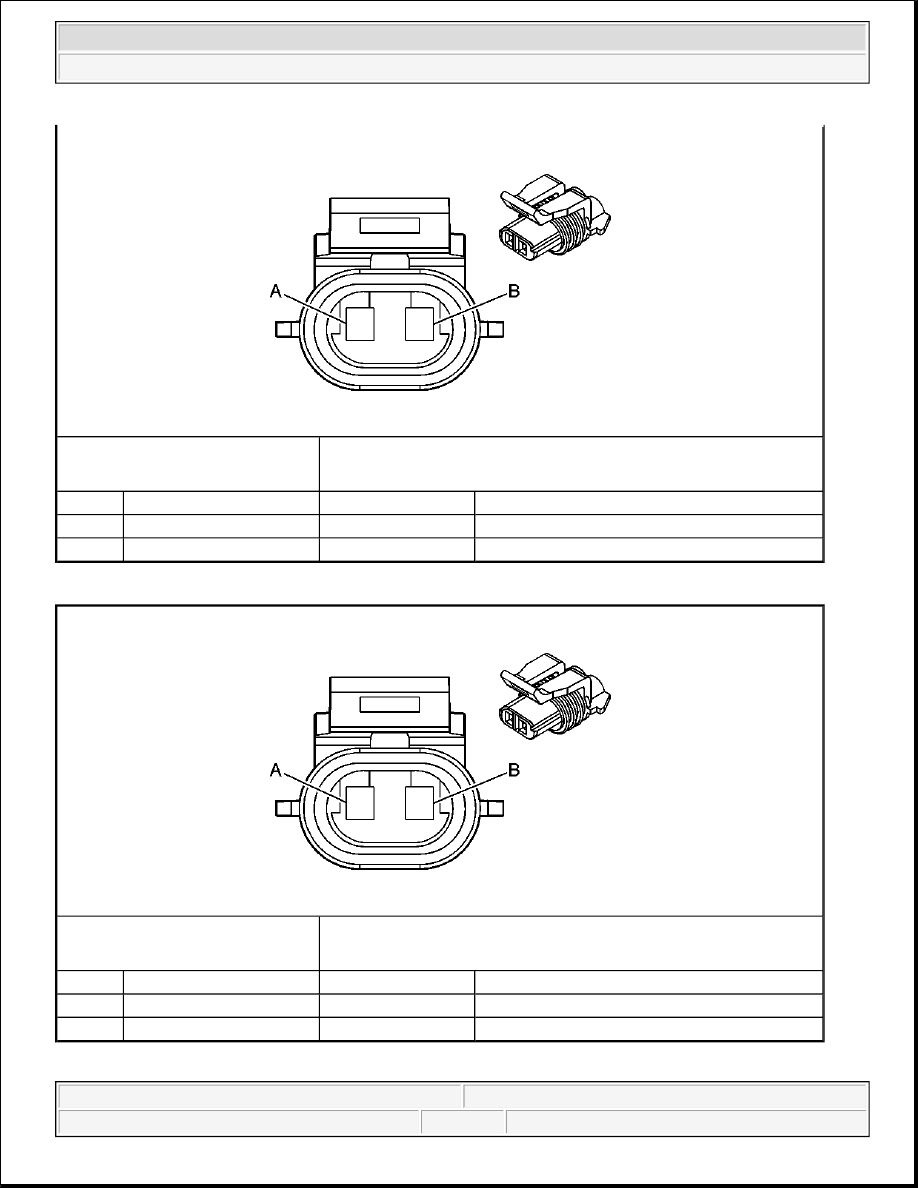

Liftgate Ajar Terminal Identification Switch - Right

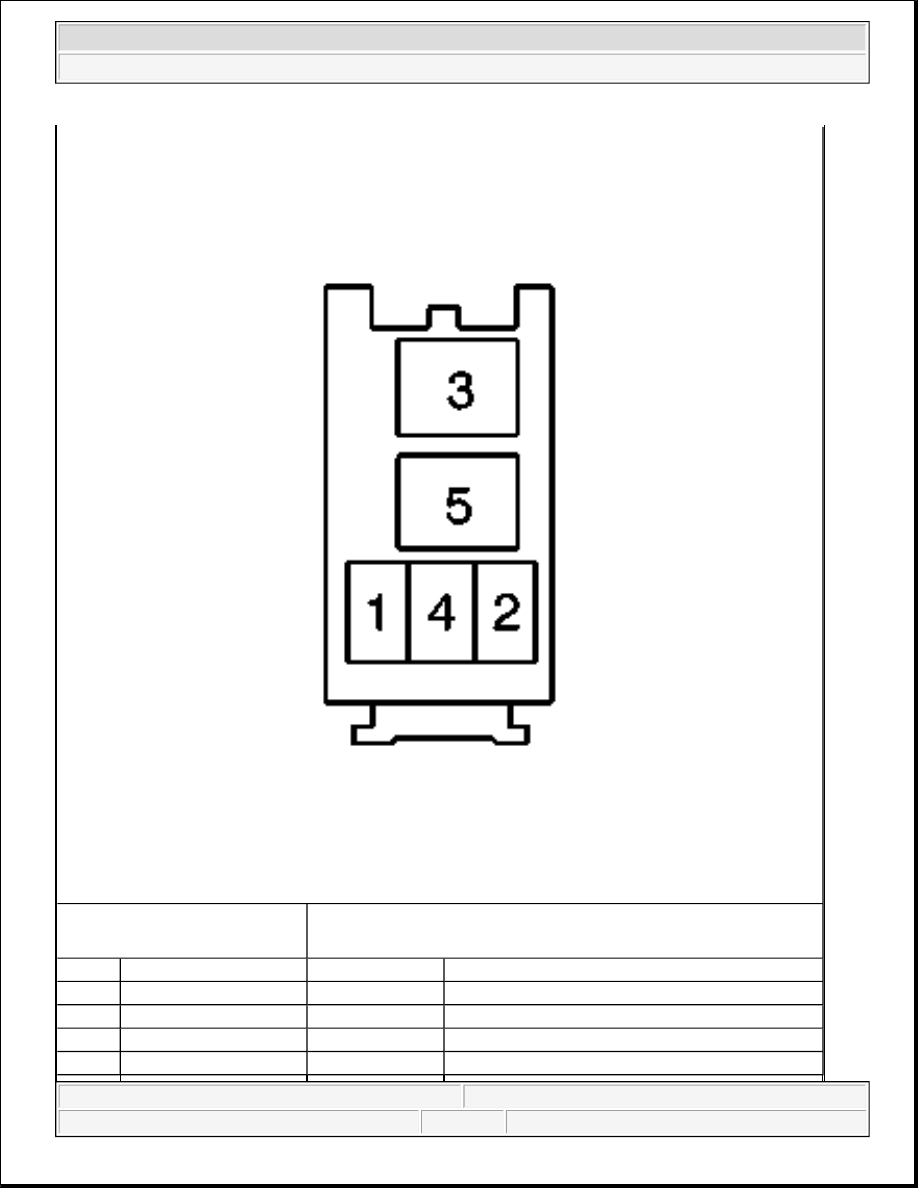

Door Lock Terminal Identification Relay - Liftgate

Connector Part Information

z

12052644

z

2-Way F Metri-Pack 150 Series Sealed (GY)

Pin

Wire Color

Circuit No.

Function

A

BK

1450

Ground

B

PK/BK

1303

Liftgate Ajar Switch Signal

Connector Part Information

z

12052644

z

2-Way F Metri-Pack 150 Series Sealed (GY)

Pin

Wire Color

Circuit No.

Function

A

BK

1450

Ground

B

PK/BK

1303

Liftgate Ajar Switch Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Connector Part Information

z

12065978

z

5-Way F Metri-Pack 480/630 Series Sealed (GY)

Pin

Wire Color

Circuit No.

Function

1

WH

1304

Liftgate Lock Relay Control

2

OG

3140

Battery Positive Voltage

3

GY

295

Door Lock Actuator Lock Control

4

BK

1450

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Outside Rear View Mirror - Driver (Driver Door Module (DDM) Terminal Identification - C3)

Outside Rear View Mirror - Driver (Driver Door Module (DDM) Terminal Identification - C4)

5

OG

3140

Battery Positive Voltage

Connector Part Information

z

6383393-7

z

10-Way F 0.64 mm Unsealed AMP (BU)

Pin

Wire Color

Circuit No.

Function

1-2

-

-

Not Used

3

BK

-

Driver Mirror Heating Element Low Reference

4

PU

-

Mirror Sensor Low Reference

5-6

-

-

Not Used

7

GY

-

Automatic Day/Night Mirror Signal

8

PK

-

Automatic Day/Night Mirror Low Reference

9-10

-

-

Not Used
