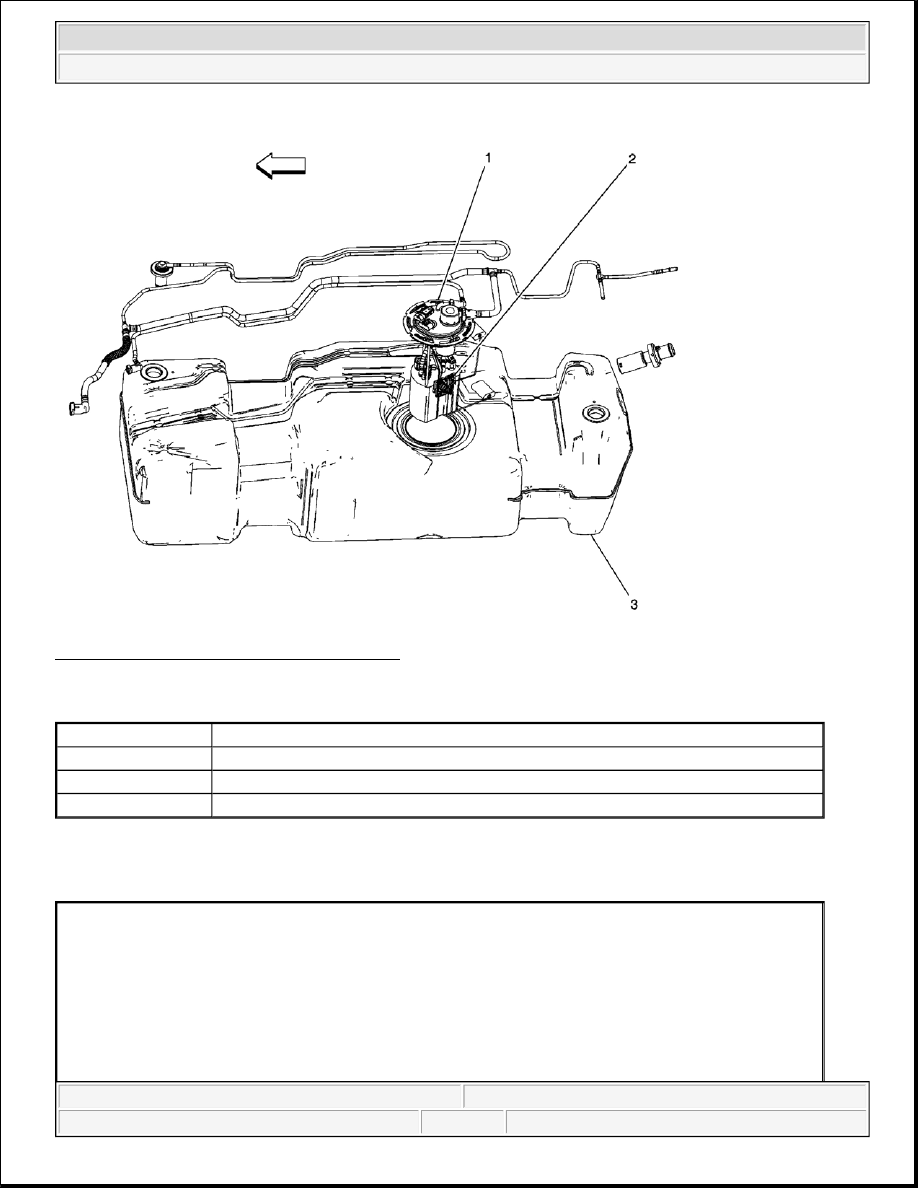

Fig. 10: Fuel Level Sensor Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

INSTRUMENT PANEL, GAUGES, AND CONSOLE CONNECTOR END VIEWS

Engine Oil Level Terminal Identification Switch

Callout

Component Name

1

Fuel Pump and Sender Assembly

2

Fuel Level Sensor

3

Fuel Tank



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Engine Oil Pressure (EOP) Terminal Identification Sensor

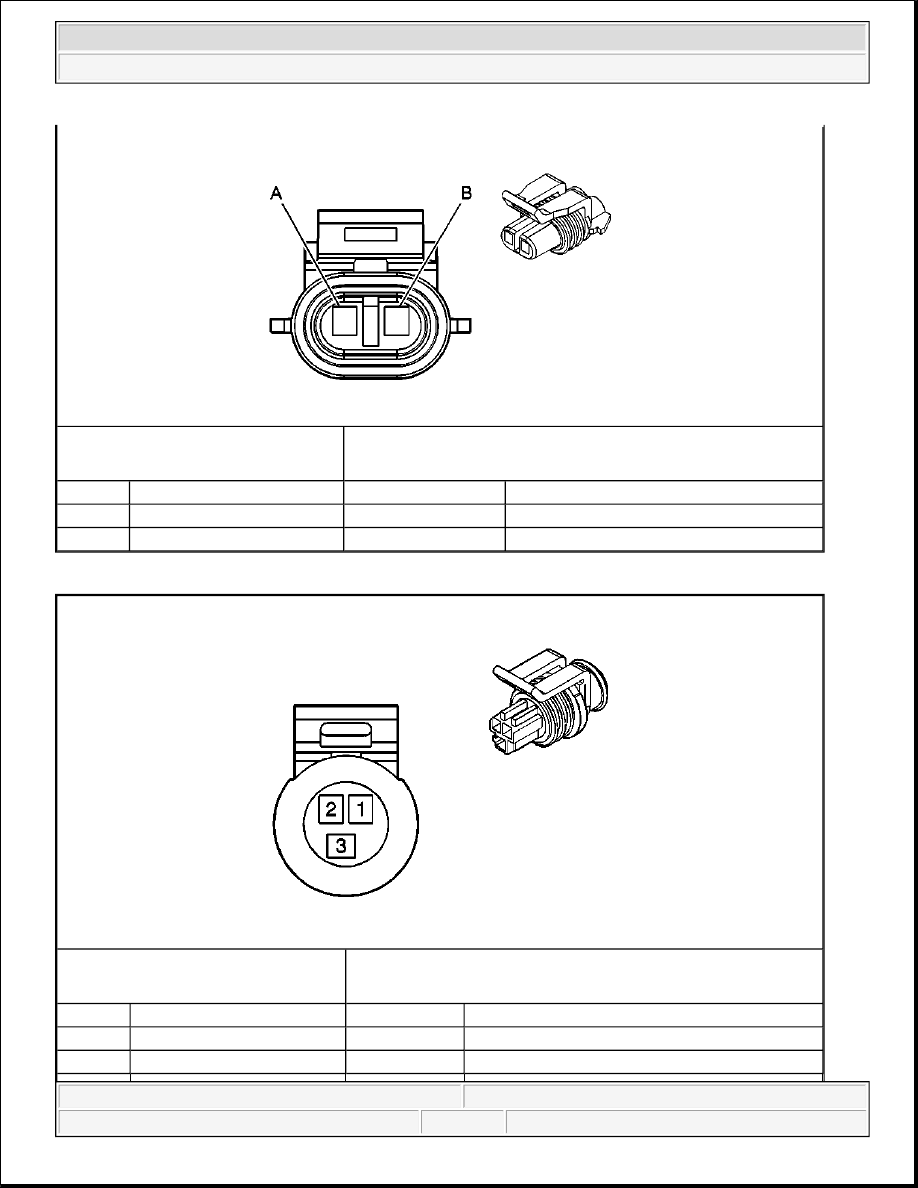

Connector Part Information

z

12052641

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

1174

Oil Level Switch Signal

B

BK/WH

451

Ground

Connector Part Information

z

15344137

z

3-Way F GT 150 Sealed 5.2 (BK)

Pin

Wire Color

Circuit No.

Function

1

BK

2755

Oil Pressure Sensor Low Reference

2

GY

2705

Oil Pressure Sensor 5-Volt Reference



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



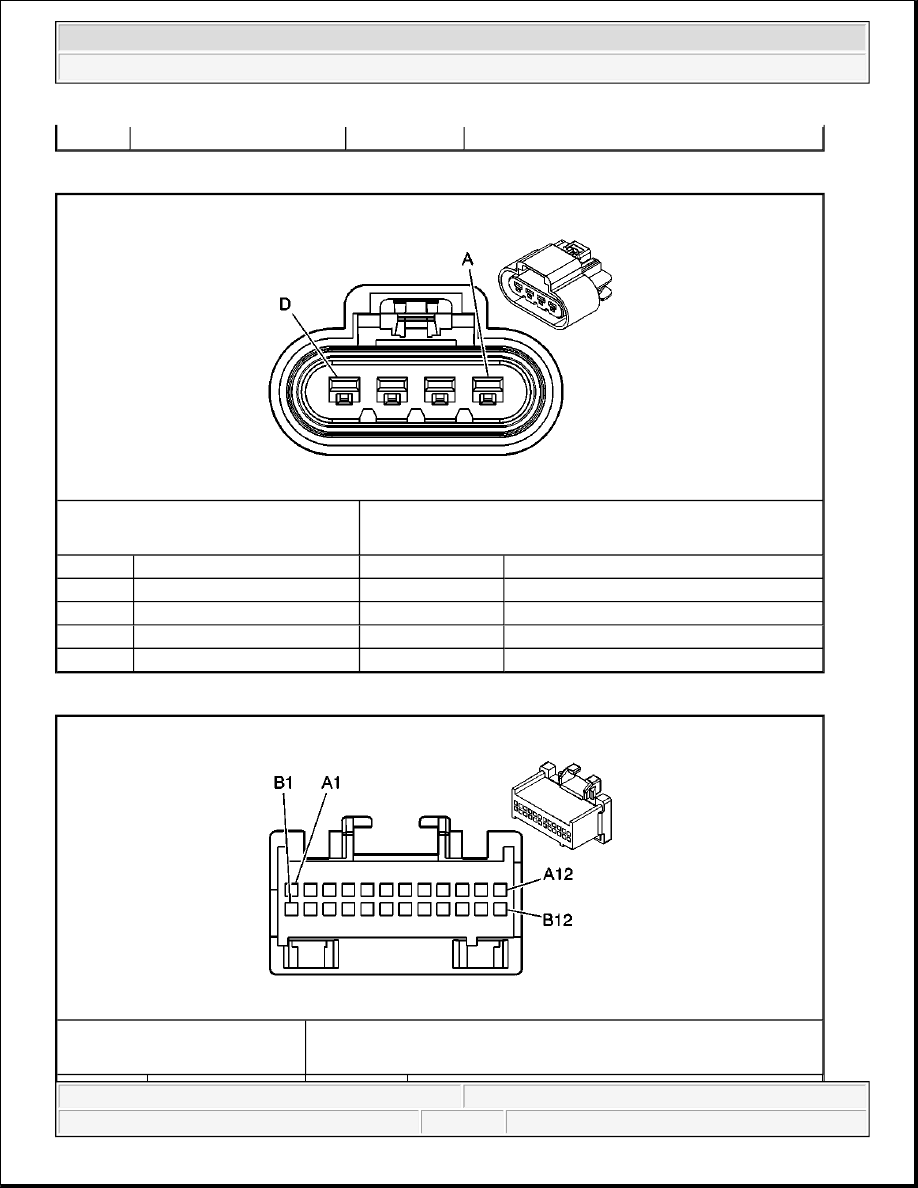

Fuel Pump and Sender Terminal Identification Assembly

Instrument Panel Cluster (IPC) Terminal Identification

3

TN/WH

332

Oil Pressure Sensor Signal

Connector Part Information

z

15326631

z

4-Way F GT 280 Sealed 5.8 (BK)

Pin

Wire Color

Circuit No.

Function

A

BK

2150

Ground

B

PU

1589

Fuel Level Sensor Signal

C

BK

470

Low Reference

D

GY

120

Fuel Pump Supply Voltage

Connector Part Information

z

12110088

z

24-Way F Micro-Pack 100 Series (GY)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Steering Wheel Controls Backlight Terminal Identification Fuse

Pin

Wire Color

Circuit No.

Function

A1

BN/WH

419

MIL Control

A2

-

-

Wait to Start

A3

BK/WH

174

Low Washer Fluid Indicator Signal

A4

D-GN/WH

817

Vehicle Speed Signal

A5

WH

121

Engine Speed Signal

A6

GY

1036

IPC Class 2 Serial Data

A7

-

-

IPC Class 2 Serial Data

A8

D-BU

2115

Right Turn Signal Lamps Supply Voltage

A9

-

-

SBA Signal

A10

-

-

Park Switch Input

A11

RD

2353

Instrument Panel Lamps Dimming Supply Voltage

A12

BK

1050

Ground

B1

L-BU

2114

Left Turn Signal Lamps Supply Voltage

B2-B3

-

-

Not Used

B4

OG

1816

DIC Select Switch Signal

B5

D-BU

894

DIC Trip Info Switch Signal

B6

D-GN/WH

1358

DIC Personalization Switch Signal

B7

YE

1327

DIC Fuel Info Switch Signal

B8

-

-

Not Used

B9

PK

639

Ignition 1 Voltage

B10

-

-

Not Used

B11

OG

2840

Battery Positive Voltage

B12

BK/WH

1851

Ground
