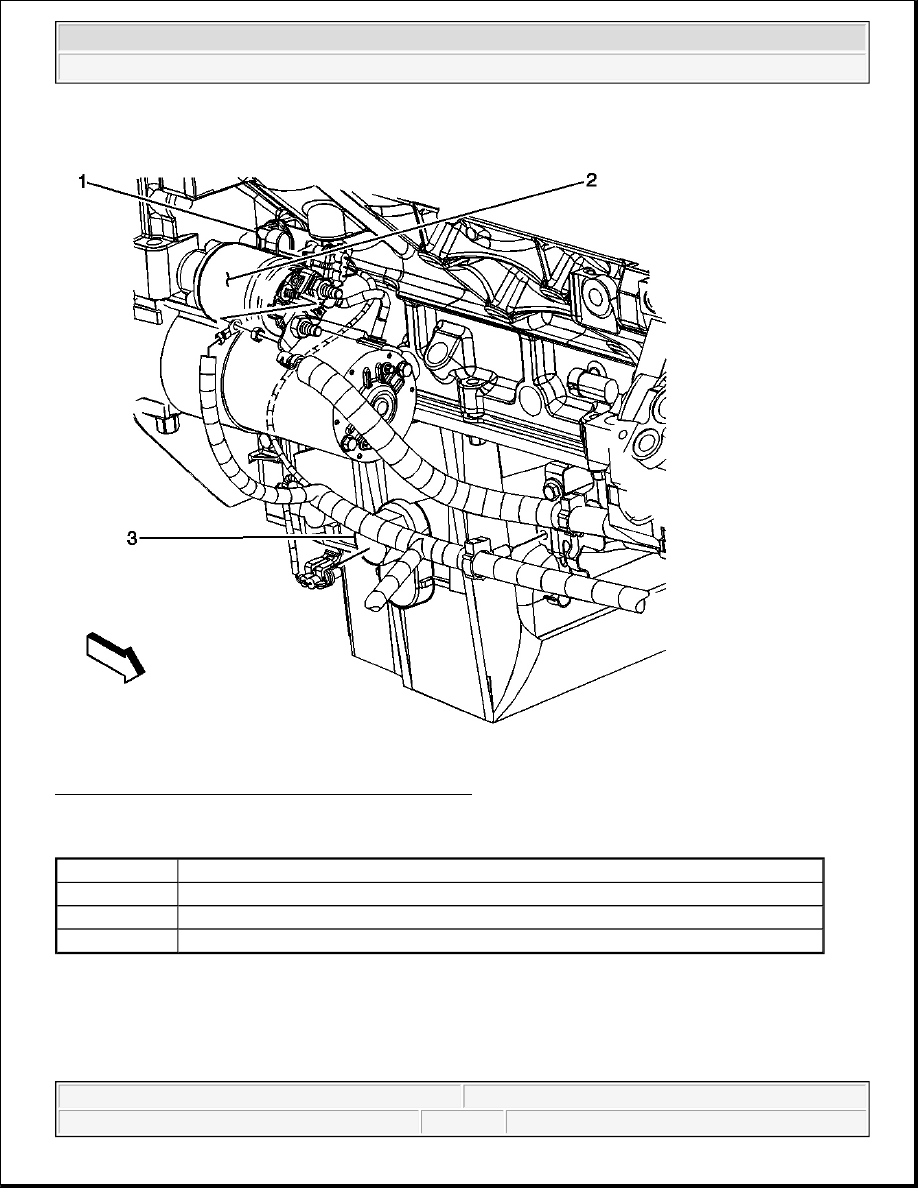

Fig. 6: Lower Right Side Of Engine Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 6

Callout

Component Name

1

Crankshaft Position (CKP) Sensor Connector

2

Starter Motor

3

Engine Oil Level Switch



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



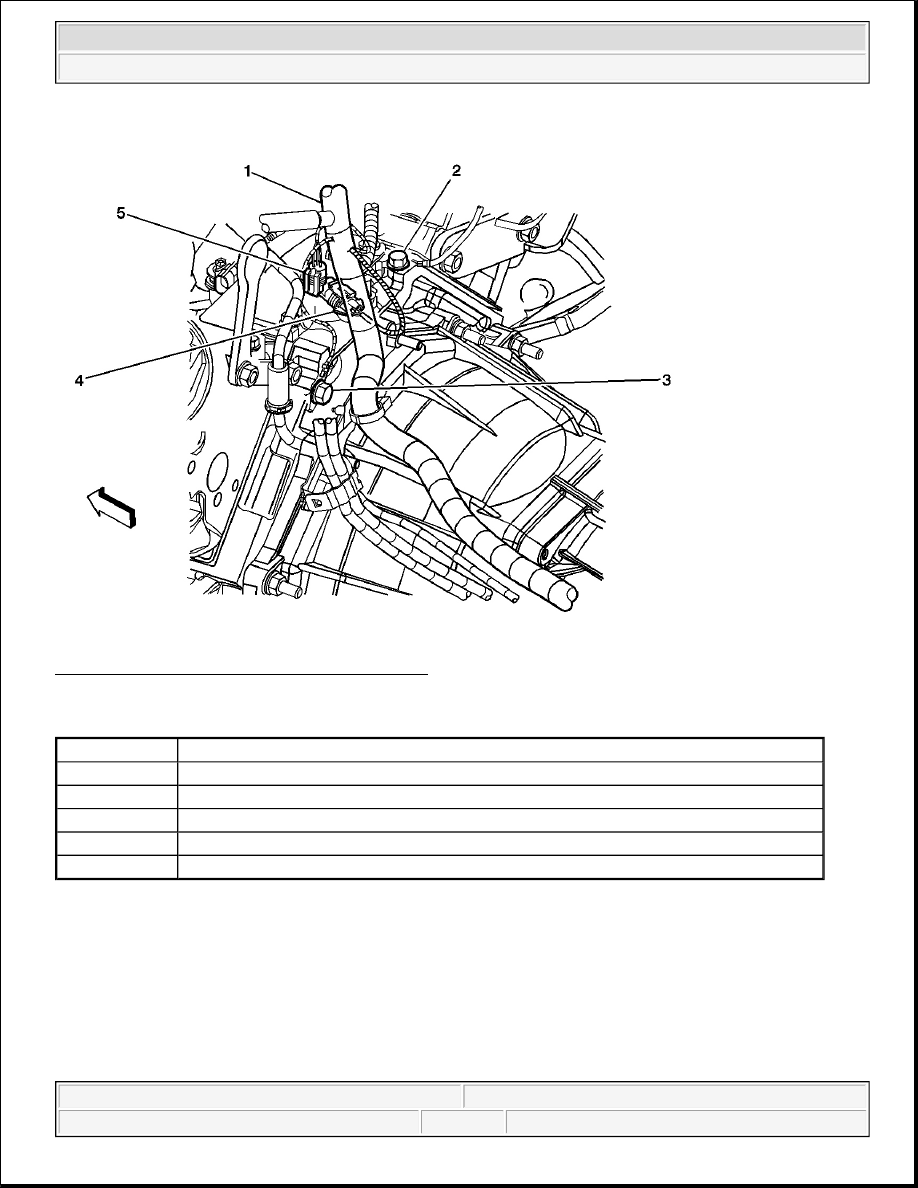

Fig. 7: Upper Rear Of Engine Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 7

Callout

Component Name

1

Engine Harness

2

G103 - Engine Harness Ground

3

G104

4

Camshaft Position (CMP) Sensor Connector

5

Engine Oil Pressure (EOP) Sensor Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



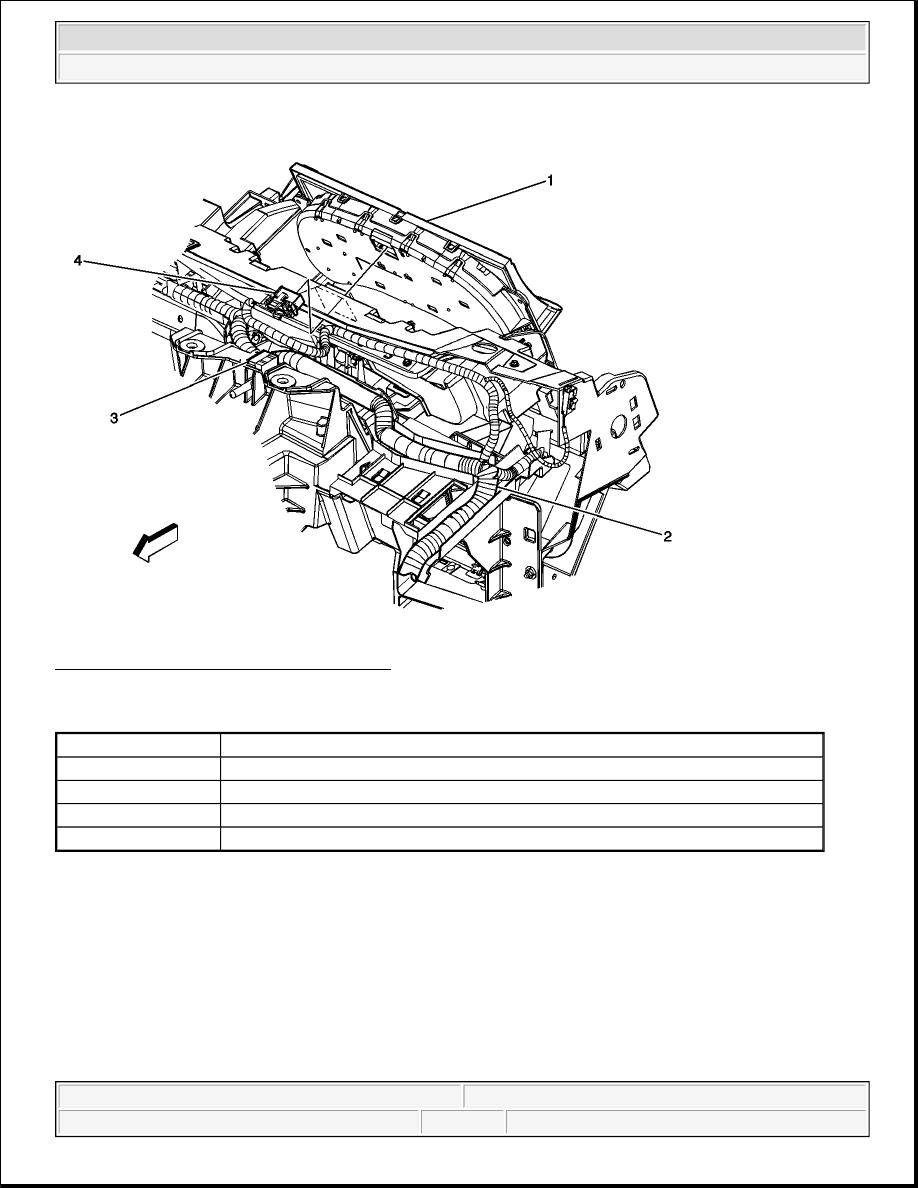

Fig. 8: Upper Left Of I/P Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 8

Callout

Component Name

1

Instrument Panel Cluster (IPC)

2

I/P Harness

3

C210 - I/P Harness Side

4

IPC Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



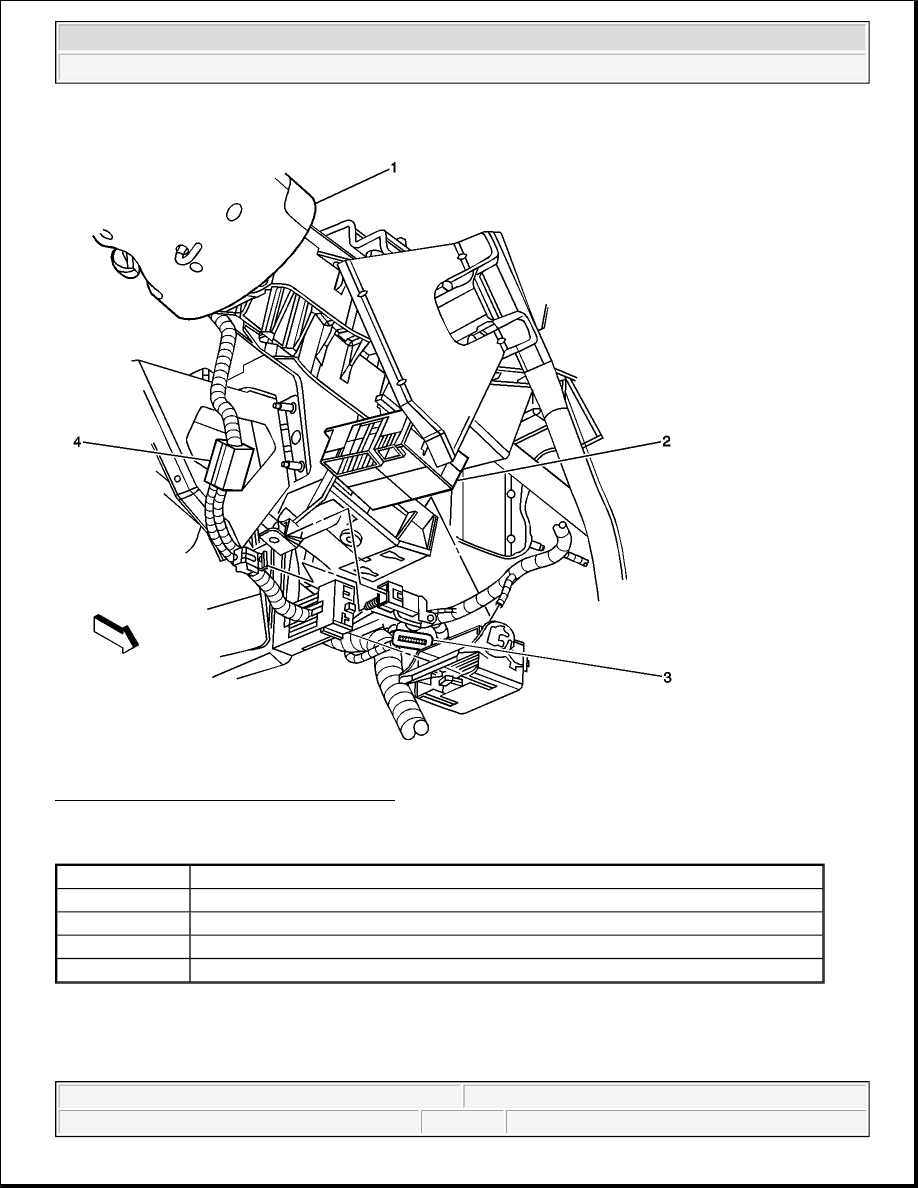

Fig. 9: Splice Pack SP206 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9

Callout

Component Name

1

Steering Column

2

Transfer Case Shift Control Module

3

Splice Pack SP206

4

Steering Wheel Controls Backlight Fuse
