2004 ACCESSORIES & EQUIPMENT

Instrument Panel, Gauges, and Console - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

FUEL LEVEL SPECIFICATIONS

The information in this table is intended for use with the J 33431-C Signal Generator and Instrument Panel
Tester. See Special Tools and Equipment . The fuel level sensor values represent the test values to be used on
the Signal Generator to drive the fuel gauge display to the indicated positions. Vehicles that require more than
one fuel level sensor calculate gauge position from many possible resistance combinations of fuel levels
between the two tanks. Therefore, the values in the table may not correlate directly to readings taken from the
vehicle primary or secondary sending units.

Application

Specification

Metric

English

Center Stack Trim Panel

2 N.m

18 lb in

Closeout Panels to Center Stack

2 N.m

18 lb in

Cluster Trim Panel Screws

2 N.m

18 lb in

Console Extension Trim Bezel Screws

2 N.m

18 lb in

Data Link Connectors (DLC) Screws

2 N.m

18 lb in

DIC and Power Outlet Bracket Screws

1.6 N.m

14 lb in

Driver Side Kick Panel Screws

2 N.m

18 lb in

Floor Console Bracket Bolts

9 N.m

80 lb in

Floor Console End Panel Screws

1.6 N.m

14 lb in

Floor Console Top Panel Screws

2 N.m

18 lb in

HVAC Control Module to Center Stack

2 N.m

18 lb in

Instrument Panel Assembly to Carrier Support Screws

9 N.m

80 lb in

Instrument Panel Carrier Side Bolts

50 N.m

37 lb ft

Instrument Panel Upper Trim Pad Retaining Screws

2 N.m

18 lb in

Knee Bolster Screws

2 N.m

18 lb in

Onstar Module to Center Stack

2 N.m

18 lb in

Passenger Side Air Bag (PSIR) Bolts

2 N.m

18 lb in

Radio to Center Stack

2 N.m

18 lb in

Shift Handle Mounting Screw

1.6 N.m

14 lb in

Substraight to Frame Bolts

9 N.m

80 lb in

Subwoofer to Base Units

2 N.m

18 lb in

Traction Control Module to Center Stack

2 N.m

18 lb in



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



The values in the table are approximate values based on information obtained from properly operating vehicles.
Actual results may vary slightly.

Fuel Level Specifications

SCHEMATIC AND ROUTING DIAGRAMS

INSTRUMENT PANEL, GAUGES, AND CONSOLE SCHEMATIC ICONS

Instrument Panel, Gauges, and Console Schematic Icons

INSTRUMENT CLUSTER SCHEMATICS

Fuel Gauge Display

Resistance

Sender Voltage

Fuel Level

E

225-240 ohm

2.5 V

0-13%

1/4

185-220 ohm

2.3 V

20-30%

1/2

135-165 ohm

1.9 V

45-50%

3/4

83-110 ohm

1.4 V

73-83%

F

50-62 ohm

0.9 V

88-100%

Low Fuel Indicator On

220-232 ohm

2.4 V

0-13%

Icon

Icon Definition

CAUTION:

When performing service on or near the SIR
components or the SIR wiring, the SIR
system must be disabled. Refer to SIR
Disabling and Enabling Zones. Failure to
observe the correct procedure could cause
deployment of the SIR components, personal
injury, or unnecessary SIR system repairs.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



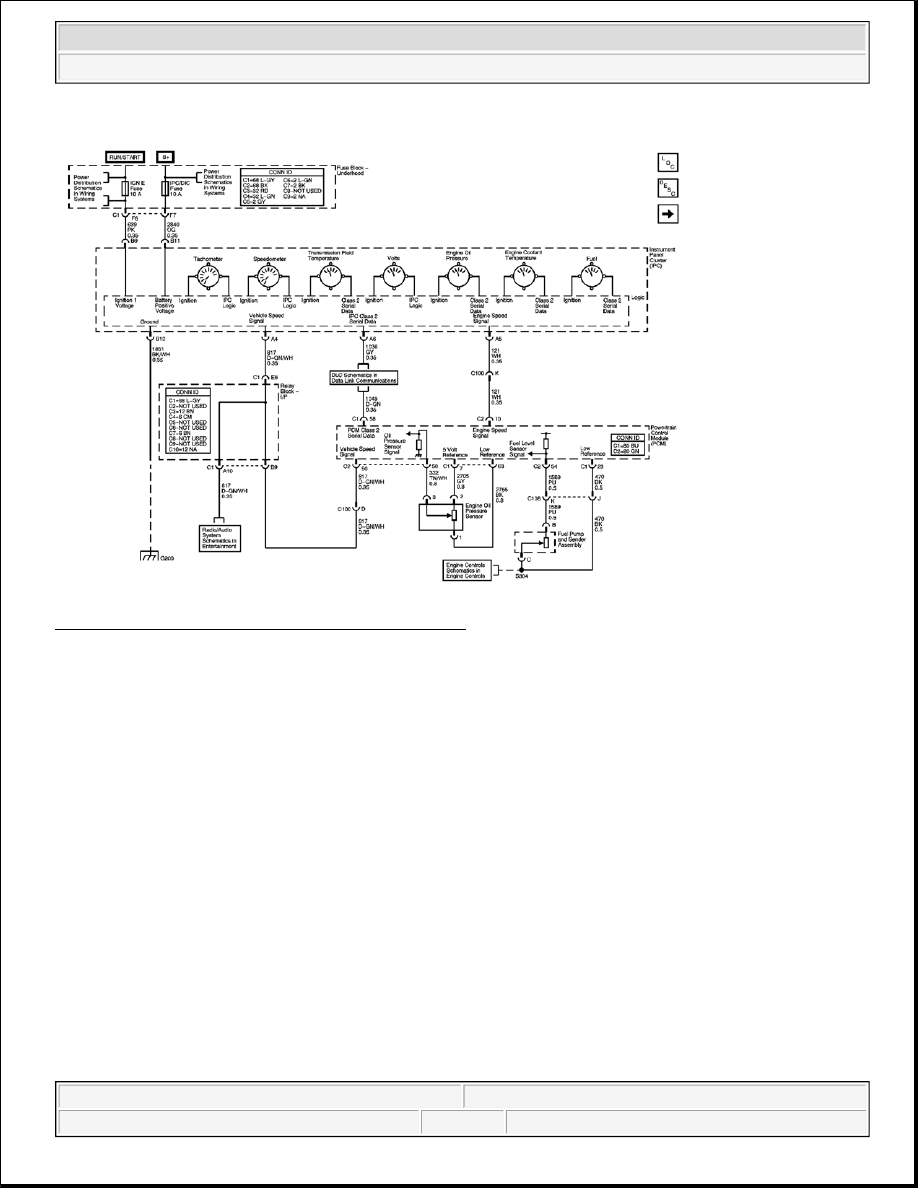

Fig. 1: Power, Grounding, DLC, Sensors, and Gauges
Courtesy of GENERAL MOTORS CORP.
