Fig. 63: I/P Compartment Lamp Switch
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the electrical connector (1) from the I/P compartment lamp switch.

6. Remove the I/P compartment lamp switch (2).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



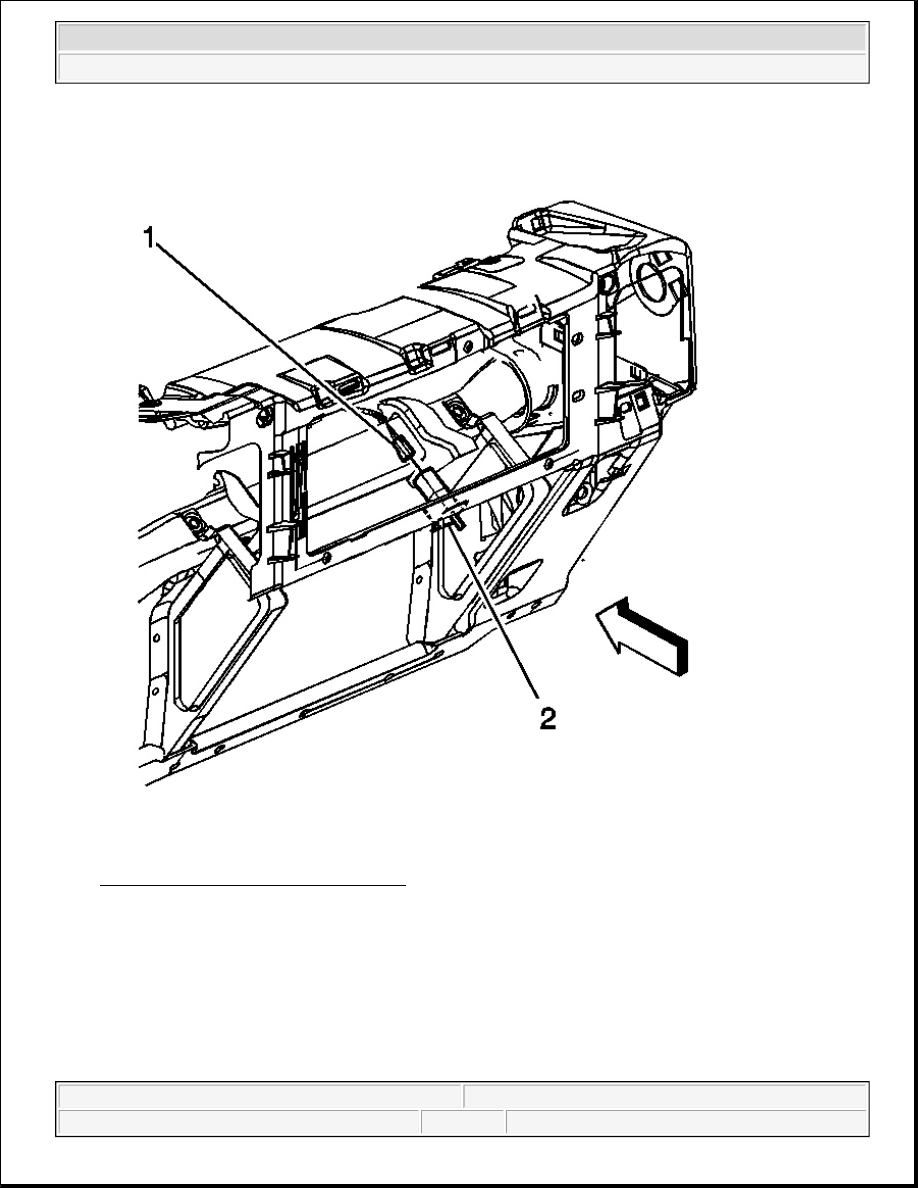

Fig. 64: I/P Compartment Lamp Switch
Courtesy of GENERAL MOTORS CORP.

1. Connect the electrical connector (1) to the I/P compartment lamp switch.

2. Depress the switch plunger (2).

3. Slide the assembly upward into the retainer.

4. Close the instrument panel storage compartment.

VANITY MIRROR LAMP REPLACEMENT



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Removal Procedure

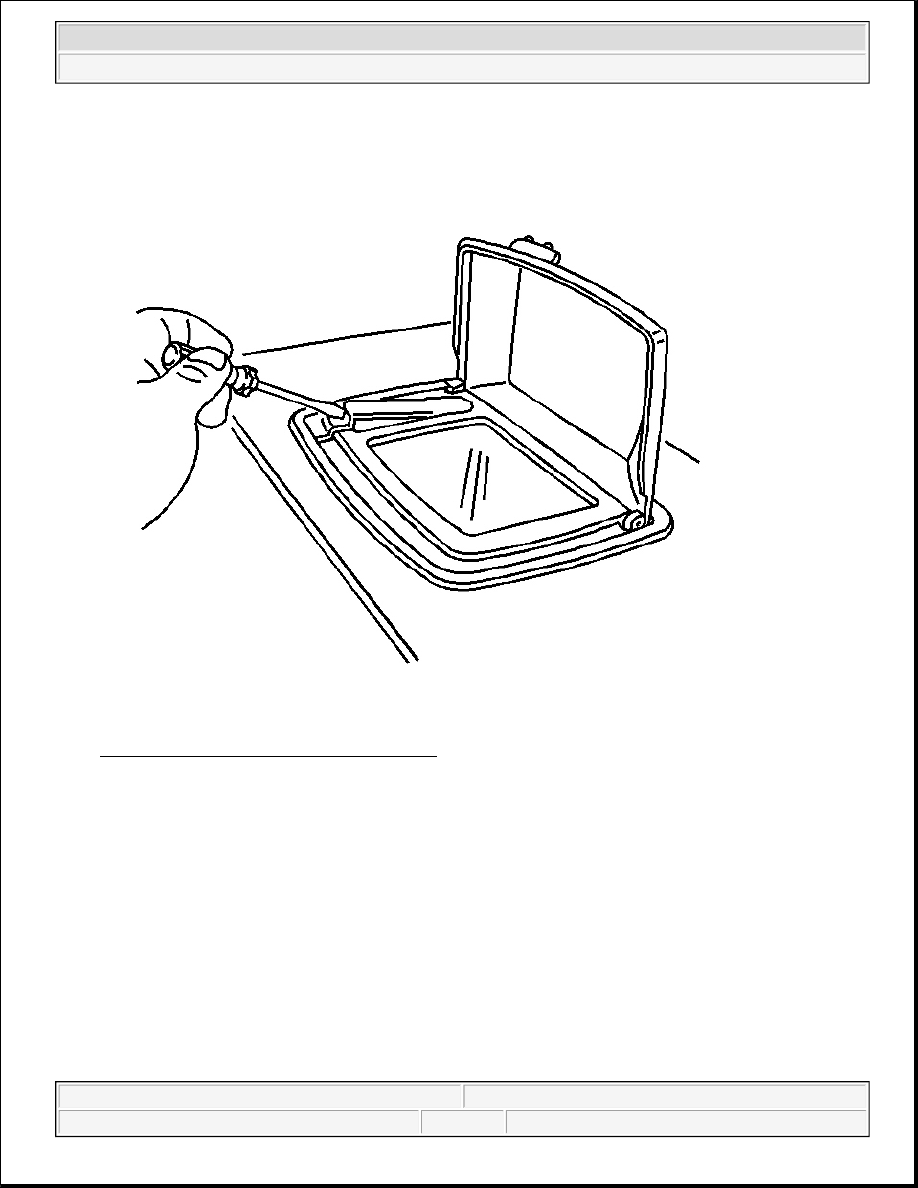

Fig. 65: Vanity Light Lens & Retaining Tab
Courtesy of GENERAL MOTORS CORP.

1. Fold down the sunshade.

2. Open the cover to the vanity mirror in order to reveal the vanity light.

3. Use a flat bladed tool in order to release the retaining tab on the vanity light lens.

4. Remove the vanity light lens from the vanity mirror.

5. Remove the bulb from the socket.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



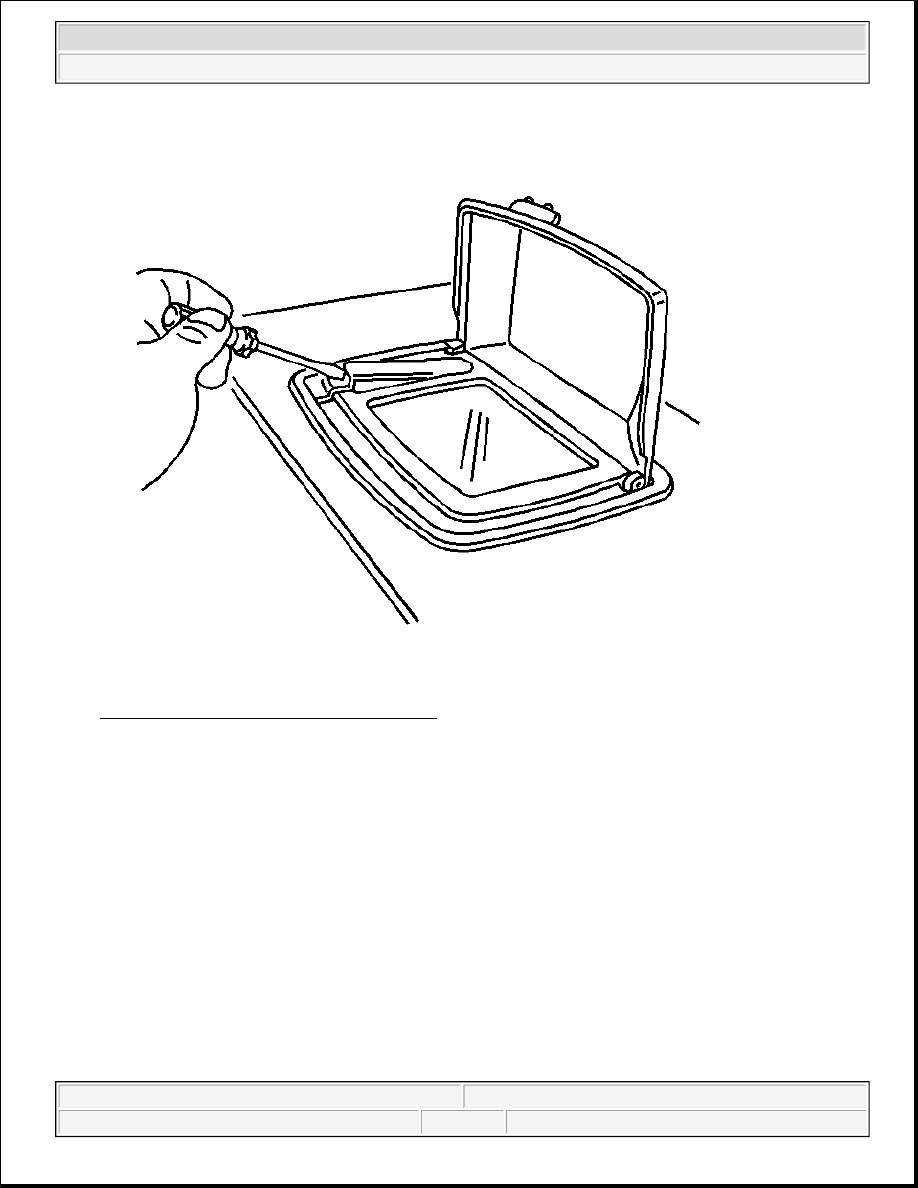

Fig. 66: Vanity Light Lens & Retaining Tab
Courtesy of GENERAL MOTORS CORP.

1. Install the bulb to the socket.

2. Install the vanity light lens to the vanity mirror ensuring the retaining tab is fully seated.

3. Close the cover to the vanity mirror.

4. Return the sunshade to the folded up position.

DOME LAMP REPLACEMENT

Removal Procedure
