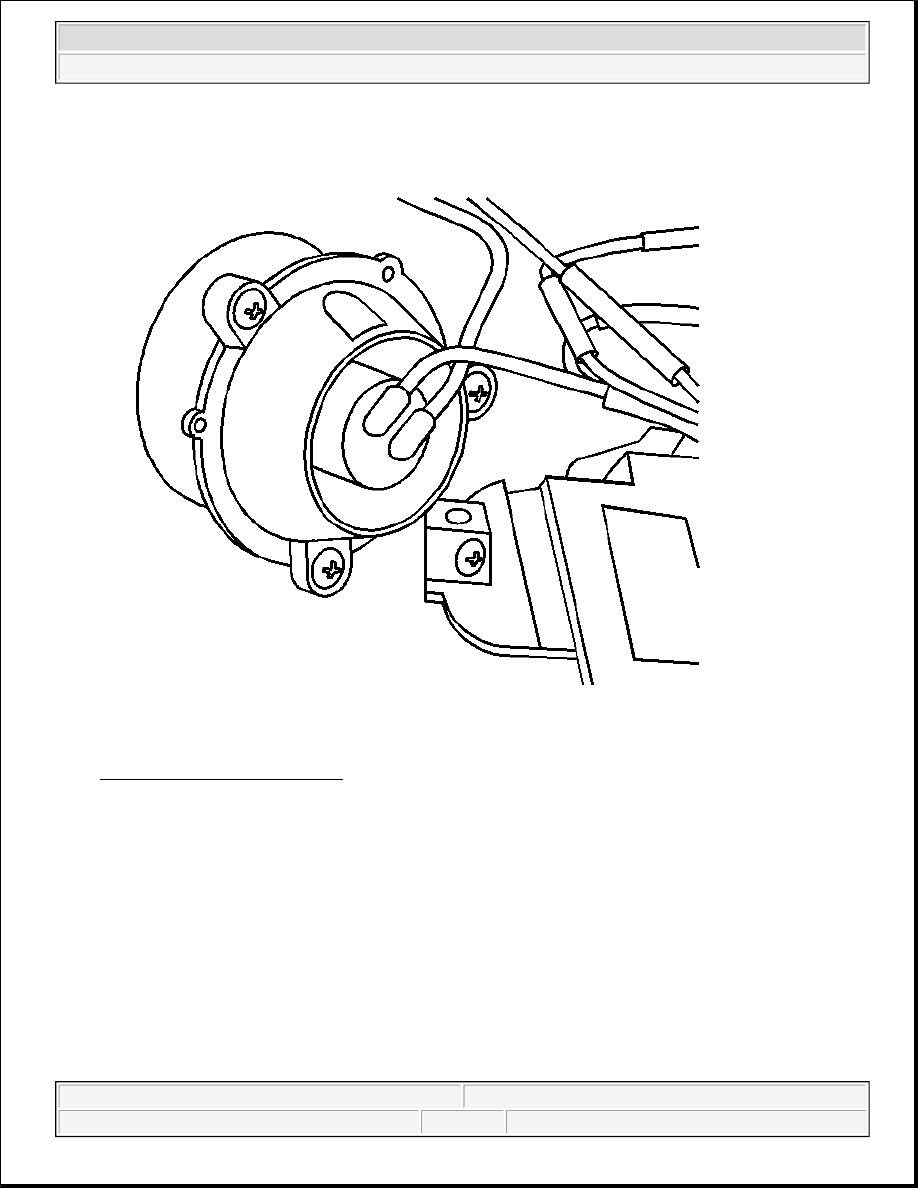

Fig. 55: Lamp Socket Assembly
Courtesy of GENERAL MOTORS CORP.

5. Remove the lamp socket assembly from the overhead console.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Fig. 56: Lamp Socket Assembly
Courtesy of GENERAL MOTORS CORP.

1. Fasten the new lamp socket to the overhead console.

Tighten: Tighten the screws to 2 N.m (18 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Fig. 57: Electrical Connector & Reading Lamp
Courtesy of GENERAL MOTORS CORP.

2. Connect the electrical connectors to the reading lamp.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

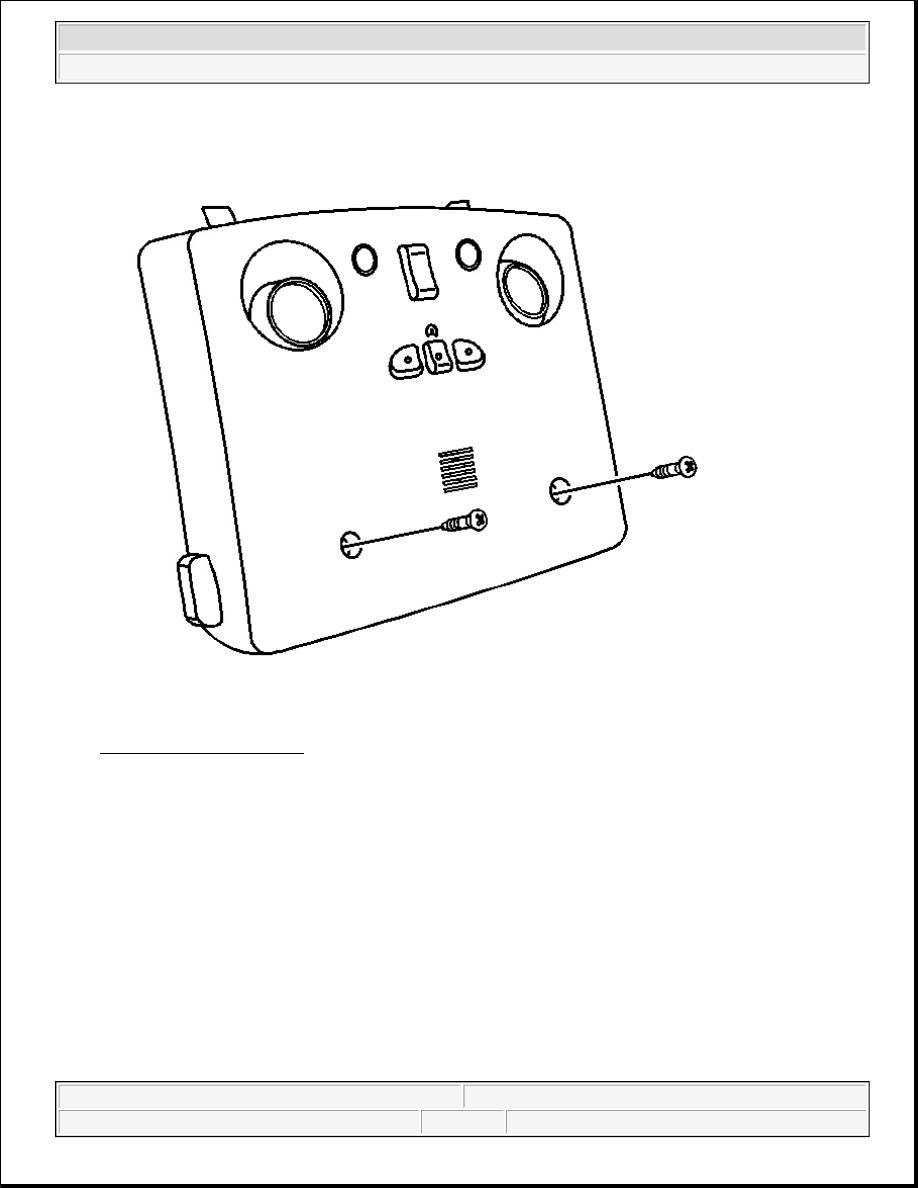

Fig. 58: Overhead Console
Courtesy of GENERAL MOTORS CORP.

3. Attach the overhead console to the headliner.

Tighten: Tighten the screws to 2 N.m (18 lb in).
