Hummer H2. Manual - part 333

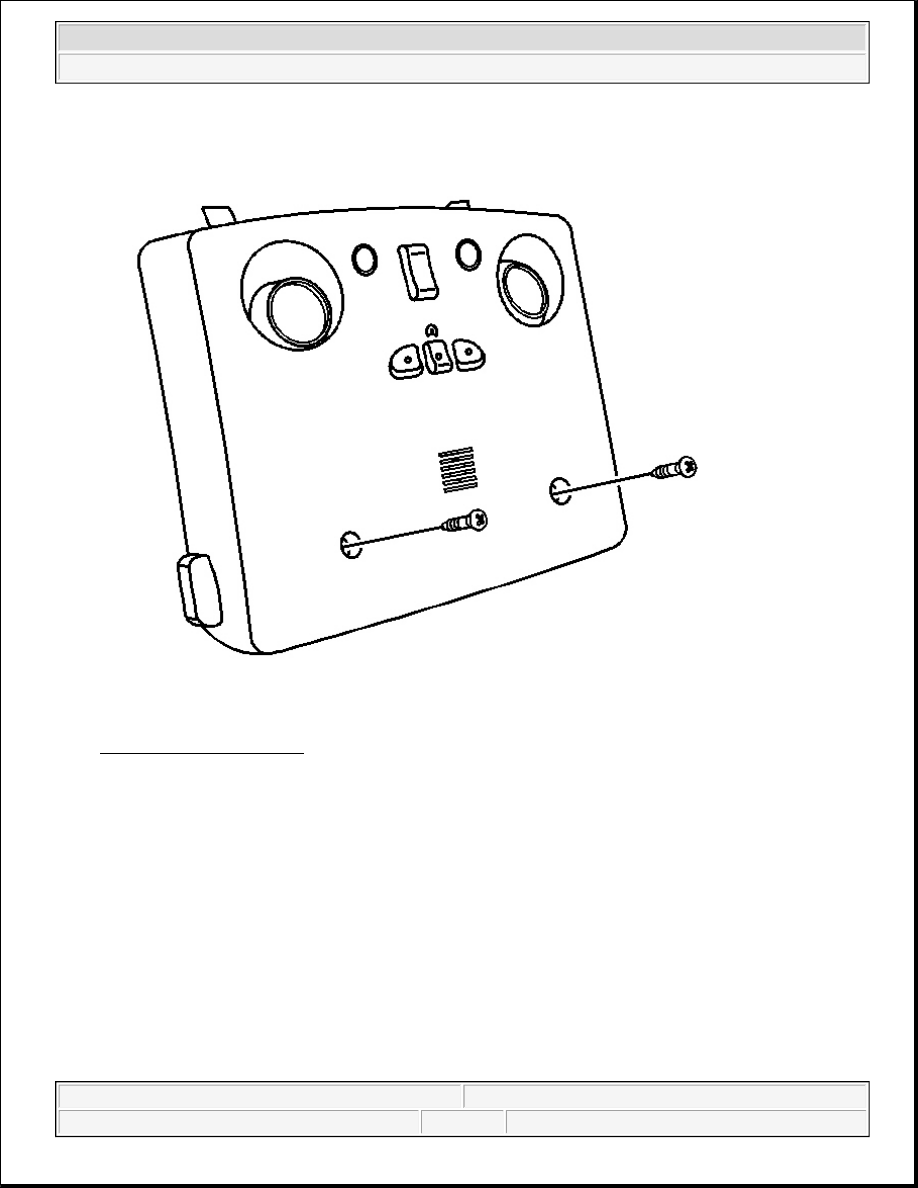

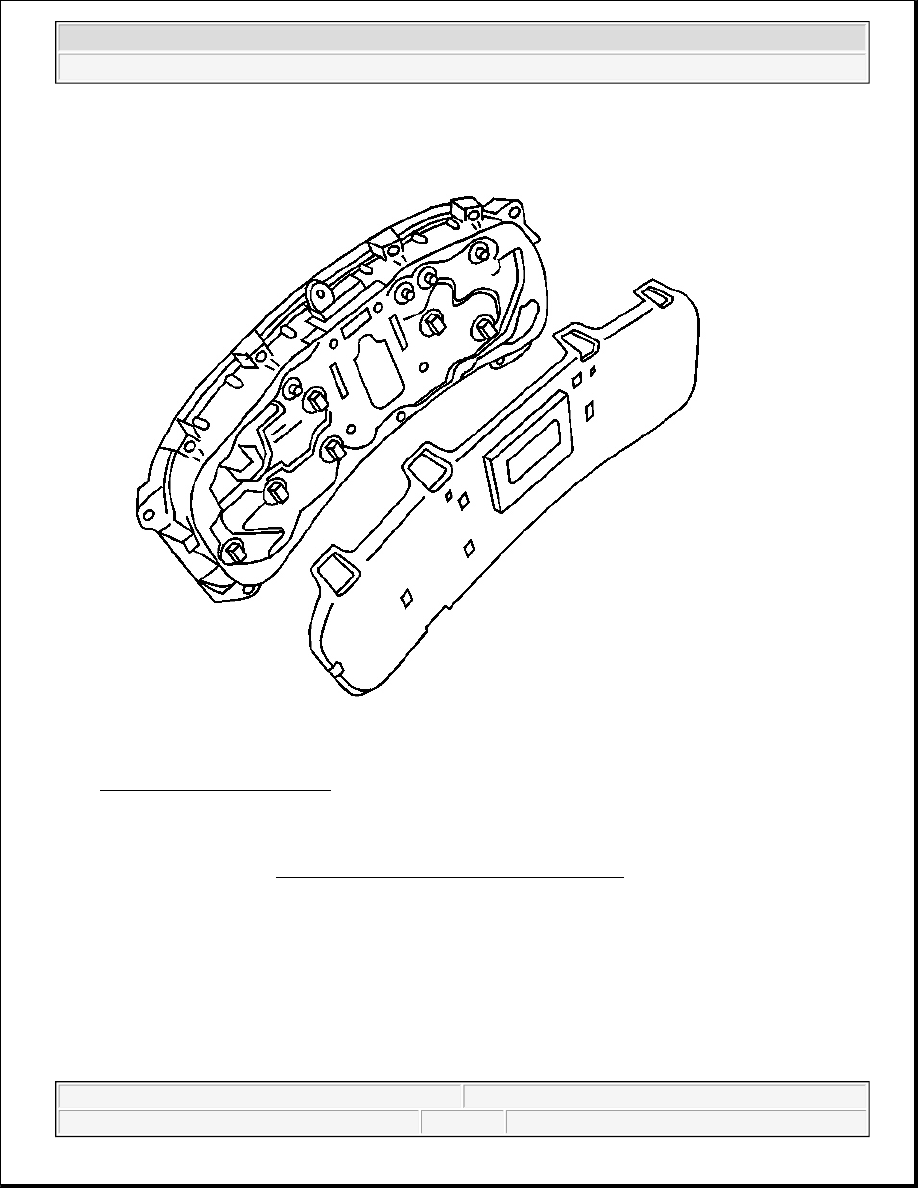

Fig. 51: IPC Rear Cover Plate
Courtesy of GENERAL MOTORS CORP.

3. Carefully snap the rear cover plate to the IPC.

4. Install the IPC. Refer to Instrument Panel Cluster (IPC) Replacement in Instrument Panel, Gauges and

Console.

READING LAMP AND BULB REPLACE - OVERHEAD CONSOLE

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Fig. 52: Reading Lamp Lens
Courtesy of GENERAL MOTORS CORP.

1. Use a flat bladed tool and pop the reading lamp lens from the forward console.

2. Turn the bulb 1/4 turn and remove the bulb from the reading lamp socket.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



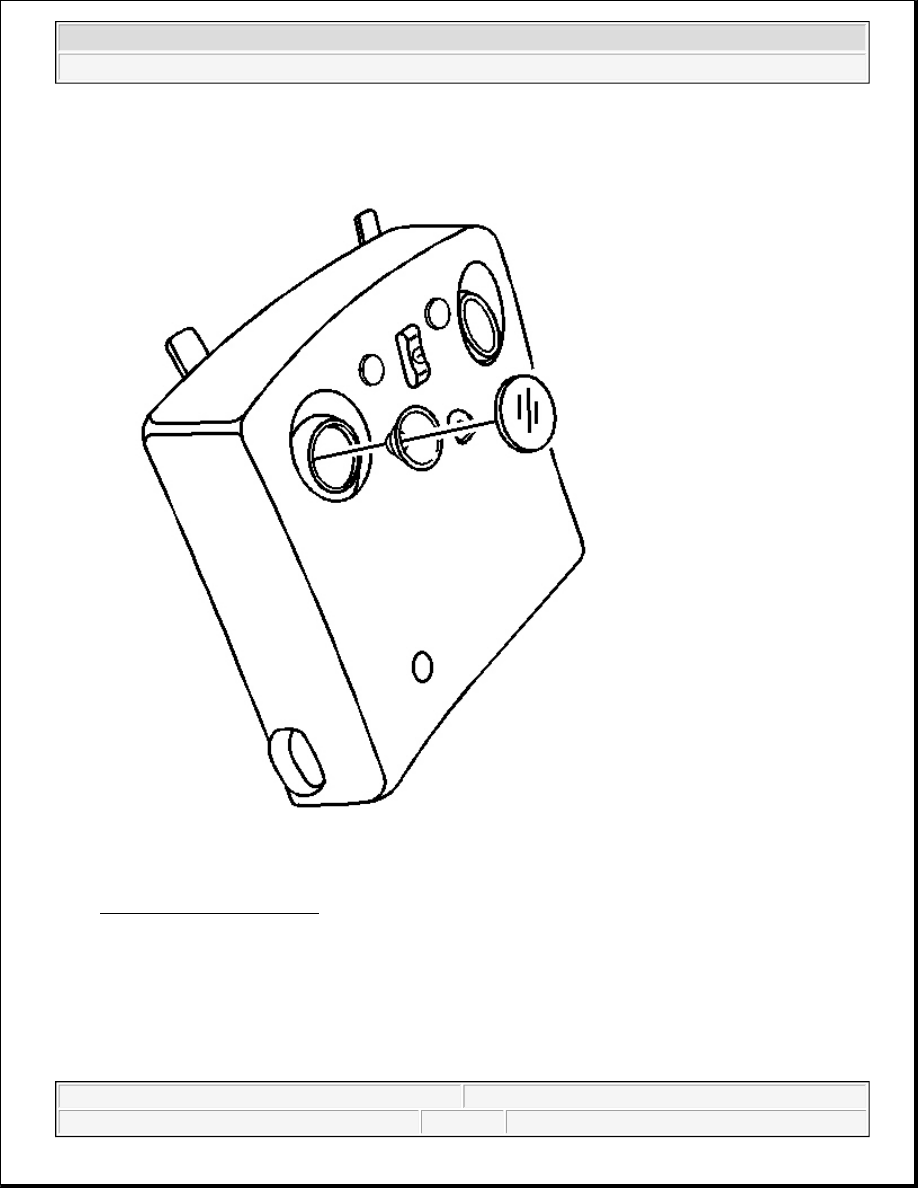

Fig. 53: Overhead Console
Courtesy of GENERAL MOTORS CORP.

3. Remove the overhead console.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



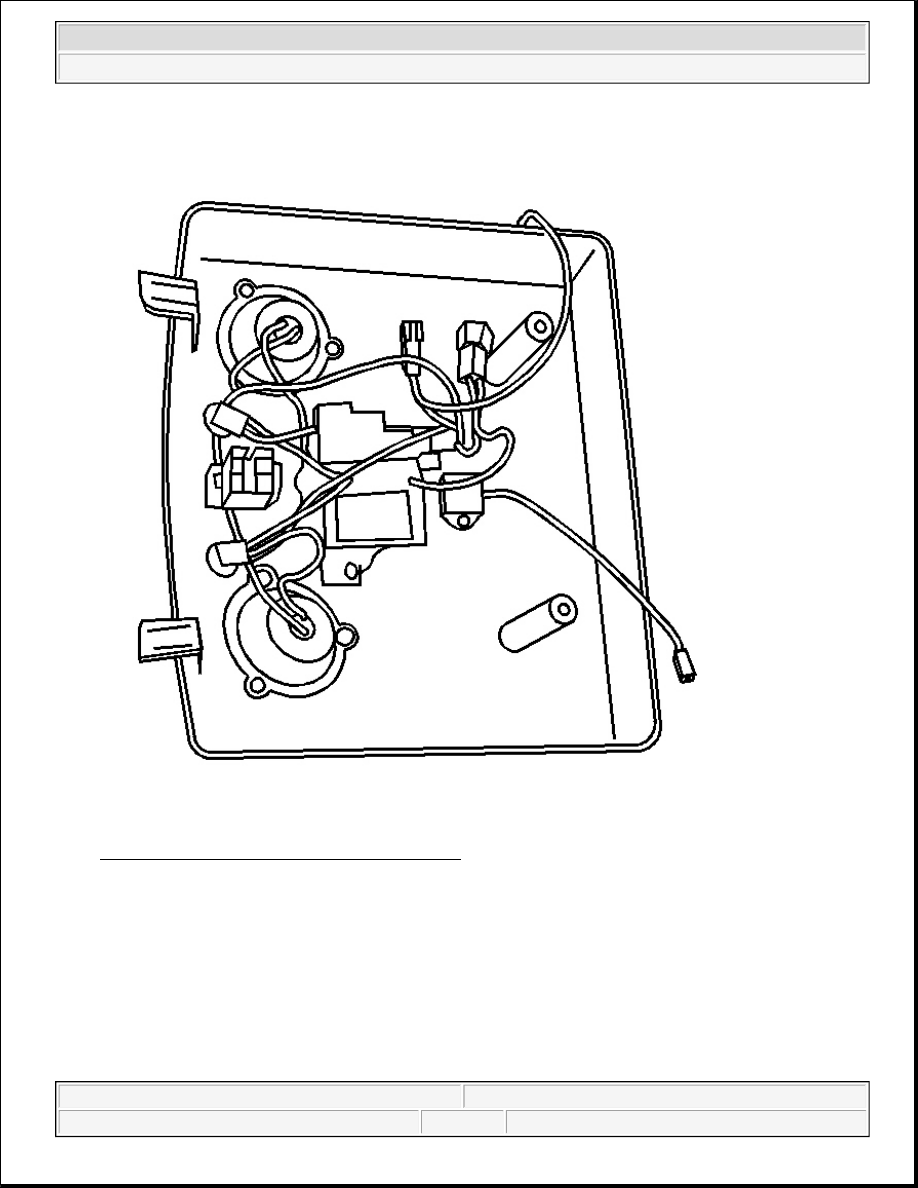

Fig. 54: Electrical Connector & Reading Lamp
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the electrical connector from the reading lamp.
