Hummer H2. Manual - part 2712

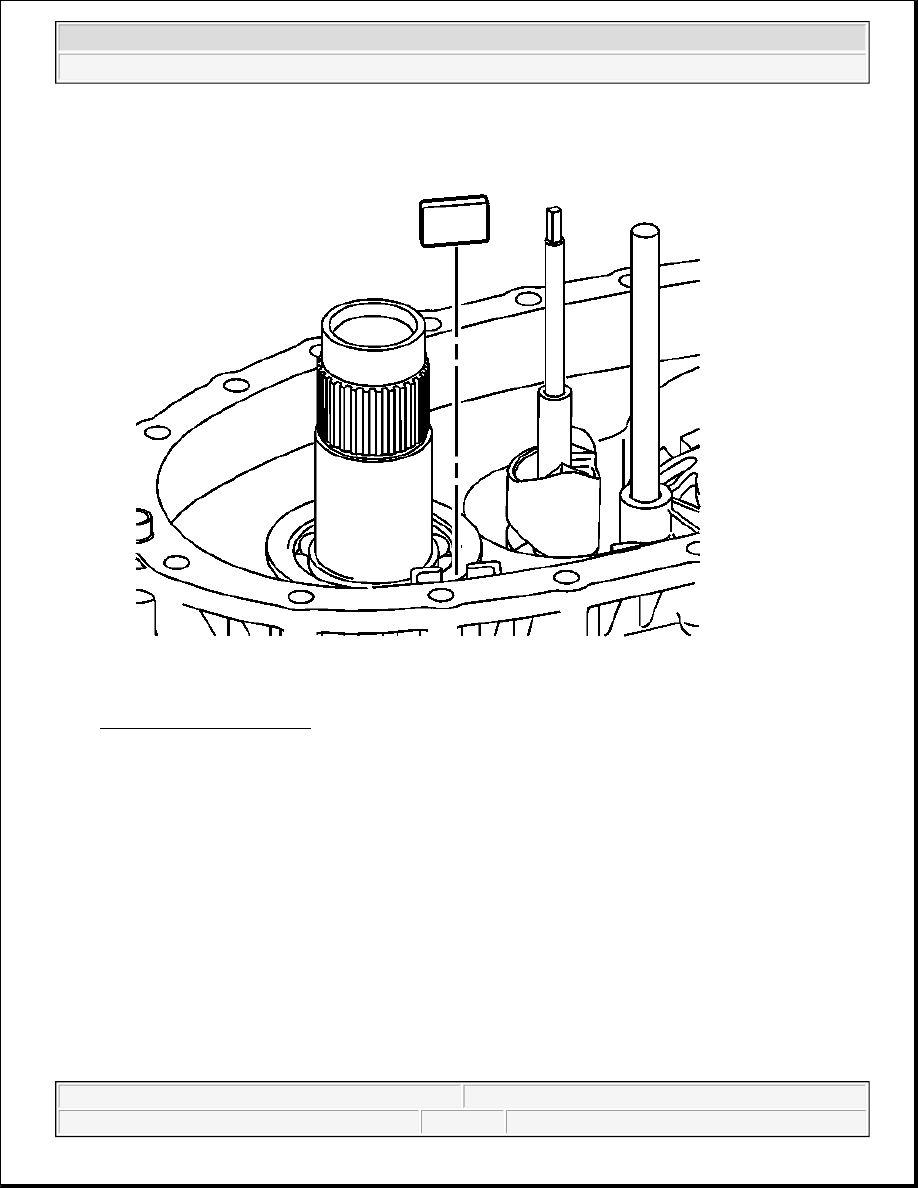

Fig. 26: Identifying Magnet
Courtesy of GENERAL MOTORS CORP.

32. Remove the magnet.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



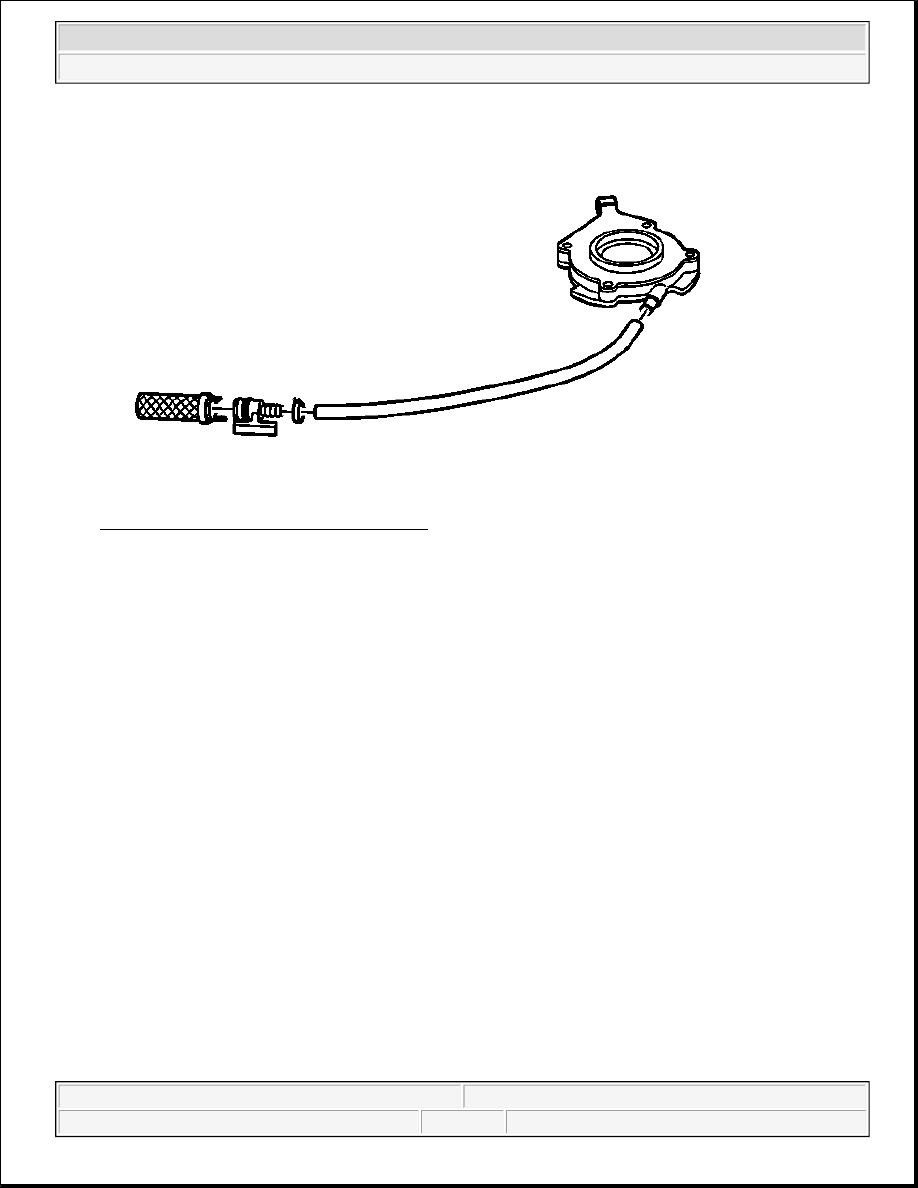

Fig. 27: Expanded View Of Oil Pump Assembly
Courtesy of GENERAL MOTORS CORP.

33. Remove the oil pump assembly with the hose and screen.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



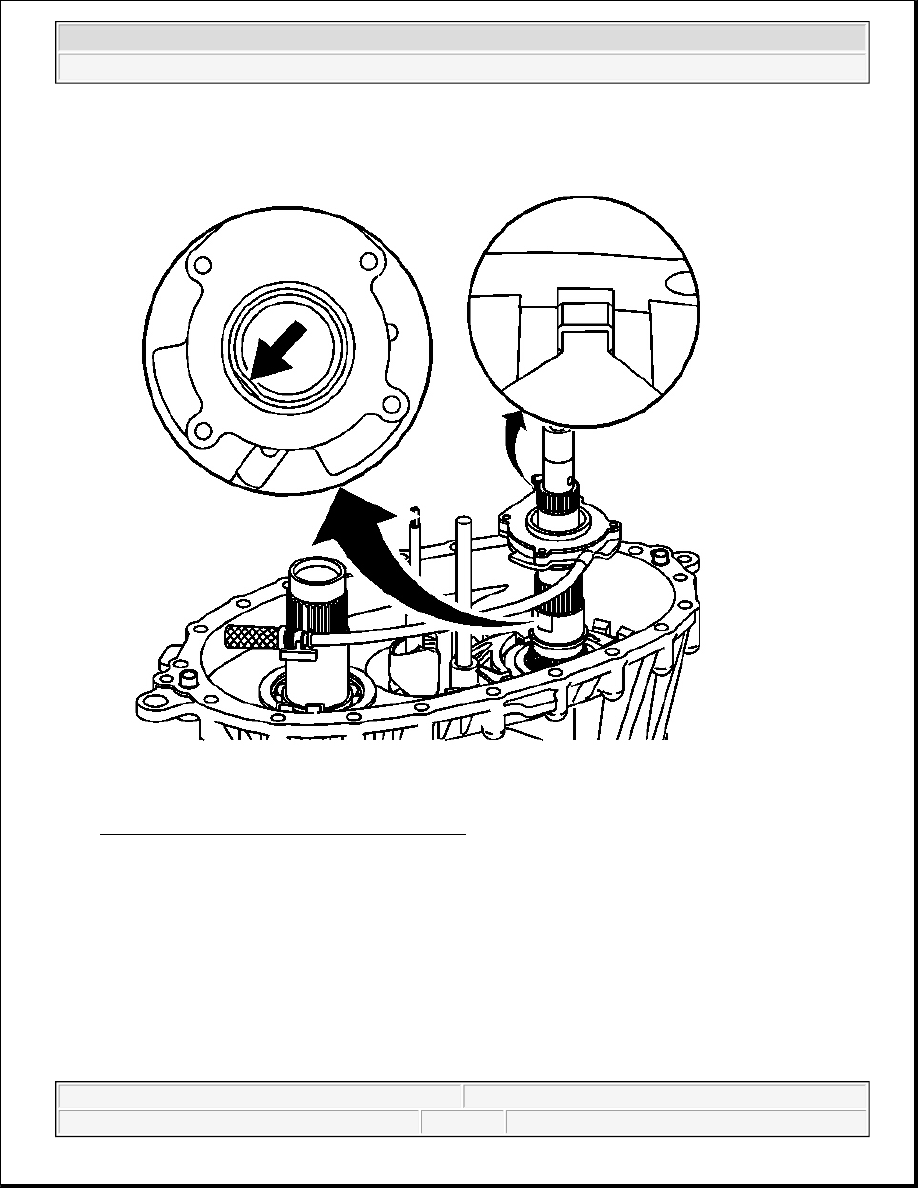

Fig. 28: Locating Oil Pump Hose & Screen
Courtesy of GENERAL MOTORS CORP.

34. Disconnect the oil pump hose from the oil pump screen.

35. Disconnect the oil pump hose from the oil pump.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



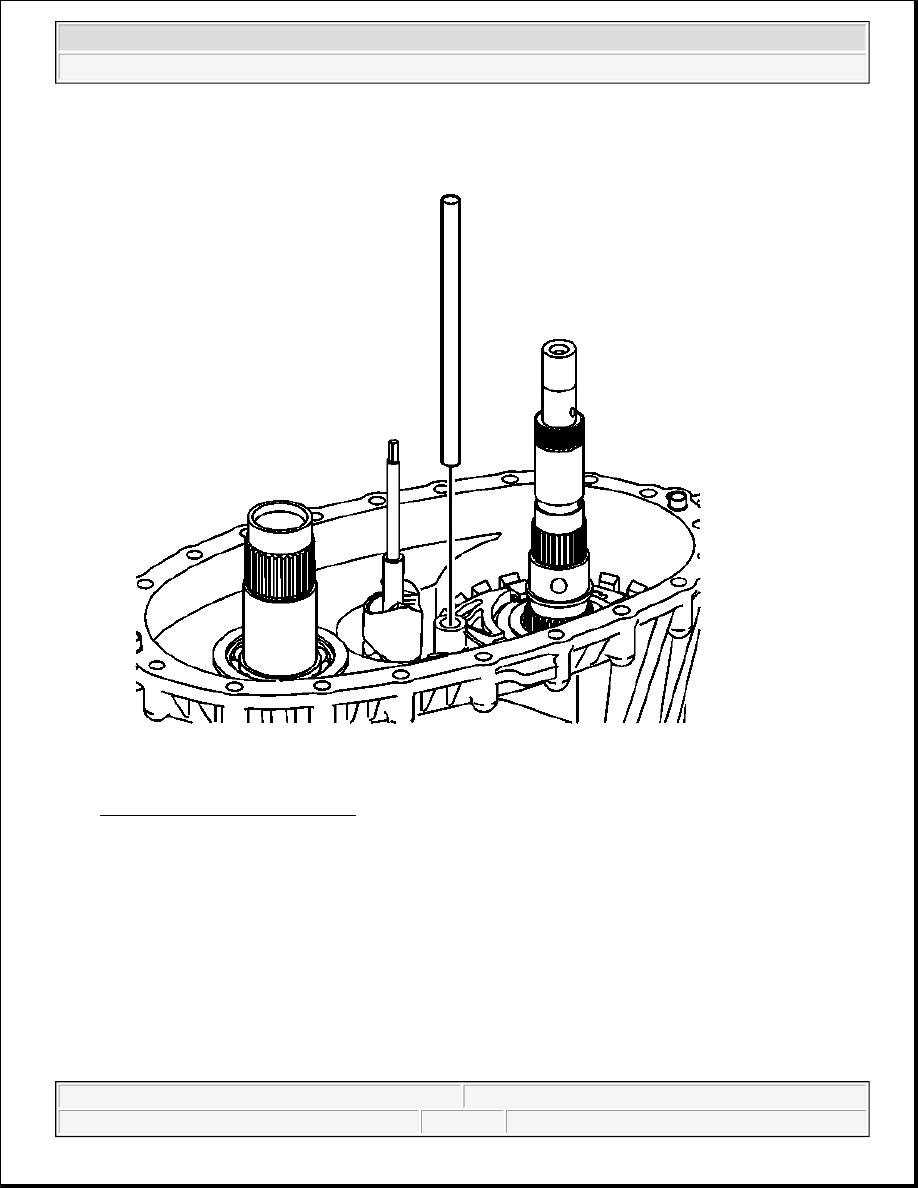

Fig. 29: View Of Shift Fork Shaft
Courtesy of GENERAL MOTORS CORP.

36. Remove the shift fork shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4
