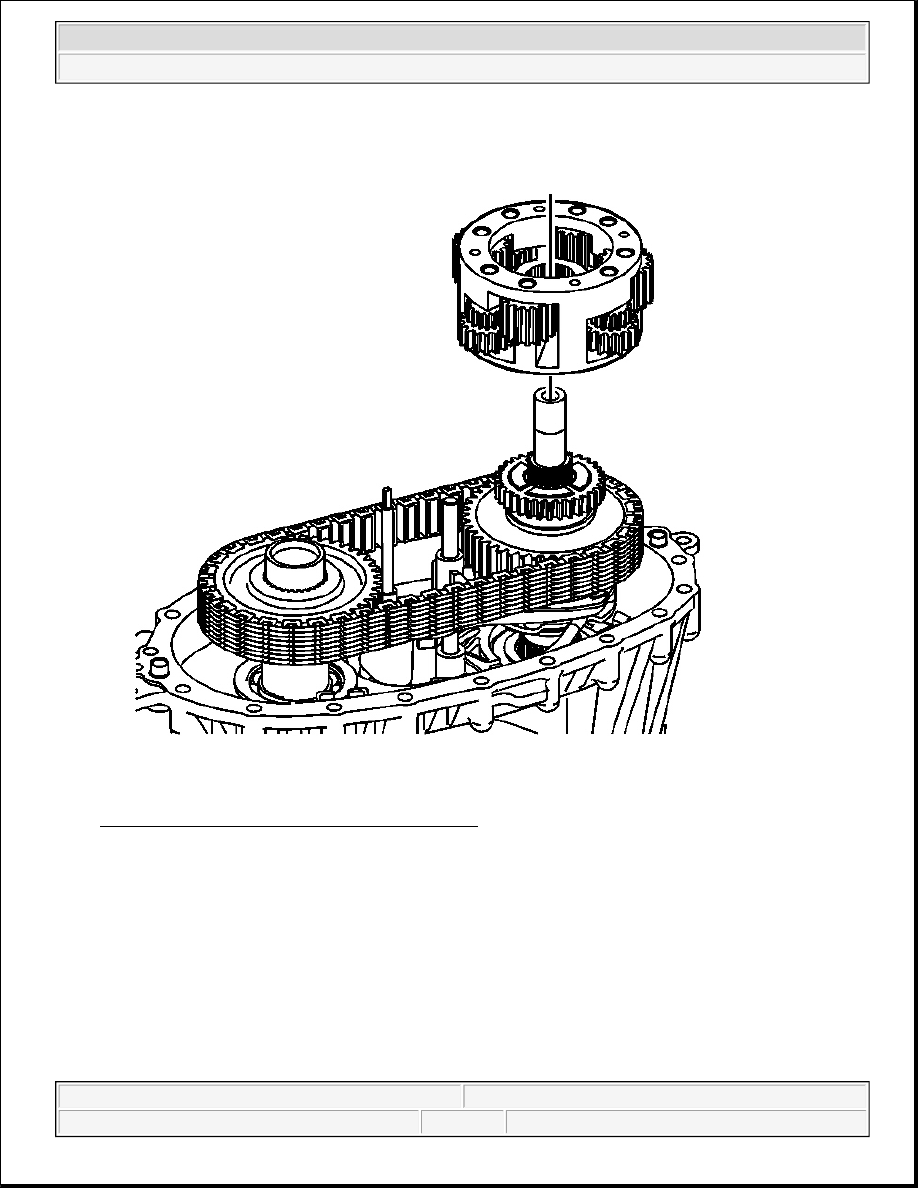

Fig. 18: View Of Planetary Differential Assembly
Courtesy of GENERAL MOTORS CORP.

24. Remove the planetary differential assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

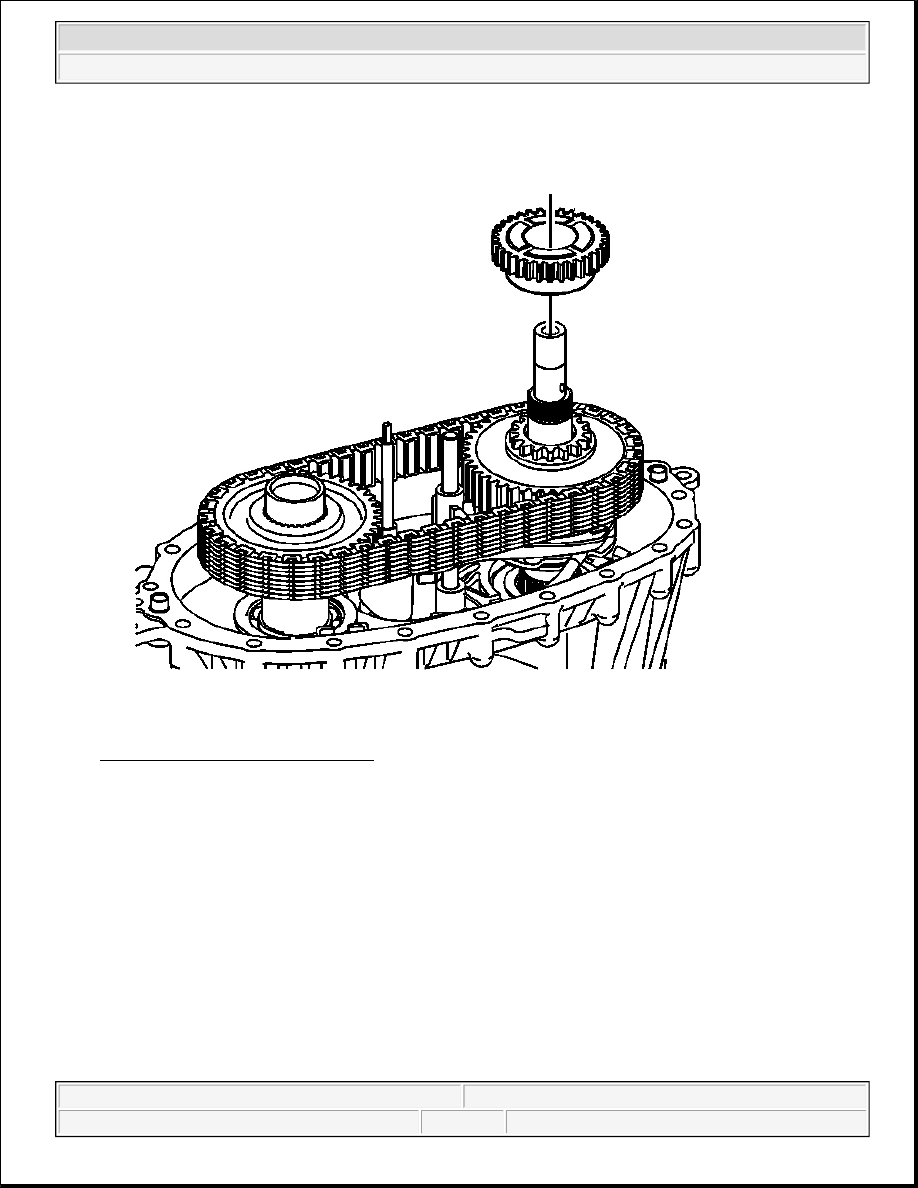

Fig. 19: Identifying Front Sun Gear
Courtesy of GENERAL MOTORS CORP.

25. Remove the front sun gear.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

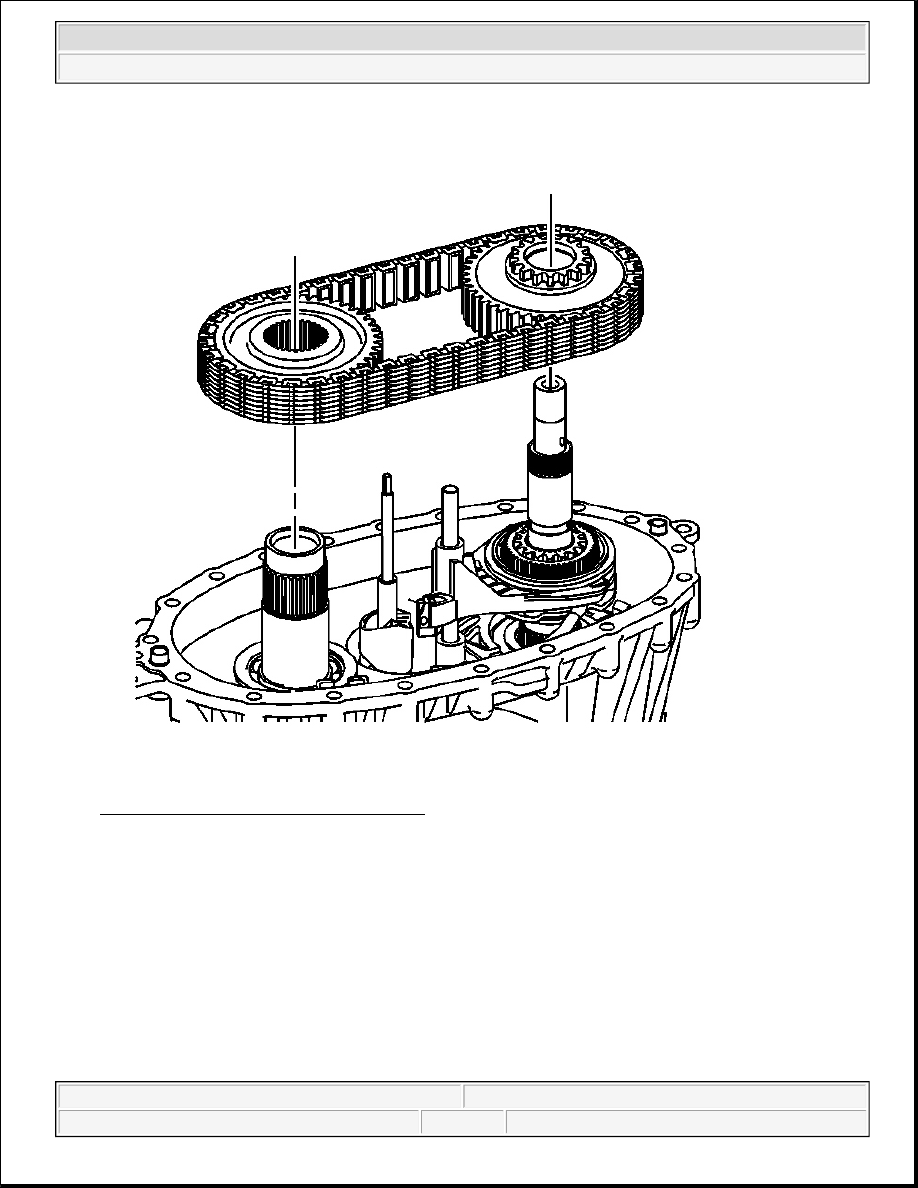

Fig. 20: View Of Drive Chain & Sprockets
Courtesy of GENERAL MOTORS CORP.

26. Remove the chain with the drive sprocket and driven sprocket.

IMPORTANT: If the chain and sprockets are to be used again, mark the relationship of

the chain to the sprockets in order to mark the wear patterns.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

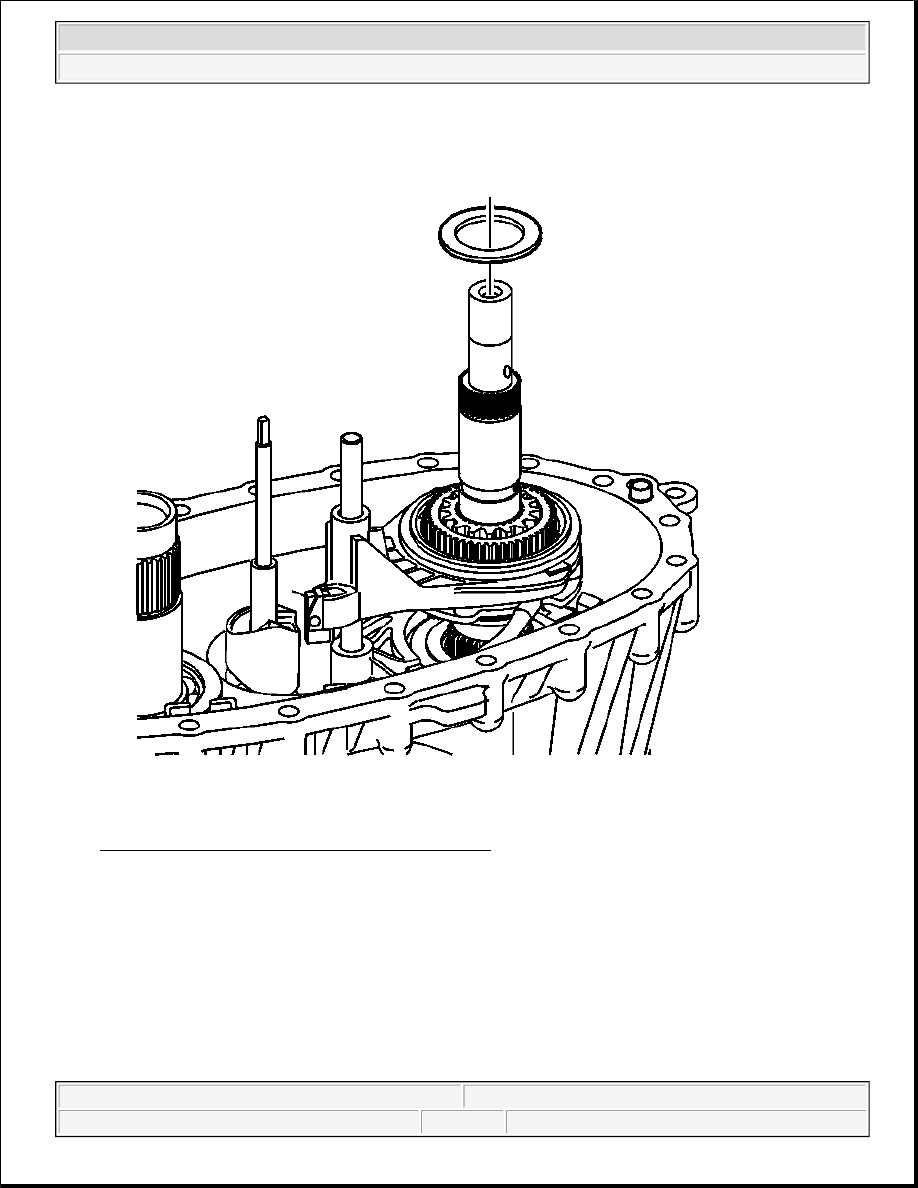

Fig. 21: Identifying Drive Sprocket Thrust Washer
Courtesy of GENERAL MOTORS CORP.

27. Remove the drive sprocket thrust washer.
