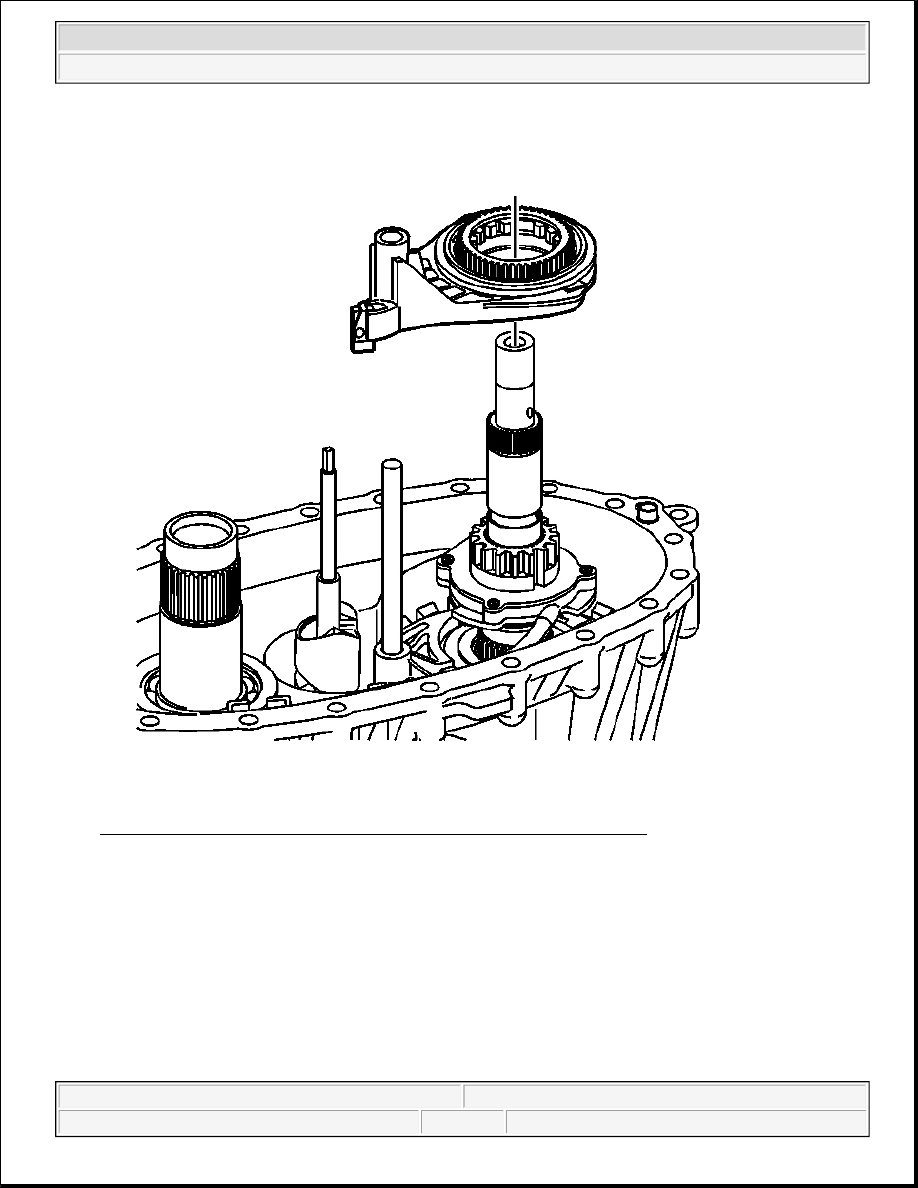

Fig. 22: Identifying Lockup Shift Assembly & Lockup Mode Shift Fork
Courtesy of GENERAL MOTORS CORP.

28. Remove the lockup shift assembly and lockup mode shift fork.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

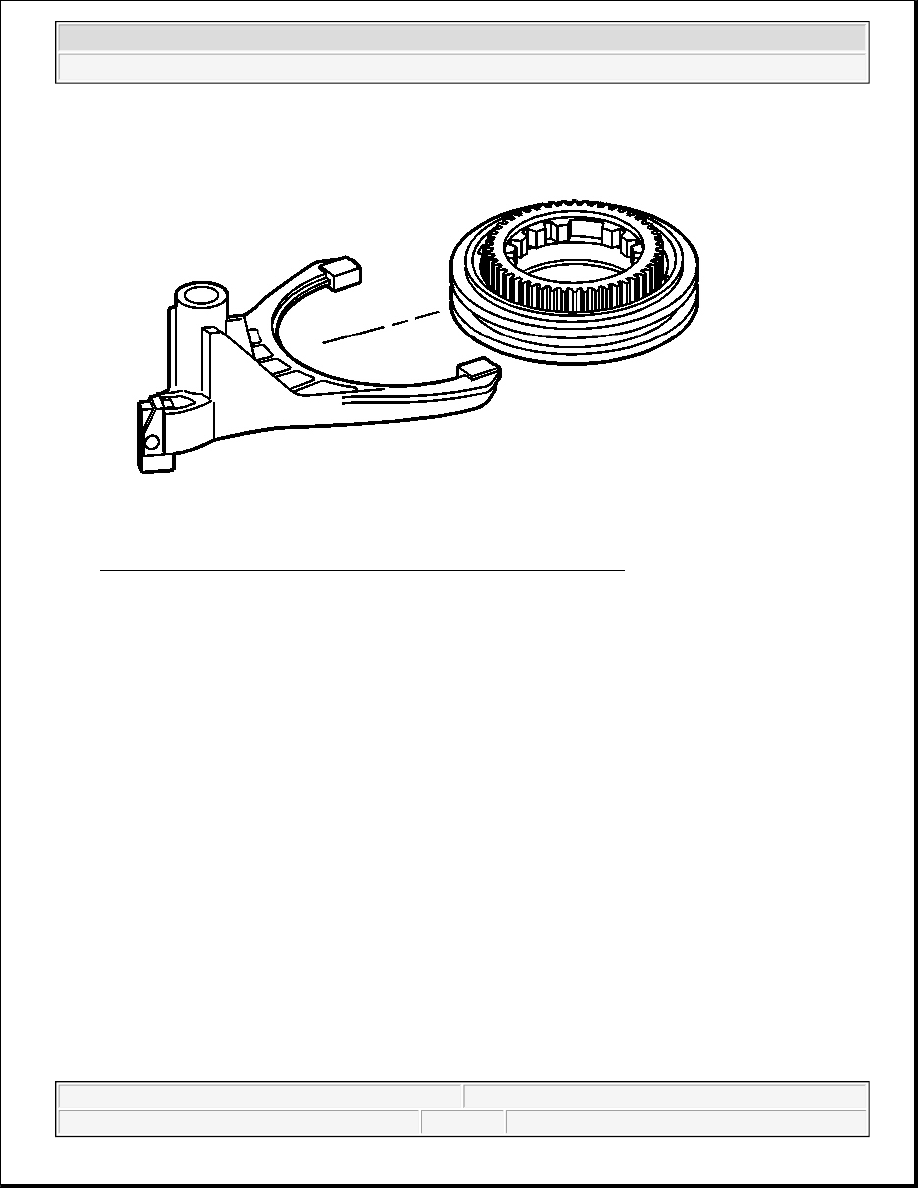

Fig. 23: View Of Lockup Shift Assembly & Lockup Mode Shift Fork
Courtesy of GENERAL MOTORS CORP.

29. Remove the lockup mode shift fork from the lockup shift assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

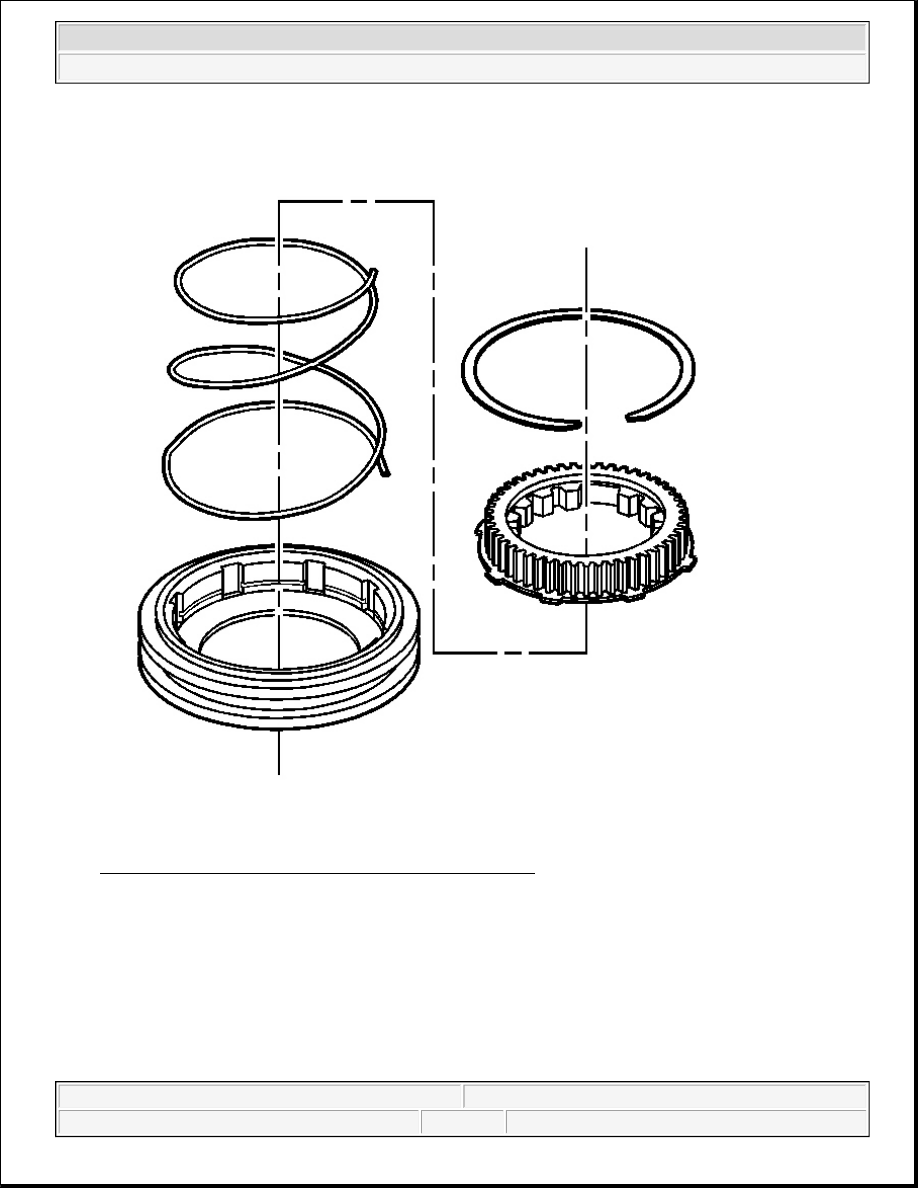

Fig. 24: Illustrating Lockup Shift Assembly Components
Courtesy of GENERAL MOTORS CORP.

30. If necessary, disassemble the lockup shift assembly.

1. Remove the retainer ring from the sleeve.

2. Remove the hub.

3. Remove the spring.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

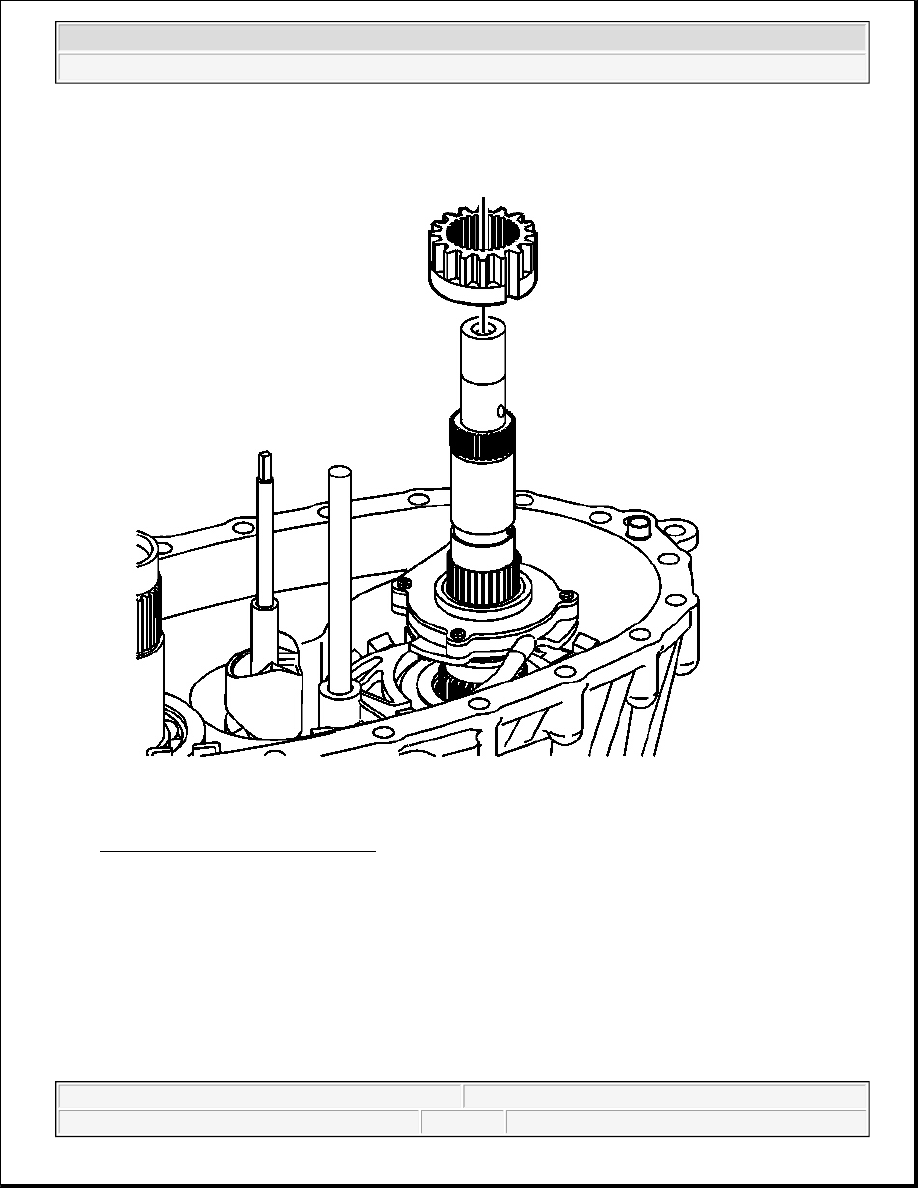

Fig. 25: View Of Inner Lockup Hub
Courtesy of GENERAL MOTORS CORP.

31. Remove the inner lockup hub.
