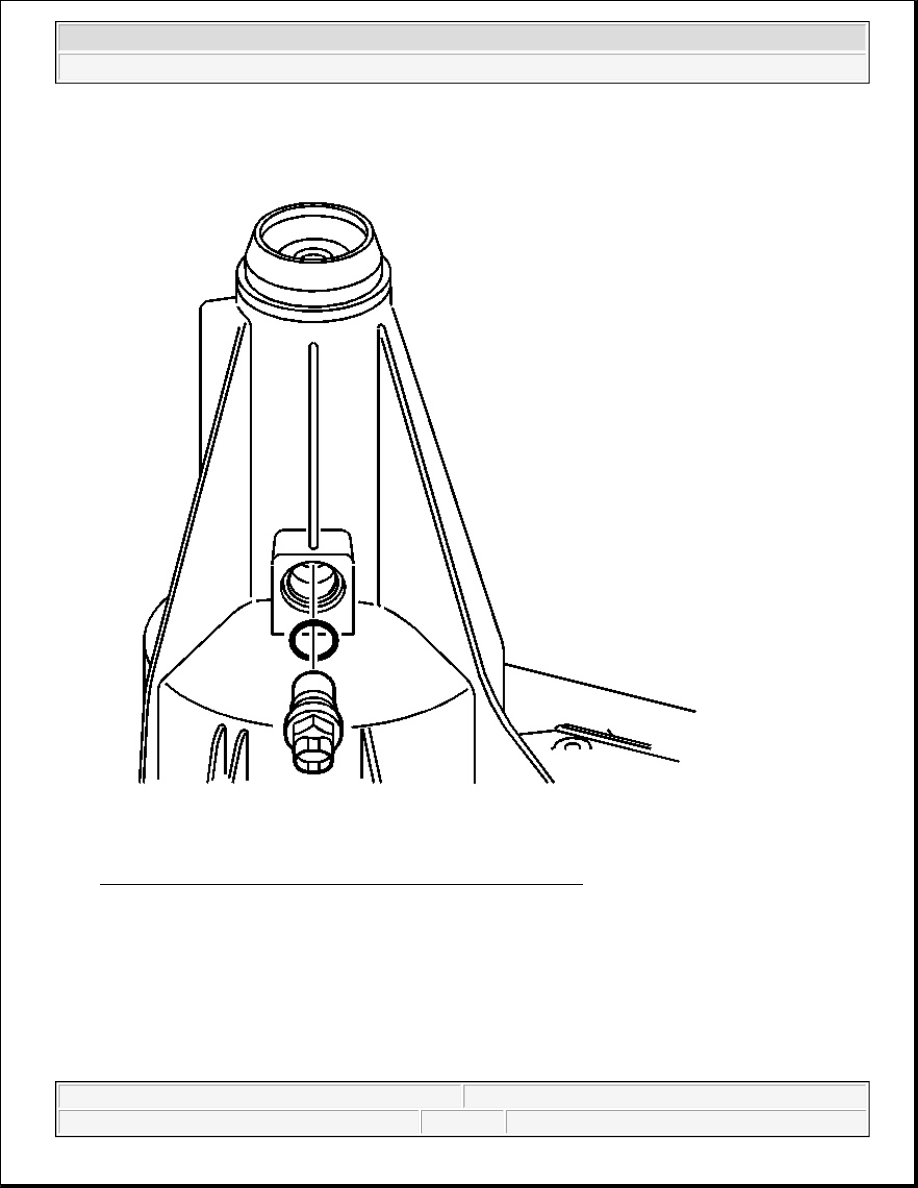

Fig. 10: Identifying Vehicle Speed Sensor (VSS) & O-Ring Seal
Courtesy of GENERAL MOTORS CORP.

14. Remove the vehicle speed sensor (VSS) and the O-ring seal.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



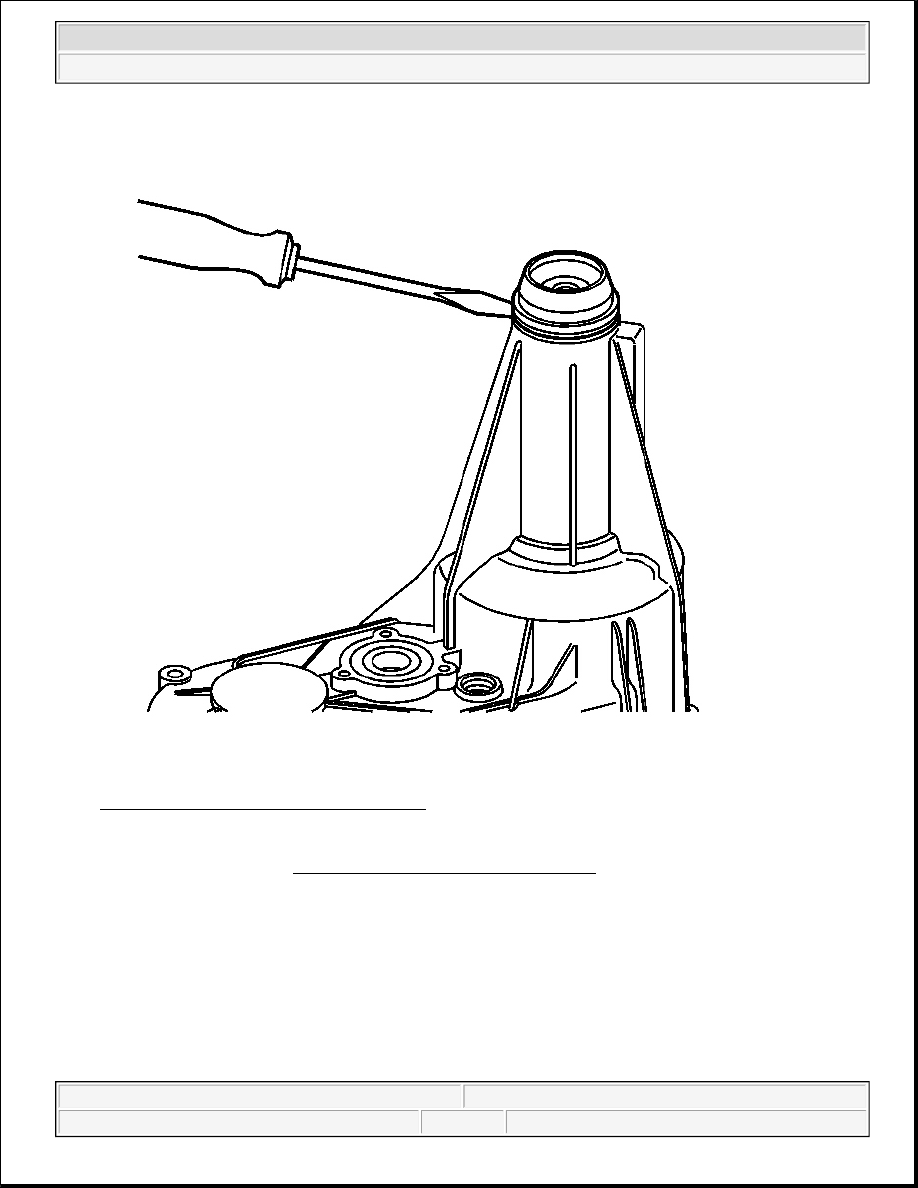

Fig. 11: Removing Rear Output Shaft Seal
Courtesy of GENERAL MOTORS CORP.

15. Remove the rear output shaft seal by prying it out with a flat-blade screwdriver.

16. Remove the shipping seal from the rear output shaft, if equipped.

NOTE:

Refer to Transfer Case Seal Removal Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



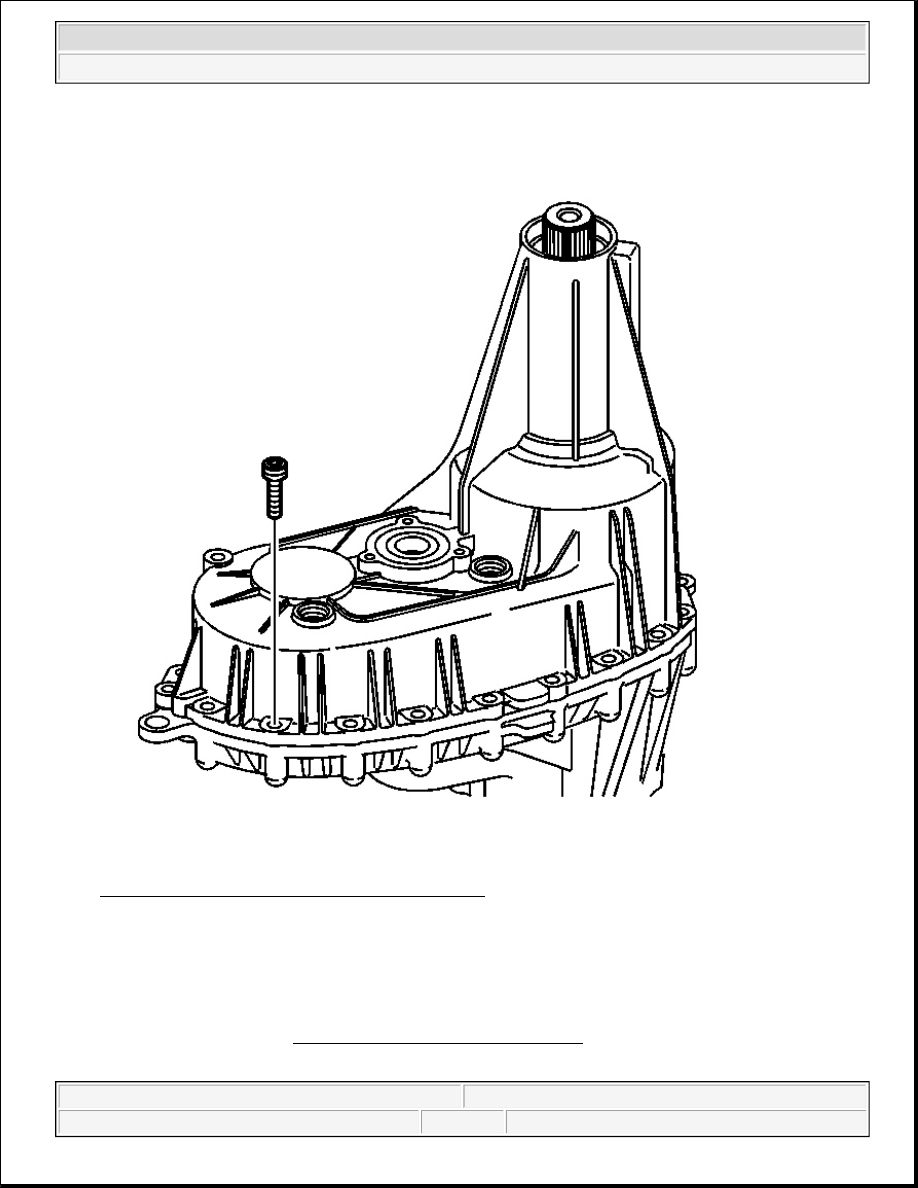

Fig. 12: Identifying Transfer Case Retaining Bolts
Courtesy of GENERAL MOTORS CORP.

17. Remove the transfer case retaining bolts and washers.

Mark the location of the brackets.

NOTE:

Refer to Machined Surface Damage Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



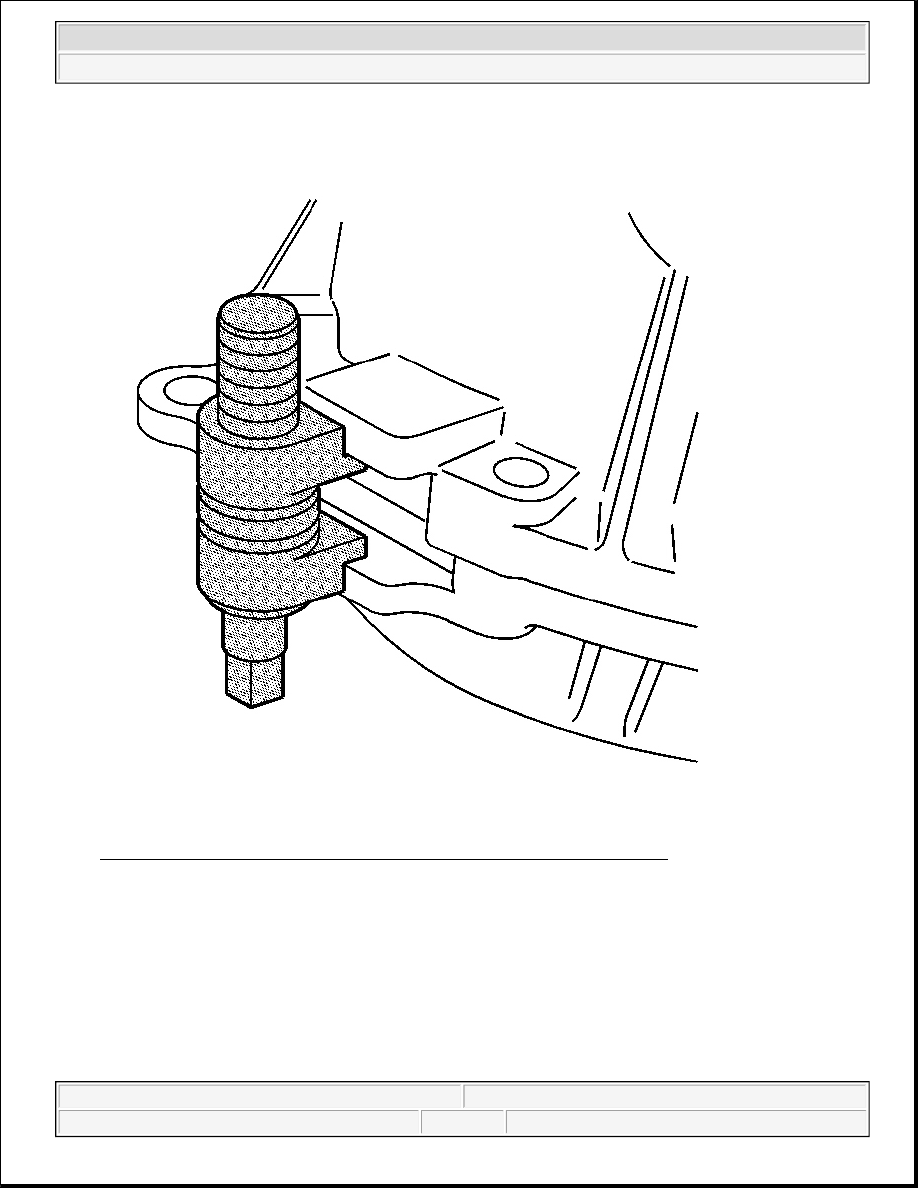

Fig. 13: View Of J 45358 Installed Between The Tabs On The Case Halves
Courtesy of GENERAL MOTORS CORP.

18. Using the J 45358 between the tabs on the case halves, shear the sealer that is holding the case halves

together.

19. Using pry bars at each side of the case, remove the case from the locating pins.
