Hummer H2. Manual - part 2706

REPAIR INSTRUCTIONS

TRANSFER CASE DISASSEMBLE

Tools Required

z

J 2619-01 Slide Hammer. See Special Tools and Equipment .

z

J 3289-20 Holding Fixture. See Special Tools and Equipment .

z

J 22912-01 Rear Pinion and Axle Bearing Remover. See Special Tools and Equipment .

z

J 23907 Slide Hammer with Bearing Adapter. See Special Tools and Equipment .

z

J 26941 Bushing and Bearing Remover - 3-4 inch. See Special Tools and Equipment .

z

J 45358 Case Spreader. See Special Tools and Equipment .

z

J 45548 Mainshaft Support Bushing/Bearing Remover. See Special Tools and Equipment .

z

J 45759 Assembly Fixture. See Special Tools and Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



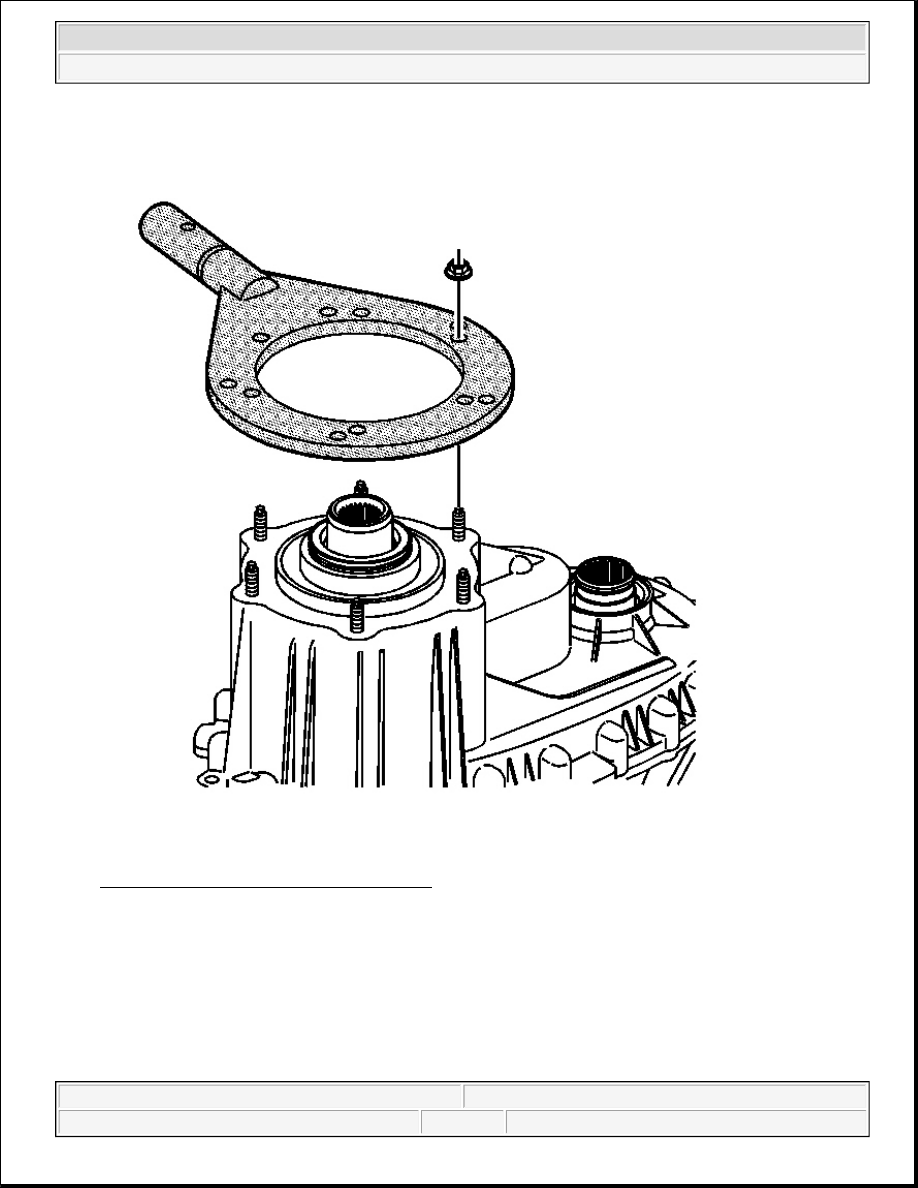

Fig. 3: Mounting Transfer Case To J 45759
Courtesy of GENERAL MOTORS CORP.

1. Using the adapter studs, attach the J 45759 to the transfer case. All of the transfer case disassembly

procedures can be performed with the case mounted to the J 45759 .



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



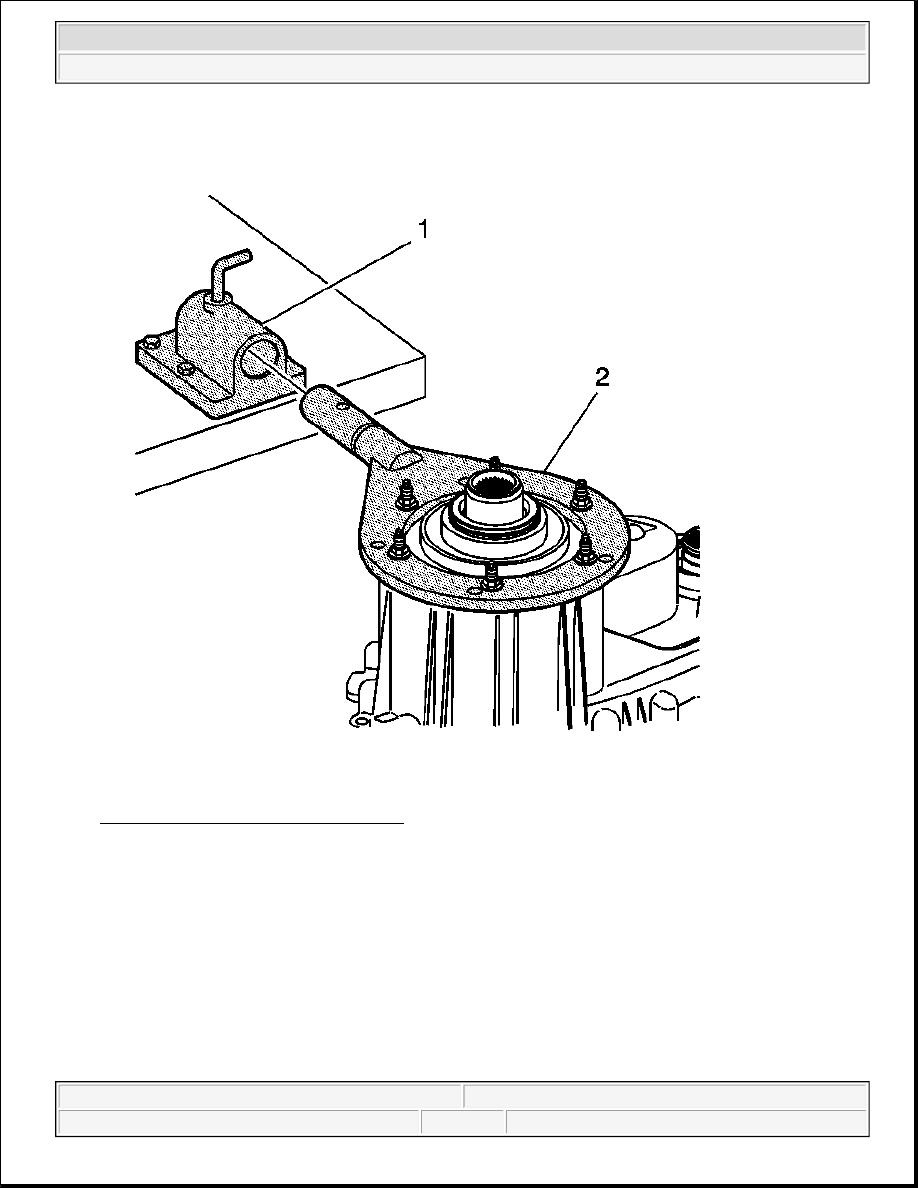

Fig. 4: Installing J 45759 Into J 3289-20
Courtesy of GENERAL MOTORS CORP.

2. Mount the J 3289-20 (1) to a sturdy work bench.

3. Install the J 45759 (2) into J 3289-20 (1) and secure with pivot pin.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



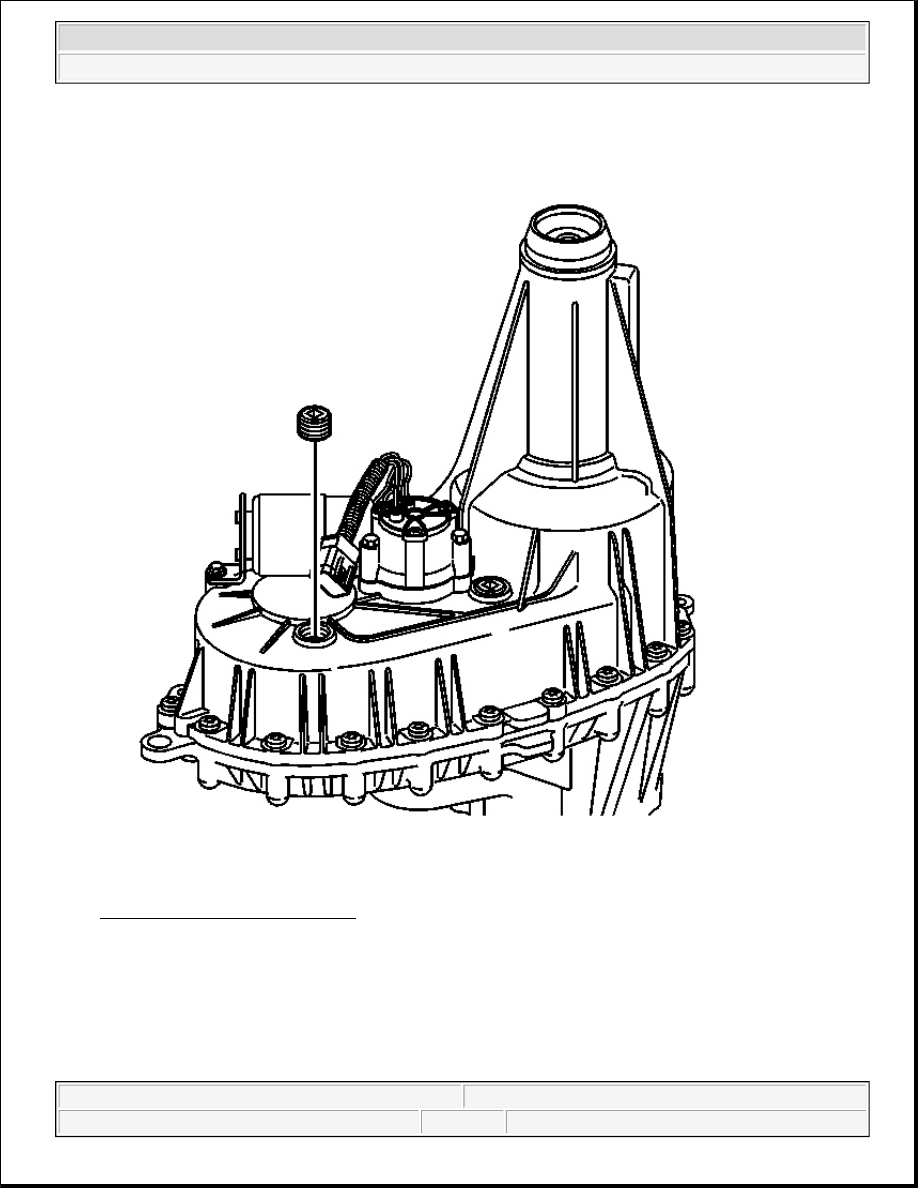

Fig. 5: View Of Drain & Fill Plug
Courtesy of GENERAL MOTORS CORP.

4. Remove the drain plug and the fill plug. Ensure all of the transfer case fluid is drained out of the transfer

case.
