Hummer H2. Manual - part 2697

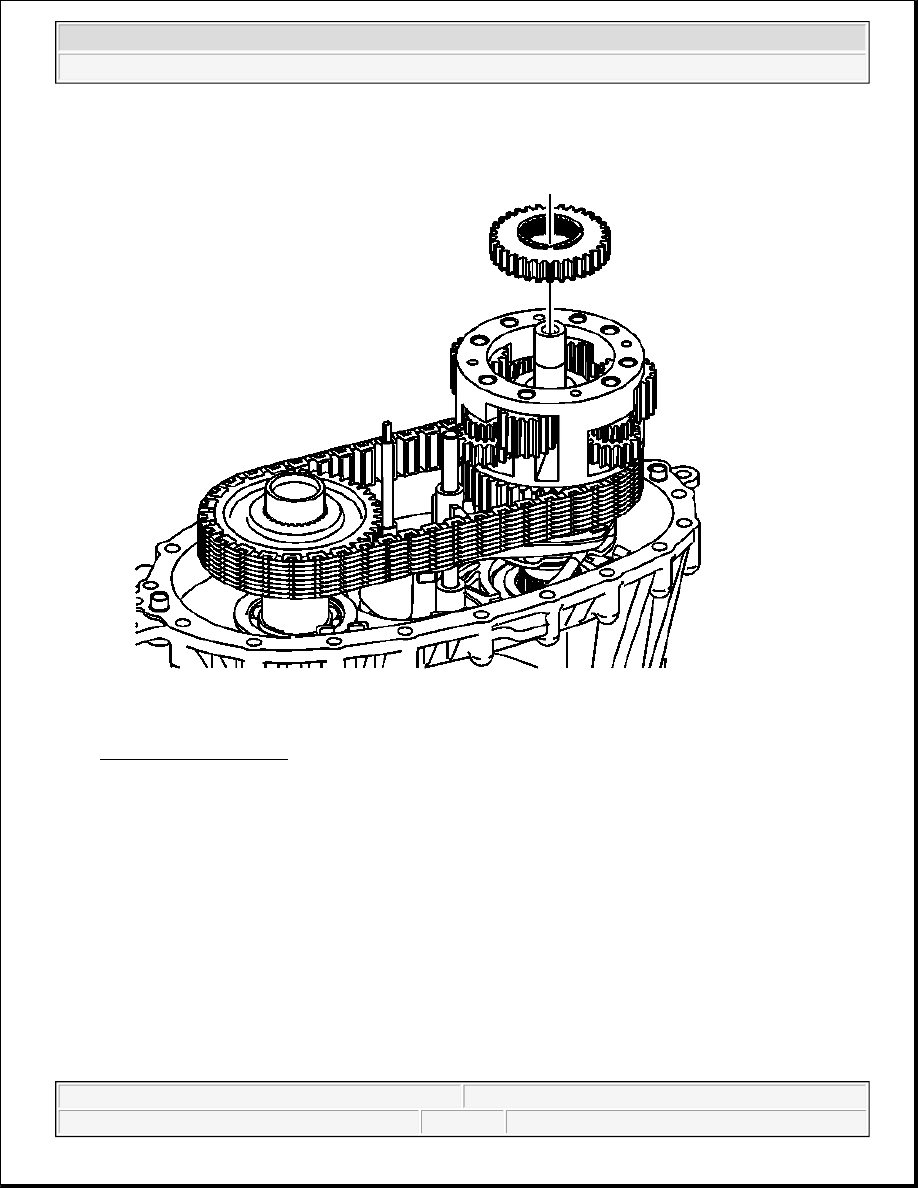

Fig. 137: Rear Sun Gear
Courtesy of GENERAL MOTORS CORP.

42. Install the rear sun gear.

z

The shoulder side of the gear faces up.

z

Do not rotate the differential pinion gears.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



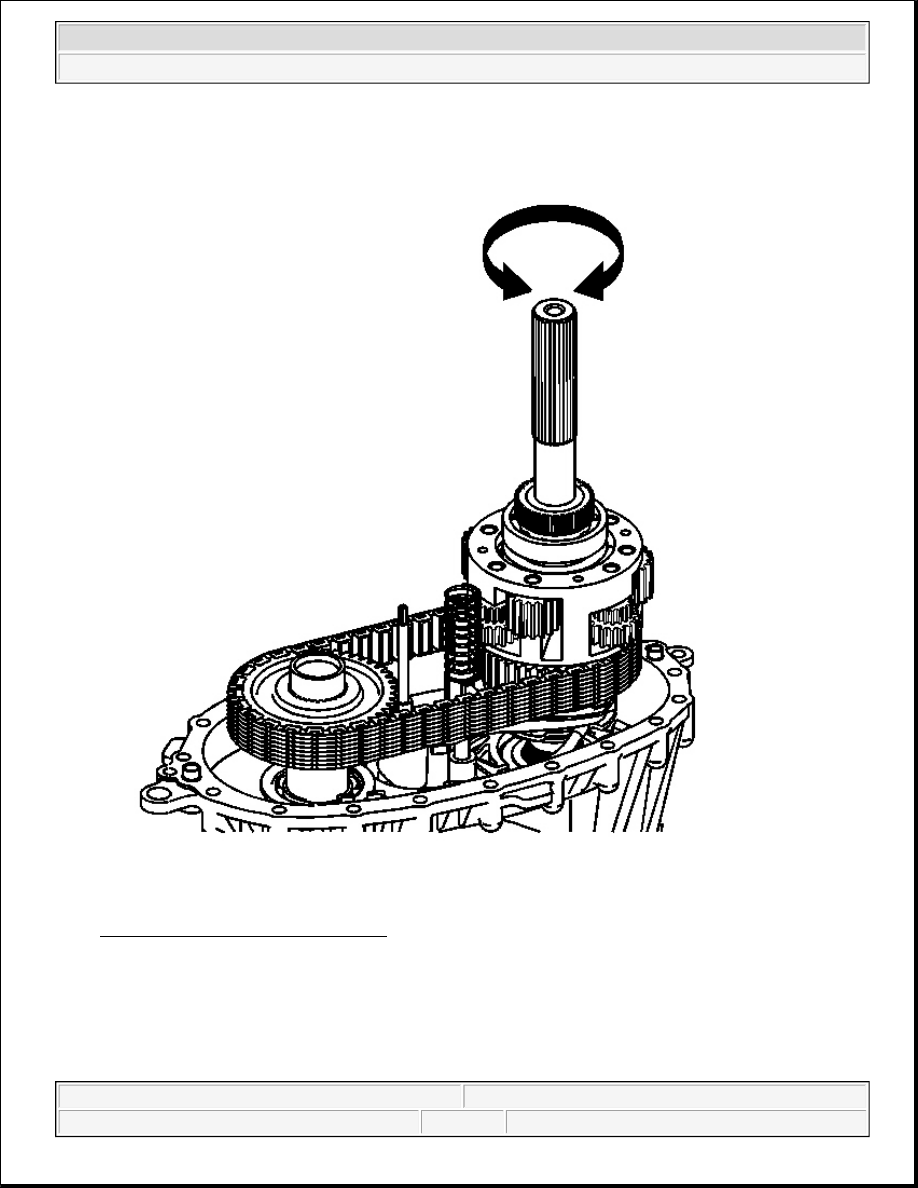

Fig. 138: Rotating Rear Output Shaft
Courtesy of GENERAL MOTORS CORP.

43. Temporarily install the rear output shaft to the planetary differential and the rear sun gear.

44. Rotate the rear output shaft three or four revolutions to rotate the planetary differential pinion gears. If

properly aligned, the pinion gears will rotate freely, there will be no binding.

45. Remove the rear output shaft without disturbing the rear sun gear.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



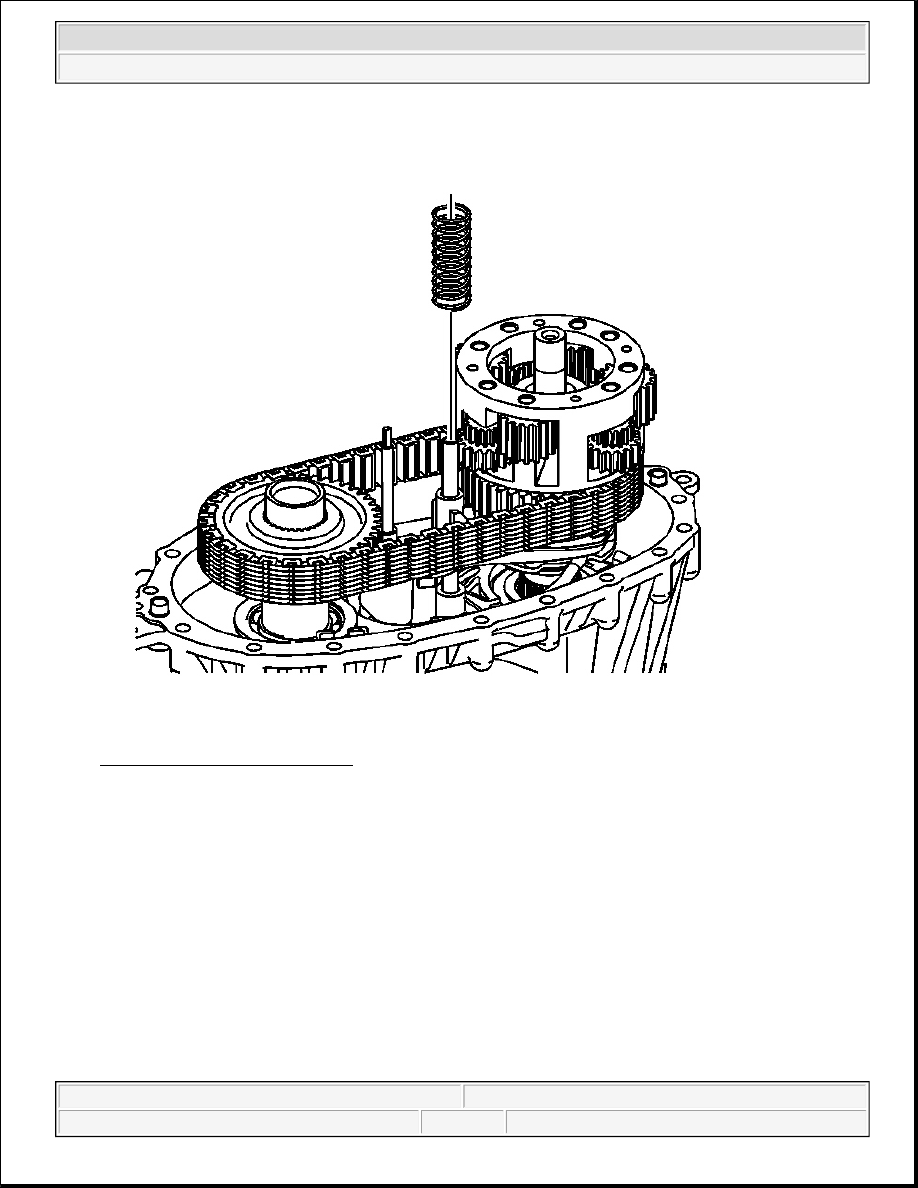

Fig. 139: Shift Fork Shaft Spring
Courtesy of GENERAL MOTORS CORP.

46. Install the shift fork shaft spring.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



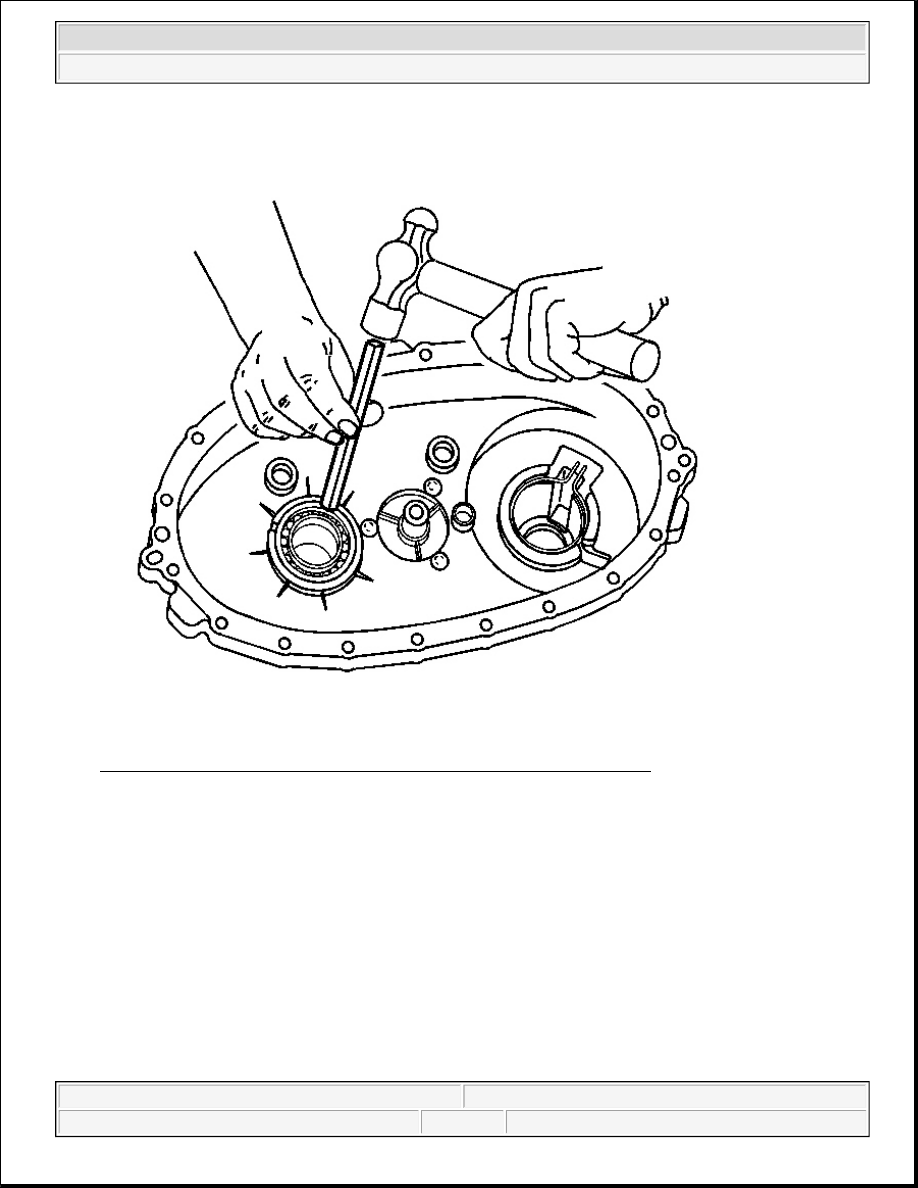

Fig. 140: Installing Front Output Shaft Rear Bearing In Rear Case Half
Courtesy of GENERAL MOTORS CORP.

47. Install the front output shaft rear bearing in the rear case half.

z

Use a hammer and a brass drift only on the outer bearing race.

z

Ensure the bearing is kept square to the bore while installing.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2
