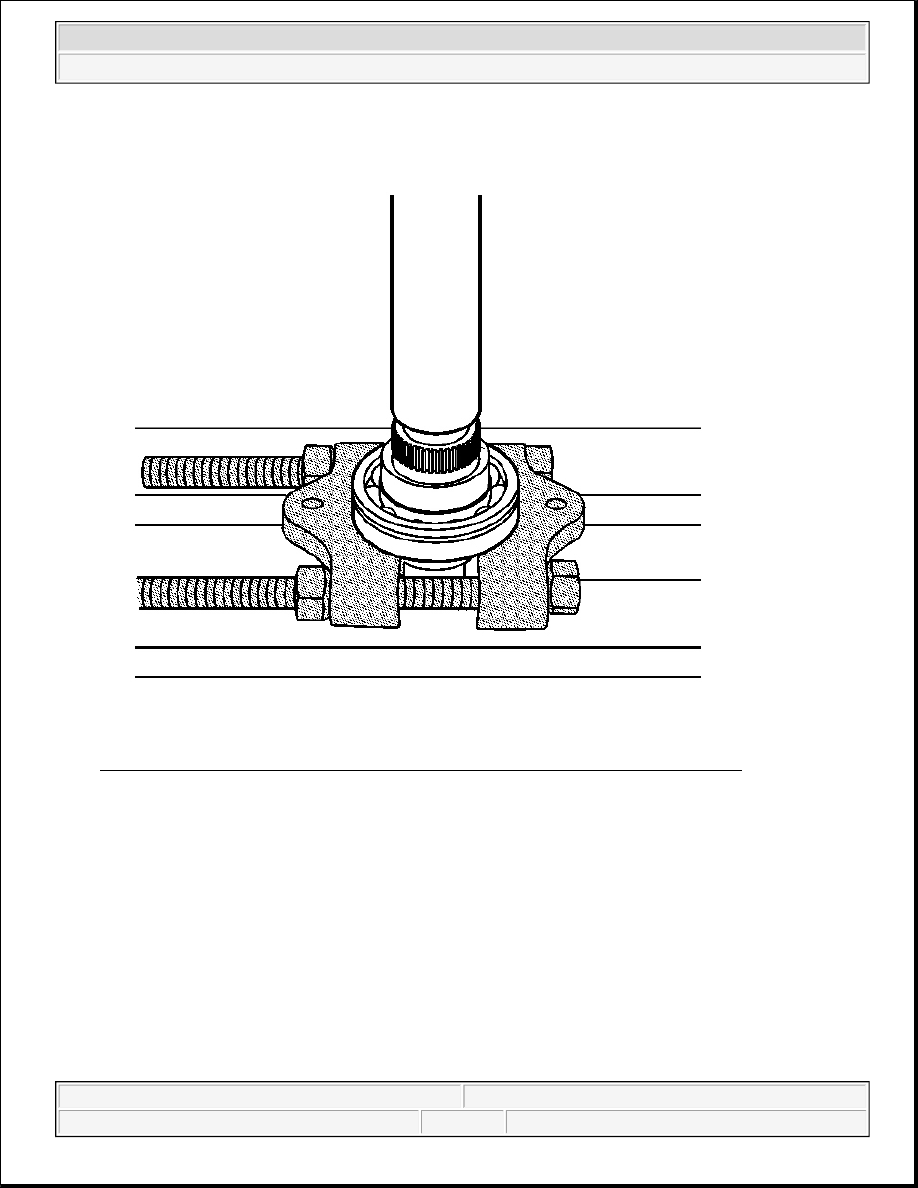

Fig. 141: Installing Rear Output Shaft Bearing Using Hydraulic Press & J 22912-01
Courtesy of GENERAL MOTORS CORP.

48. Using a hydraulic press and the J 22912-01 , install the rear output shaft bearing.

z

The retaining ring groove on the bearing goes toward the input end or forward.

z

Use a suitable press plate on the end of the rear output shaft.

z

Ensure the bearing is supported on the inner race.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



Fig. 142: Retaining Ring & Rear Output Shaft Bearing
Courtesy of GENERAL MOTORS CORP.

49. Install a NEW retaining ring for the rear output shaft bearing.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



Fig. 143: Installing NEW Speed Reluctor Wheel Using Hydraulic Press
Courtesy of GENERAL MOTORS CORP.

50. Using a hydraulic press, install a NEW speed reluctor wheel.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

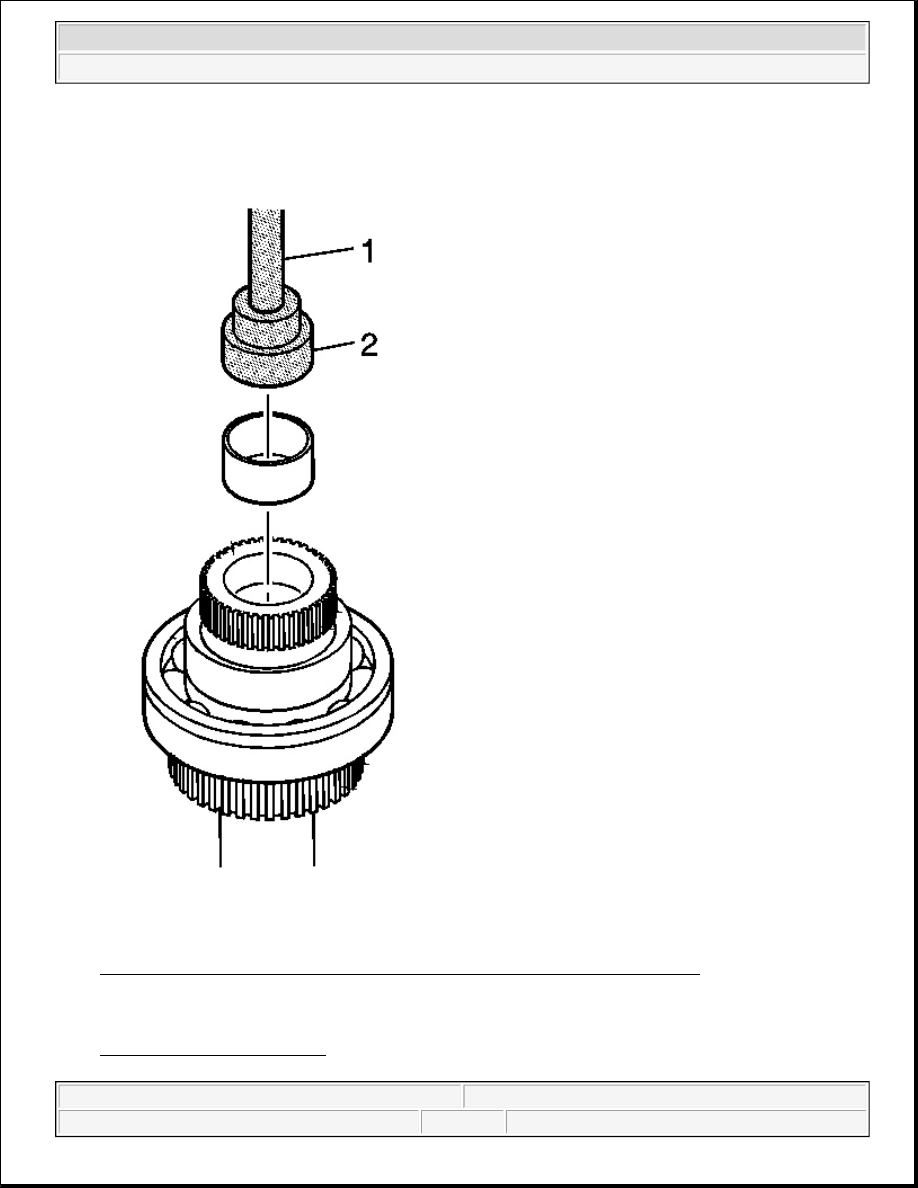

Fig. 144: Installing Mainshaft Rear Support Bushing Using J 42176 & J 45757
Courtesy of GENERAL MOTORS CORP.

51. Using J 42176 (1) and J 45757 (2), install the mainshaft rear support bushing in the rear output shaft. See

Special Tools and Equipment .
