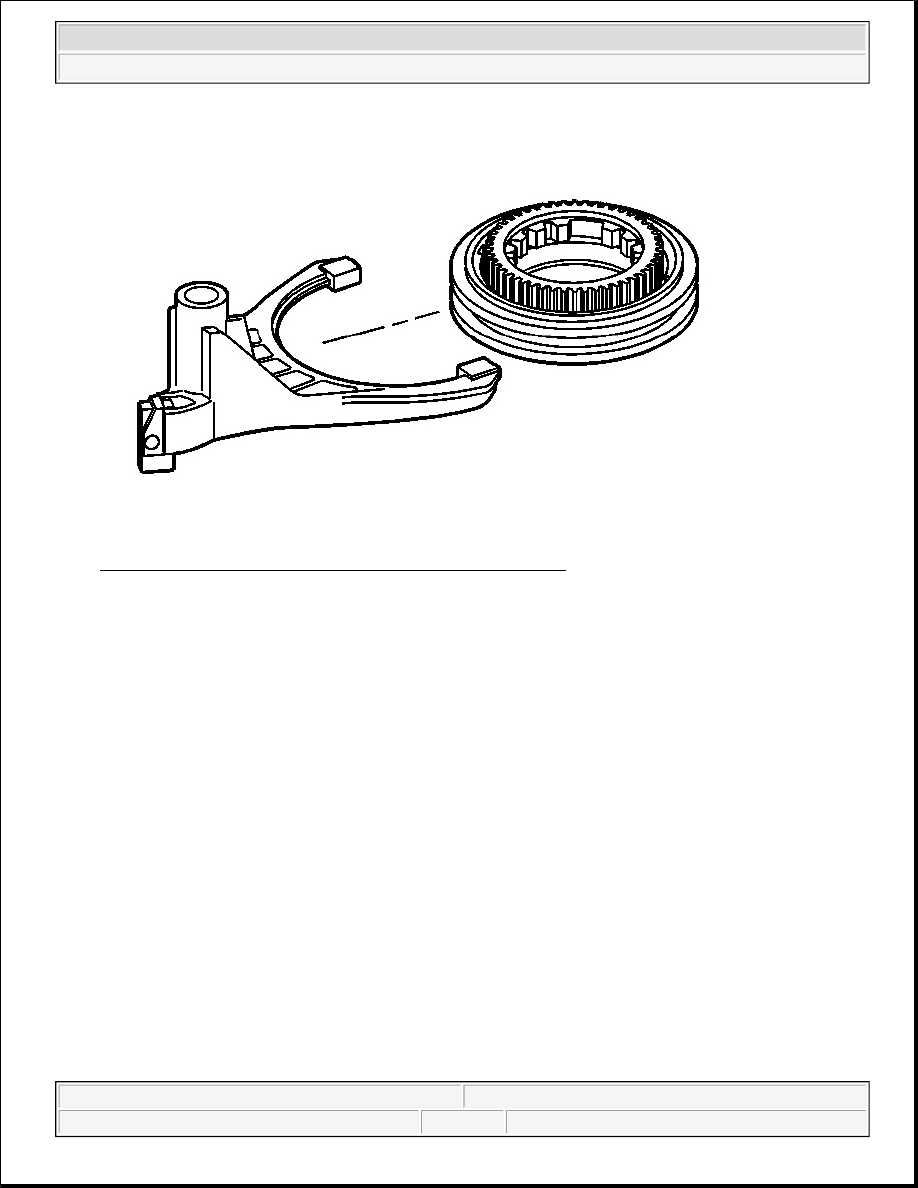

Fig. 129: Lockup Mode Shift Fork & Lockup Shift Assembly
Courtesy of GENERAL MOTORS CORP.

32. Install the lockup mode shift fork to the lockup shift assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

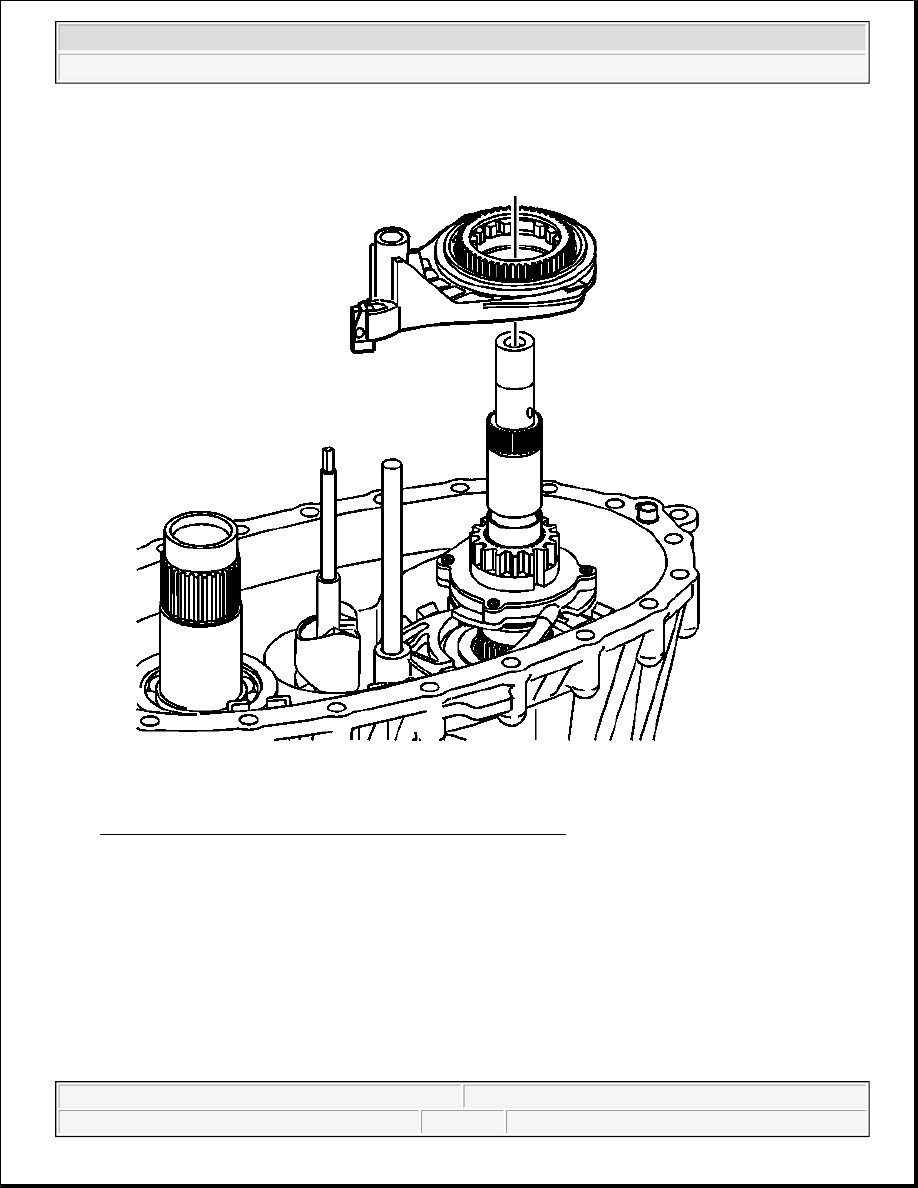

Fig. 130: Lockup Shift Assembly & Lockup Mode Shift Fork
Courtesy of GENERAL MOTORS CORP.

33. Install the lockup shift assembly and lockup mode shift fork.

z

Slide the shift fork over the shift fork shaft.

z

Turn the mainshaft to align the slot on the inner lockup hub with the large tooth area on the lockup
shift assembly hub.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

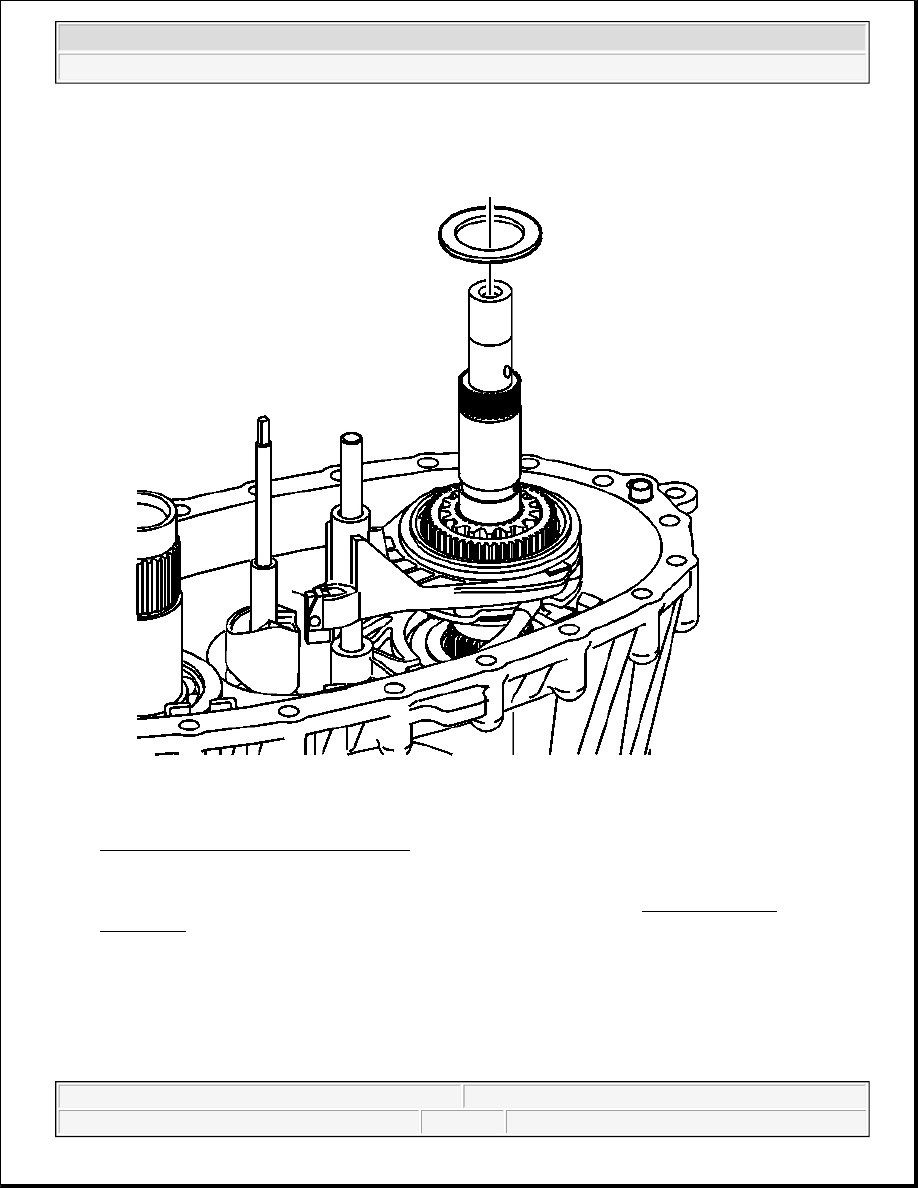

Fig. 131: Drive Sprocket Thrust Washer
Courtesy of GENERAL MOTORS CORP.

34. Lubricate the drive sprocket thrust washer with J 36850 or equivalent. See Special Tools and

Equipment .

35. Install the drive sprocket thrust washer.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

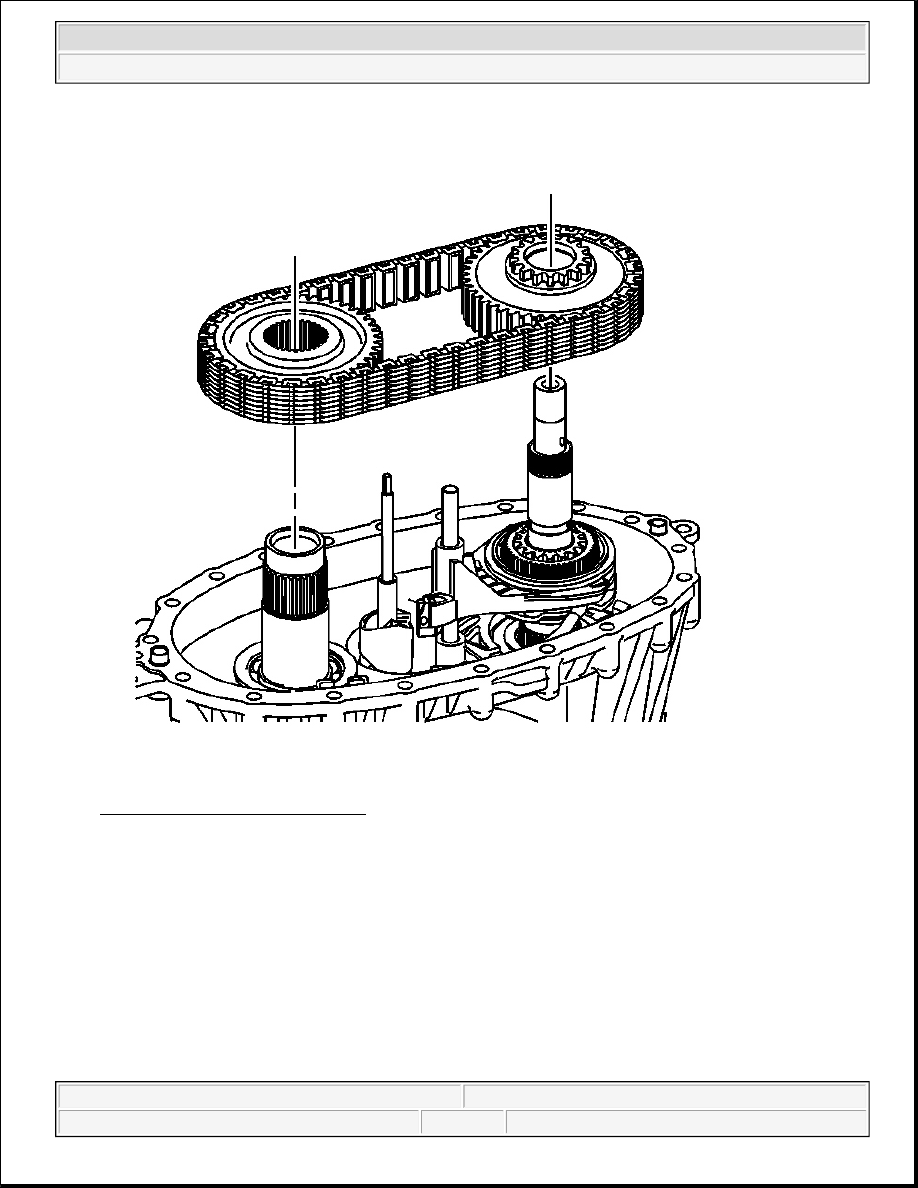

Fig. 132: Drive Chain & Sprockets
Courtesy of GENERAL MOTORS CORP.

36. Install the drive chain and sprockets.

z

The blue link on the chain faces up.

z

Align the drive sprocket engagement teeth with the lockup shift assembly hub teeth.

IMPORTANT: If using the chain and sprockets again, ensure to align the marks of the

drive chain and sprockets.
