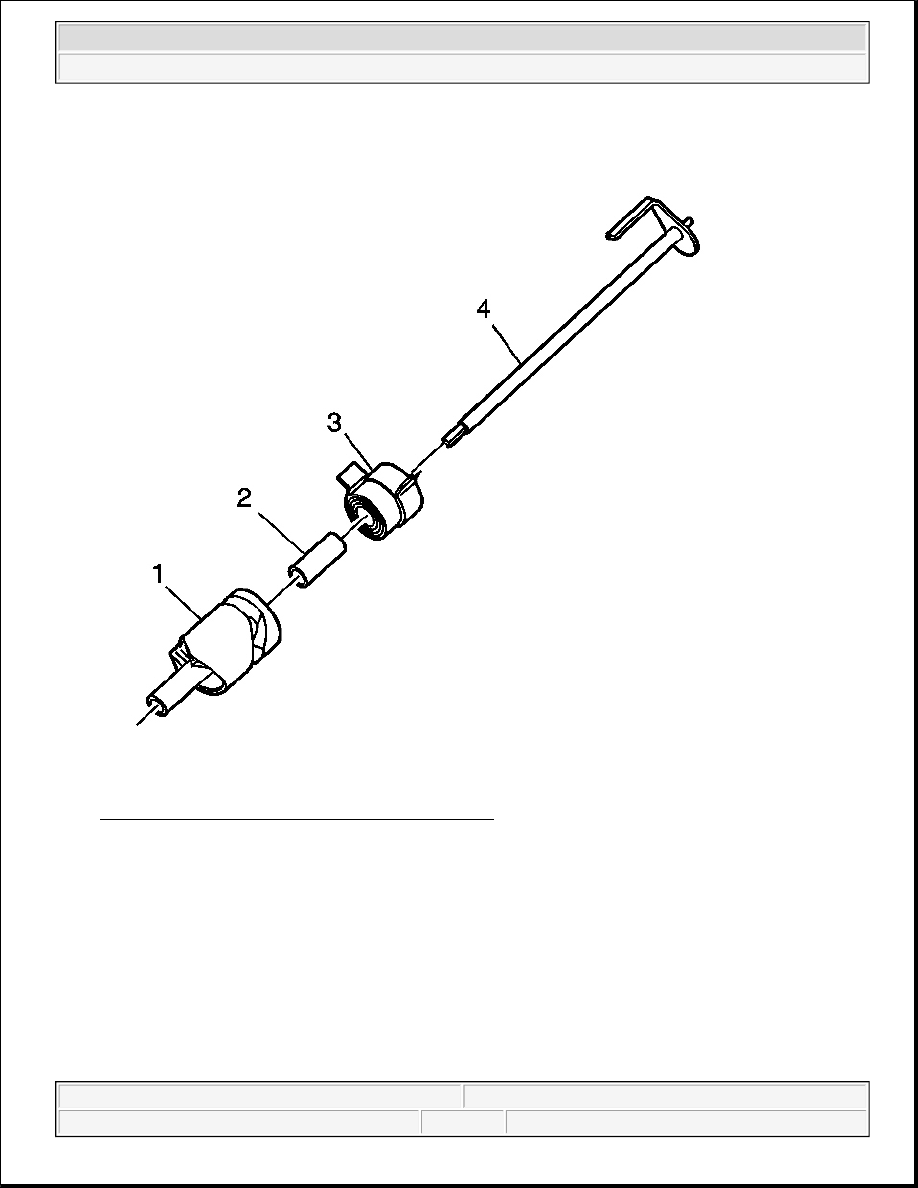

Fig. 121: Shift Detent Lever Assembly Components 23. Assemble the shift detent lever assembly. 1. Mount the spring (3), by one tab, in a vise. 2. Install the sleeve (2) in the spring (3). 3. Install the shaft (4) partially in the spring (3). 4. Install the shift detent lever cam (1) on the shaft (4). 5. Rotate the spring (3) and install the tab on the shift detent lever cam between the spring tabs. 6. Finish installing the shaft, aligning the lever on the shaft between the spring tabs.
