Hummer H2. Manual - part 2692

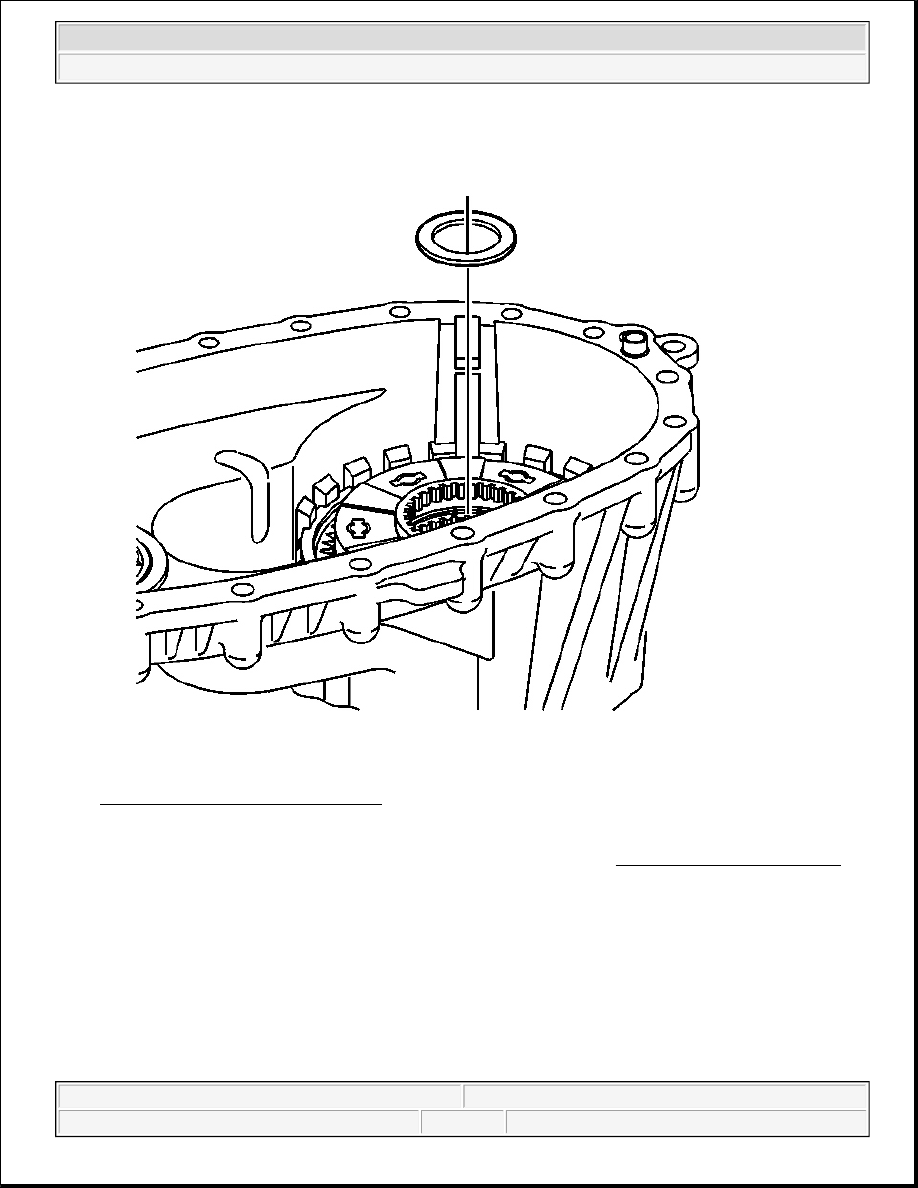

Fig. 117: Input Shaft Thrust Washer
Courtesy of GENERAL MOTORS CORP.

16. Lubricate the input shaft thrust washer with J 36850 or equivalent. See Special Tools and Equipment .

17. Install the input shaft thrust washer.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



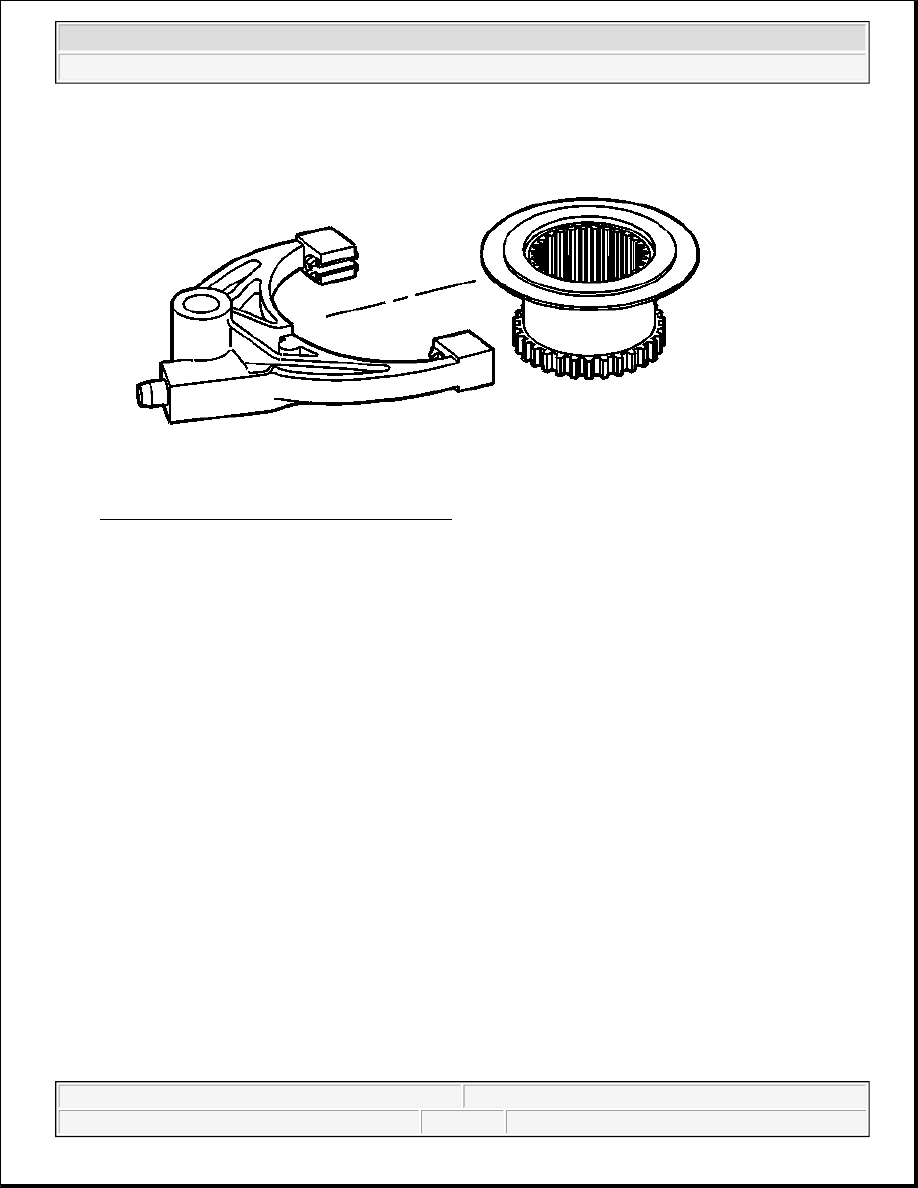

Fig. 118: Range Shift Fork Range Shift Sleeve
Courtesy of GENERAL MOTORS CORP.

18. Install new shift fork pads, if removed.

19. Install the range shift sleeve in the range fork.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

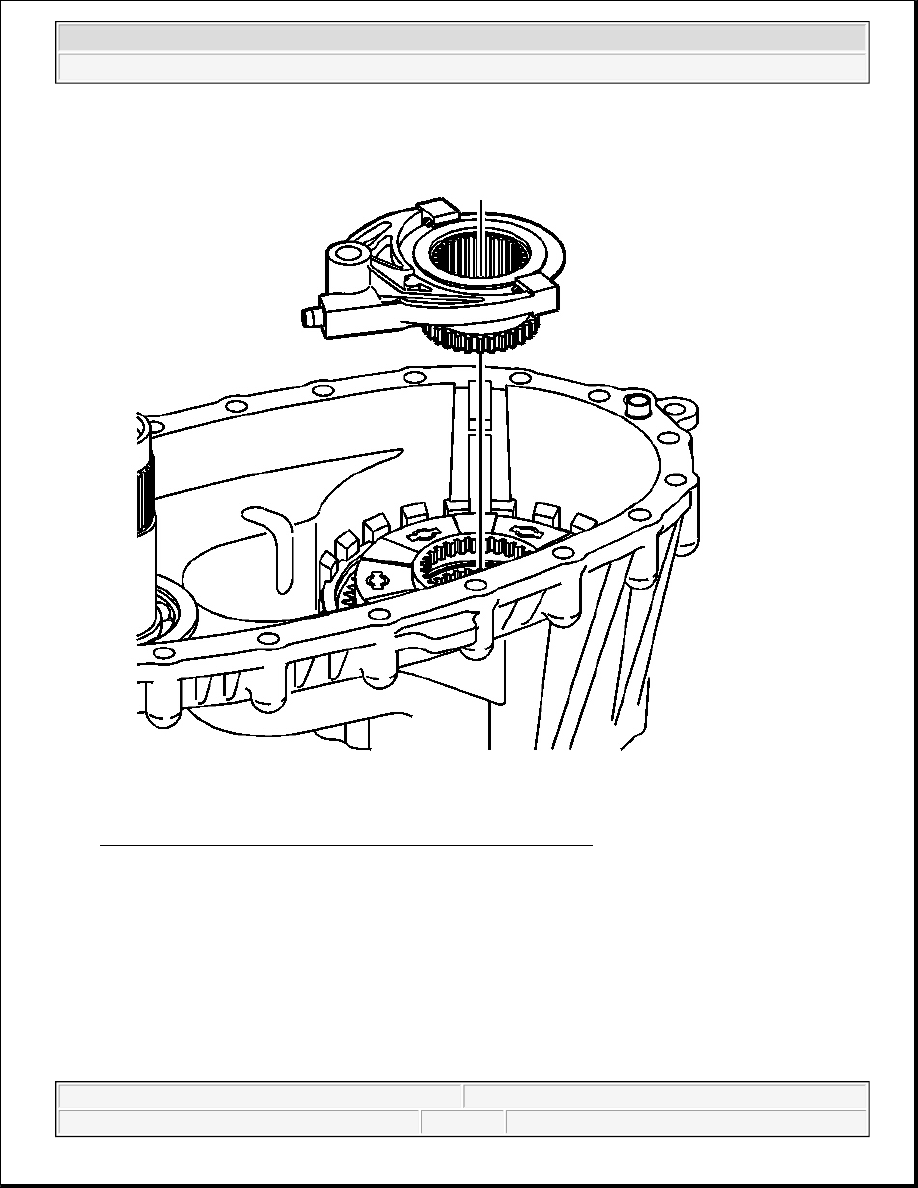

Fig. 119: High/Low Range Sleeve & High/Low Range Shift Fork
Courtesy of GENERAL MOTORS CORP.

20. Align the gear teeth on the range shift sleeve to the planetary carrier.

21. Install the range shift fork and the range shift sleeve.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

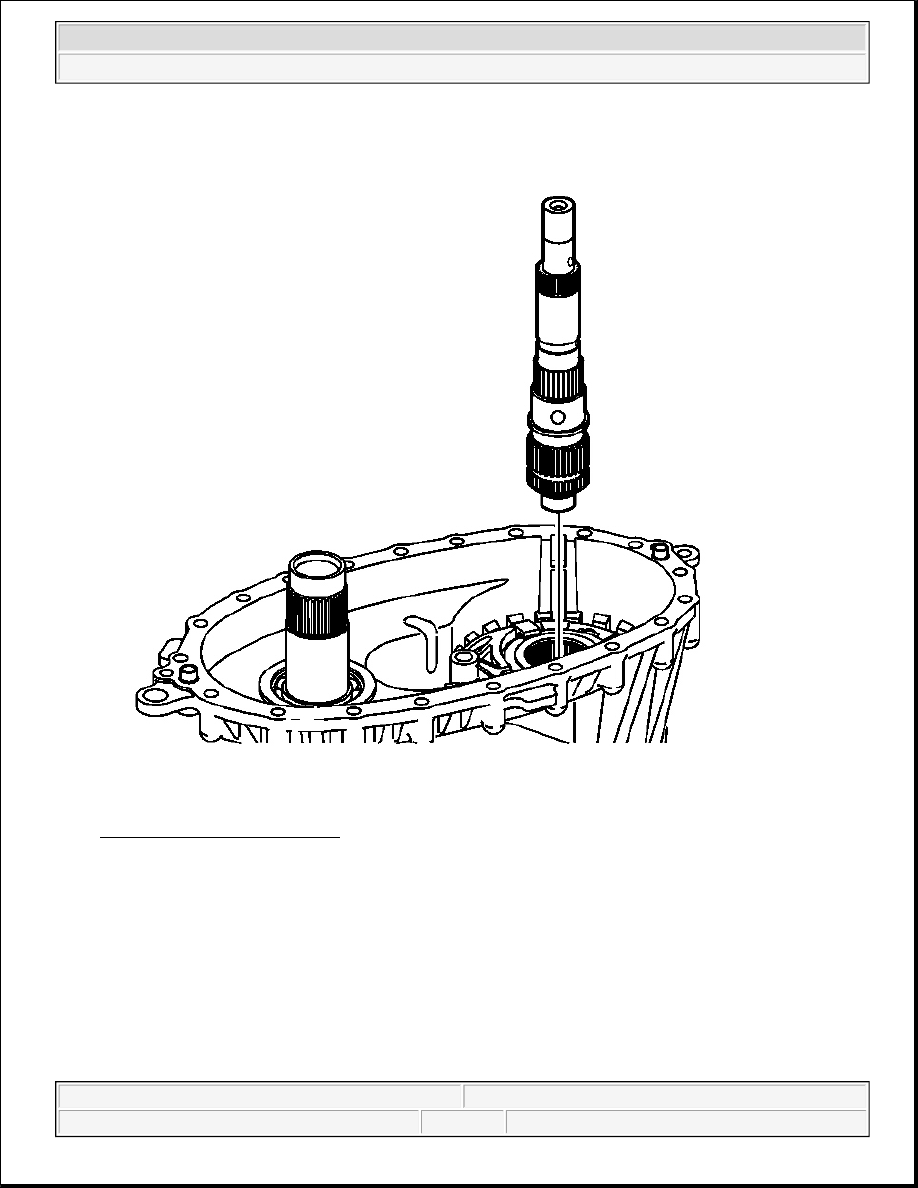

Fig. 120: Identifying Mainshaft
Courtesy of GENERAL MOTORS CORP.

22. Install the mainshaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2
