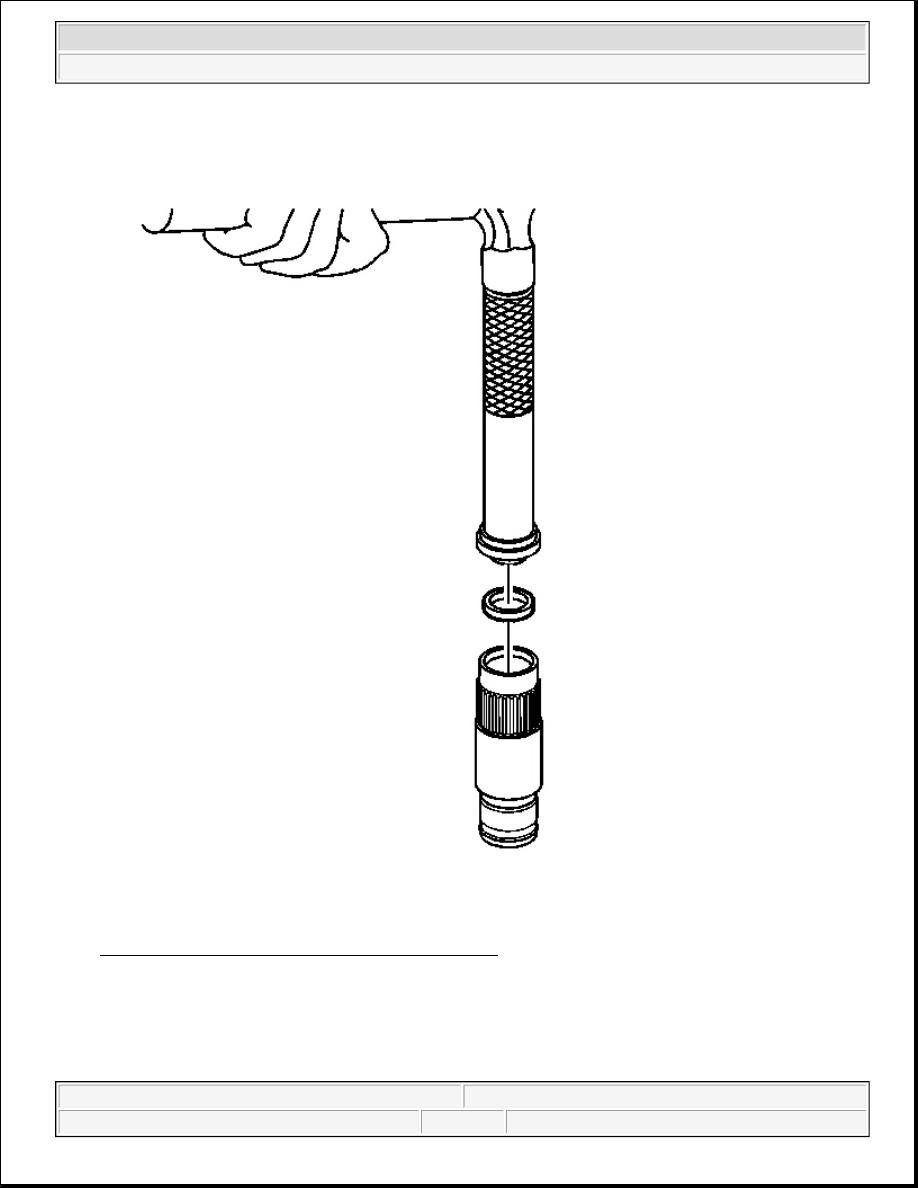

Fig. 113: Installing Cup Plug In Front Output Shaft
Courtesy of GENERAL MOTORS CORP.

11. If it is a new shaft, or if the cup plug was removed, apply threadlocker GM P/N 12345382 (Canadian P/N

10953489) to the cup plug.

12. Using a suitable driver, install the cup plug in the front output shaft. Install the cup plug 1 mm (0.039 in)

from flush with the end of the shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

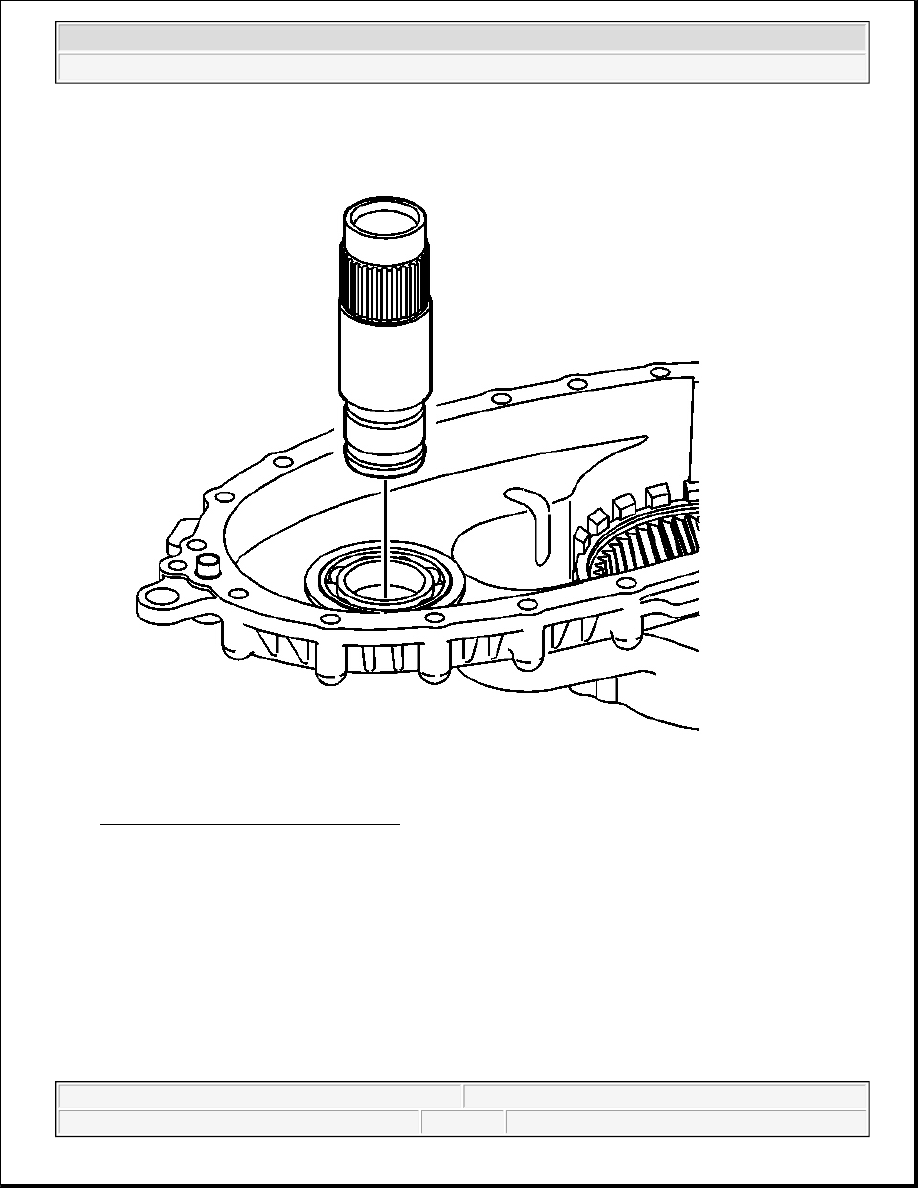

Fig. 114: Front Output Shaft Assembly
Courtesy of GENERAL MOTORS CORP.

13. Install the front output shaft assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

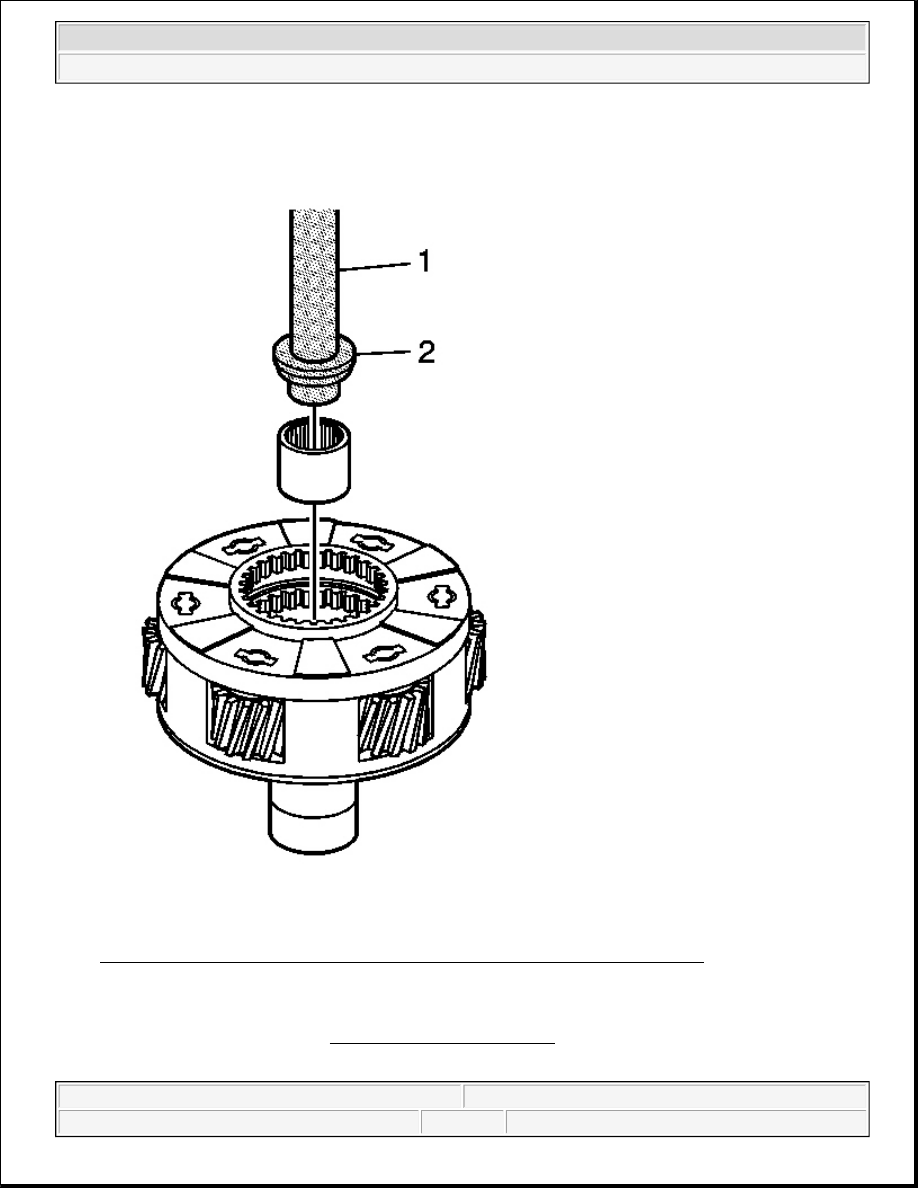

Fig. 115: Installing Mainshaft Front Support Bearing Using J 42176 & J 45757
Courtesy of GENERAL MOTORS CORP.

14. Using the J 42176 (1) and the J 45757 (2), install the mainshaft front support bearing in the high/low

planetary carrier assembly. See Special Tools and Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

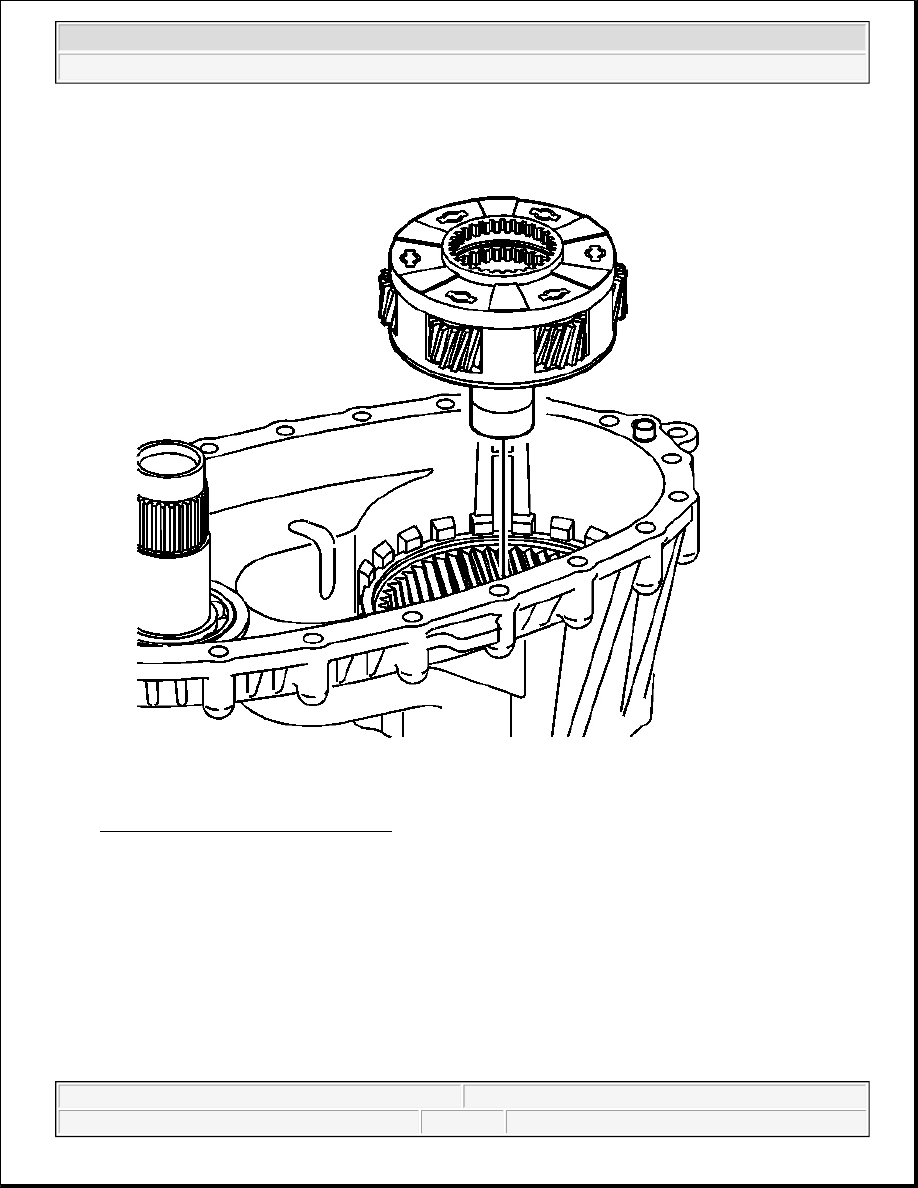

Fig. 116: High/Low Planetary Carrier
Courtesy of GENERAL MOTORS CORP.

15. Install the high/low planetary carrier.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2
