Hummer H2. Manual - part 265

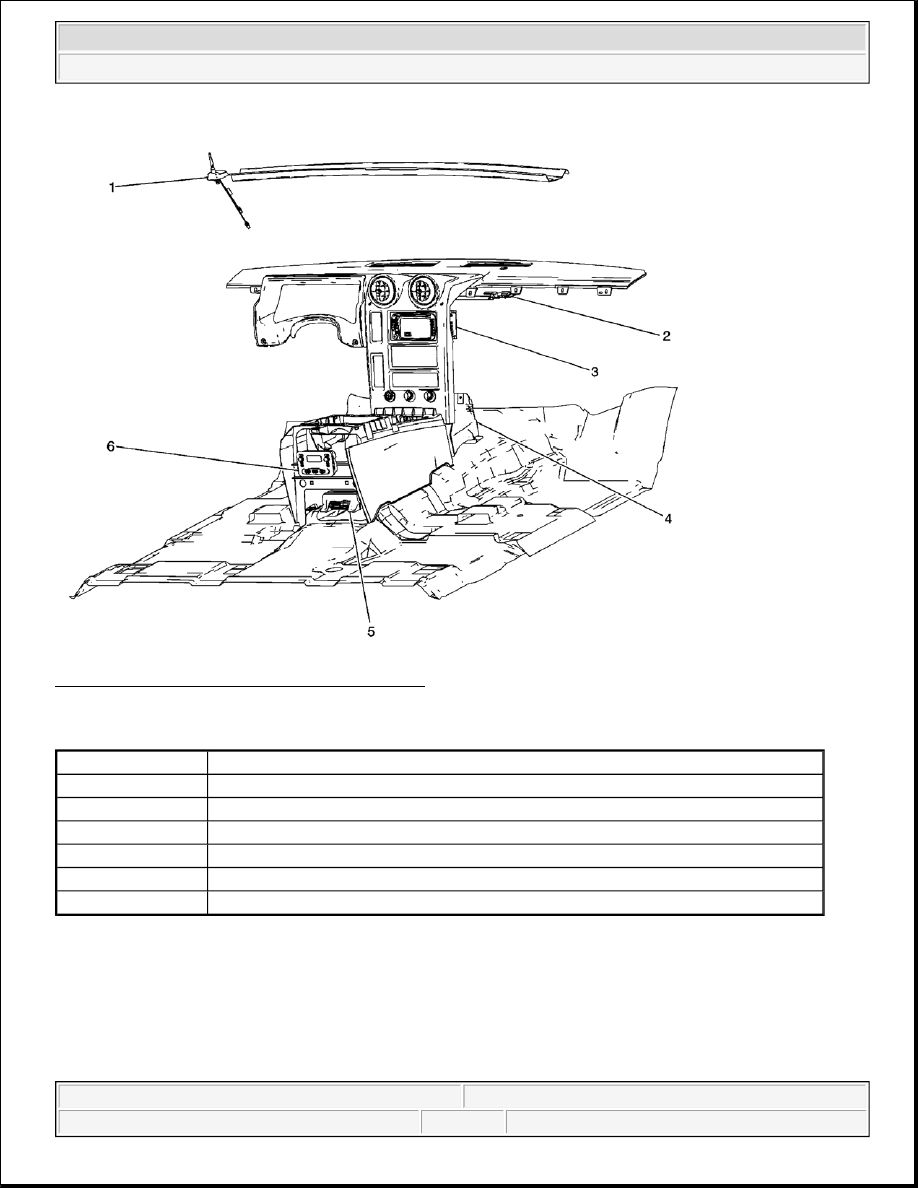

Fig. 9: Entertainment Component Views (1 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9

Callout

Component Name

1

Cellular and Navigation Antenna

2

Navigation Radio Antenna (UM8)

3

Radio w/DVD

4

Speaker - Front Subwoofer

5

Audio Amplifier

6

Rear Seat Audio (RSA) Controller



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



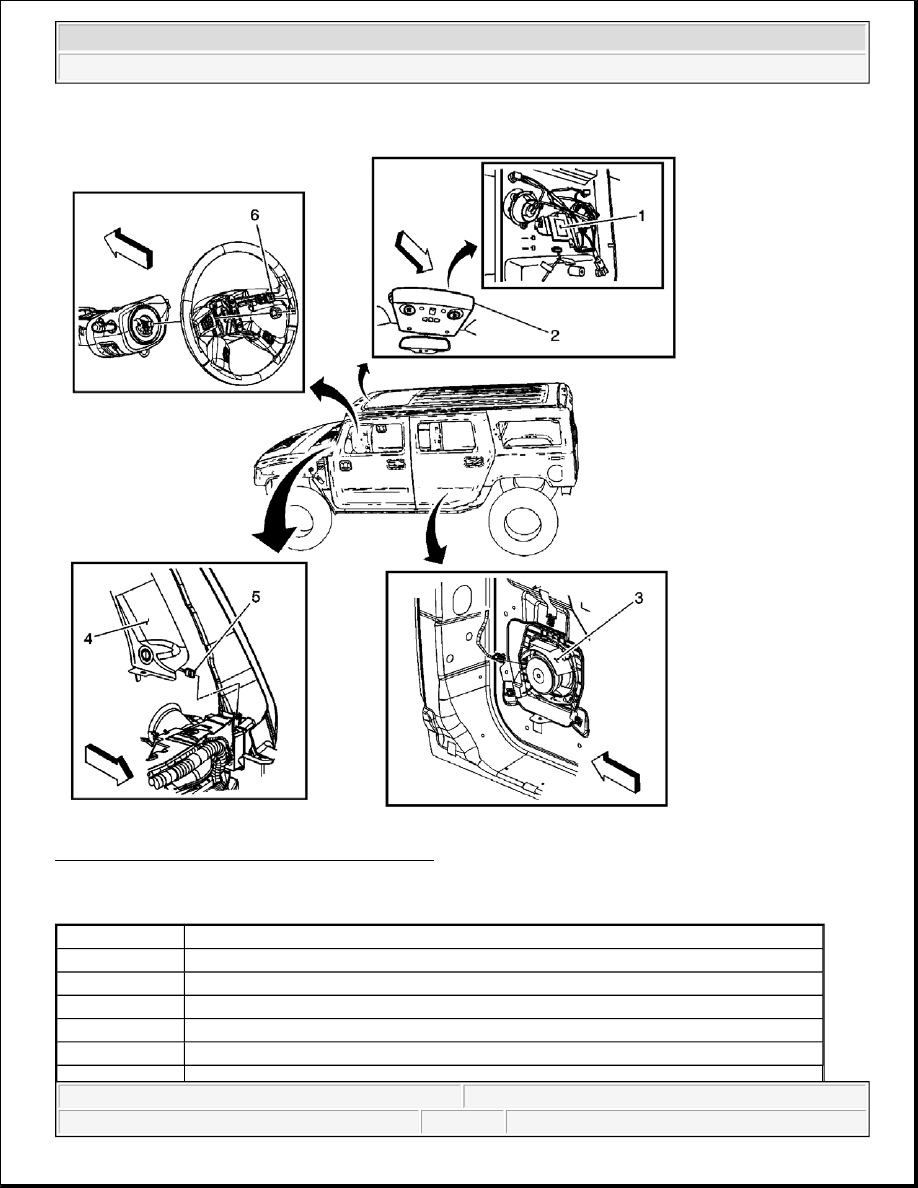

Fig. 10: Entertainment Component Views (2 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

Callout

Component Name

1

Garage Door Opener

2

Overhead Console

3

Speaker - LR Door

4

Windshield Side Garnish Molding

5

Speaker - Left A Pillar Tweeter Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



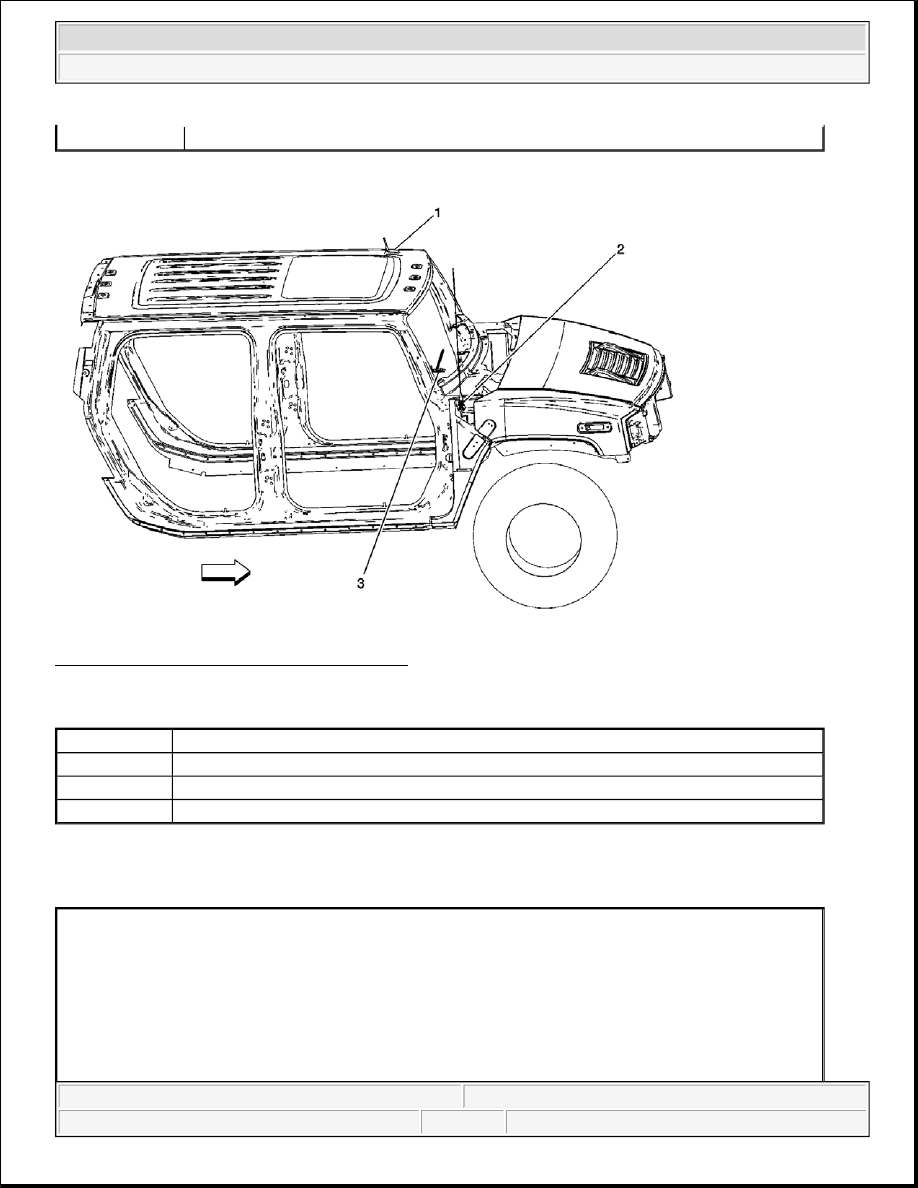

Fig. 11: Antenna Locations Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 11

ENTERTAINMENT CONNECTOR END VIEWS

Audio Amplifier - Terminal Identification - C1 w/Class 2

6

Steering Wheel Controls

Callout

Component Name

1

Cellular and Navigational Antenna

2

Radio Antenna

3

Global Positioning System (GPS) Antenna (I/P)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



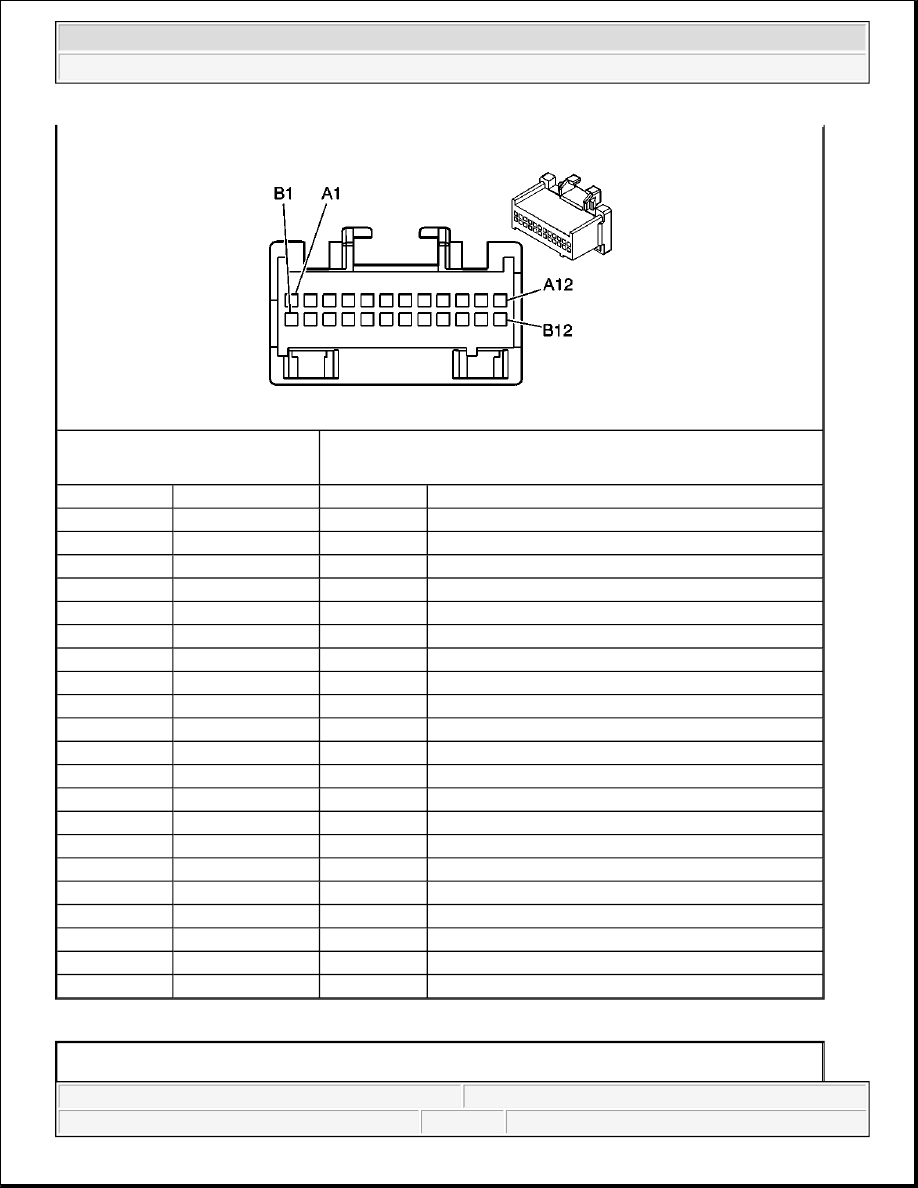

Audio Amplifier - Terminal Identification - C1 w/o Class 2

Connector Part Information

z

12110088

z

24-Way F Micro-Pack 100 Series (L-GY)

Pin

Wire Color

Circuit No.

Function

A1

WH

1854

Right Rear Twiddler Speaker Output (+)

A2

YE

1949

Right Rear Twiddler Speaker Output (-)

A3

BN

199

Left Rear Speaker Output (+)

A4

YE

116

Left Rear Speaker Output (-)

A5

TN

201

Left Front Speaker Output (+)

A6

GY

118

Left Front Speaker Output (-)

A7

D-BU

46

Right Rear Speaker Output (+)

A8

L-BU

115

Right Rear Speaker Output (-)

A9

L-GN

200

Right Front Speaker Output (+)

A10

D-GN

117

Right Front Speaker Output (-)

A11-A12

-

-

Not Used

B1

L-GN/BK

1354

Noise Reduction Microphone Supply Voltage

B2

D-GN

1488

Noise Reduction Microphone Signal

B3

OG/BK

1546

Right Front Low Level Audio Signal (-)

B4

D-GN

1947

Left Front Low Level Audio Signal (-)

B5

TN

511

Left Front Low Level Audio Signal (+)

B6

L-GN

512

Right Front Low Level Audio Signal (+)

B7

BARE

2011

Drain Wire

B8-B9

-

-

Not Used

B10

D-BU

2272

Amplifier Class 2 Serial Data

B11-B12

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2
