RADIO/AUDIO SYSTEM SCHEMATICS (NON CLASS 2 AMPLIFIER)

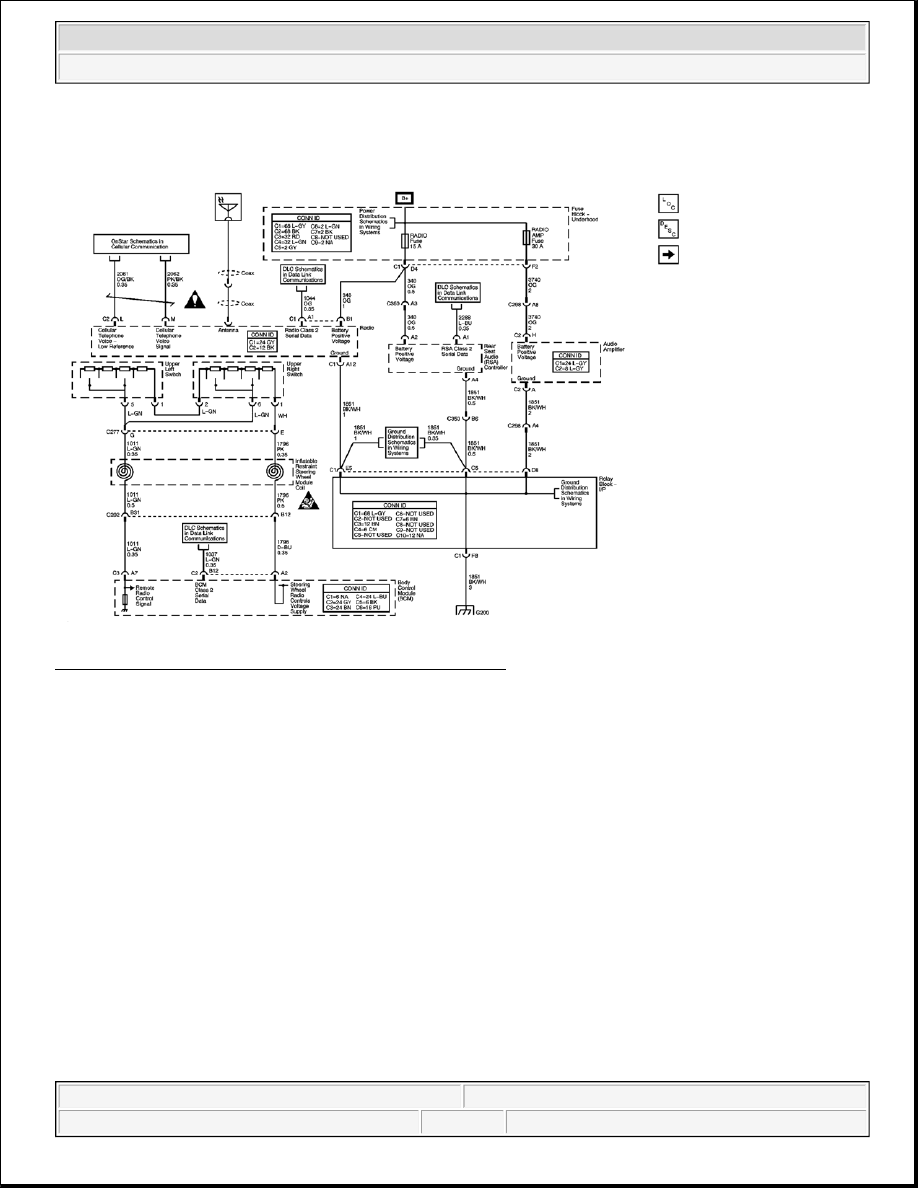

Fig. 1: Power, Ground, DLC, and Steering Wheel Controls
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

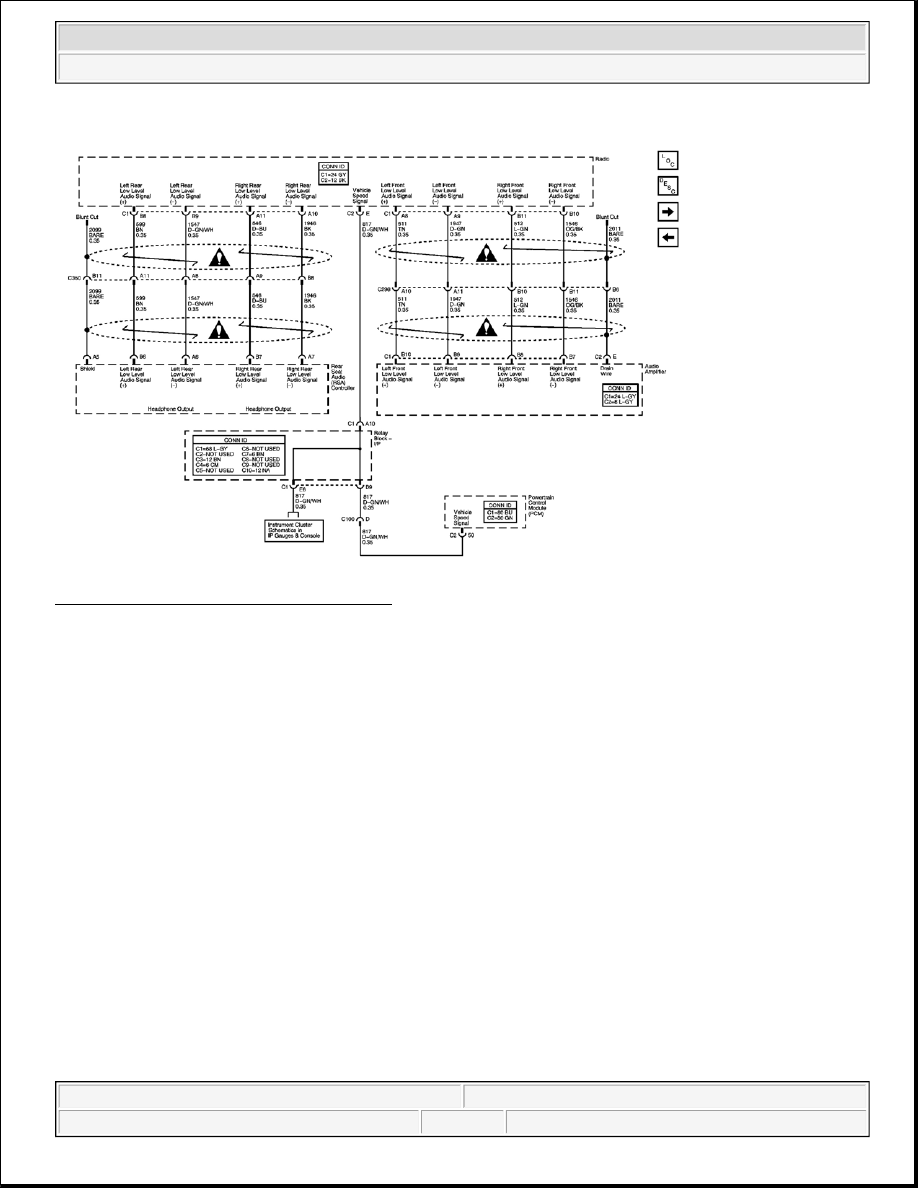

Fig. 2: Radio Audio Outputs and VSS Input
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

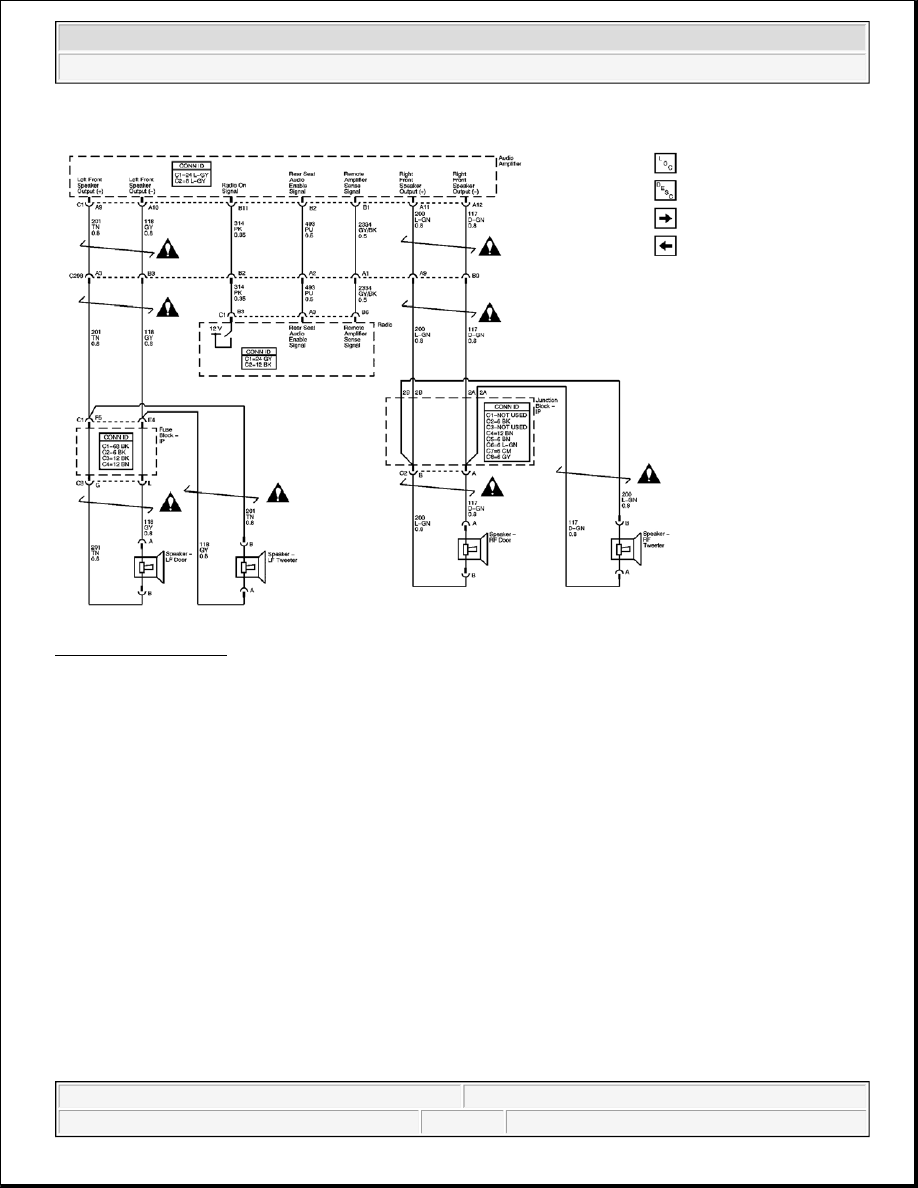

Fig. 3: Front Speakers
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

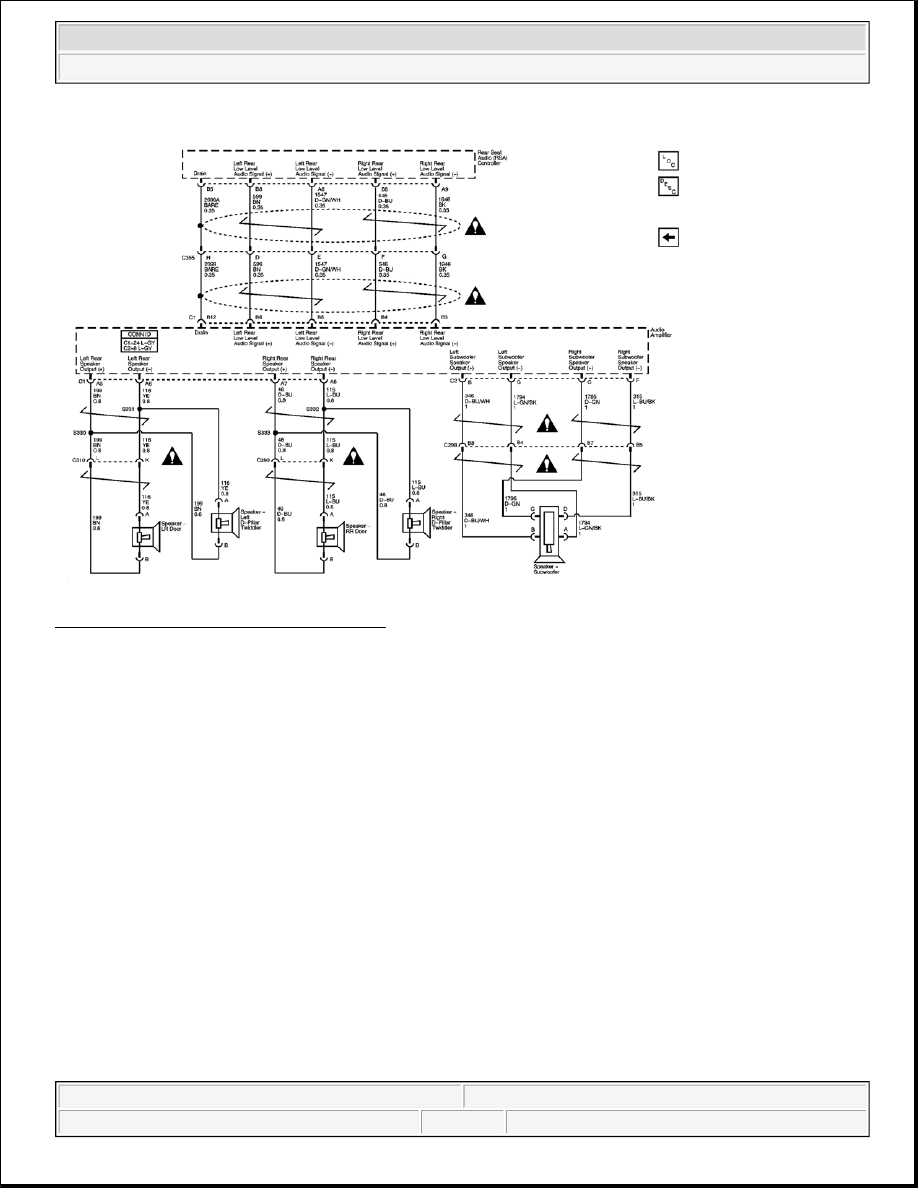

Fig. 4: Rear Door Speakers and Subwoofer
Courtesy of GENERAL MOTORS CORP.

RADIO/AUDIO SYSTEM SCHEMATICS (CLASS 2 AMPLIFIER)
