Hummer H2. Manual - part 266

Audio Amplifier - Terminal Identification - C2 w/o Class 2

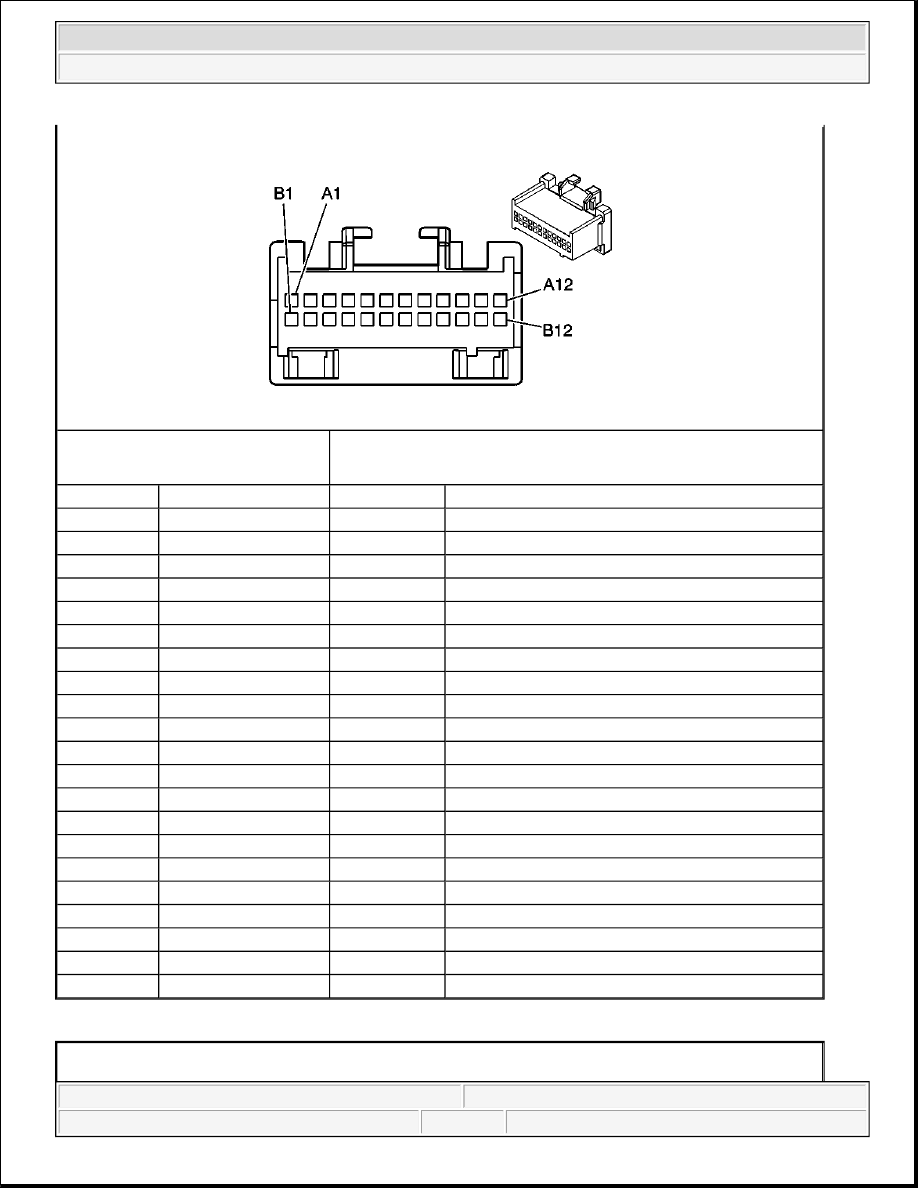

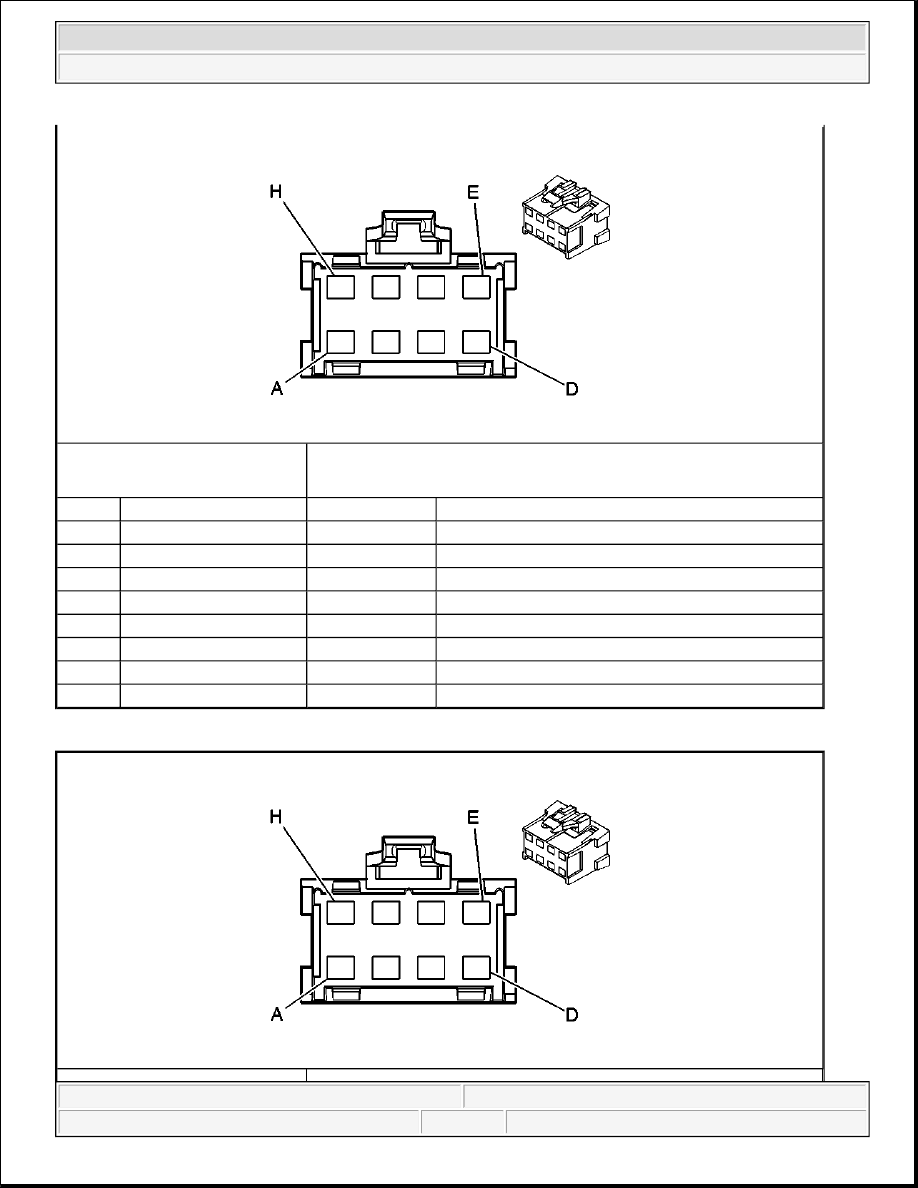

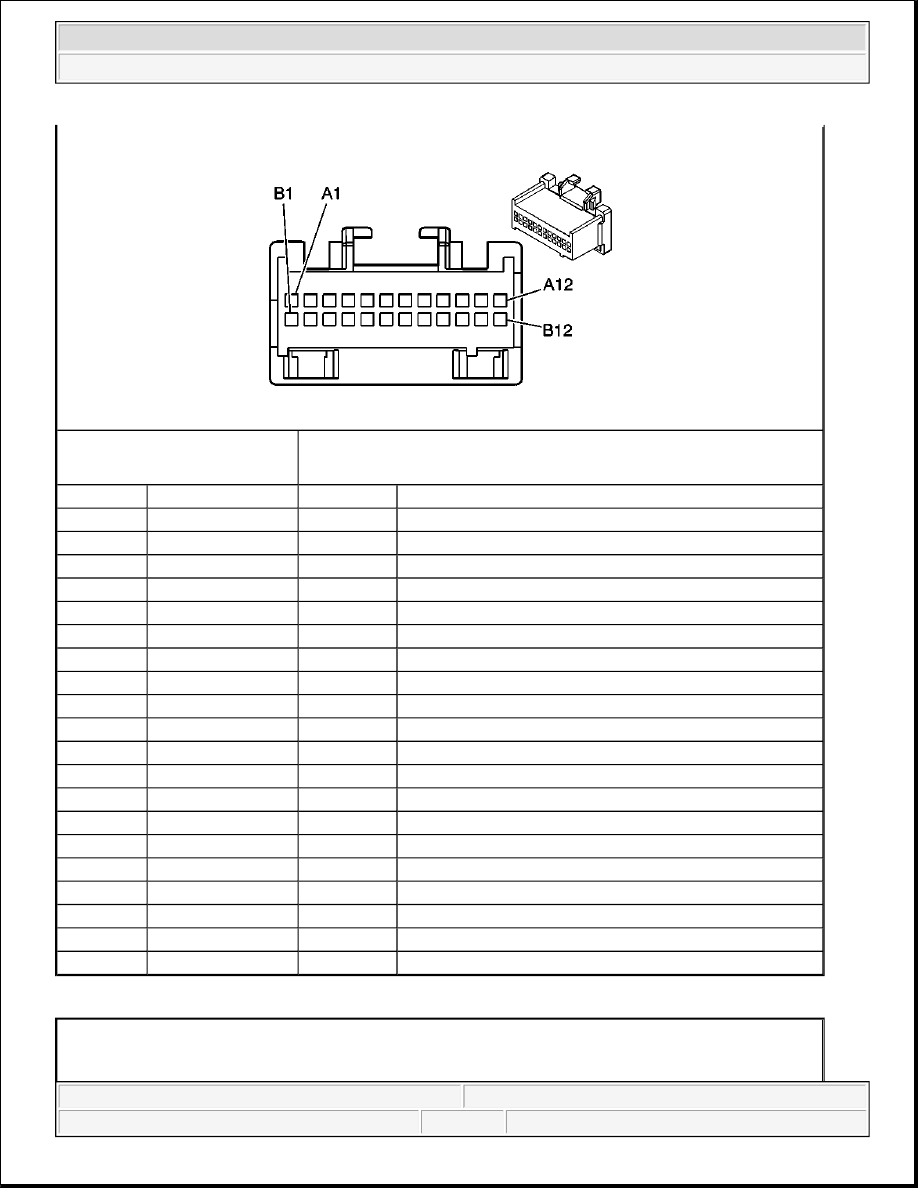

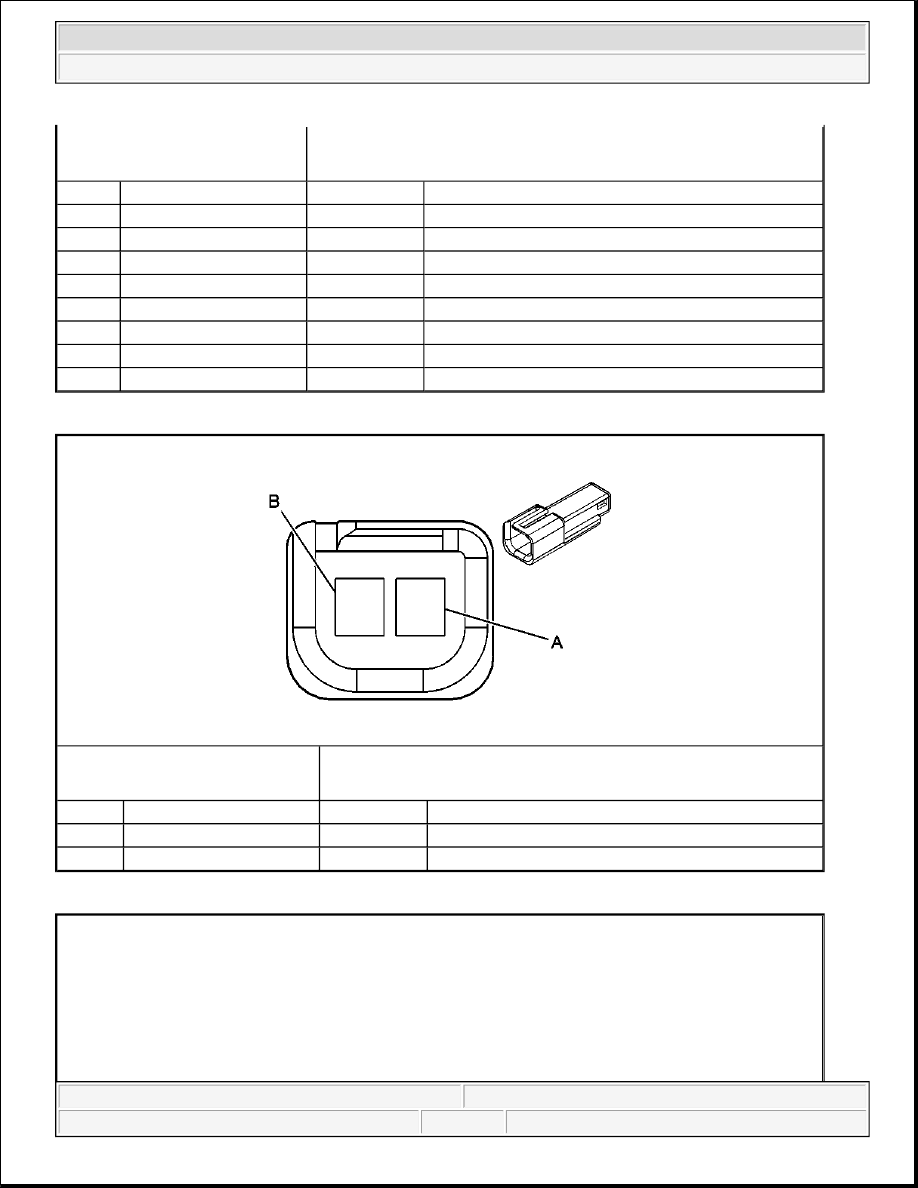

Connector Part Information

z

12110088

z

24-Way F Micro-Pack 100 Series (L-GY)

Pin

Wire Color

Circuit No.

Function

A1-A4

-

-

Not Used

A5

BN

199

Left Rear Speaker Output (+)

A6

YE

116

Left Rear Speaker Output (-)

A7

D-BU

46

Right Rear Speaker Output (+)

A8

L-BU

115

Right Rear Speaker Output (-)

A9

TN

201

Left Front Speaker Output (+)

A10

GY

118

Left Front Speaker Output (-)

A11

L-GN

200

Right Front Speaker Output (+)

A12

D-GN

117

Right Front Speaker Output (-)

B1

GY/BK

2334

Remote Amplifier Sense Signal

B2

PU

493

Rear Seat Audio Enable Signal

B3

BK

1946

Right Rear Low Level Audio Signal (-)

B4

D-BU

546

Right Rear Low Level Audio Signal (+)

B5

D-GN/WH

1547

Left Rear Low Level Audio Signal (-)

B6

BN

599

Left Rear Low Level Audio Signal (+)

B7

OG/BK

1546

Right Front Low Level Audio Signal (-)

B8

L-GN

512

Right Front Low Level Audio Signal (+)

B9

D-GN

1947

Left Front Low Level Audio Signal (-)

B10

TN

511

Left Front Low Level Audio Signal (+)

B11

PK

314

Radio On Signal

B12

BARE

2099

Drain Wire



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Audio Amplifier - Terminal Identification - C2 w/Class 2

Connector Part Information

z

12110626

z

8-Way F Metri-Pack 280 Series Flexlock (L-GY)

Pin

Wire Color

Circuit No.

Function

A

BK/WH

1851

Ground

B

D-BU/WH

1346

Left Subwoofer Speaker Output (+)

C

D-GN

1795

Right Subwoofer Speaker Output (+)

D

-

-

Not Used

E

BARE

2011

Drain Wire

F

L-BU/BK

315

Right Subwoofer Speaker Output (-)

G

L-GN/BK

1794

Left Subwoofer Speaker Output (-)

H

OG

3740

Battery Positive Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Noise Cancellation Microphone w/ Class 2 Amplifier - Terminal Identification

Radio - Terminal Identification - C1 w/o Navigation

Connector Part Information

z

12110626

z

8-Way F Metri-Pack 280 Series Flexlock (L-GY)

Pin

Wire Color

Circuit No.

Function

A

BK/WH

1851

Ground

B

D-GN

1795

Right Subwoofer Speaker Output (+)

C

RD

1858

Left D Pillar Twiddler Speaker Output (+)

D

L-GN/BK

1794

Left Subwoofer Speaker Output (-)

E

D-BU/WH

346

Left Subwoofer Speaker Output (+)

F

PU

1958

Left Rear Twiddler Speaker Output (-)

G

L-BU/BK

315

Right Subwoofer Speaker Output (-)

H

OG

3740

Battery Positive Voltage

Connector Part Information

z

12047663

z

2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

D-GN

1488

Noise Reduction Microphone Supply Voltage

B

L-GN

1354

Drain Wire



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Radio - Terminal Identification - C2 w/o Navigation

Connector Part Information

z

12110088

z

24-Way F Micro-Pack 100 Series (GY)

Pin

Wire Color

Circuit No.

Function

A1

OG

1044

Radio Class 2 Serial Data

A2

-

-

Not Used

A3

D-GN

493

Rear Seat Audio Enable Signal w/o Class 2 Amplifier

A4-A7

-

-

Not Used

A8

TN

511

Left Front Low Level Audio Signal (+)

A9

D-GN

1947

Left Front Low Level Audio Signal (-)

A10

BK

1946

Right Rear Low Level Audio Signal (-)

A11

D-BU

546

Right Rear Low Level Audio Signal (+)

A12

BK/WH

1851

Ground

B1

OG

340

Battery Positive Voltage

B2

-

-

Not Used

B3

PK

314

Radio On Signal w/o Class 2 Amplifier

B4-B5

-

-

Not Used

B6

GY/BK

2334

Radio Mute Signal w/o Class 2 Amplifier

B7

-

-

Not Used

B8

BN

599

Left Rear Low Level Audio Signal (+)

B9

D-GN/WH

1547

Left Rear Low Level Audio Signal (-)

B10

OG/BK

1546

Right Front Low Level Audio Signal (-)

B11

L-GN

512

Right Front Low Level Audio Signal (+)

B12

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2
