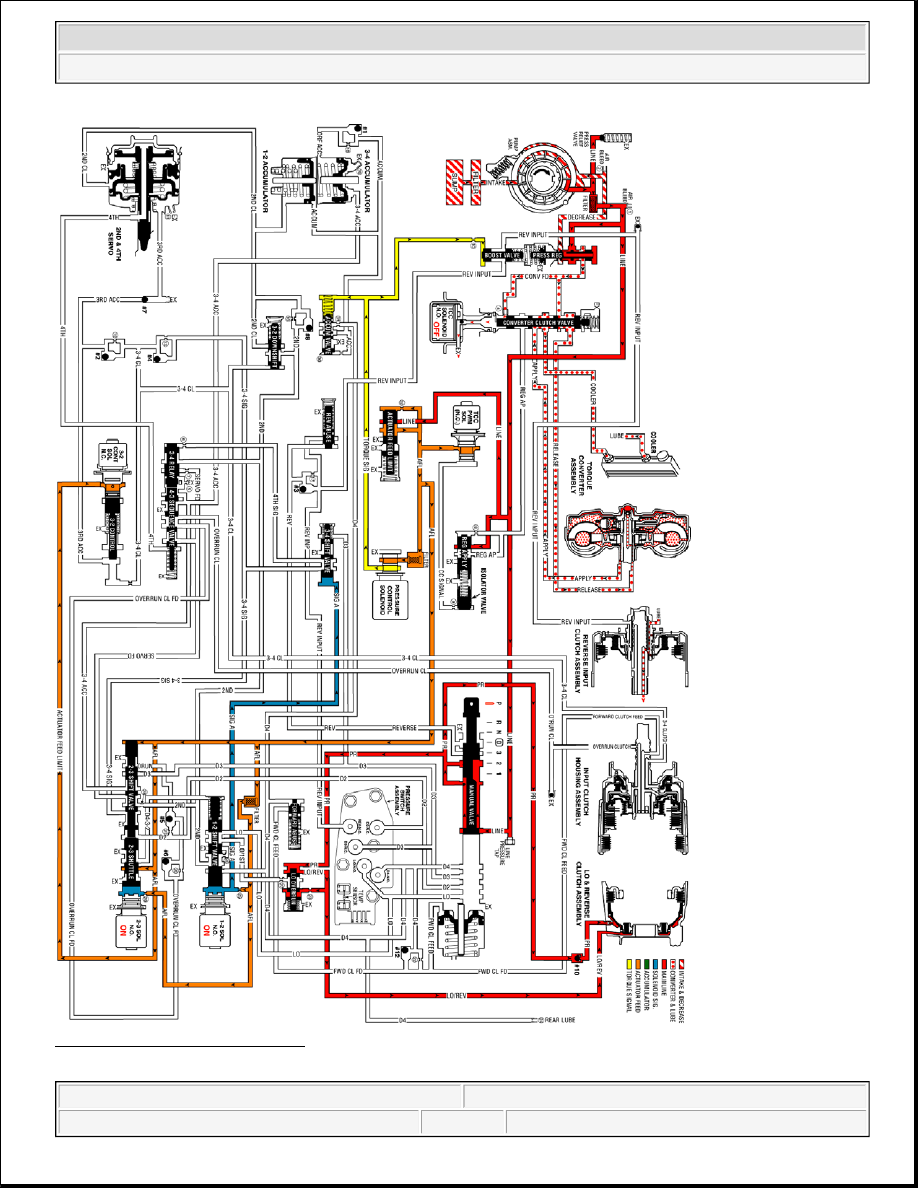

Held in the release position by spring force, it directs converter feed fluid into the release fluid circuit. Also,
fluid returning from the converter in the apply fluid circuit is routed through the valve and into the cooler fluid
circuit.
Torque Converter
Release fluid pressure unseats the TCC apply checkball (#9), keeps the pressure plate released from the
converter cover and fills the converter with fluid. Fluid exits the converter between the converter hub and the
stator shaft in the apply fluid circuit.
Cooler and Lubrication System
Cooler fluid from the converter clutch apply valve is routed through the transmission fluid cooler and into the
lubrication fluid circuits.
Manual Valve
Controlled by the selector lever and the manual shaft, the manual valve is in the Park (P) position and directs
the line pressure into the PR (Park/Reverse) fluid circuit. Line pressure is blocked from entering any other fluid
circuit at the manual valve.
Lo and Reverse Clutch Applies
Lo and Reverse Clutch Piston
The PR fluid seats the lo and reverse clutch checkball (#10) and is orificed to the outer area of the piston.
Orificing the PR fluid around the #10 checkball helps control the lo and reverse clutch apply. Also, Lo/reverse
fluid pressure from the lo overrun valve acts on the inner area of the lo and reverse clutch piston in order to
increase the clutch holding capacity.
Lo Overrun Valve
The PR fluid pressure moves the valve against the spring force and fills the Lo/reverse fluid circuit. Lo/reverse
fluid is orificed (323) back to the lo overrun valve in order to assist the PR fluid in moving the valve against the
spring force. The spring force provides a time delay for the PR fluid filling the Lo/reverse fluid circuit. The
Lo/reverse fluid is routed to the inner area of the lo and reverse clutch piston in order to increase the holding
capacity of the clutch.
Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly
The TFP manual valve position switch consists of five fluid pressure switches: D2 and D3 are normally closed
and D4, Lo and Rev are normally open. All fluid circuits routed to the assembly are empty and the TFP manual
valve position switch signals the PCM that the transmission is in either Park or Neutral.
Shift Solenoid Valves (1-2 and 2-3)
Both shift solenoid valves, which are normally open, are energized by the PCM and block fluid from
exhausting. This maintains the signal A fluid pressure at the 1-2 shift solenoid valve and signal B fluid pressure
