Fig. 458: Installing J 29714-A
Courtesy of GENERAL MOTORS CORP.

8. Install the J 29714-A . See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



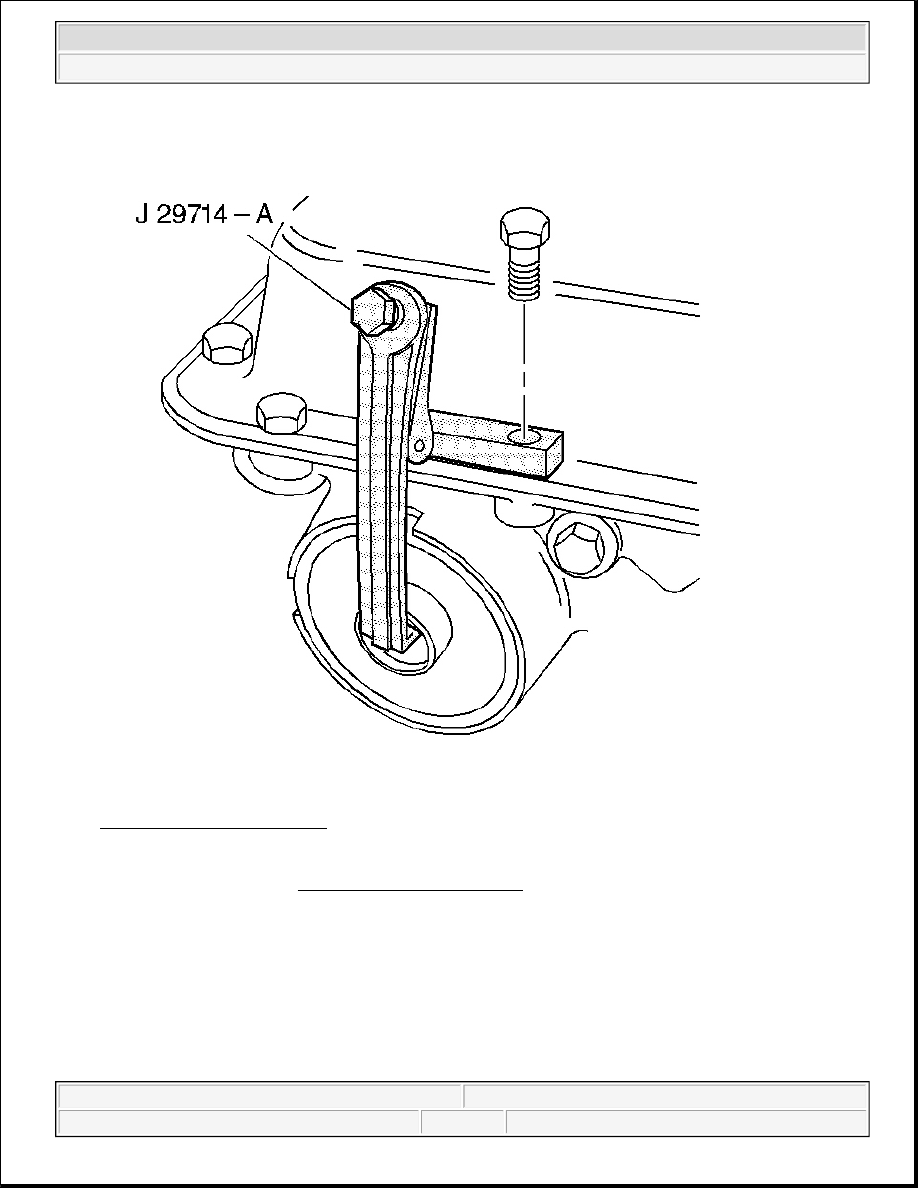

Fig. 459: Tightening J 29714-A Bolt To Compress Servo Cover
Courtesy of GENERAL MOTORS CORP.

9. Tighten the bolt on the J 29714-A in order to compress the servo cover. See Special Tools and

Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

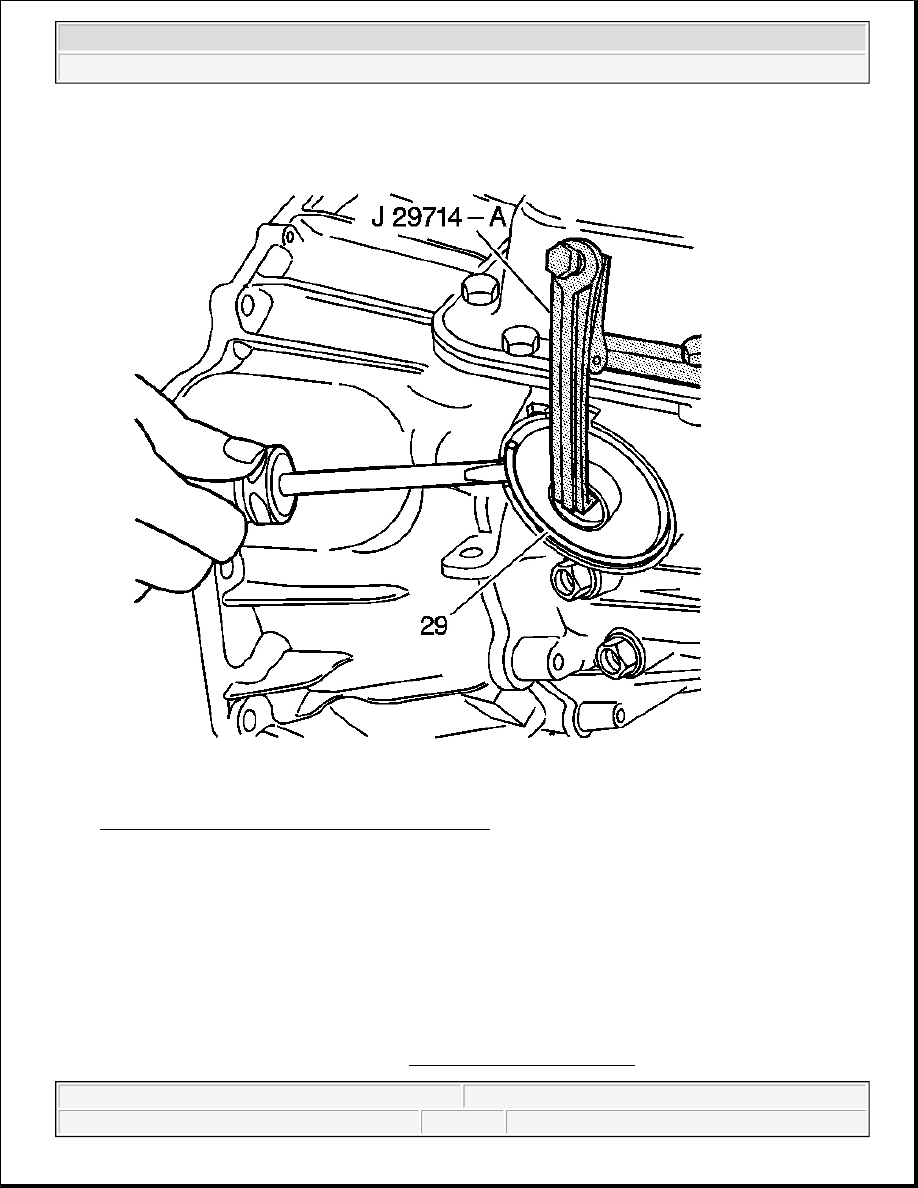

Fig. 460: Servo Cover Retaining Ring & J 29714-A
Courtesy of GENERAL MOTORS CORP.

10. Install the servo cover retaining ring.

TORQUE CONVERTER END PLAY INSPECTION

Tools Required

z

J 8001 Dial Indicator Set

z

J 26900-13 Magnetic Indicator Base

z

J 35138 Converter End Play Checker. See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



z

J 39195 Converter End Play Check Tool. See Special Tools and Equipment .

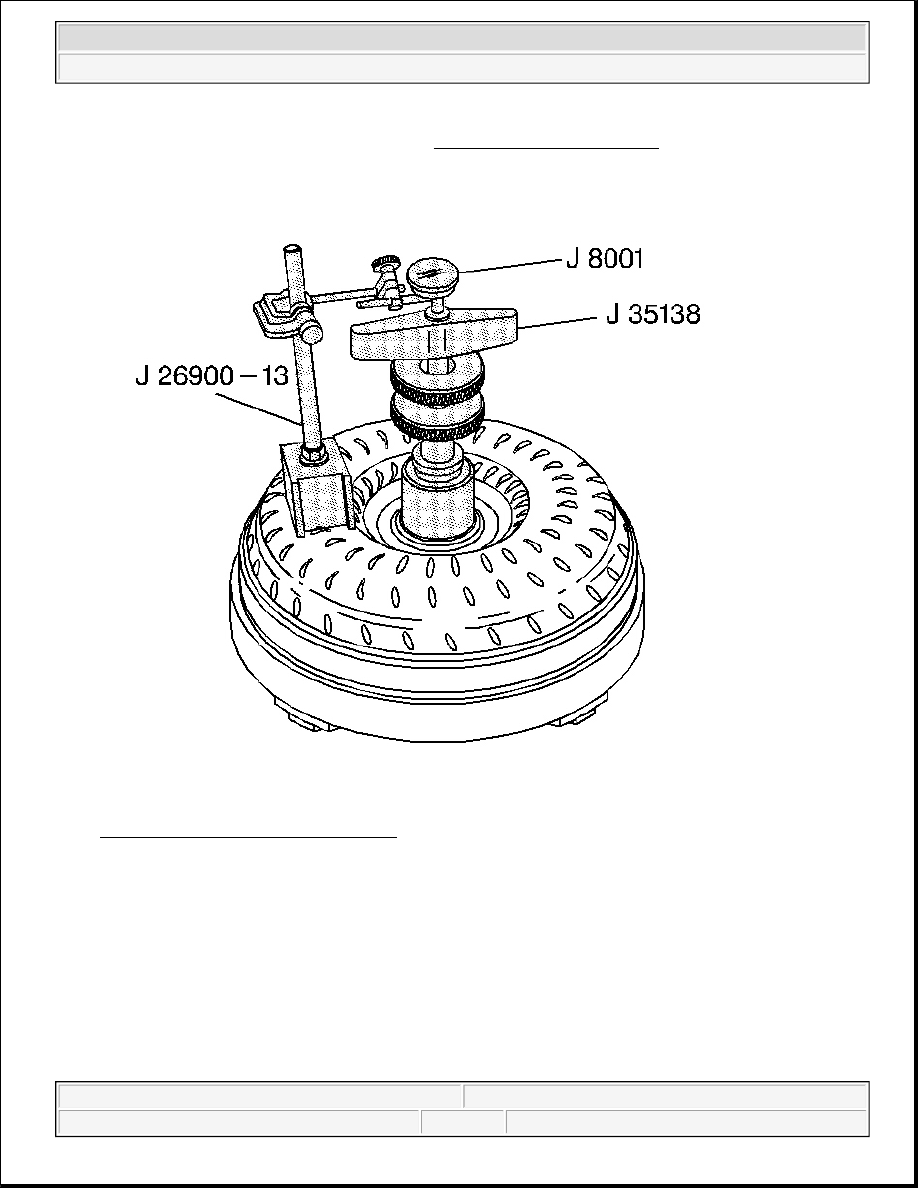

Fig. 461: Inspecting Torque Converter
Courtesy of GENERAL MOTORS CORP.

1. Inspect the torque converter and replace if any of the following conditions exist:

z

Evidence of damage to the pump assembly.

z

Metal particles are found after flushing the cooler and cooler lines.

z

External leaks in the hub area.

z

Converter pilot is broken, damaged or poor fit into the crankshaft.

z

Converter hub is scored or damaged.

z

Internal damage to the stator.

z

Contamination from engine coolant.
