Reverse input fluid exhausts from the TFP manual valve position switch. With no other fluid routed to it, the
TFP manual valve position switch signals the PCM that the transmission is operating in either Park or Neutral.

IMPORTANT: In Park, Reverse and Neutral the shift solenoid valves are shown energized.

This is the normal operating state when the vehicle is stationary or at low
vehicle speeds. However, the PCM will change the shift solenoid valve states
depending on the vehicle speed. For example, if Neutral is selected when the
transmission is operating in Second Gear, the shift solenoid valves will remain
in a Second Gear state. However, with the manual valve blocking line pressure,
the shift solenoid valve states do not affect transmission operation in Park,
Reverse and Neutral.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

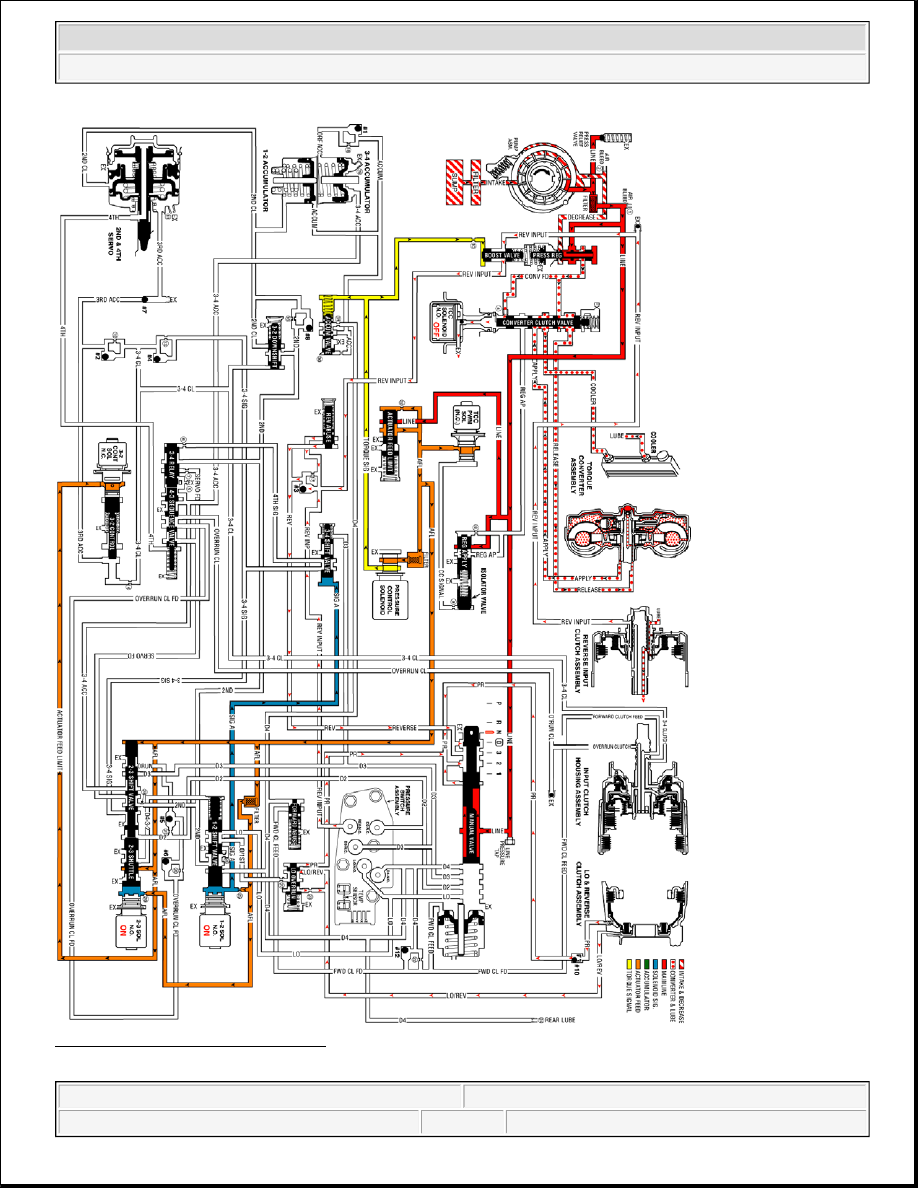

Fig. 465: Neutral - Engine Running
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



OVERDRIVE RANGE, FIRST GEAR

When the gear selector lever is moved to the Overdrive position, from the neutral position, the following
changes occur to the transmission's hydraulic and electrical systems:

Manual Valve

Line pressure flows through the manual valve and fills the D4 fluid circuit. All other fluid circuits remain empty
with the manual valve in the Overdrive position.

Forward Clutch Applies

or

Forward Clutch Accumulator Checkball (#12)

D4 fluid pressure seats the checkball and is orificed (#22) into the forward clutch feed fluid circuit. This orifice
helps control the forward clutch apply rate.

Forward Clutch Accumulator Piston

Forward clutch feed fluid pressure moves the piston against spring force. This action absorbs some of the initial
increase of forward clutch feed fluid pressure to cushion the forward clutch apply.

Forward Clutch Abuse Valve

D4 fluid pressure acts on the valve opposite of spring force. At engine speeds greater than idle, D4 fluid
pressure increases and moves the valve against spring force (as shown). D4 fluid can then quickly fill the
forward clutch feed fluid circuit, thereby bypassing the control of orifice #22 and providing a faster apply of the
forward clutch. Otherwise, with increased throttle opening and engine torque, the clutch may slip during apply.

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly

D4 fluid pressure is routed to the TFP manual valve position switch and closes the normally open D4 fluid
pressure switch. This signals the PCM that the transmission is operating in Overdrive range.

1-2 Shift Solenoid (SS) Valve

Energized (ON) as in Neutral, the normally open solenoid is closed and blocks signal A fluid from exhausting
through the solenoid. This maintains pressure in the signal A fluid circuit.

2-3 Shift Solenoid (SS) Valve

Energized (ON) as in Neutral, the normally open solenoid is closed and blocks signal B fluid from exhausting
through the solenoid. This maintains signal B fluid pressure at the solenoid end of the 2-3 shift valve.

2-3 Shift Valve Train



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Signal B fluid pressure at the solenoid end of the 2-3 shift valve holds the valve train in the downshifted
position against AFL fluid pressure acting on the 2-3 shift valve. In this position, the 2-3 shuttle valve blocks
AFL fluid from entering the D432 fluid circuit. The D432 fluid circuit is open to an exhaust port past the valve.

1-2 Shift Valve

Signal A fluid pressure holds the valve in the downshifted position against spring force. In the First gear
position, the valve blocks D4 fluid from entering the 2nd fluid circuit.

Accumulator Valve

Biased by torque signal fluid pressure, spring force and orificed accumulator fluid pressure at the end of the
valve, the accumulator valve regulates D4 fluid into accumulator fluid pressure. Accumulator fluid is routed to
both the 1-2 and 3-4 accumulator assemblies in preparation for the 1-2 and 3-4 upshifts respectively.

Rear Lube (All Except Y-Car)

D4 fluid is routed through an orifice cup plug (#24) in the rear of the transmission case to feed the rear lube
fluid circuit.

Pressure Control (PC) Solenoid Valve

Remember that the PC solenoid valve continually varies torque signal fluid pressure in relation to throttle
position and vehicle operating conditions. This provides a precise control of line pressure.

3-2 Control Solenoid Valve

The PCM keeps the solenoid OFF in First gear and the normally closed solenoid blocks filtered AFL fluid from
entering the 3-2 signal fluid circuit.

Torque Converter Clutch PWM Solenoid Valve

In first gear, at approximately 6 mph, the PCM operates the TCC PWM solenoid valve at approximately a 90
percent duty cycle. This opens the AFL fluid circuit, to fill the converter clutch signal fluid circuit through the
#9 orifice, and flows to the isolator valve. The CC signal fluid pressure, acting on the isolator valve, will move
the regulated apply valve towards the closed position. Regulated line pressure is now routed into the regulated
apply circuit, and flows to the closed converter clutch valve, and is blocked from entering the converter clutch
apply circuit. Regulated apply fluid is routed through the #8 orifice to the front of the regulated apply valve, and
regulates the line pressure entering the regulated apply circuit, in response to the CC signal fluid acting on the
isolator valve.
