Cleaning Procedure

1. Clean all the valves, springs, bushings, and the control valve body in clean solvent.

2. Dry all the parts using compressed air.

Installation Procedure

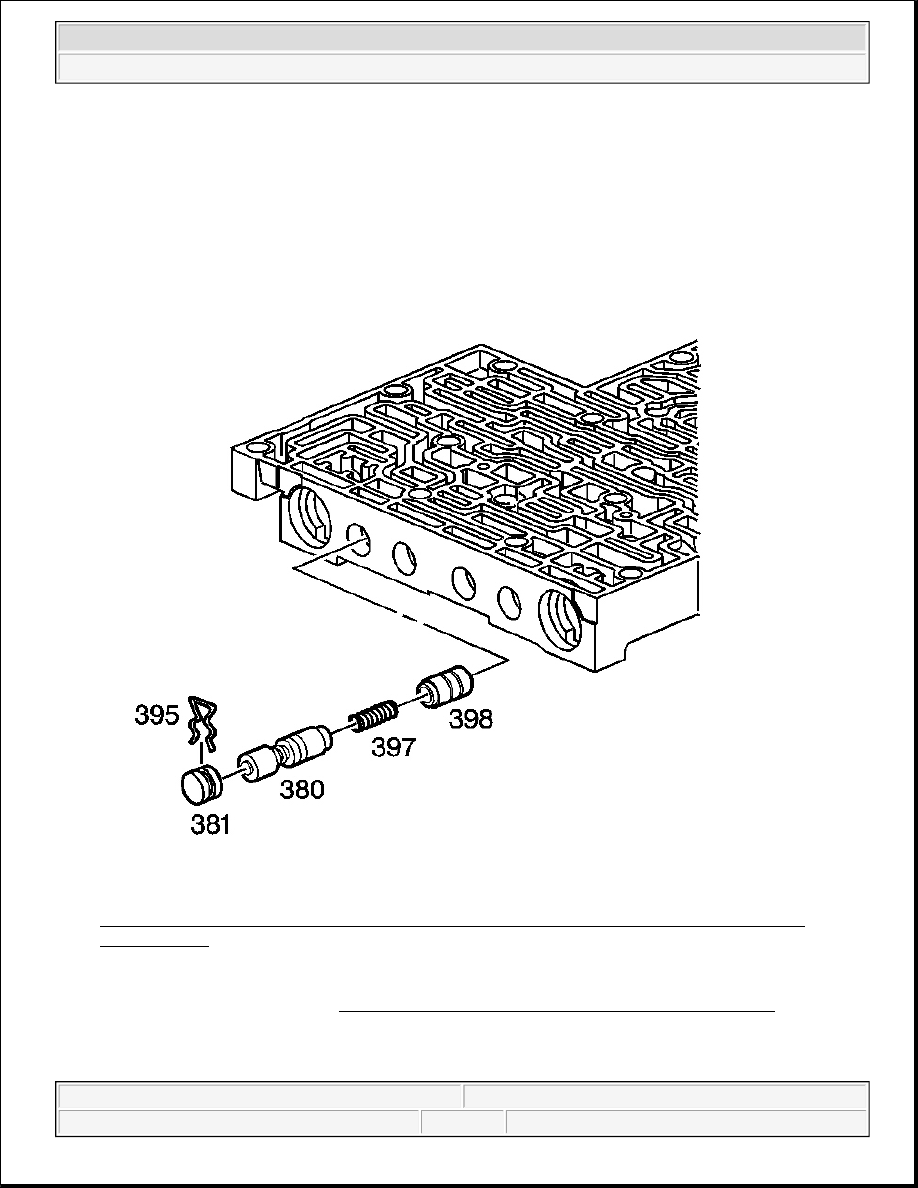

Fig. 415: Bore Plug Retainer, Bore Plug, Regulator Apply Valve, Regulator Apply Spring &
Isolator Valve
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Valve Springs Can Be Tightly Compressed Caution in

Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



1. Install the following items:

1. The isolator valve (398)

2. The regulator apply spring (397)

3. The regulator apply valve (380)

4. The bore plug (381)

5. The bore plug retainer (395)

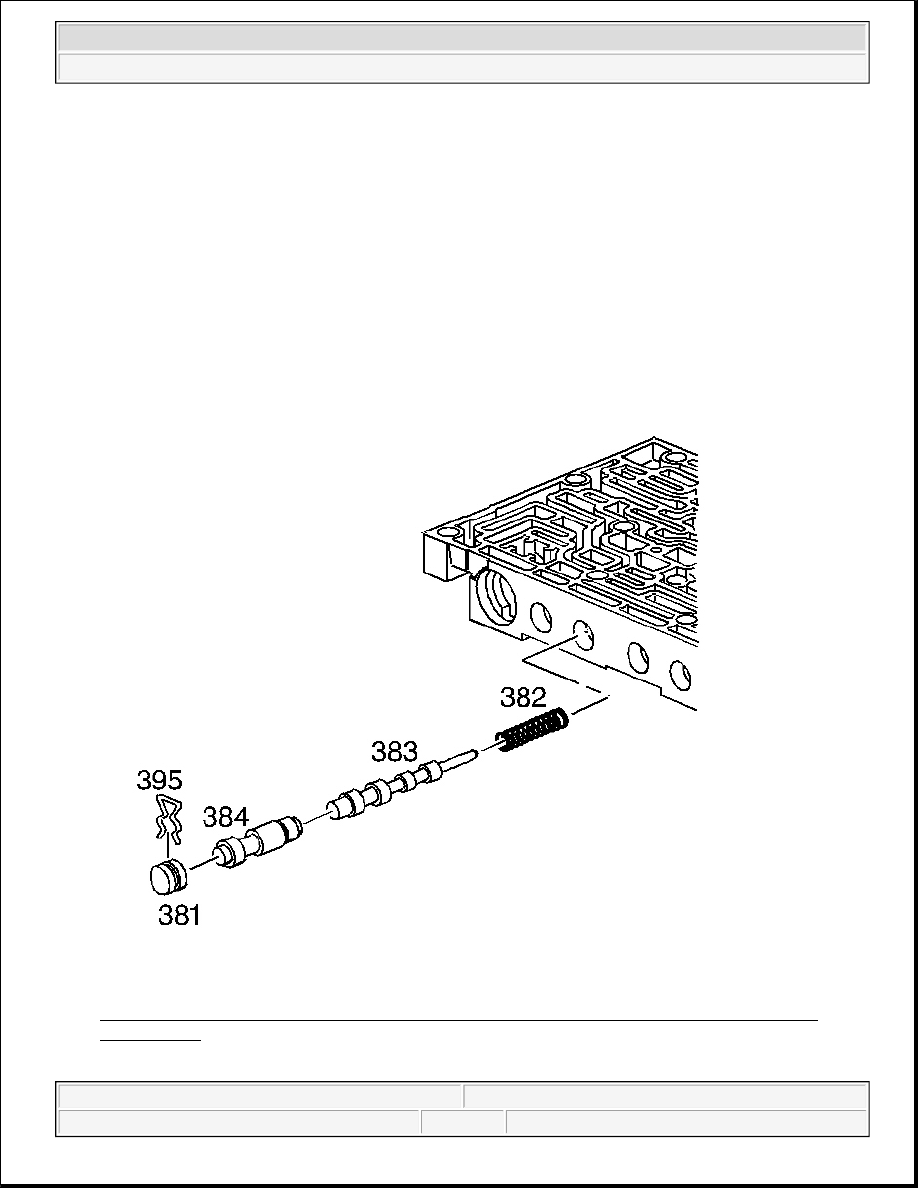

Fig. 416: Bore Plug Retainer, Bore Plug, 3-4 Relay Valve, 4-3 Sequence Valve & 4-3 Sequence
Valve Spring
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Lubricate all parts with DEXRON(R)lll automatic transmission fluid before

installation.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



2. Install the following items:

1. The 4-3 sequence valve spring (382)

2. The 4-3 sequence valve (383)

3. The 3-4 relay valve (384)

4. The bore plug (381)

5. The bore plug retainer (395)

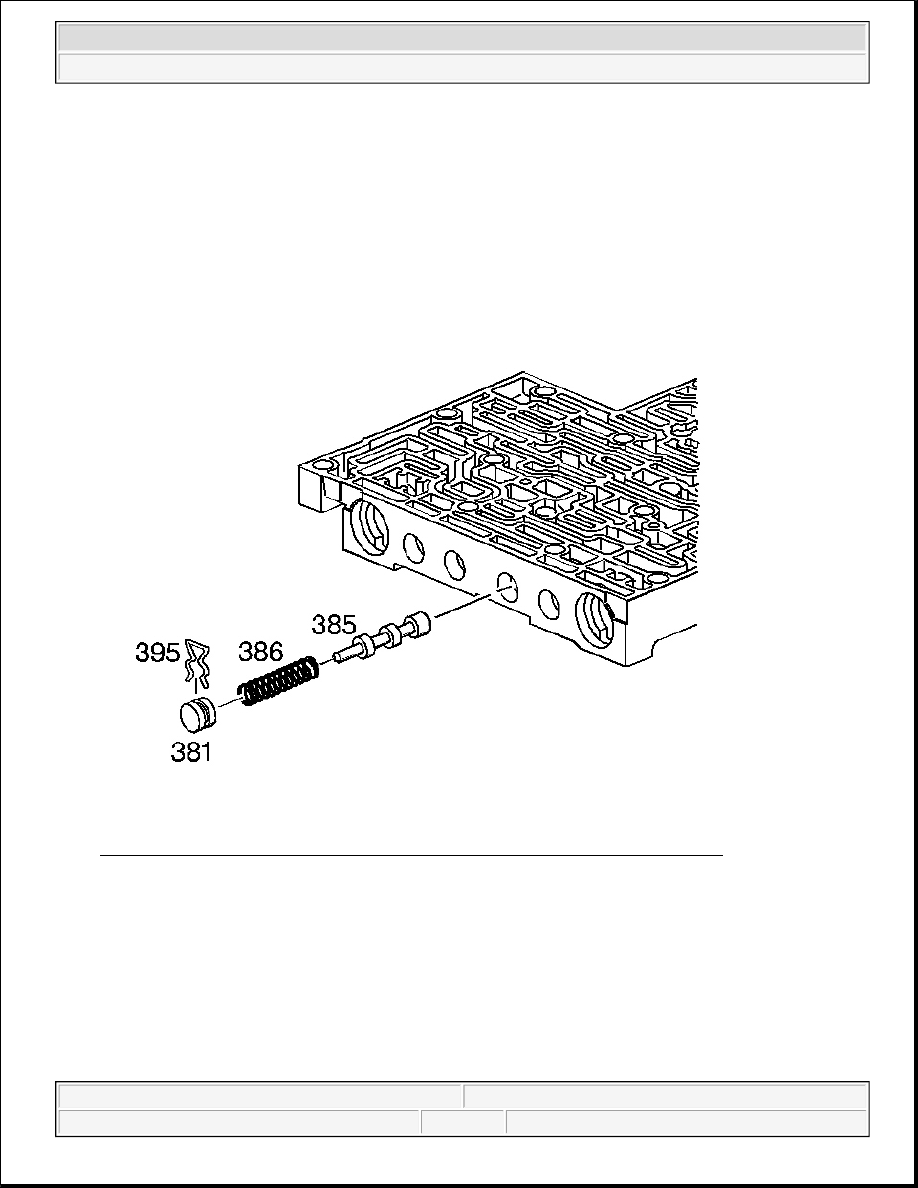

Fig. 417: Bore Plug Retainer, Bore Plug, 3-4 Shift Valve Spring & 3-4 Shift Valve
Courtesy of GENERAL MOTORS CORP.

3. Install the following items:

1. The 3-4 shift valve (385)

2. The 3-4 shift valve spring (386)

3. The bore plug (381)

4. The bore plug retainer (395)



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

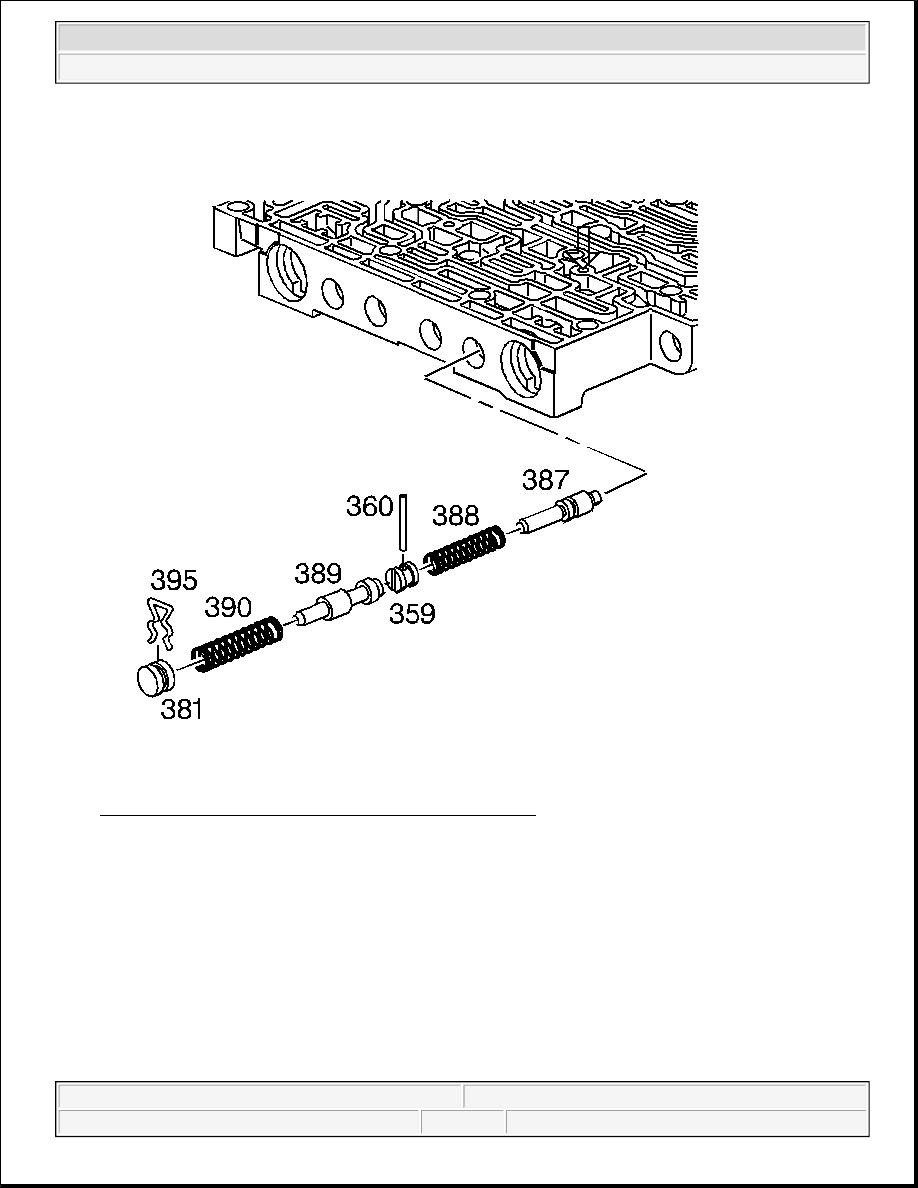

Fig. 418: Identifying (395, 381, 390, 360, 359, 388, & 387)
Courtesy of GENERAL MOTORS CORP.

4. Install the following items:

1. The reverse abuse valve (387)

2. The reverse abuse valve spring (388)

3. The bore plug (359)

4. The coiled spring pin (360)

5. The 3-2 downshift valve (389)

6. The 3-2 downshift valve spring (390)

7. The bore plug (381)

8. The bore plug retainer (395)
