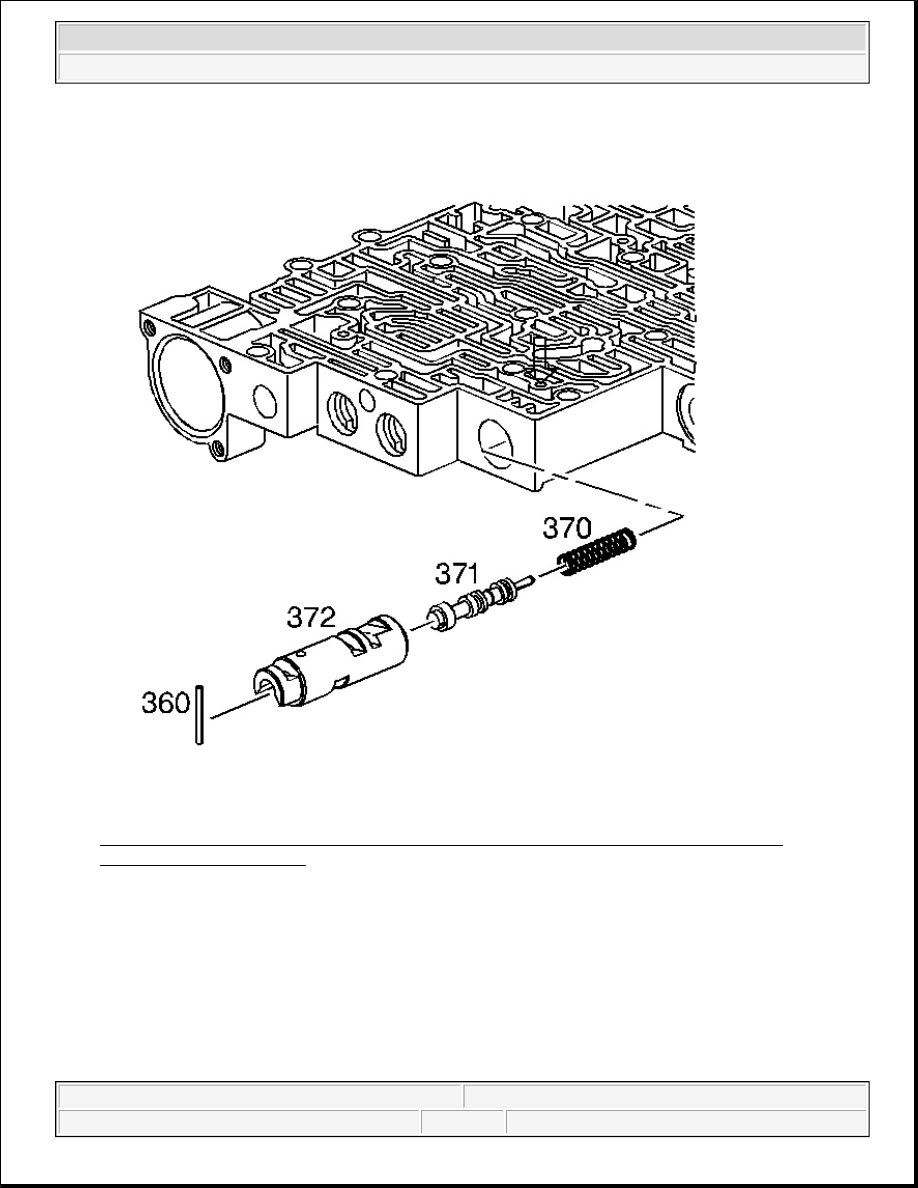

Fig. 407: Coiled Spring Pin, 1-2 Accumulator Valve Sleeve, 1-2 Accumulator Valve & 1-2
Accumulator Valve Spring
Courtesy of GENERAL MOTORS CORP.

11. Remove the coiled spring pin (360).

12. Remove the 1-2 accumulator valve sleeve (372).

13. Remove the 1-2 accumulator valve (371) and the 1-2 accumulator valve spring (370).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



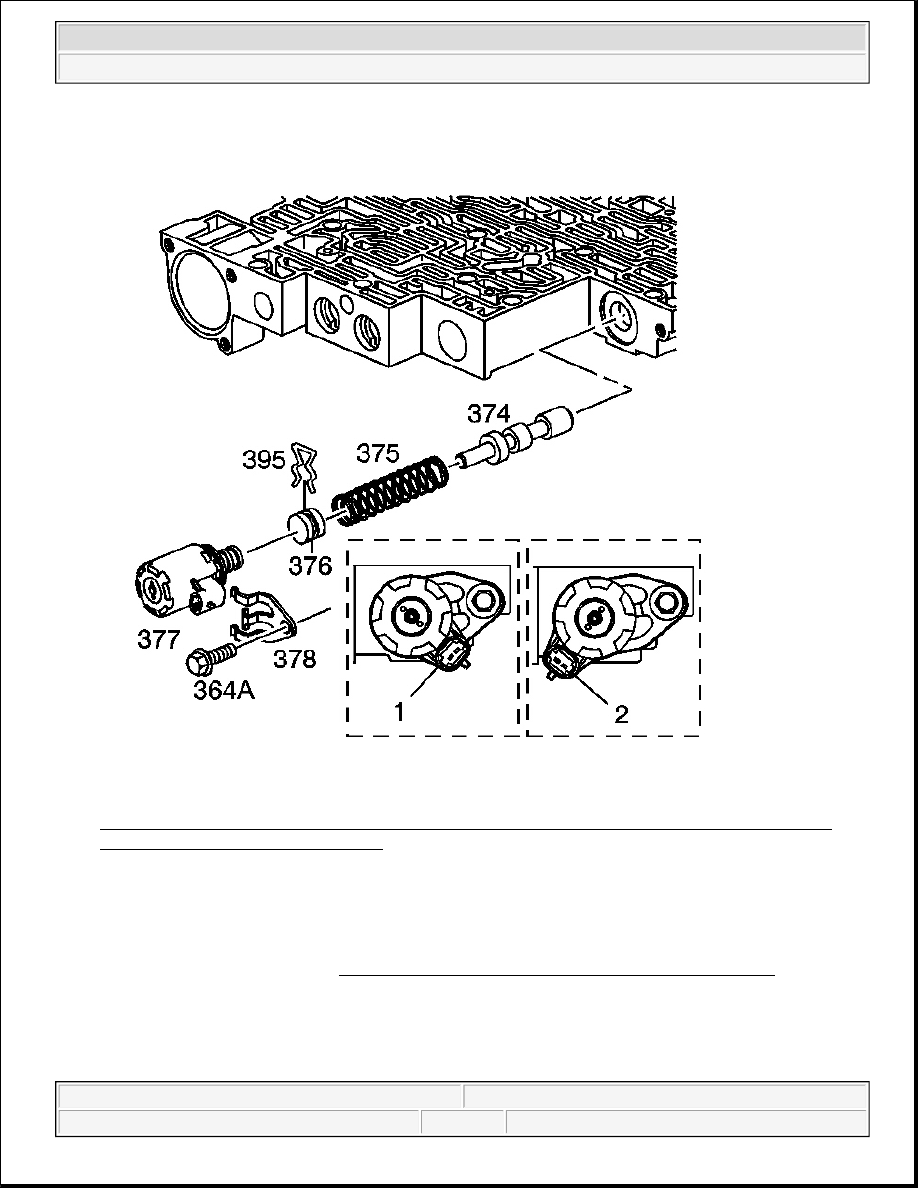

Fig. 408: Pressure Control Solenoid, Bore Plug Retainer, Bore Plug, Actuator Feed Limit Valve
Spring & Actuator Feed Limit Valve
Courtesy of GENERAL MOTORS CORP.

14. Remove the solenoid retainer bolt (364A) and the solenoid retainer (378). Remove the pressure control

solenoid (377).

15. Compress the actuator feed limit valve spring (375).

16. Remove the bore plug retainer (395) and release the spring slowly.

CAUTION: Refer to Valve Springs Can Be Tightly Compressed Caution in

Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



17. Remove the bore plug (376).

18. Remove the actuator feed limit valve spring (375) and the actuator feed limit valve (374).

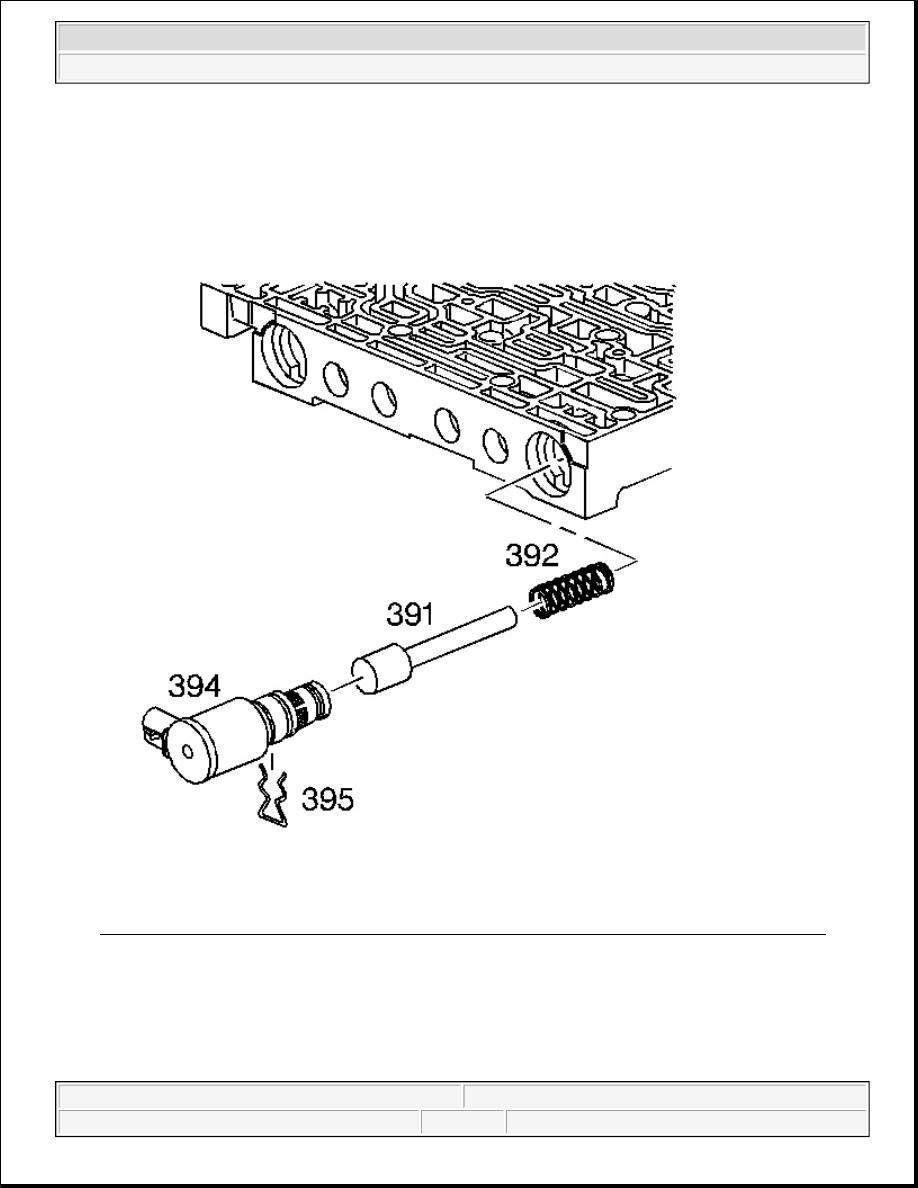

Fig. 409: Solenoid Retainer, 3-2 Control Solenoid, 3-2 Control Valve, 3-2 Control Valve Spring
Courtesy of GENERAL MOTORS CORP.

19. Remove the solenoid retainer (395) and the 3-2 control solenoid (394).

20. Remove the 3-2 control valve (391) and the 3-2 control valve spring (392).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



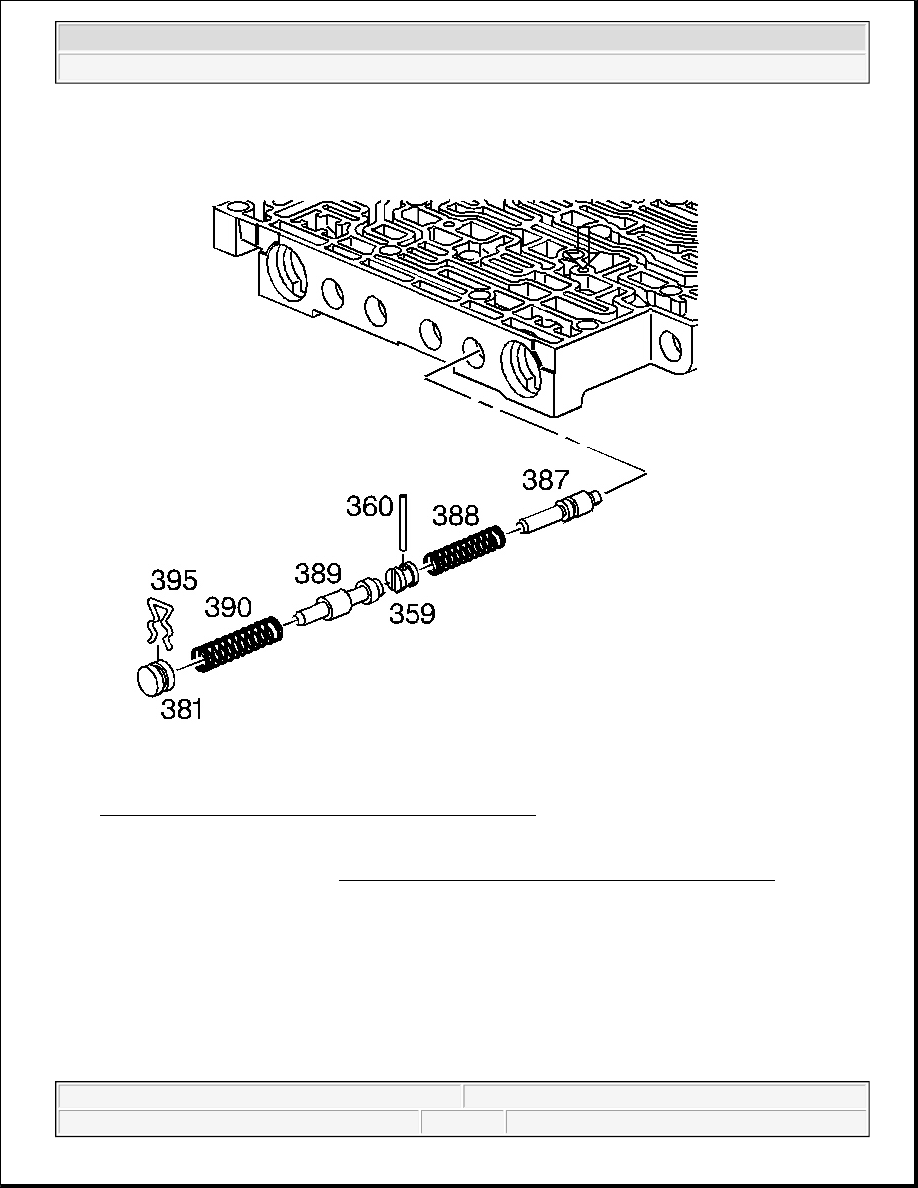

Fig. 410: Identifying (395, 381, 390, 360, 359, 388, & 387)
Courtesy of GENERAL MOTORS CORP.

21. Remove the bore plug retainer (395) and the bore plug (381).

22. Remove the 3-2 downshift valve spring (390) and the 3-2 downshift valve (389).

23. Remove the coiled spring pin (360) and the bore plug (359).

24. Remove the reverse abuse valve spring (388) and the reverse abuse valve (387).

CAUTION: Refer to Valve Springs Can Be Tightly Compressed Caution in

Cautions and Notices.
