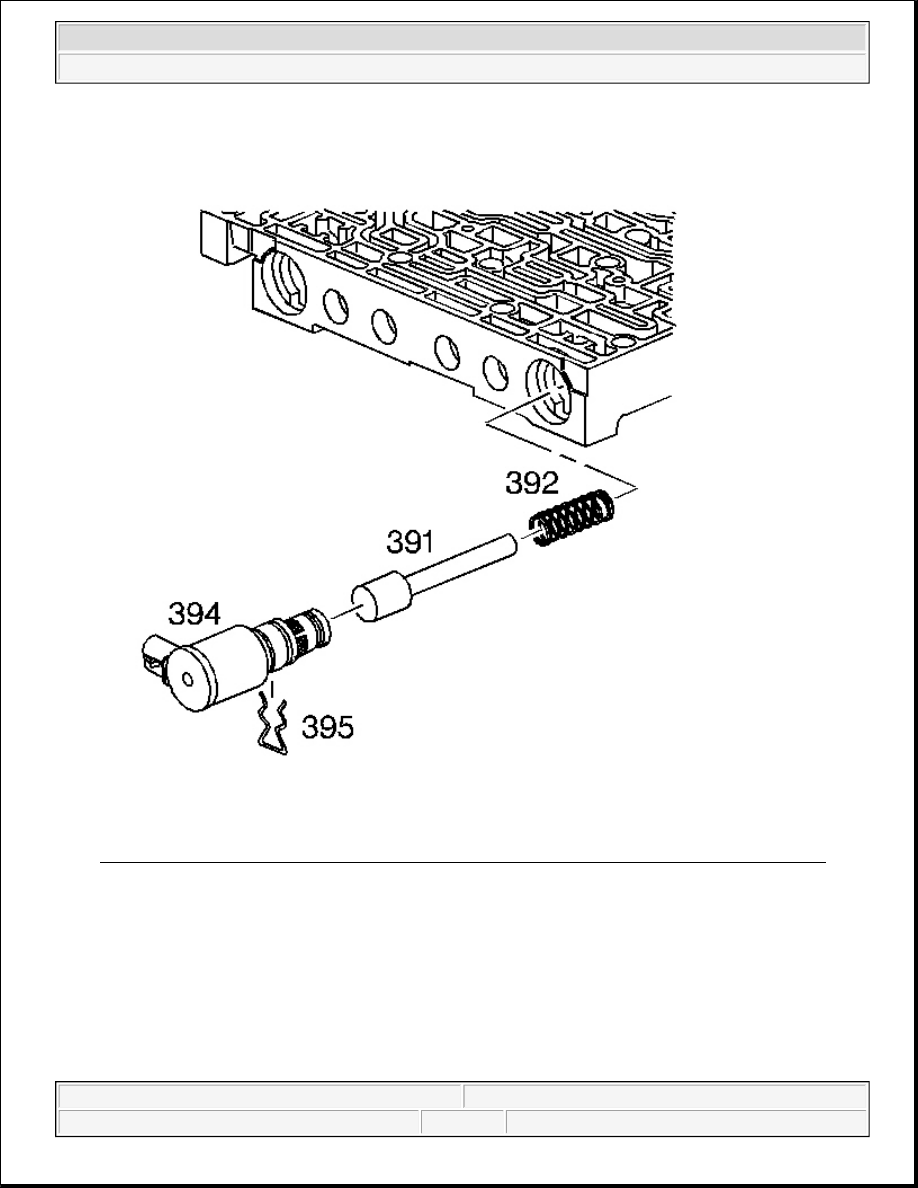

Fig. 419: Solenoid Retainer, 3-2 Control Solenoid, 3-2 Control Valve, 3-2 Control Valve Spring
Courtesy of GENERAL MOTORS CORP.

5. Install the following items:

1. The 3-2 control valve spring (392)

2. The 3-2 control valve (391)

3. The 3-2 control solenoid (394)

4. The solenoid retainer (395)



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

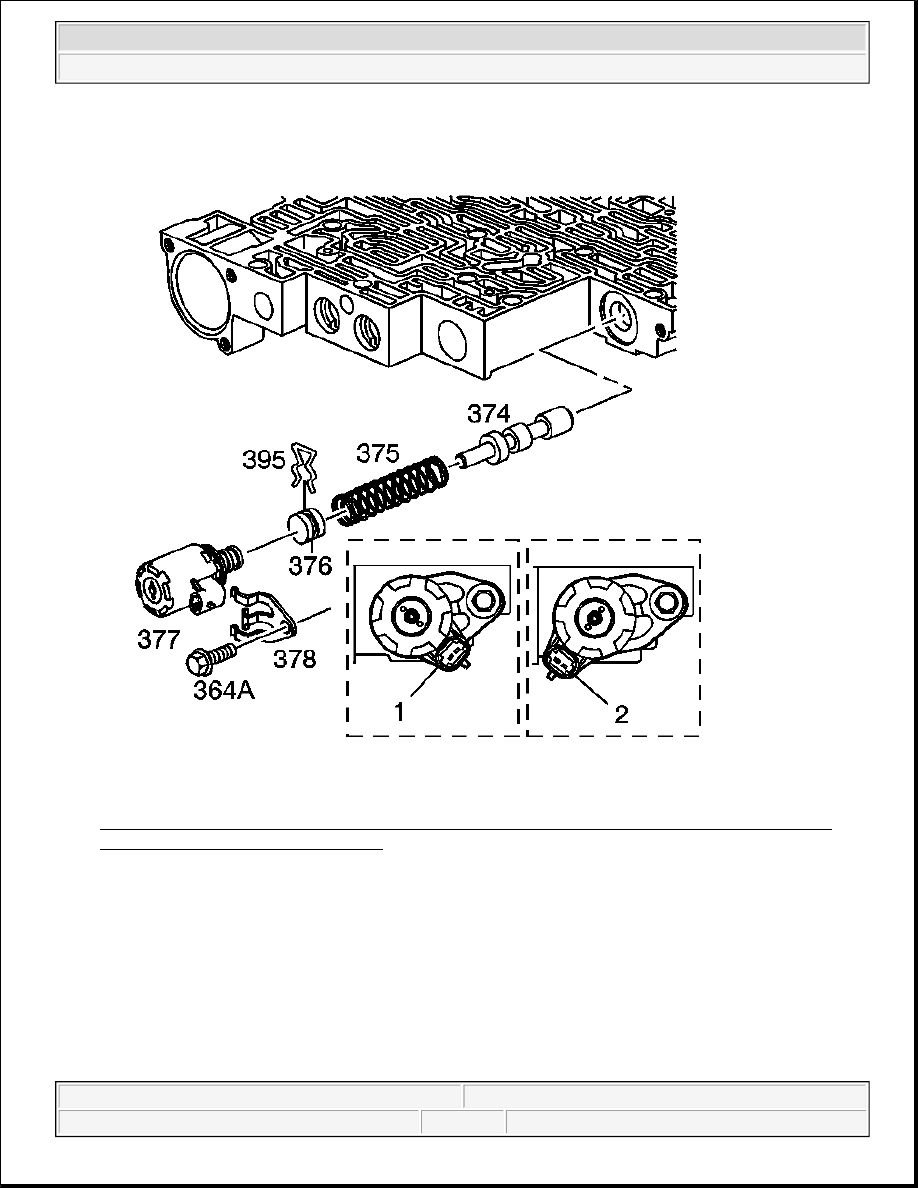

Fig. 420: Pressure Control Solenoid, Bore Plug Retainer, Bore Plug, Actuator Feed Limit Valve
Spring & Actuator Feed Limit Valve
Courtesy of GENERAL MOTORS CORP.

6. Install the following items:

1. The actuator feed limit valve (374)

2. The actuator feed limit valve spring (375)

3. The bore plug (376)

4. The bore plug retainer (395)

5. The pressure control solenoid (377)

z

1 - Colorado/Canyon



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



z

2 - All other models

6. The solenoid retainer (378)

7. The solenoid retainer bolt (364)

Tighten: Tighten the bolt to 8-14 N.m (6-10 lb ft).

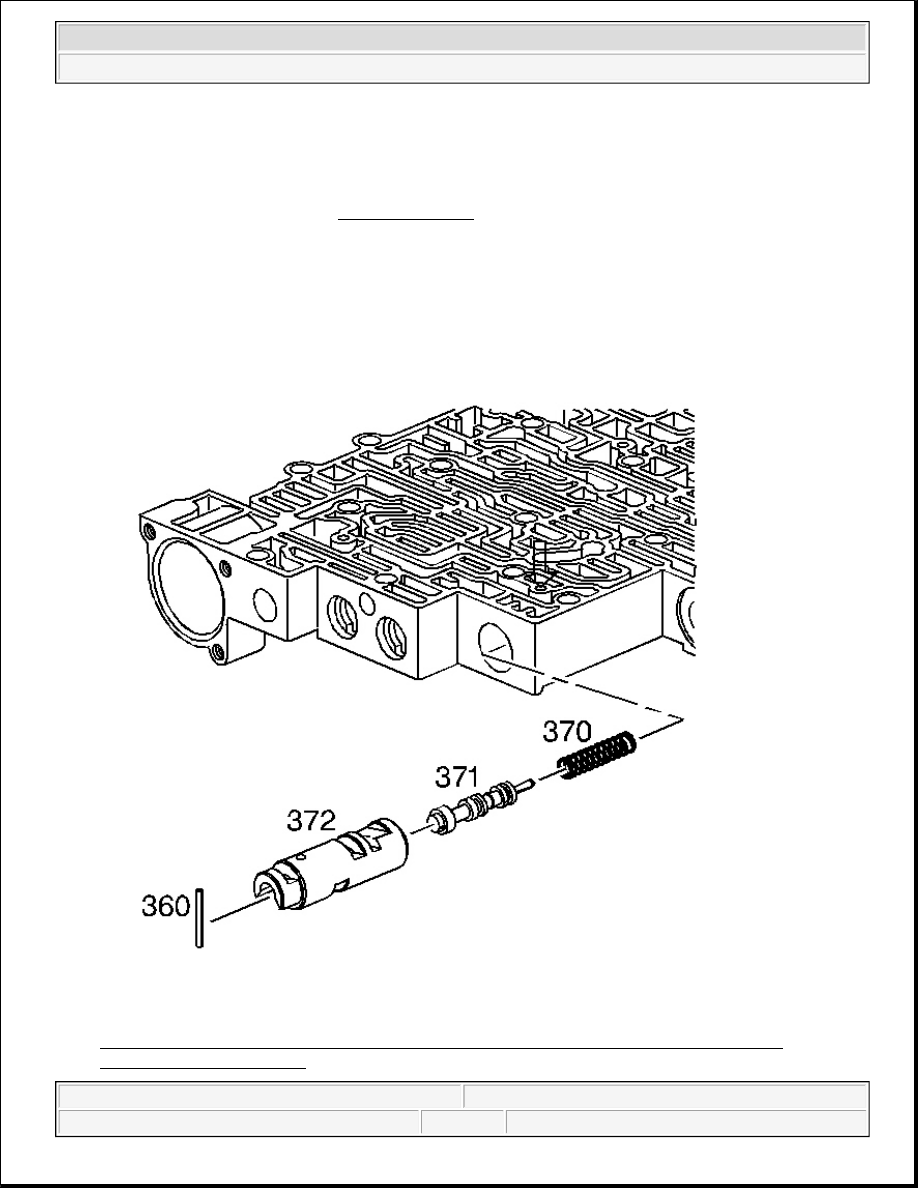

Fig. 421: Coiled Spring Pin, 1-2 Accumulator Valve Sleeve, 1-2 Accumulator Valve & 1-2
Accumulator Valve Spring

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Courtesy of GENERAL MOTORS CORP.

7. Install the following items:

1. The 1-2 accumulator valve spring (370)

2. The 1-2 accumulator valve (371) in the 1-2 accumulator valve sleeve (372)

3. The 1-2 accumulator valve and sleeve assembly

4. The coiled spring pin (360)

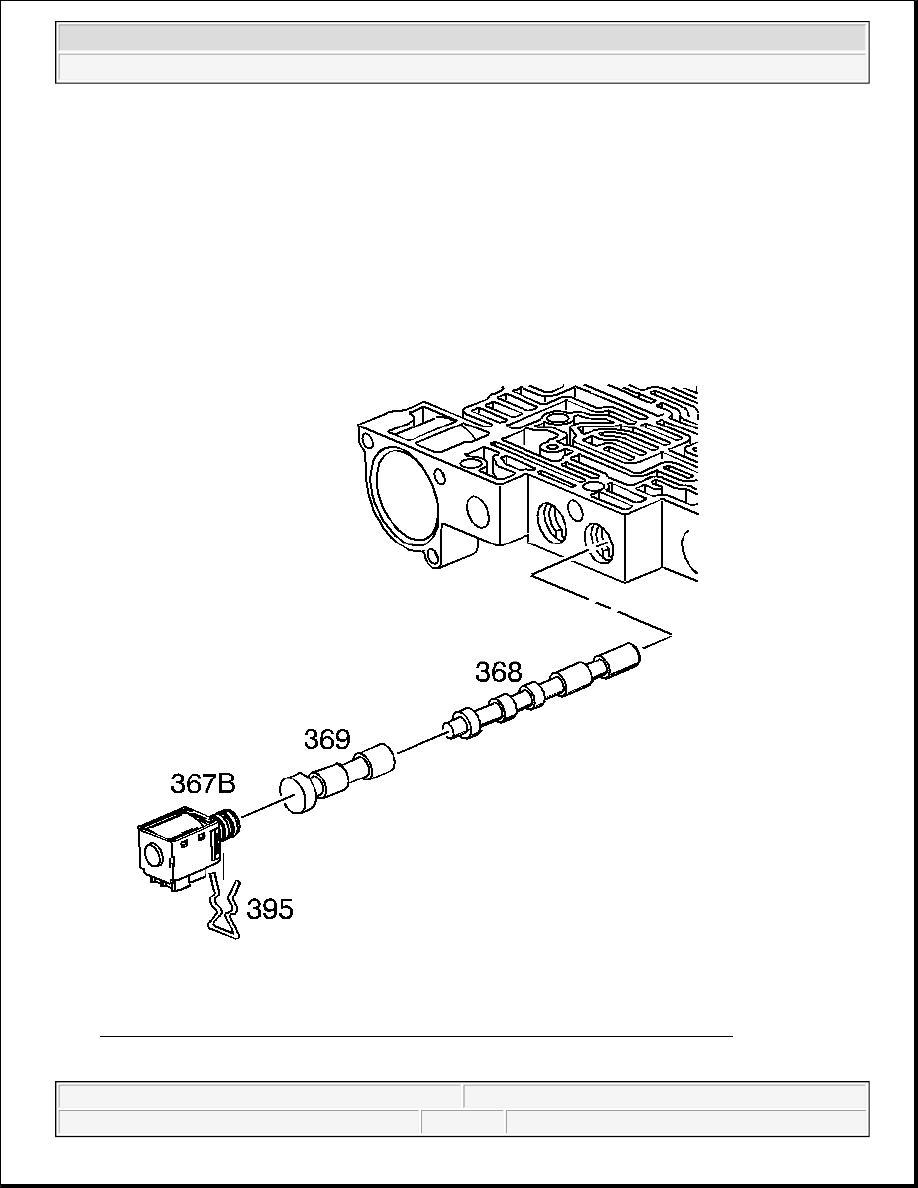

Fig. 422: Solenoid Retainer, 2-3 Shift Solenoid, 2-3 Shuttle Valve & 2-3 Shift Valve
Courtesy of GENERAL MOTORS CORP.
