Tools Required

J 29837-A Output Shaft Support Fixture. See Special Tools and Equipment .

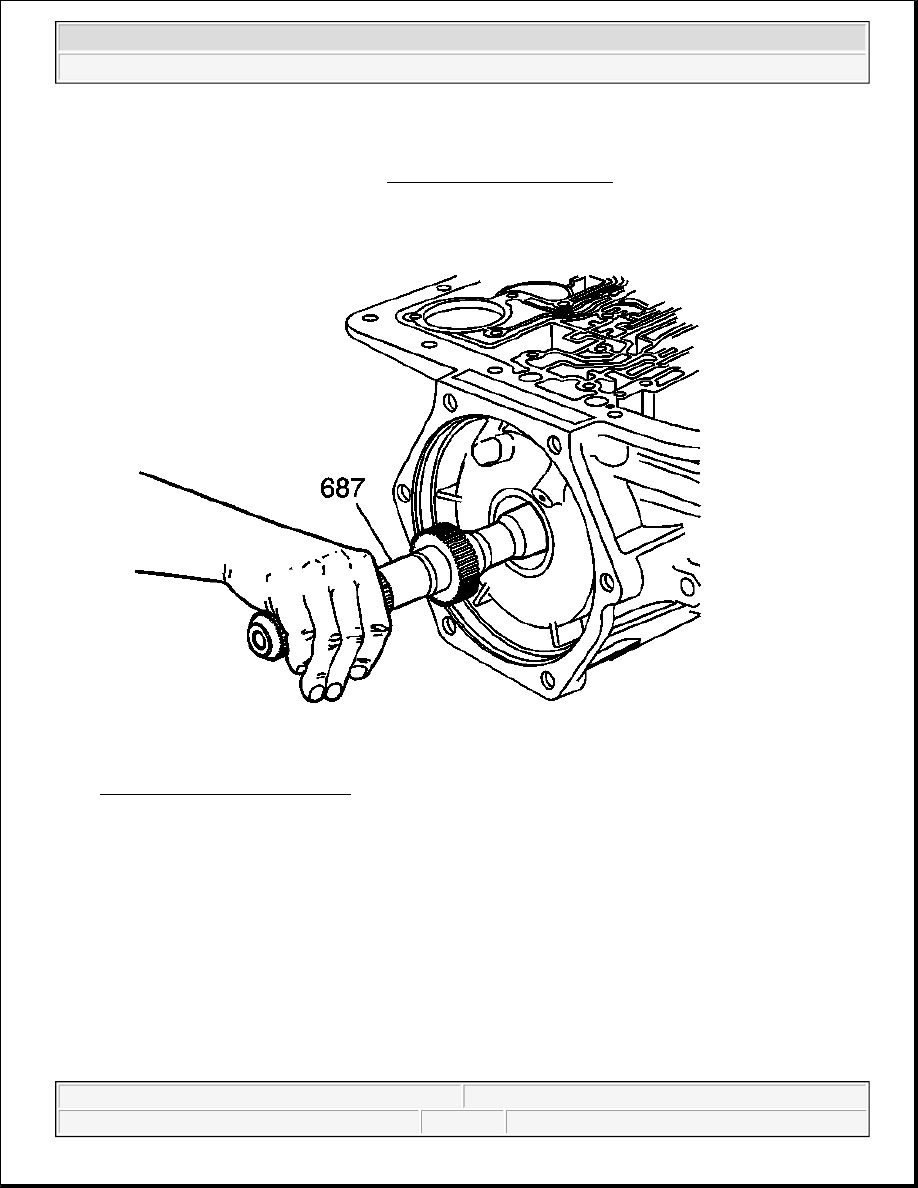

Fig. 291: Installing Output Shaft
Courtesy of GENERAL MOTORS CORP.

1. Install the output shaft (687).

IMPORTANT: It is important to note that the input shaft may need a light tap to fully seat

into position. If the input shaft is not completely engaged, the output shaft
to input carrier retainer (661) will not seat.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



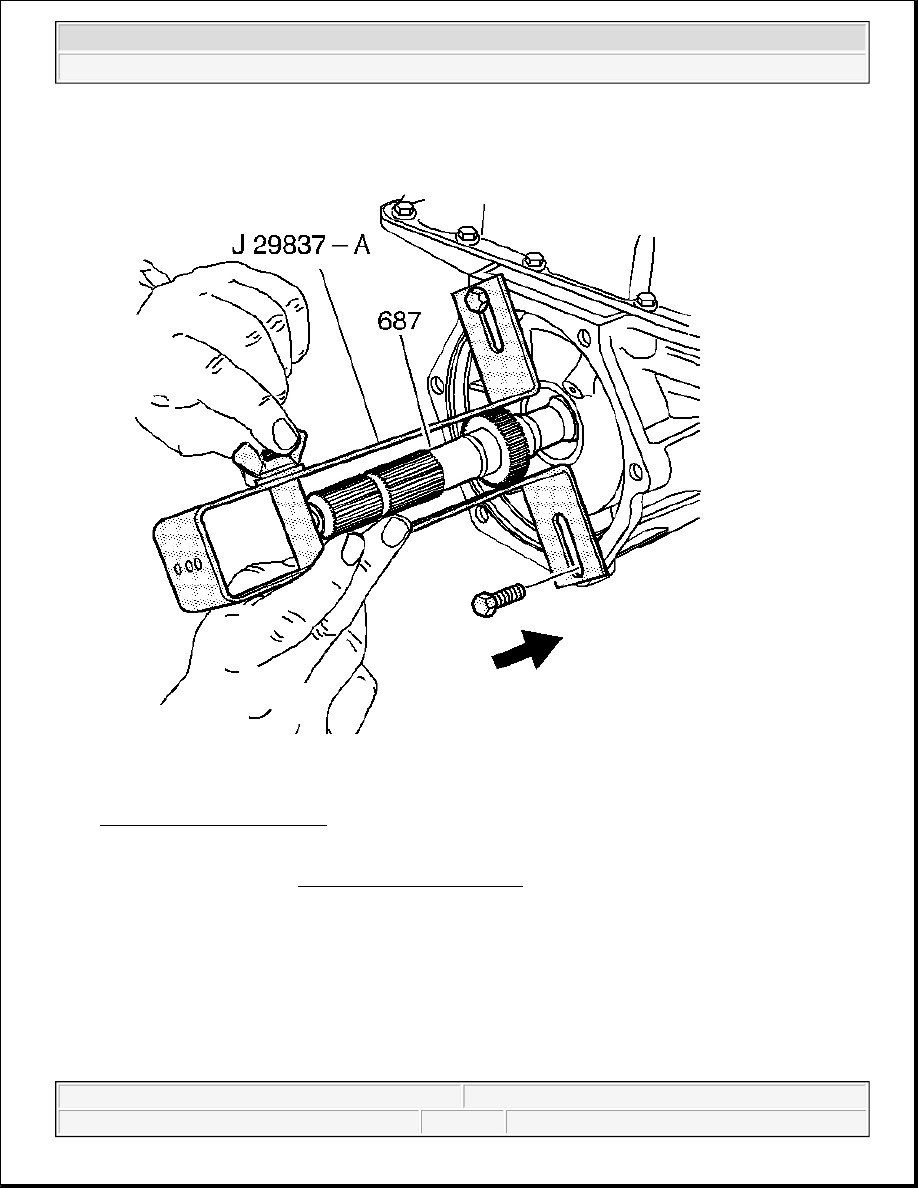

Fig. 292: Installing J 29837-A
Courtesy of GENERAL MOTORS CORP.

2. Install the J 29837-A . See Special Tools and Equipment .

INPUT CARRIER INSPECTION



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



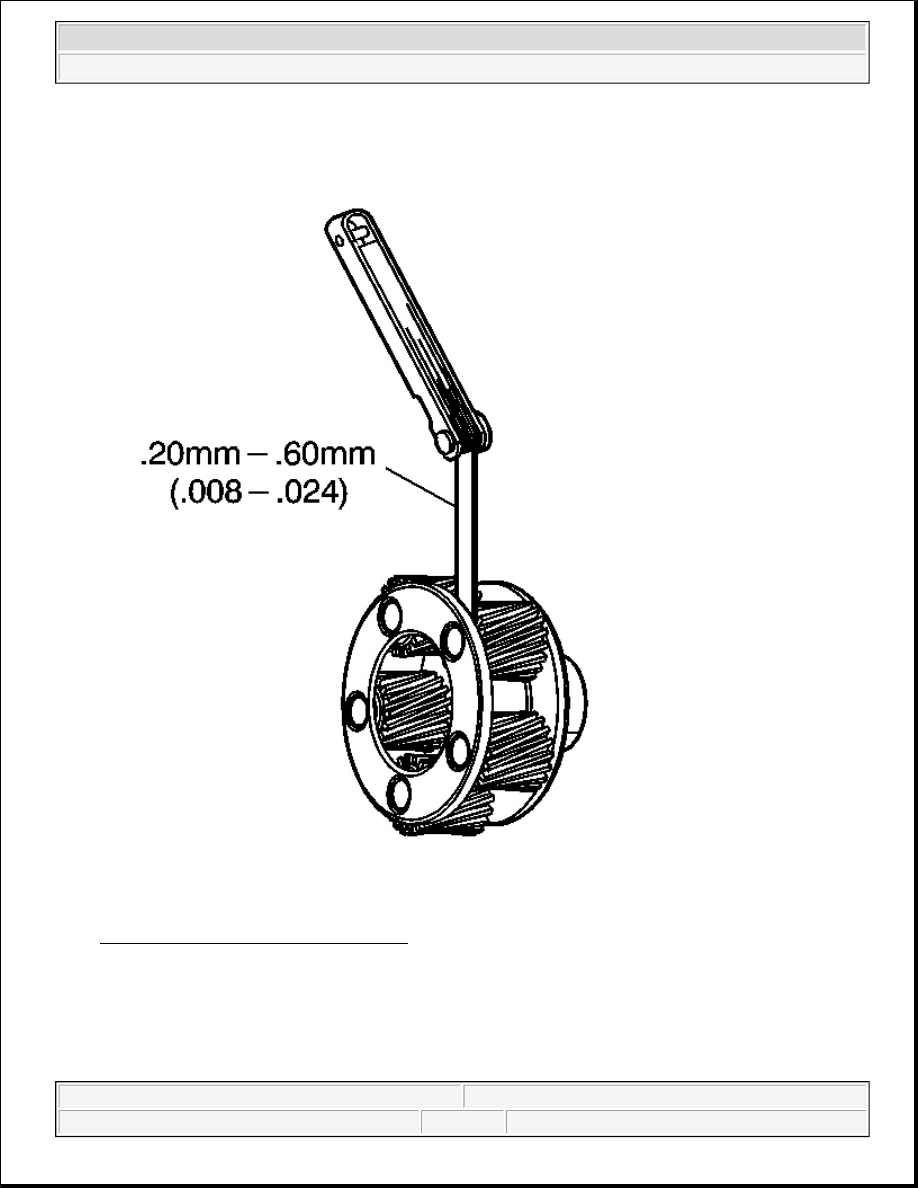

Fig. 293: Input Carrier Pinion End Play
Courtesy of GENERAL MOTORS CORP.

1. Check the input carrier pinion end play. The end play must not exceed 0.61 mm (0.024 in).

2. Inspect the input carrier for pinion gear damage, proper pin stake and keystoned pinion gears. Pinions

IMPORTANT: Check end play on each pinion.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



must rotate freely.

INPUT SUN GEAR BUSHINGS REPLACEMENT

Removal Procedure

Tools Required

z

J 8092 Universal Driver Handle - 3/4 in - 10

z

J 34196-B Transmission Bushing Service Set. See Special Tools and Equipment .

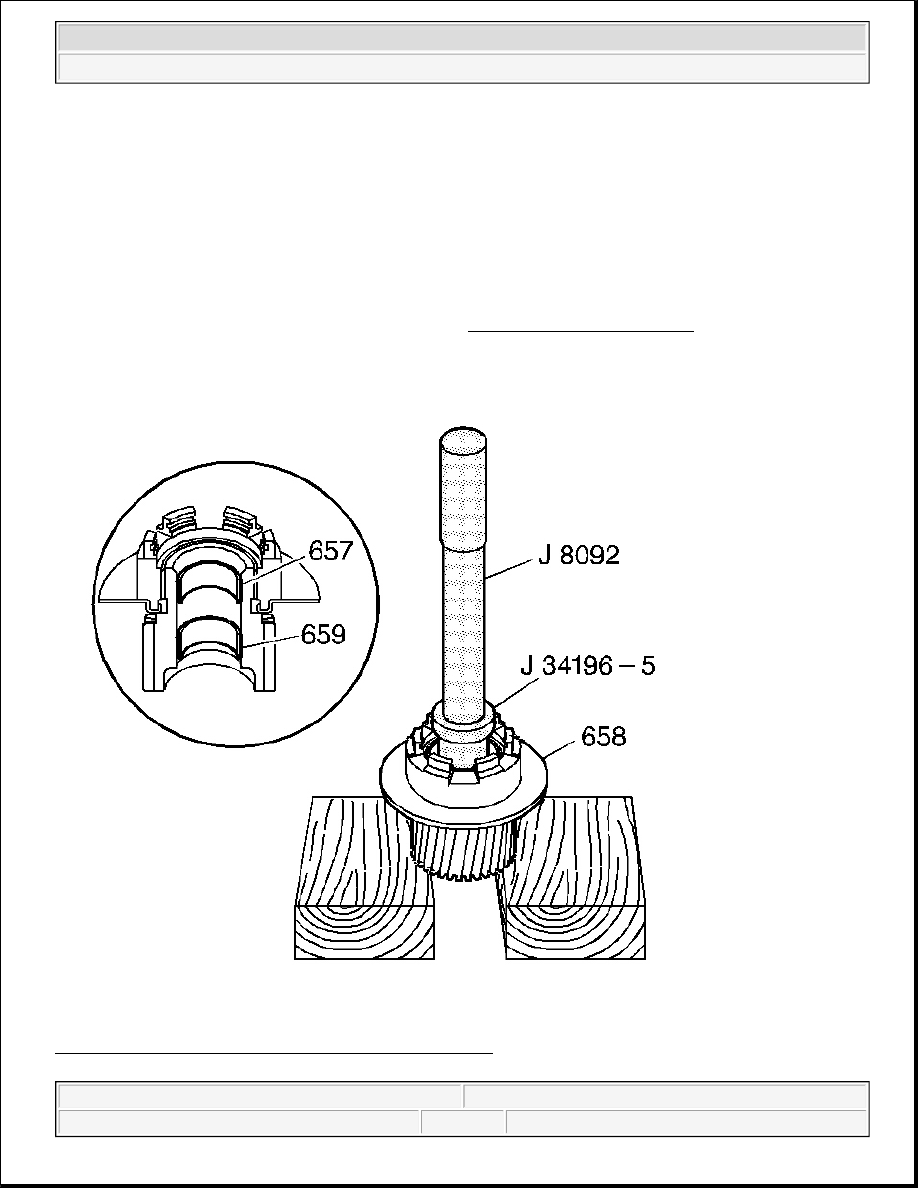

Fig. 294: Input Sun Gear Front Bushing & Rear Bushing
Courtesy of GENERAL MOTORS CORP.
