Using J 34196-5 which is part of kit J 34196-B with J 8092 , remove the input sun gear front bushing (657) and
rear bushing (659). See Special Tools and Equipment .

Installation Procedure

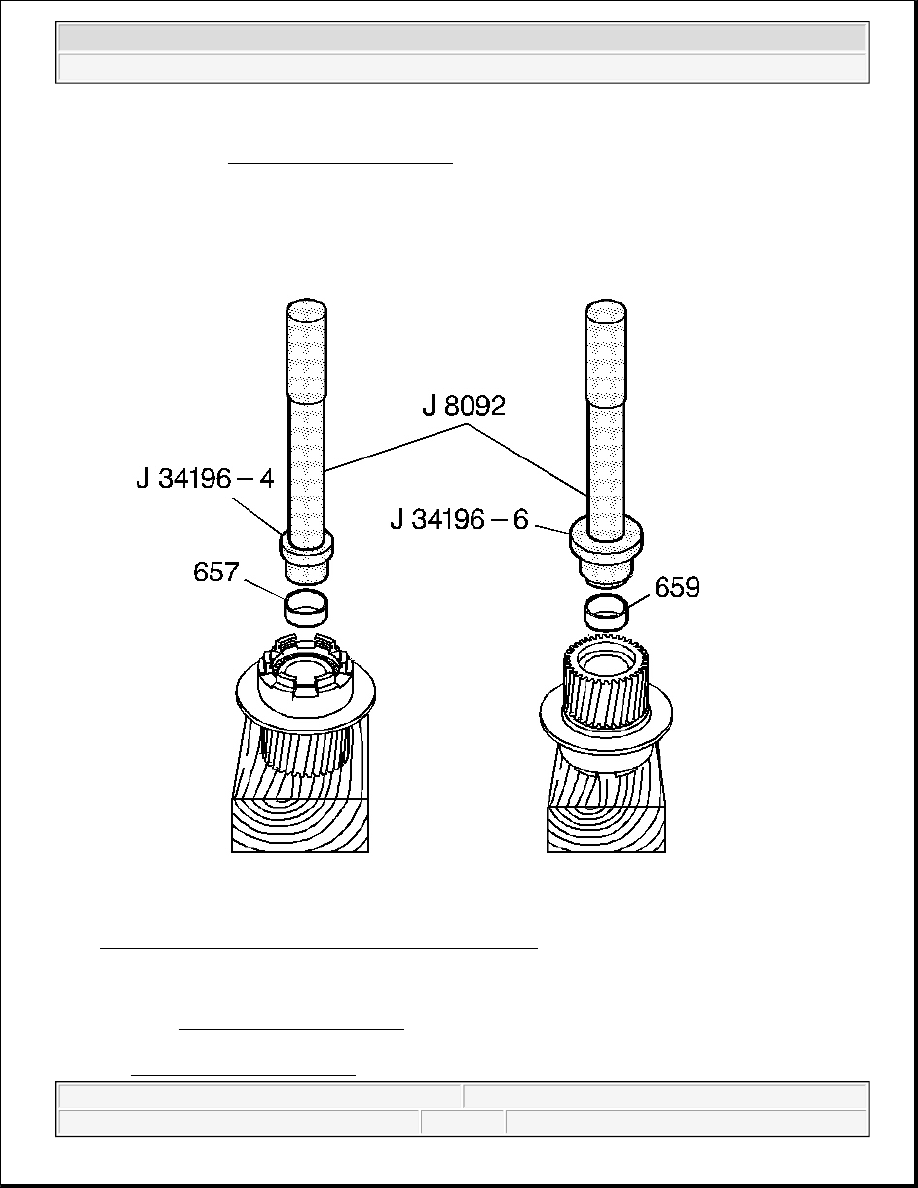

Fig. 295: Input Sun Gear Front Bushing & Rear Bushing
Courtesy of GENERAL MOTORS CORP.

1. Using J 34196-4 which is part of kit J 34196-B with J 8092 , install the input sun gear front bushing

(657). See Special Tools and Equipment .

2. Using J 34196-6 which is part of kit J 34196-B with J 8092 , install the input sun gear rear bushing (659).

See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



INPUT CARRIER INSPECTION AND INSTALLATION

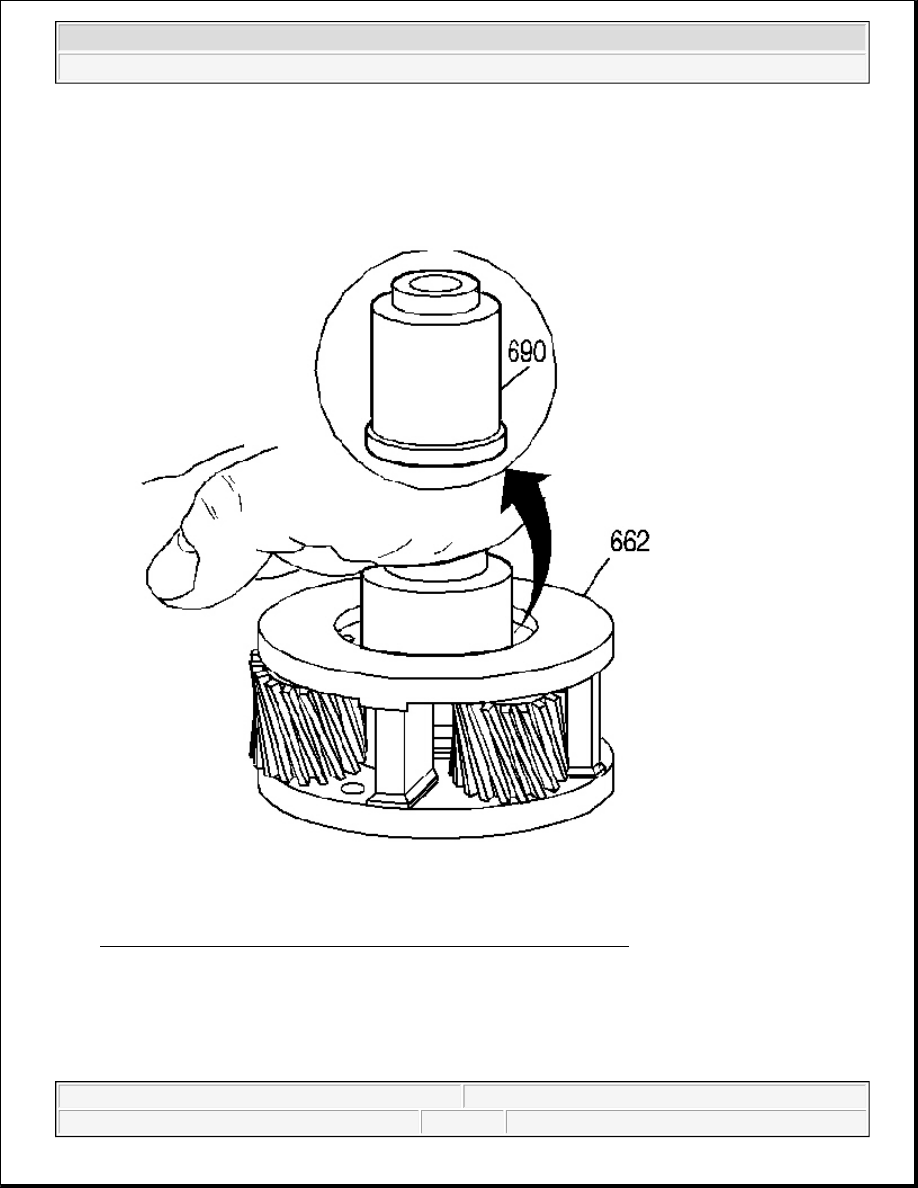

Fig. 296: Inspecting Input Carrier Captive Thrust Bearing Assembly
Courtesy of GENERAL MOTORS CORP.

1. Inspect the input carrier captive thrust bearing assembly. To check the captive thrust bearing in the input

carrier (662) for wear, place a bushing or an output shaft sleeve (690) onto the bearing race and turn it
with the palm of your hand. Do not touch the pinion gears. Any imperfections will be felt through the
bushing.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

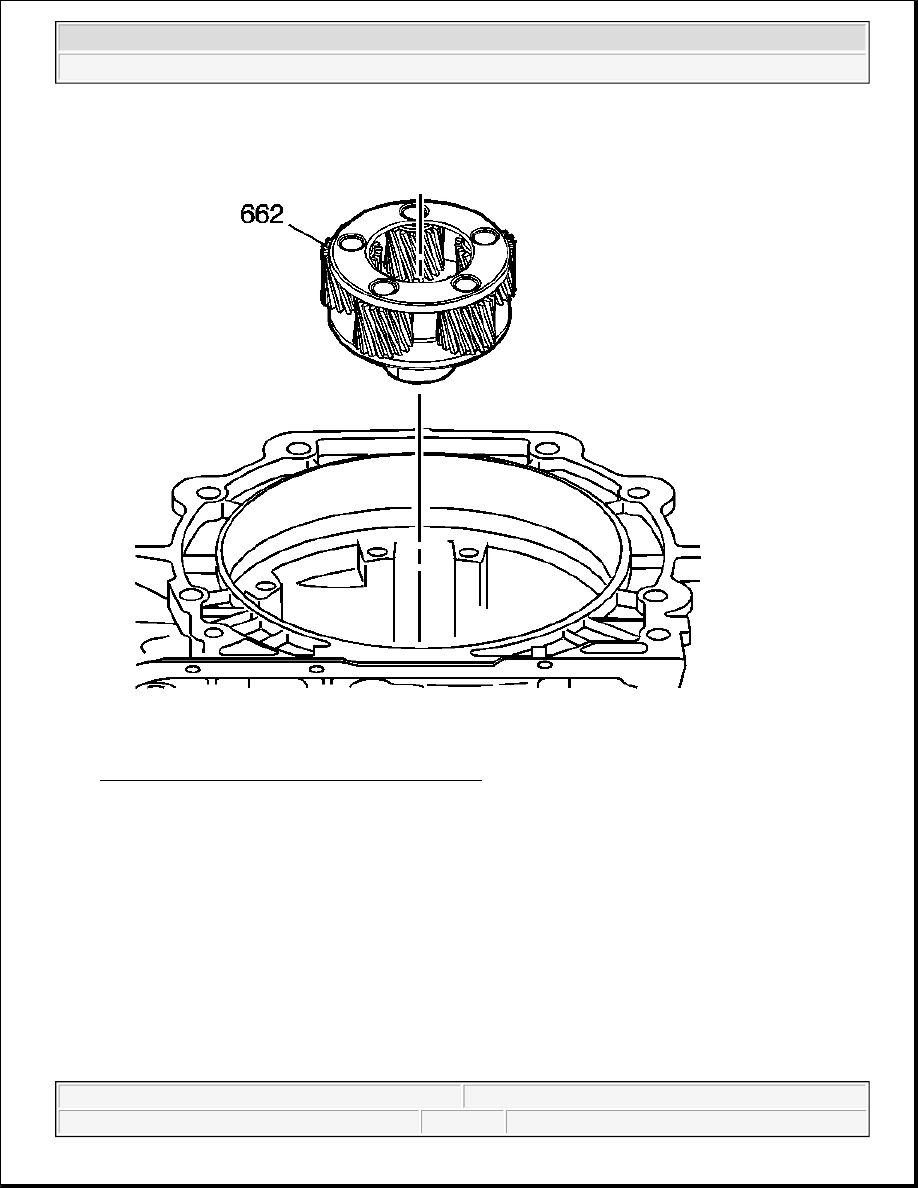

Fig. 297: Input Carrier Assembly & Output Shaft
Courtesy of GENERAL MOTORS CORP.

2. Install the input carrier assembly (662) onto the output shaft.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

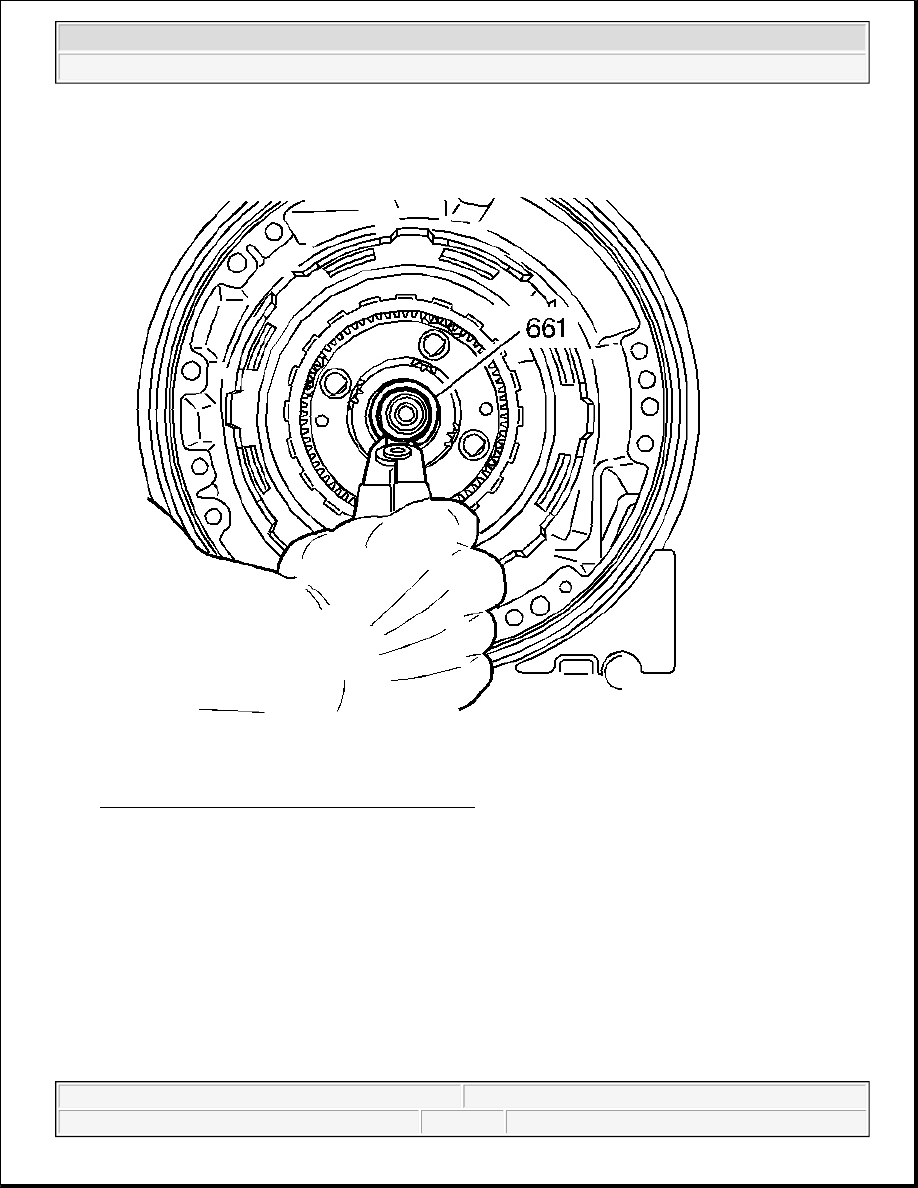

Fig. 298: Output Shaft & Input Carrier Retainer
Courtesy of GENERAL MOTORS CORP.

3. Install a new output shaft to input carrier retainer (661).

IMPORTANT:

z

Do not reuse the old output shaft to input carrier retainer (661).

z

Do not over expand the new output shaft to input carrier retainer
during installation.
