Damaged gear teeth

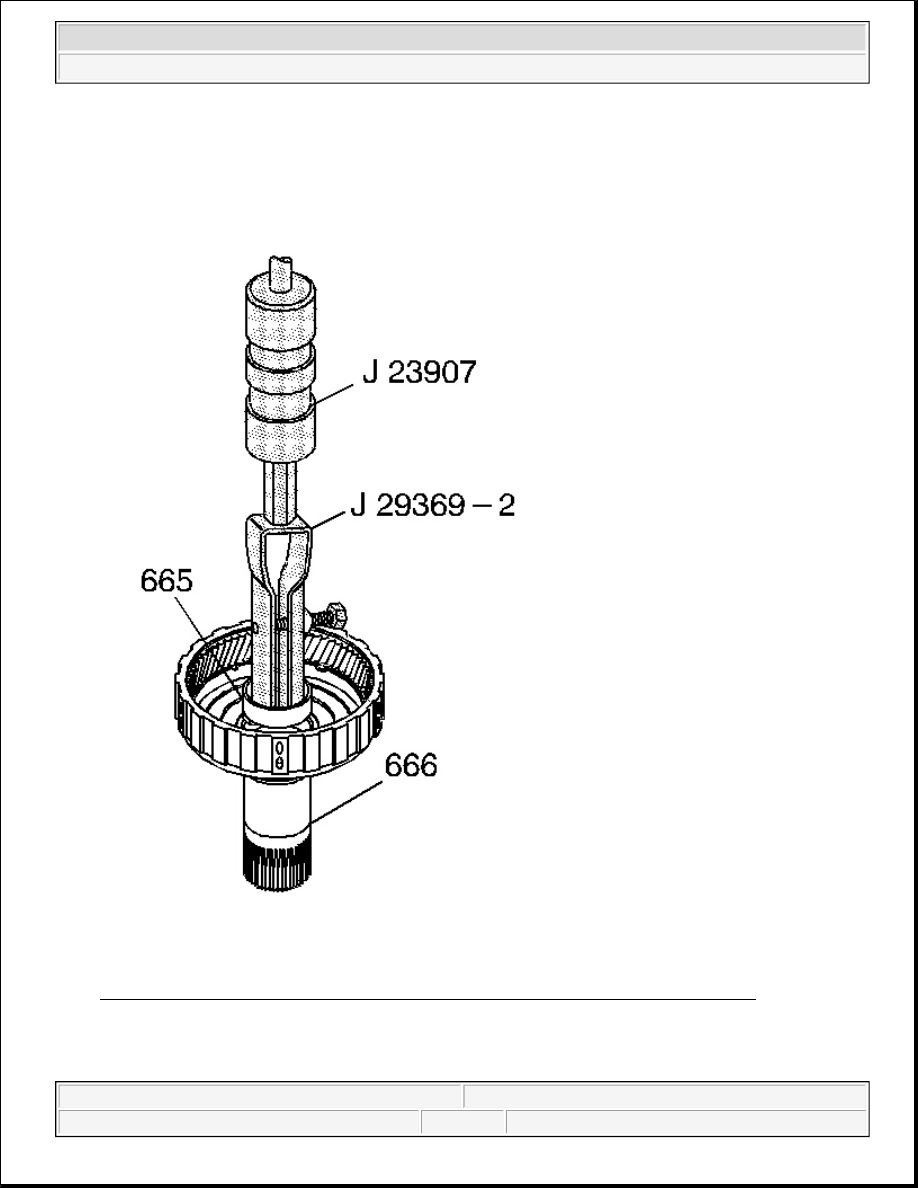

Fig. 283: Removing Reaction Carrier Shaft Front Bushing Using J 29369-2 & J 23907
Courtesy of GENERAL MOTORS CORP.

3. UsingJ 29369-2 with J 23907 , remove the reaction carrier shaft front bushing (665).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



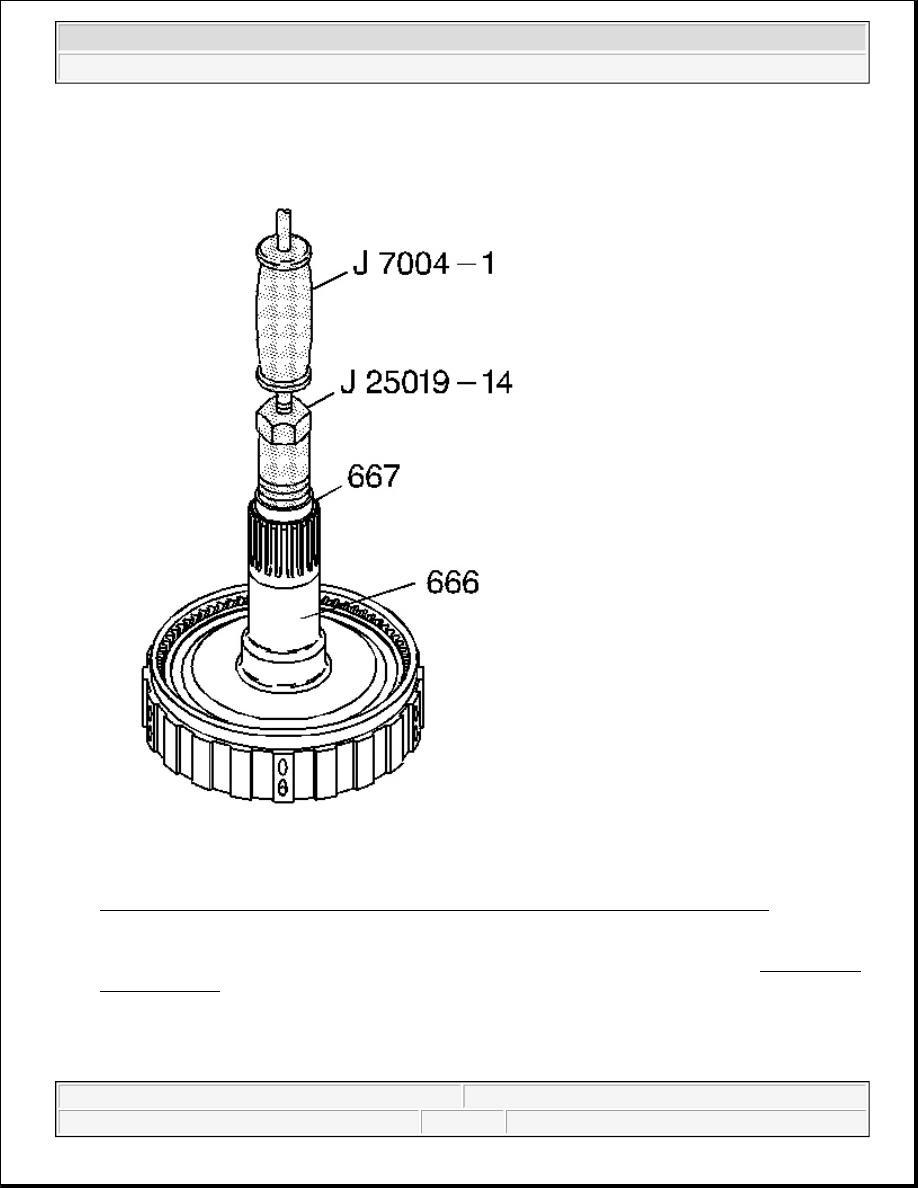

Fig. 284: Removing Reaction Carrier Shaft Rear Bushing Using J 25019-14 & J 7004-A
Courtesy of GENERAL MOTORS CORP.

4. UsingJ 25019-14 with J 7004-A , remove the reaction carrier shaft rear bushing (667). See Special Tools

and Equipment .

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

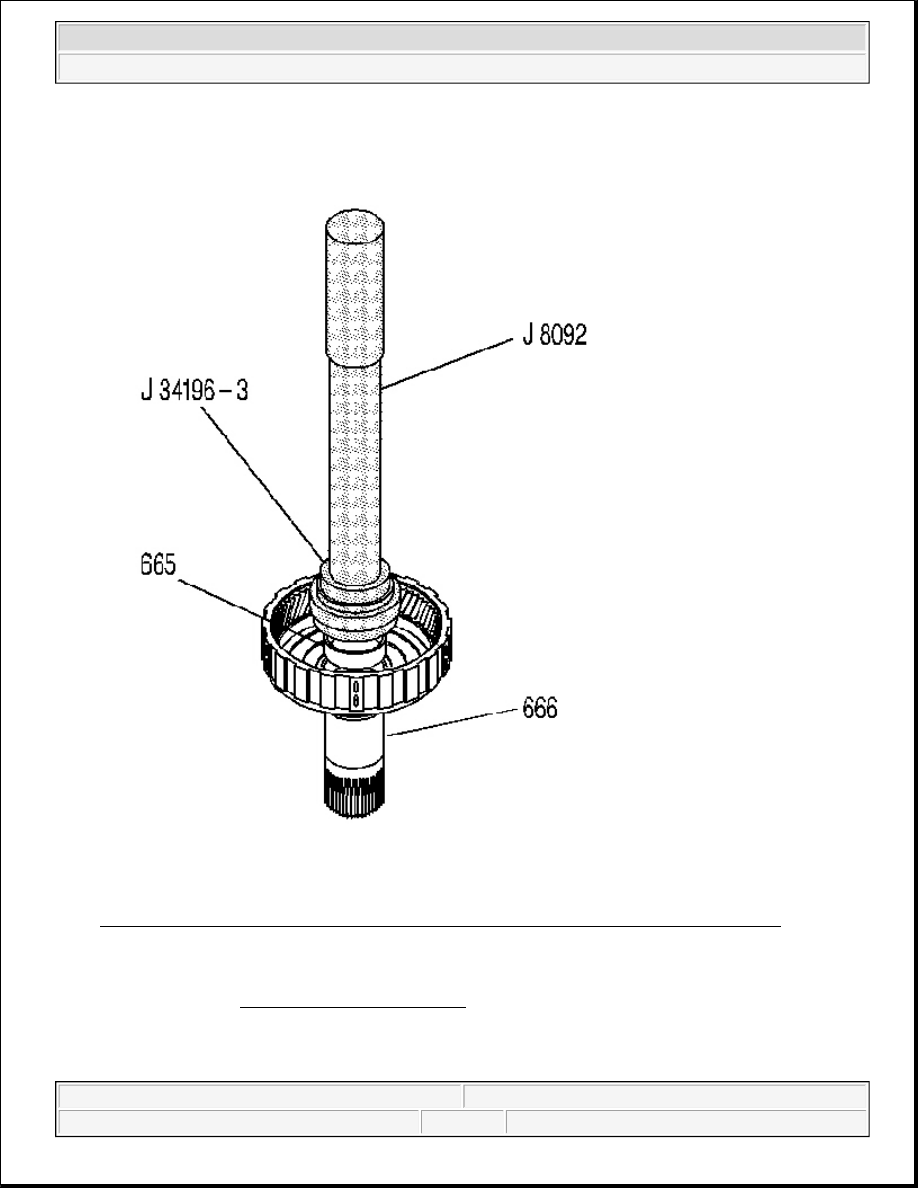

Fig. 285: Installing New Reaction Carrier Shaft Front Bushing Using J 34196-3 & J 8092
Courtesy of GENERAL MOTORS CORP.

1. Using J 34196-3 which is part of kit J 34196-B with J 8092 , install a new reaction carrier shaft front

bushing (665). See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

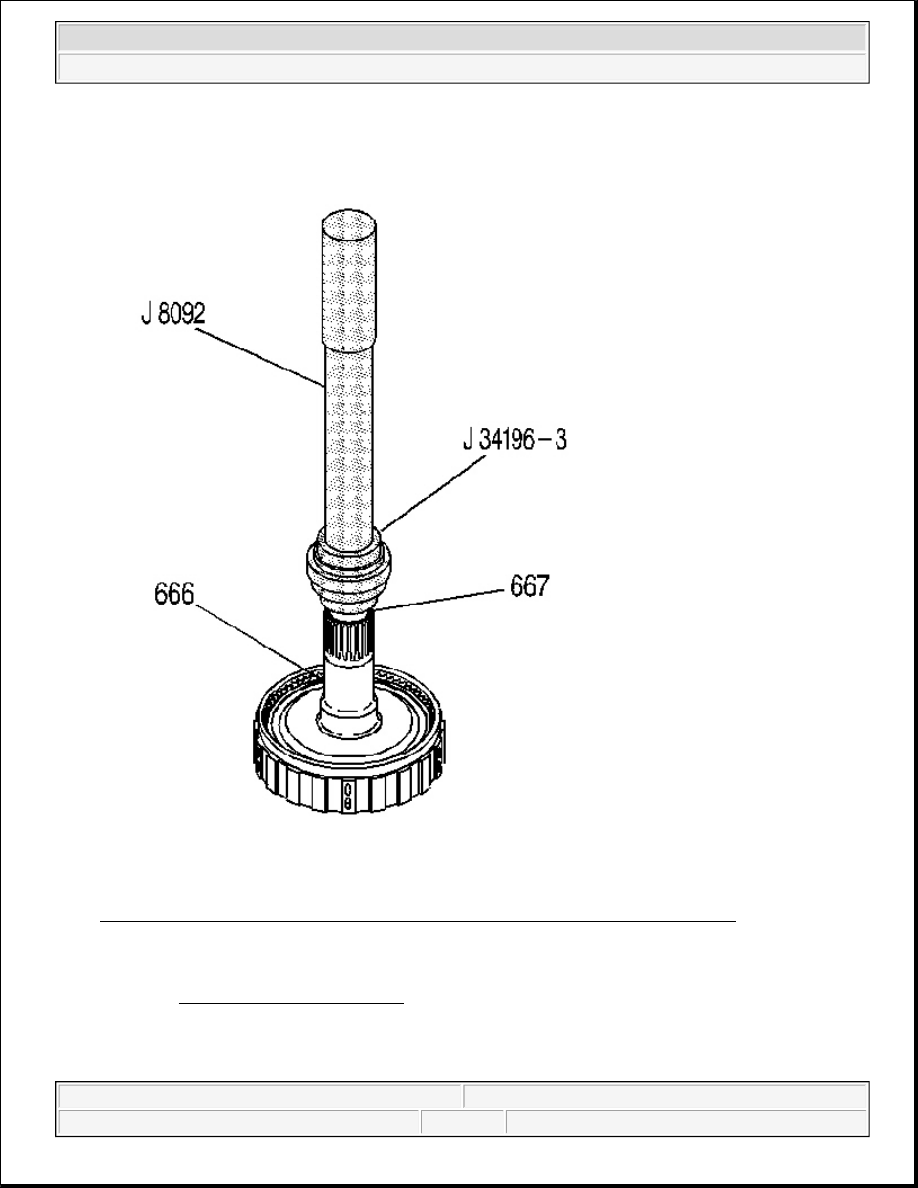

Fig. 286: Installing Reaction Carrier Shaft Rear Bushing Using J 34196-3 & J 8092
Courtesy of GENERAL MOTORS CORP.

2. Using J 34196-3 which is part of kit J 34196-B with J 8092 , install a reaction carrier shaft rear bushing

(667). See Special Tools and Equipment .

INPUT INTERNAL GEAR, REACTION SHAFT AND SHELL INSTALLATION

Tools Required
