Hummer H2. Manual - part 2306

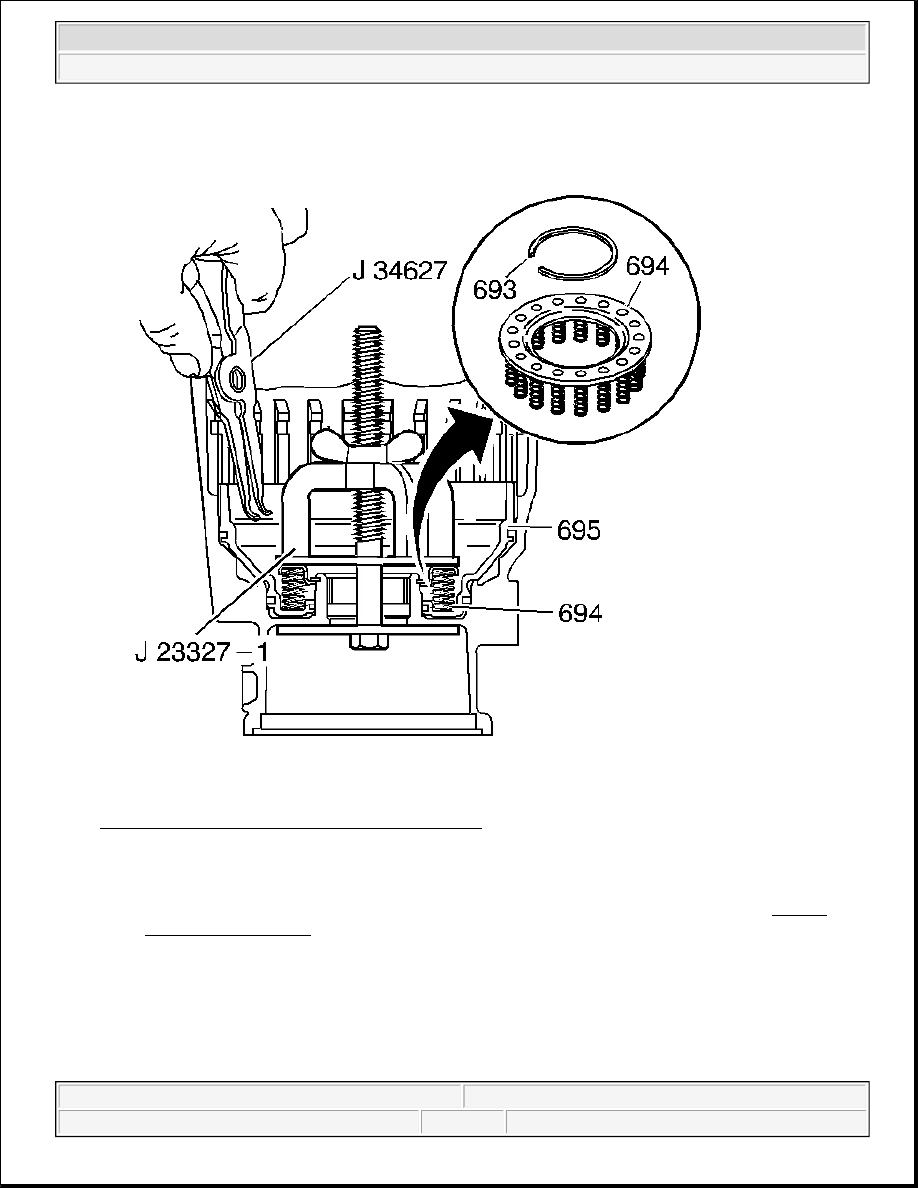

Fig. 257: Low & Reverse Clutch Spring Assembly
Courtesy of GENERAL MOTORS CORP.

4. Install the low and reverse clutch spring assembly (694).

1. Using the J 23327-1 , compress the low and reverse clutch spring assembly (694). See Special

Tools and Equipment .

2. Using J 36850 install the low and reverse clutch retainer ring (693).

INNER MANUAL LINKAGE INSTALLATION

2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

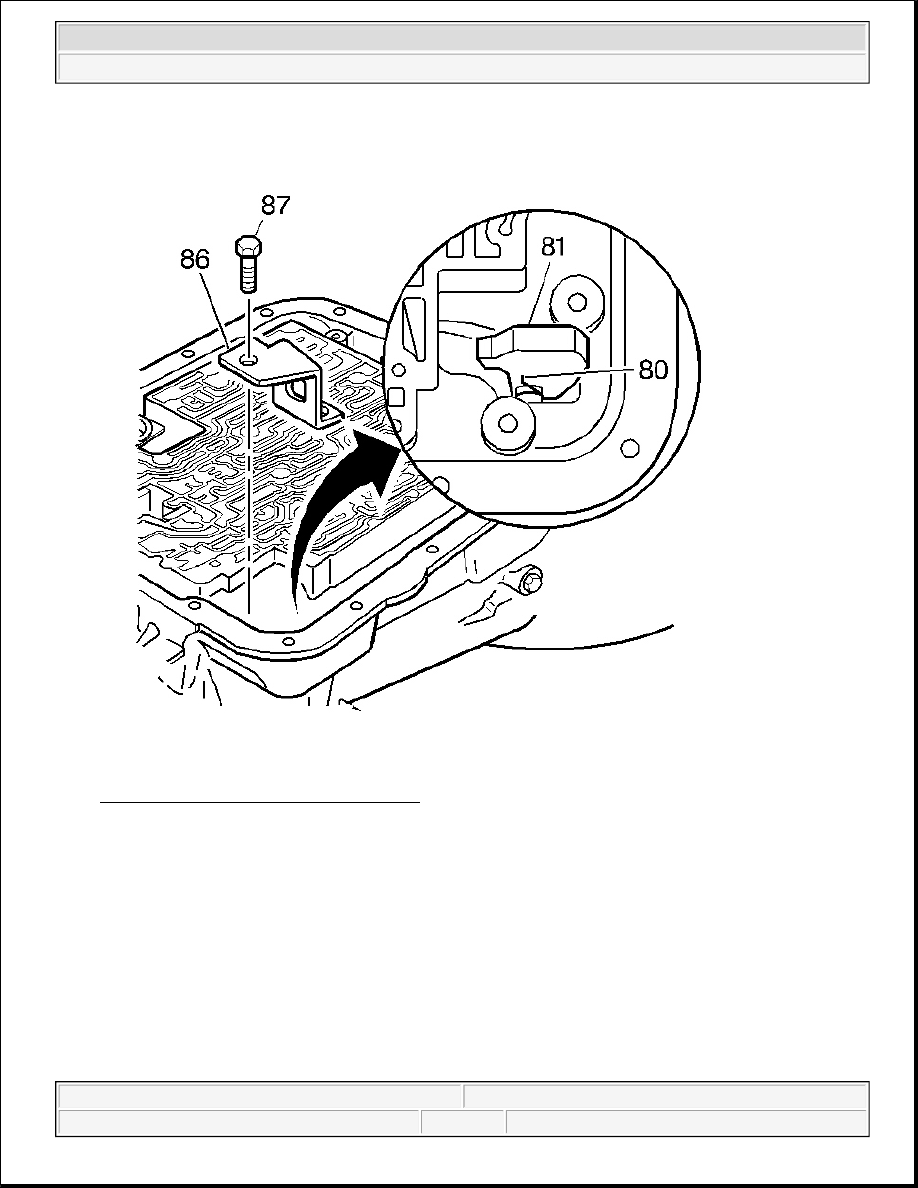

Fig. 258: Installing Parking Lock Bracket
Courtesy of GENERAL MOTORS CORP.

1. Install the parking lock bracket (86).

2. Install the parking lock bracket bolt (87).

Tighten: Tighten the bolt to 31 N.m (23 lb ft).

3. Inspect the following items:

The parking brake pawl (81) for damage or cracks

NOTE:

Refer to Fastener Notice in Cautions and Notices.

2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

The parking pawl return spring (80) for being broken or missing

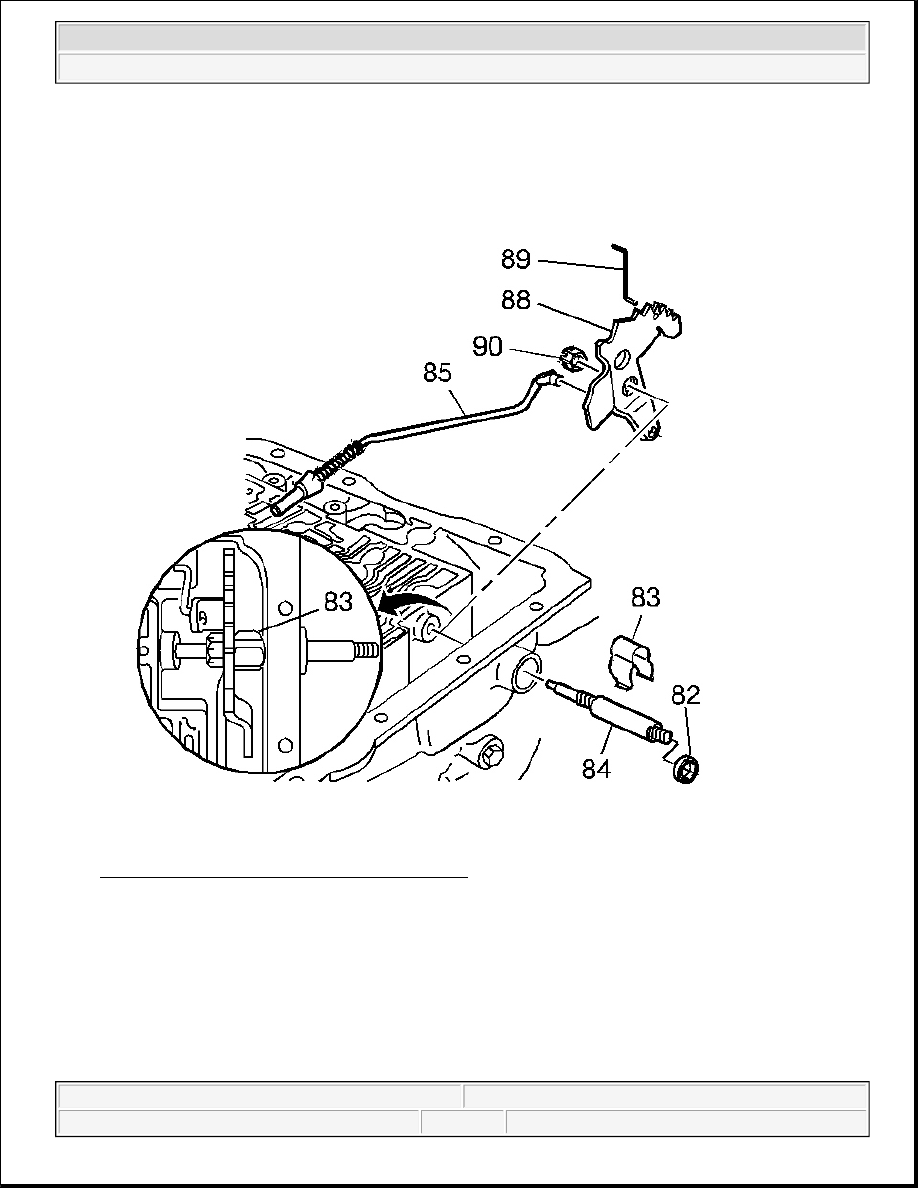

Fig. 259: Inspecting The Following Components
Courtesy of GENERAL MOTORS CORP.

4. Inspect the following items:

The manual shaft retainer (83) for damage or cracks

The manual shaft (84) for damage or burrs

The parking lock actuator assembly (85) for damage

The inside detent lever (88) for damage or cracks

The manual valve link (89) for damage

2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

The hex head nut (90) for damage or stripped threads

5. Install the following items:

The inside detent lever (88)

The parking lock actuator assembly (85)

The manual shaft (84) (model dependent)

The manual shaft retainer (83)

The hex head nut (90)

The manual valve link (89)

Tighten: Tighten the nut to 31 N.m (23 lb ft).

REACTION GEAR AND CARRIER INSPECTION

2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
