THIRD ACCUMULATOR RETAINER AND BALL REPLACEMENT

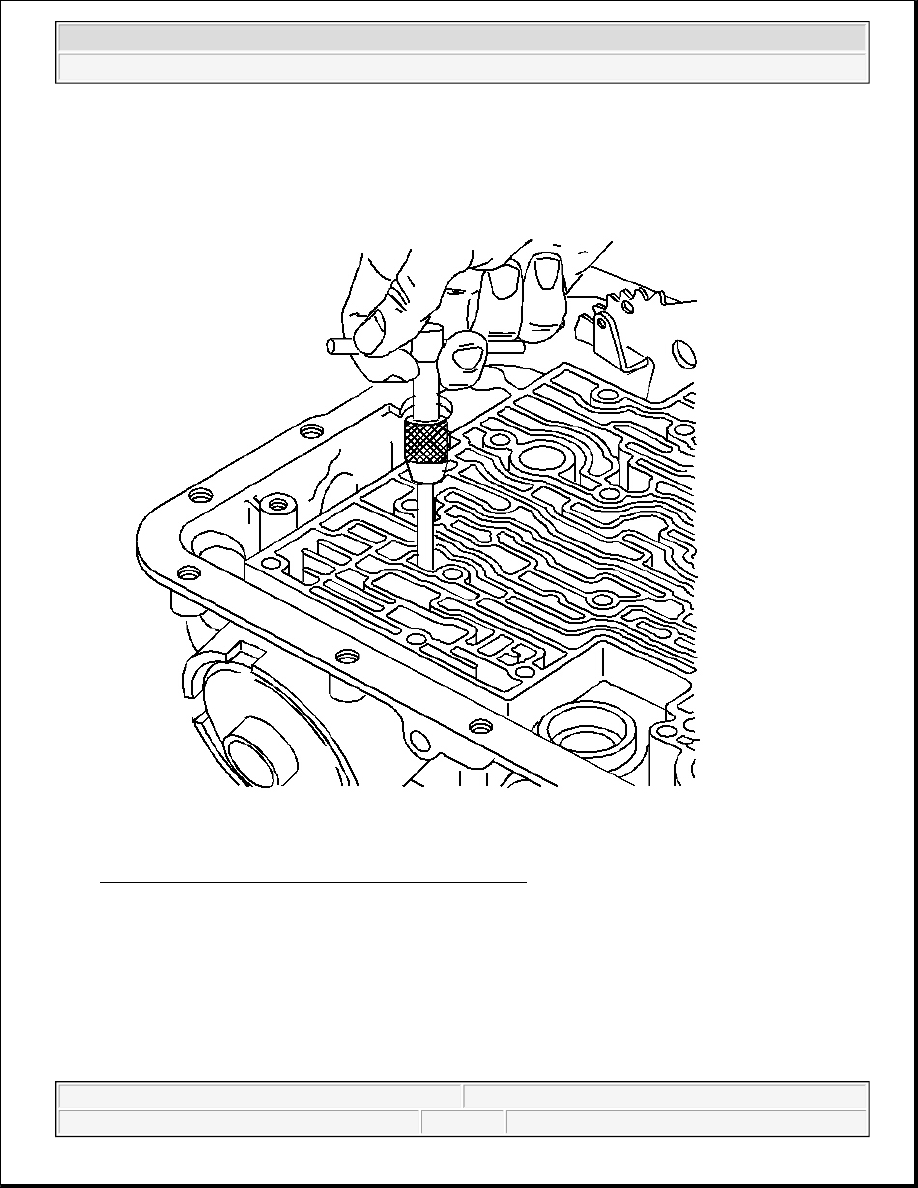

Fig. 249: Third Accumulator Retainer & Ball Assembly
Courtesy of GENERAL MOTORS CORP.

1. Remove the third accumulator retainer and ball assembly, using a 6.3 mm (0.25 in) #4 screw extractor.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

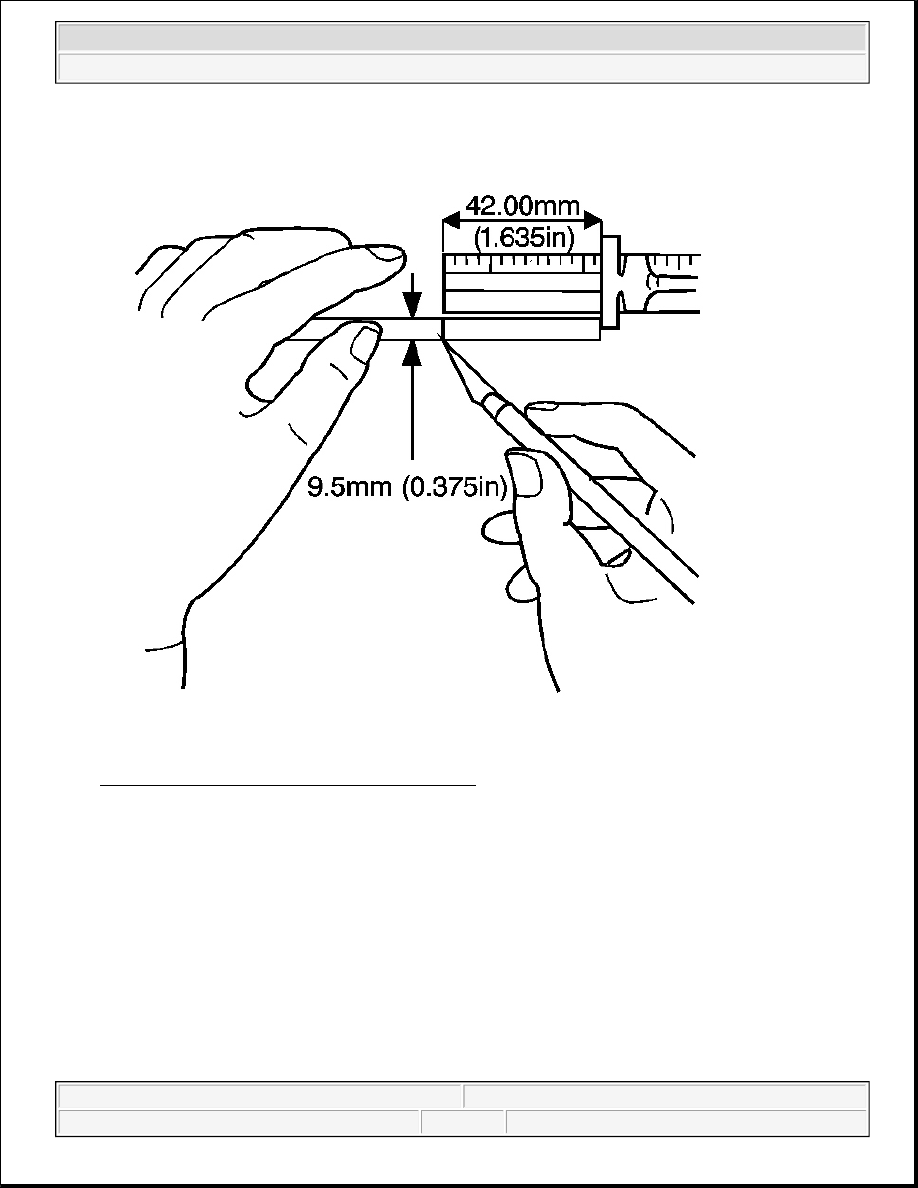

Fig. 250: Scribing Mark On Diameter Metal Rod
Courtesy of GENERAL MOTORS CORP.

2. Scribe a mark at 42 mm (1.653 in) on a 9.5 mm (0.375 in) diameter metal rod. The scribe mark is used to

gauge the proper depth of the third accumulator retainer and ball assembly.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

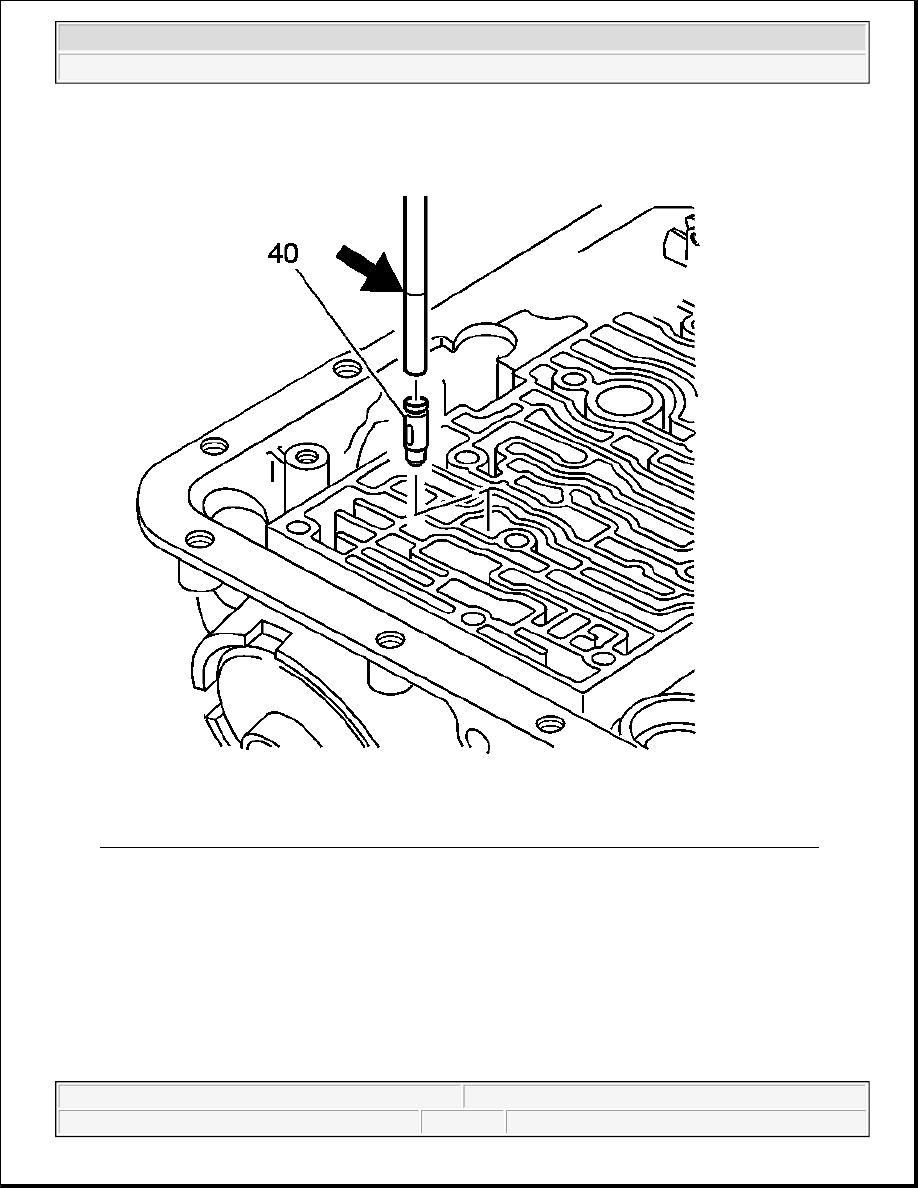

Fig. 251: Lining Up Oil Feed Slots & Installing Third Accumulator Retainer & Ball Assembly
Courtesy of GENERAL MOTORS CORP.

3. Perform the following functions:

1. Line up the oil feed slots in the third accumulator retainer and ball assembly (40) with the servo

bore.

2. Using the 9.5 mm (0.375 in) diameter metal rod, install the third accumulator retainer and ball

assembly.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

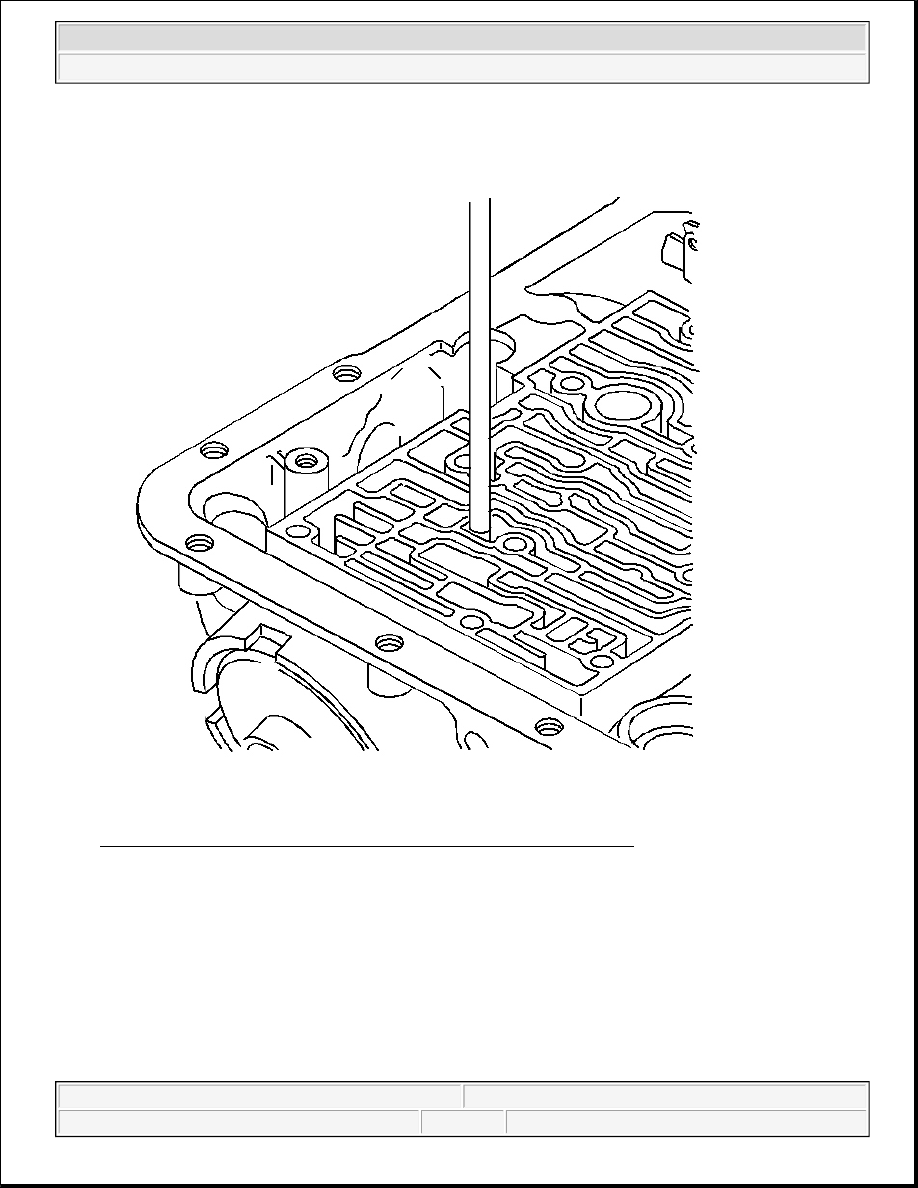

Fig. 252: Third Accumulator Retainer, Ball Assembly & Scribe Mark
Courtesy of GENERAL MOTORS CORP.

4. Ensure that the third accumulator retainer and ball assembly and the scribe mark on the rod are flush with

the case surface.
