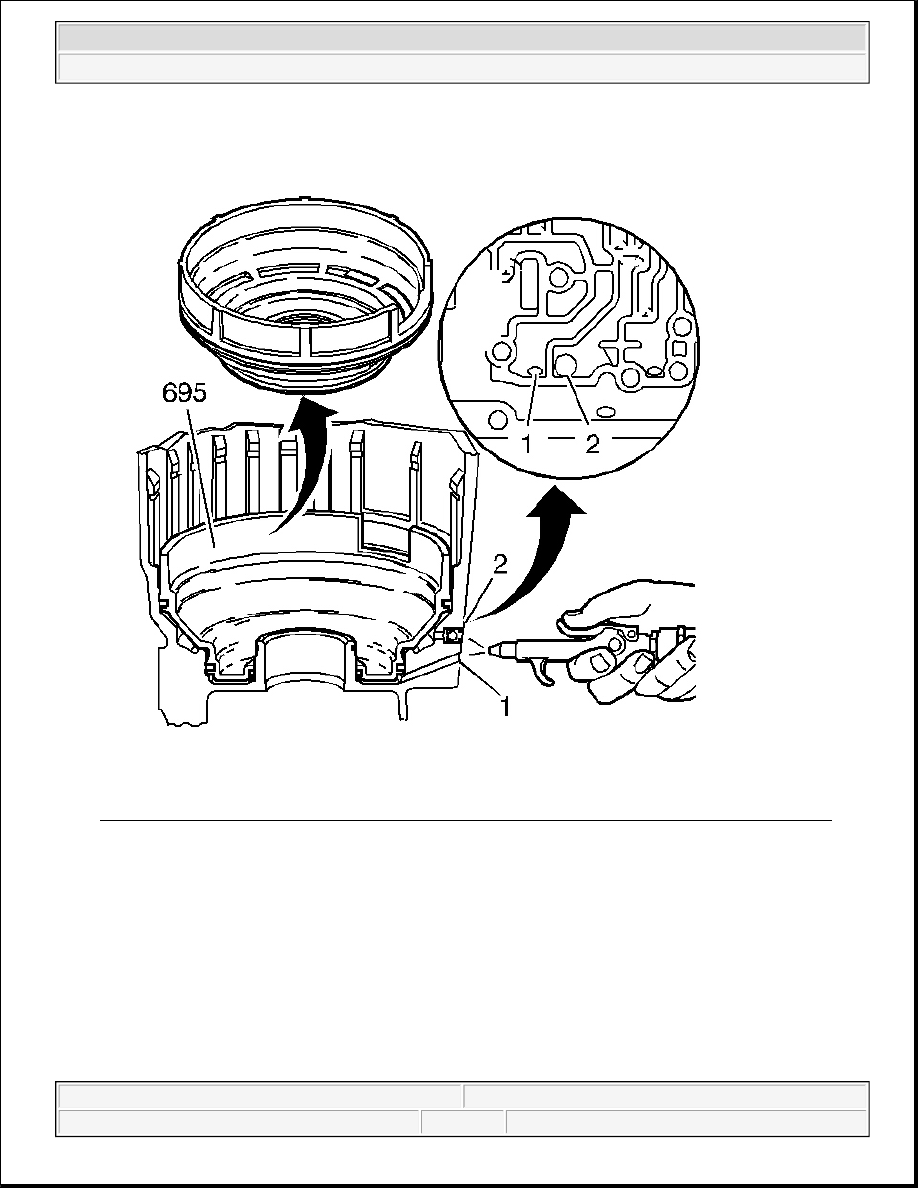

Fig. 241: Blowing Compressed Air Into Case Passage To Remove Low & Reverse Clutch Piston
Courtesy of GENERAL MOTORS CORP.

5. Blow compressed air into the case passage to remove the low and reverse clutch piston (695).

z

(1) LO Feed Passage

z

(2) REV Feed Passage

CASE ASSEMBLY INSPECTION



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



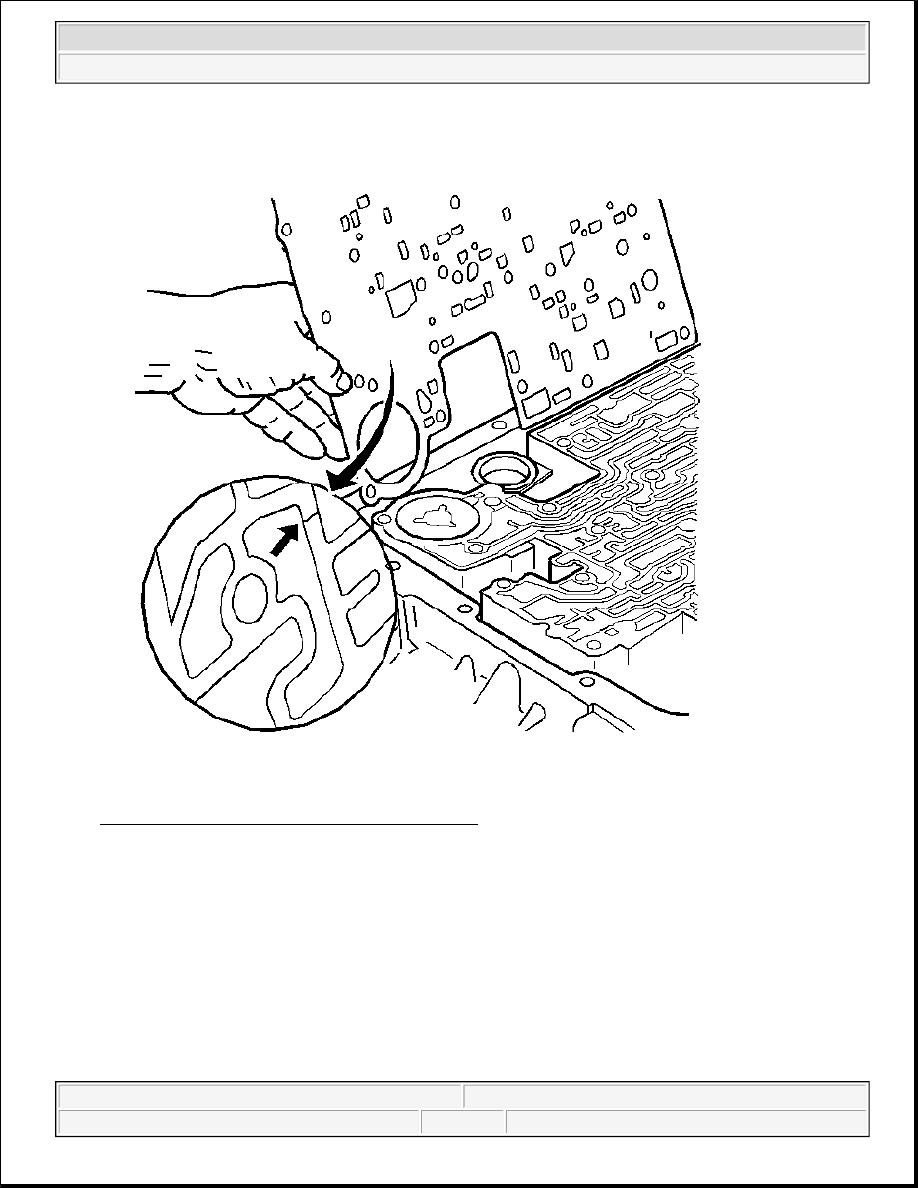

Fig. 242: Inspecting Spacer Plate To Case Gasket
Courtesy of GENERAL MOTORS CORP.

1. Inspect the spacer plate to case gasket for witness marks. The witness marks should be complete.

Incomplete witness marks may come from an uneven case surface or from cross channel leaks.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



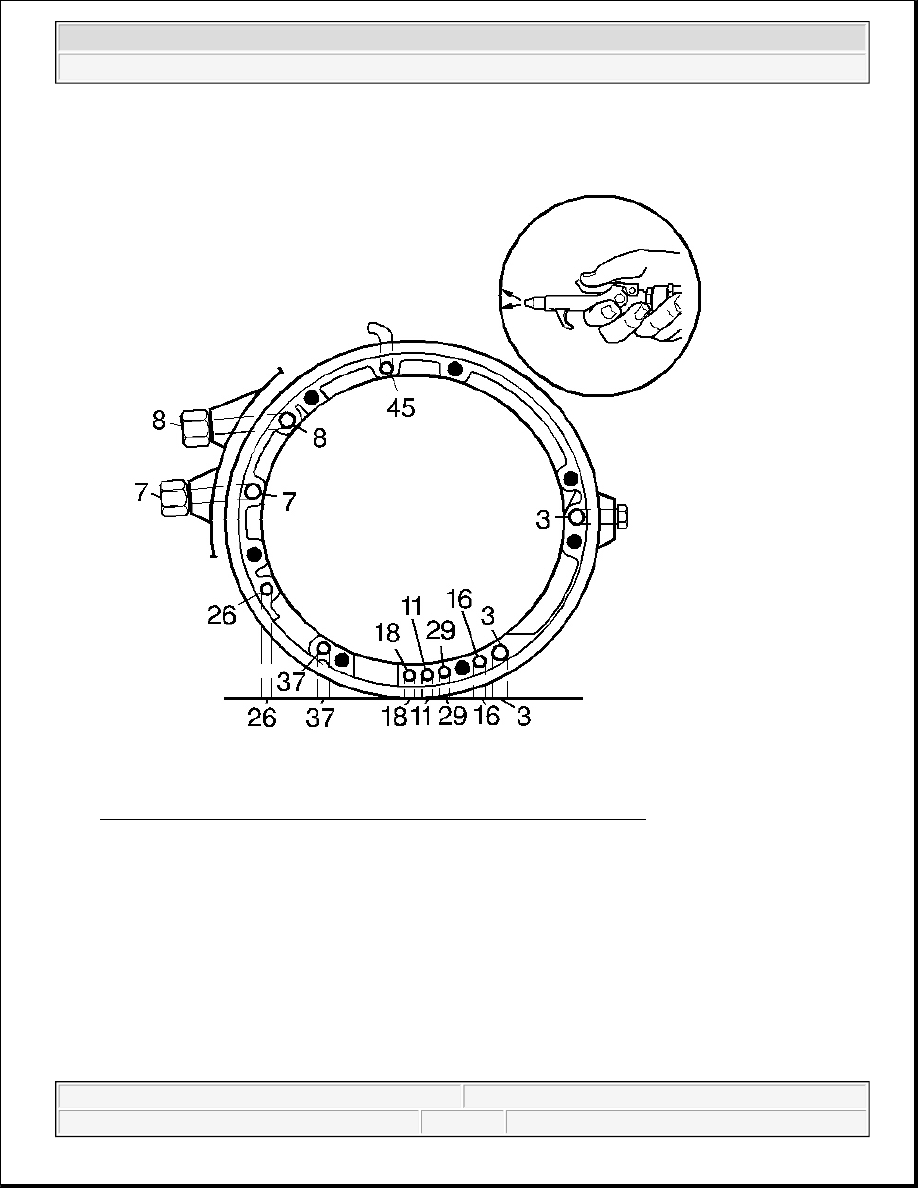

Fig. 243: Use Compressed Air To Blow Into All Of Case Fluid Passages
Courtesy of GENERAL MOTORS CORP.

2. Using compressed air, blow into all of the case fluid passages (3, 7, 8, 11, 16, 18, 26, 29, 37, 45) to ensure

that all case fluid passages are clear of any obstruction.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



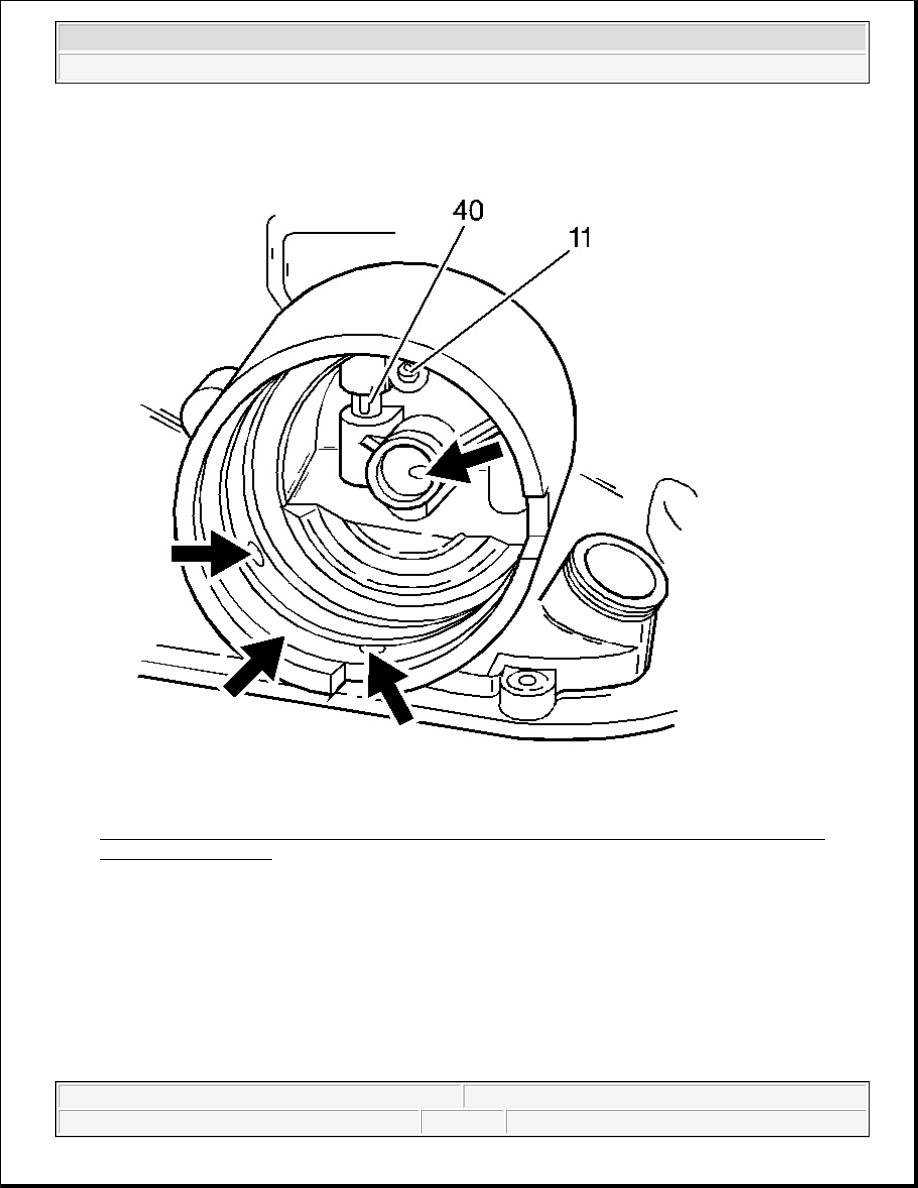

Fig. 244: 2-4 Servo Bore, 3rd Accumulator Retainer & Ball Assembly, Orifice Cup Plug & 2nd
Apply Piston Pin Bore
Courtesy of GENERAL MOTORS CORP.

3. Inspect the 2-4 servo bore, the 3rd accumulator retainer and ball assembly (40), the orifice cup plug (11)

in the servo bore, and the 2nd apply piston pin bore for any of the following conditions:

z

Porosity

z

Burrs

z

Debris

z

Any other damage
