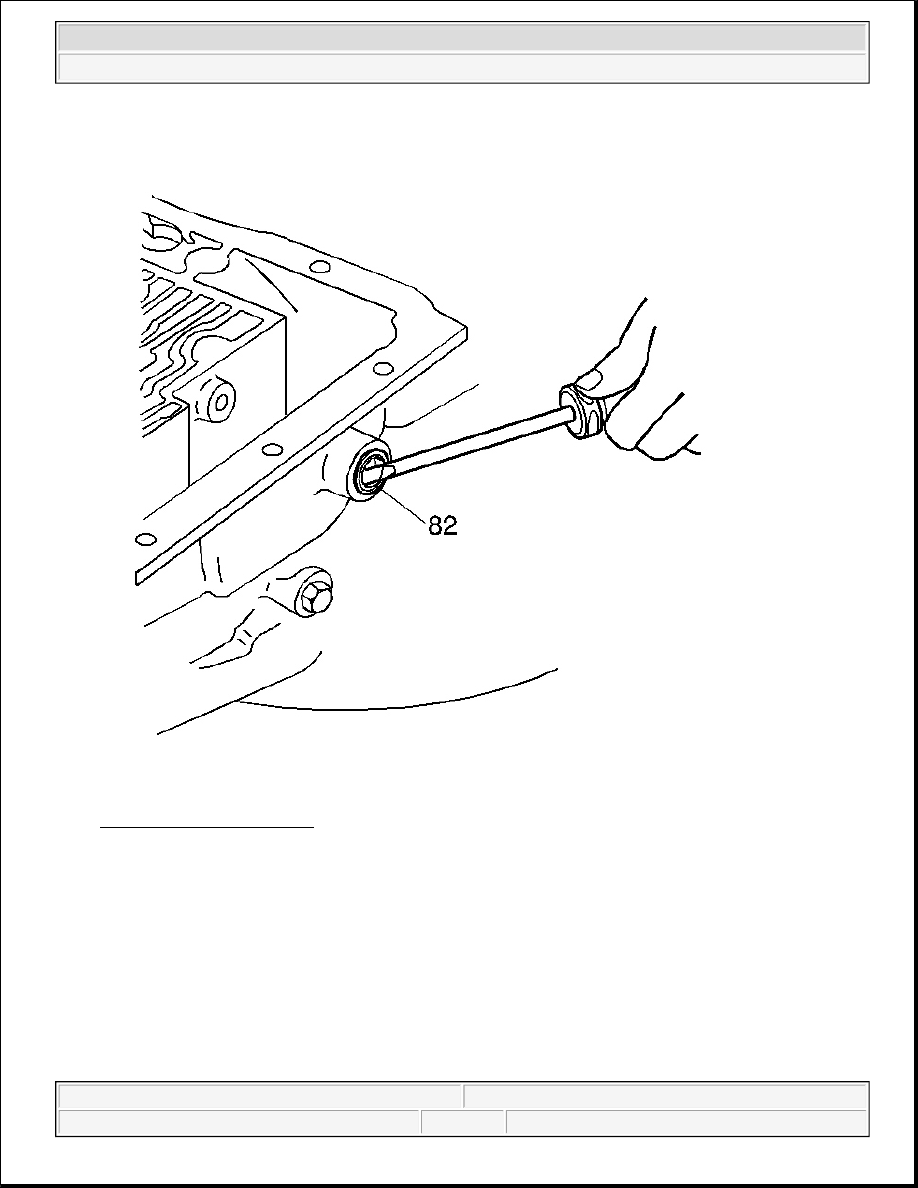

Fig. 237: Manual Shaft Seal
Courtesy of GENERAL MOTORS CORP.

2. Remove the manual shaft seal (82) with a screwdriver.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



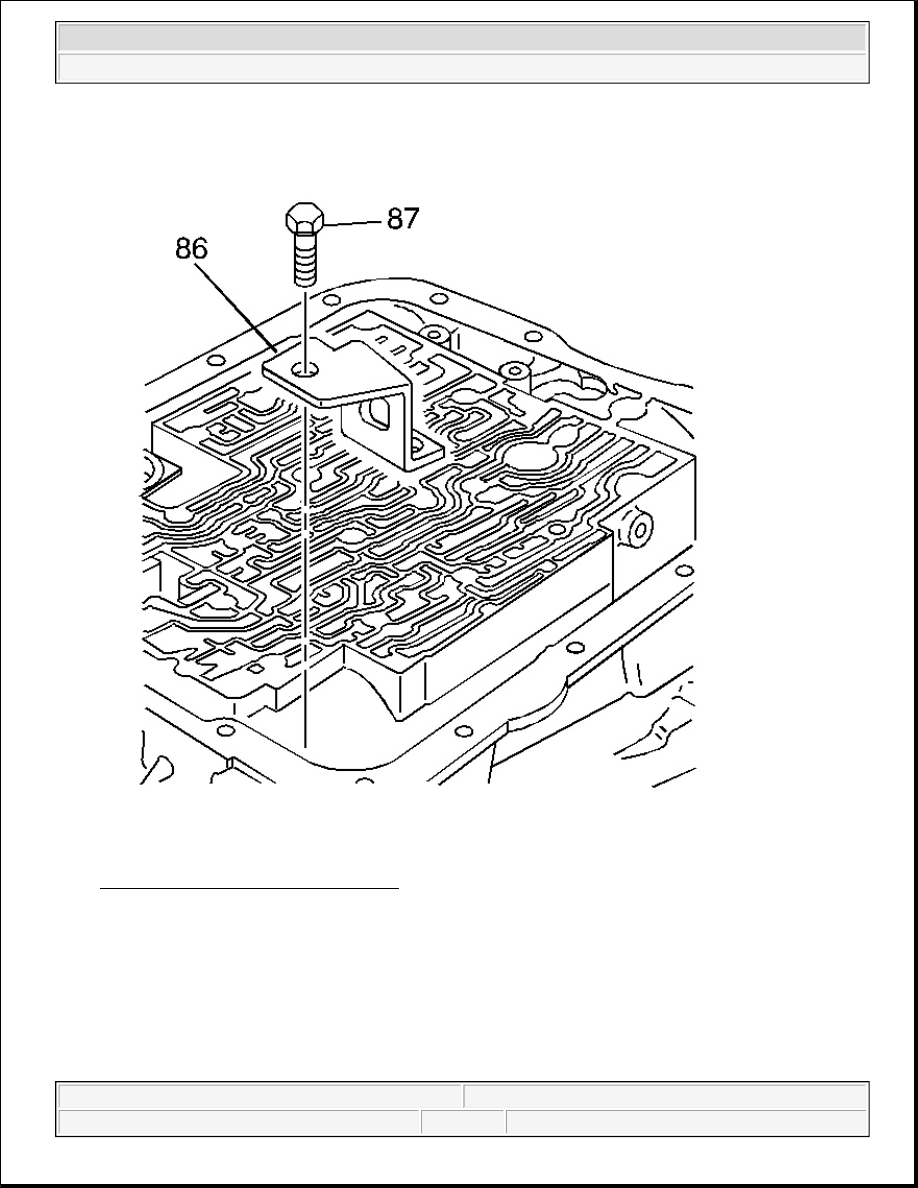

Fig. 238: Parking Lock Bracket & Bolt
Courtesy of GENERAL MOTORS CORP.

3. Remove the following components:

1. The parking lock bracket bolt (87)

2. The parking lock bracket (86)

LOW AND REVERSE CLUTCH PISTON REMOVAL

Tools Required



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



z

J 23327-1 Forward Clutch Spring Compressor (Bridge). See Special Tools and Equipment .

z

J 34627 Snap Ring Remover and Installer. See Special Tools and Equipment .

z

J 42628 Disc. See Special Tools and Equipment .

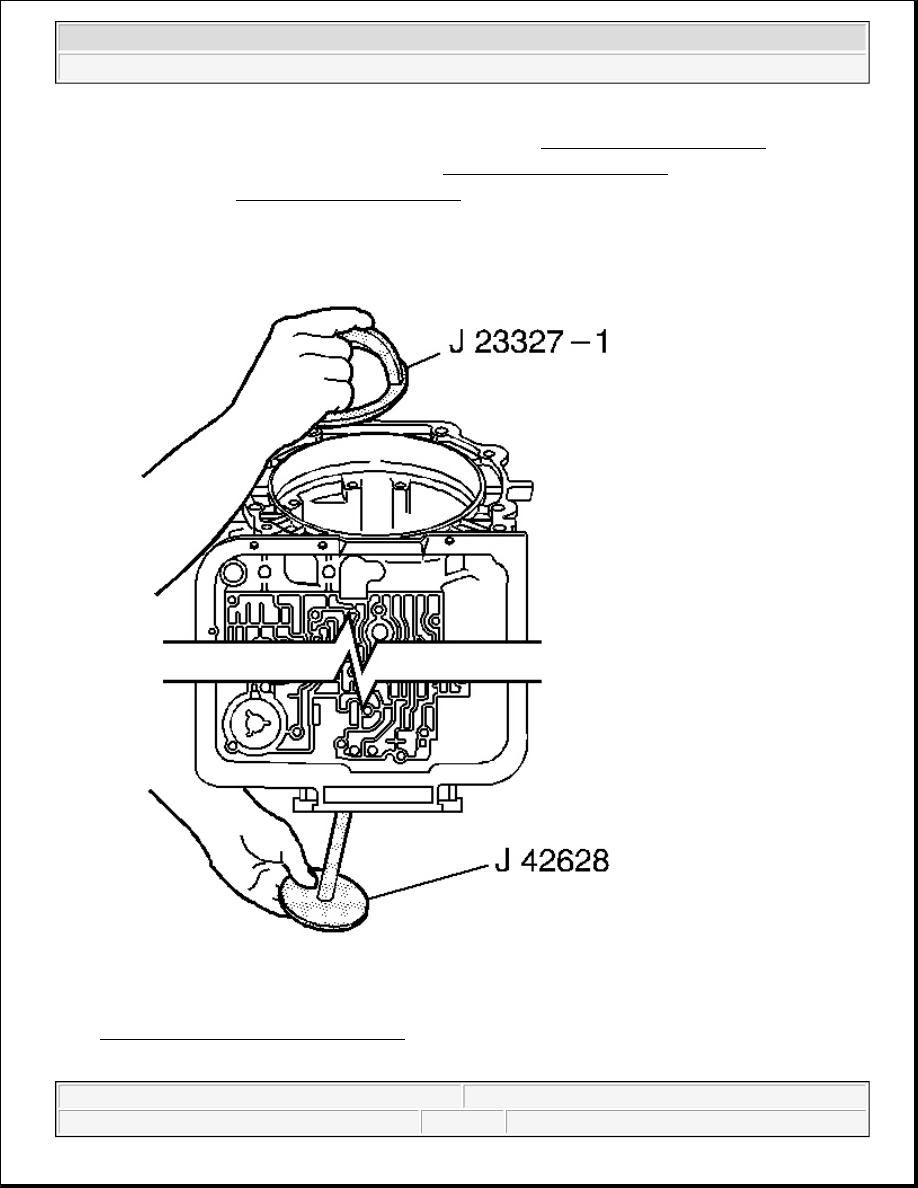

Fig. 239: Installing J 23327-1 & J 42628
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



1. Install the J 23327-1 and the J 42628 . See Special Tools and Equipment .

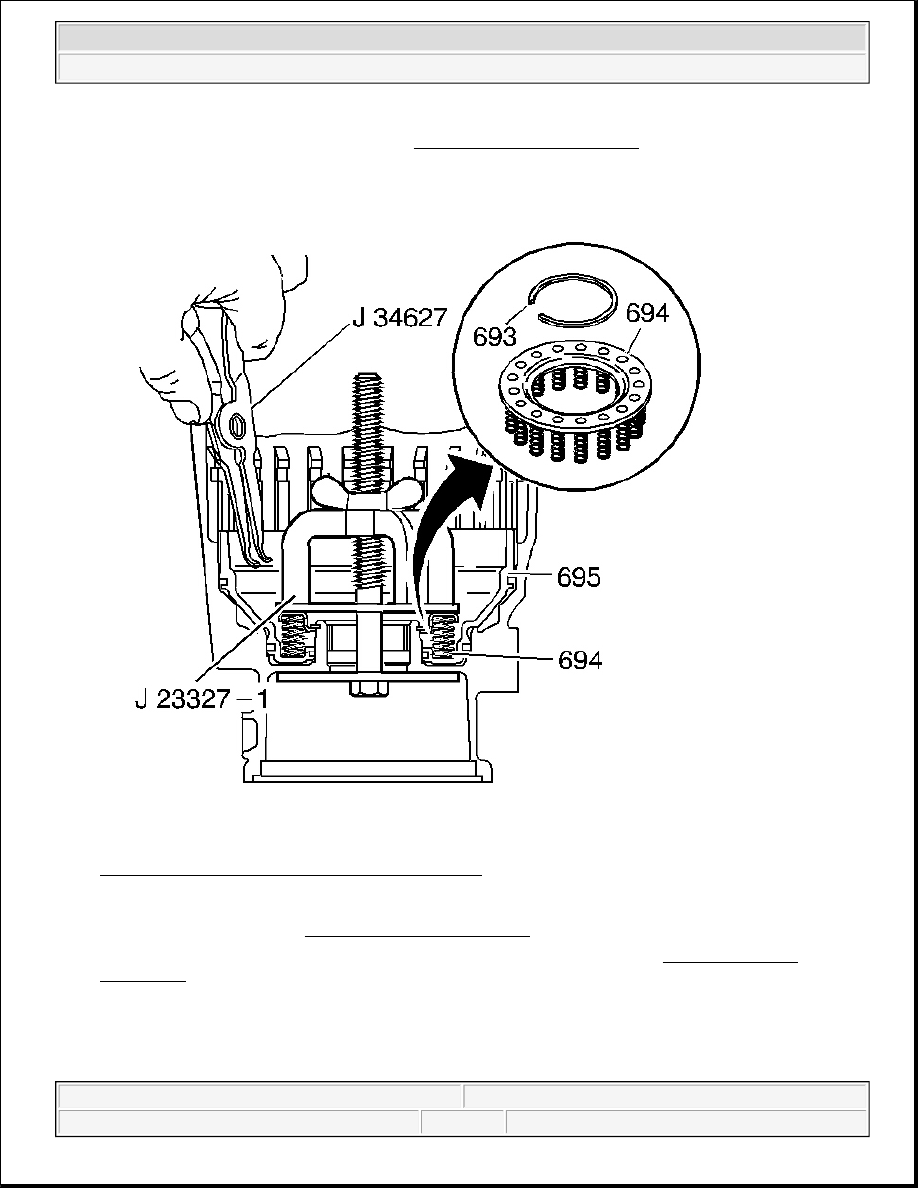

Fig. 240: Low & Reverse Clutch Spring Assembly
Courtesy of GENERAL MOTORS CORP.

2. Tighten the J 23327-1 . See Special Tools and Equipment .

3. Remove the low and reverse clutch retainer ring (693) using theJ 34627 . See Special Tools and

Equipment .

4. Remove the low and reverse clutch spring assembly (694).
