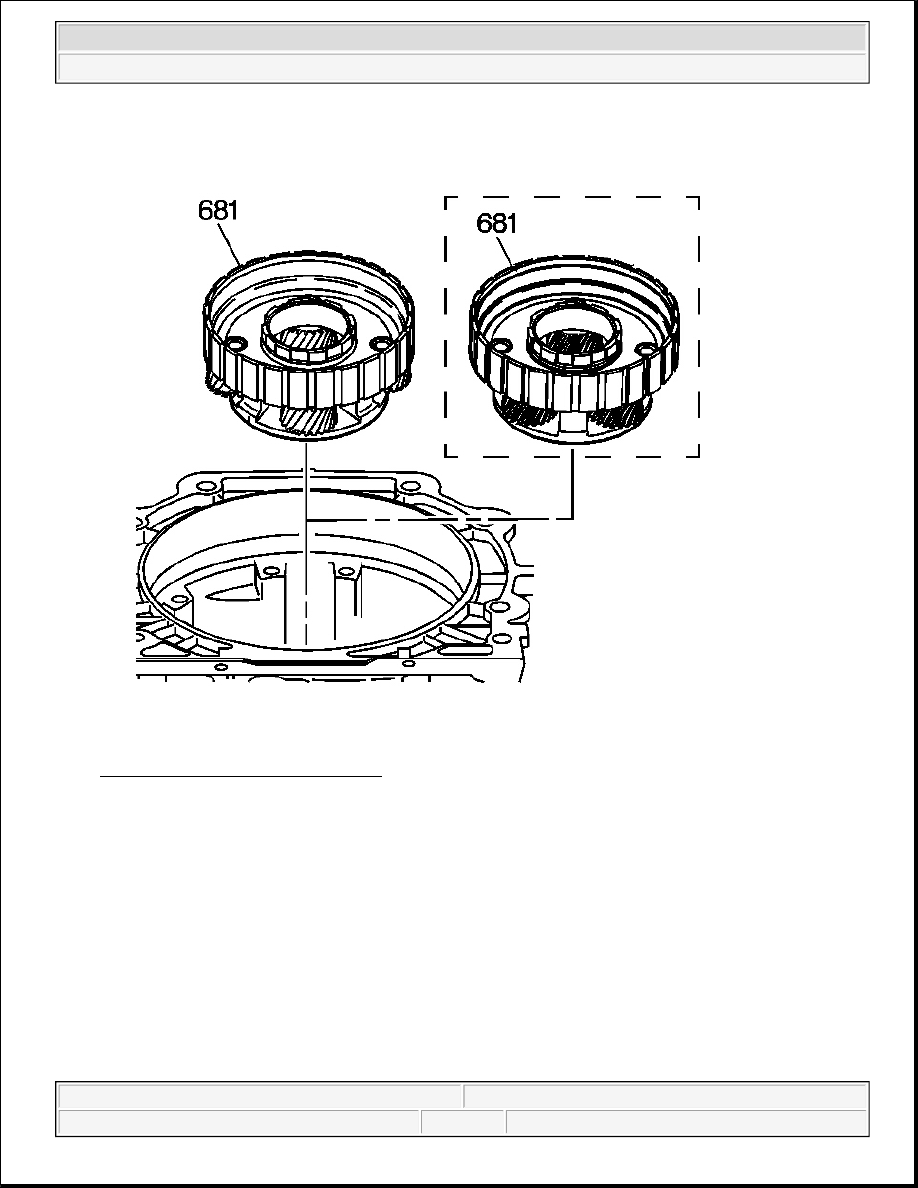

Fig. 233: Reaction Carrier Assembly
Courtesy of GENERAL MOTORS CORP.

8. Remove the reaction carrier assembly (681).

IMPORTANT: The reaction carrier assembly (681) can be a 4 or 5 pinion design

depending on the transmission model.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



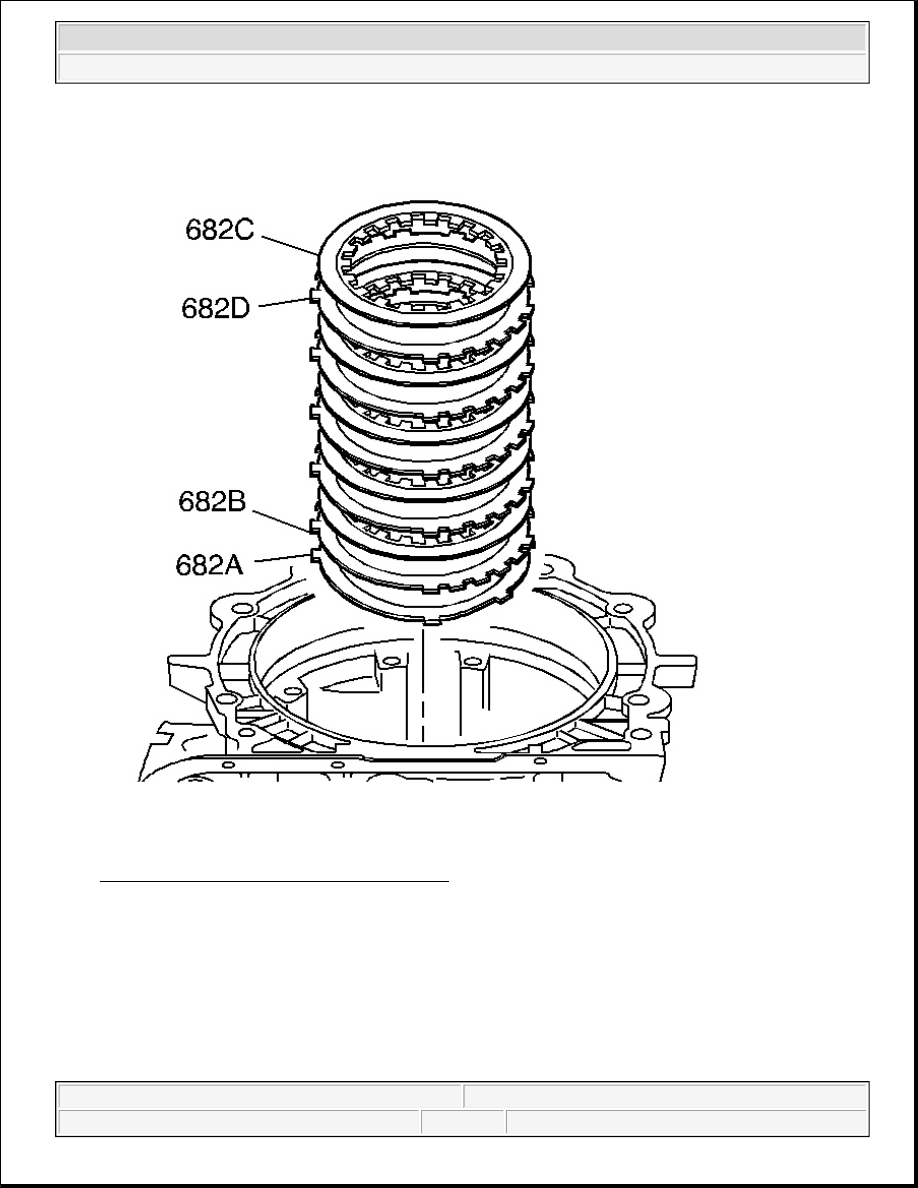

Fig. 234: Low & Reverse Clutch Components
Courtesy of GENERAL MOTORS CORP.

9. Remove the following components:

1. The low and reverse clutch fiber plate assembly (682C)

2. The low and reverse clutch steel plates (682D)

3. The low and reverse clutch selective plate (682B)

4. The low and reverse clutch waved plate (682A)



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



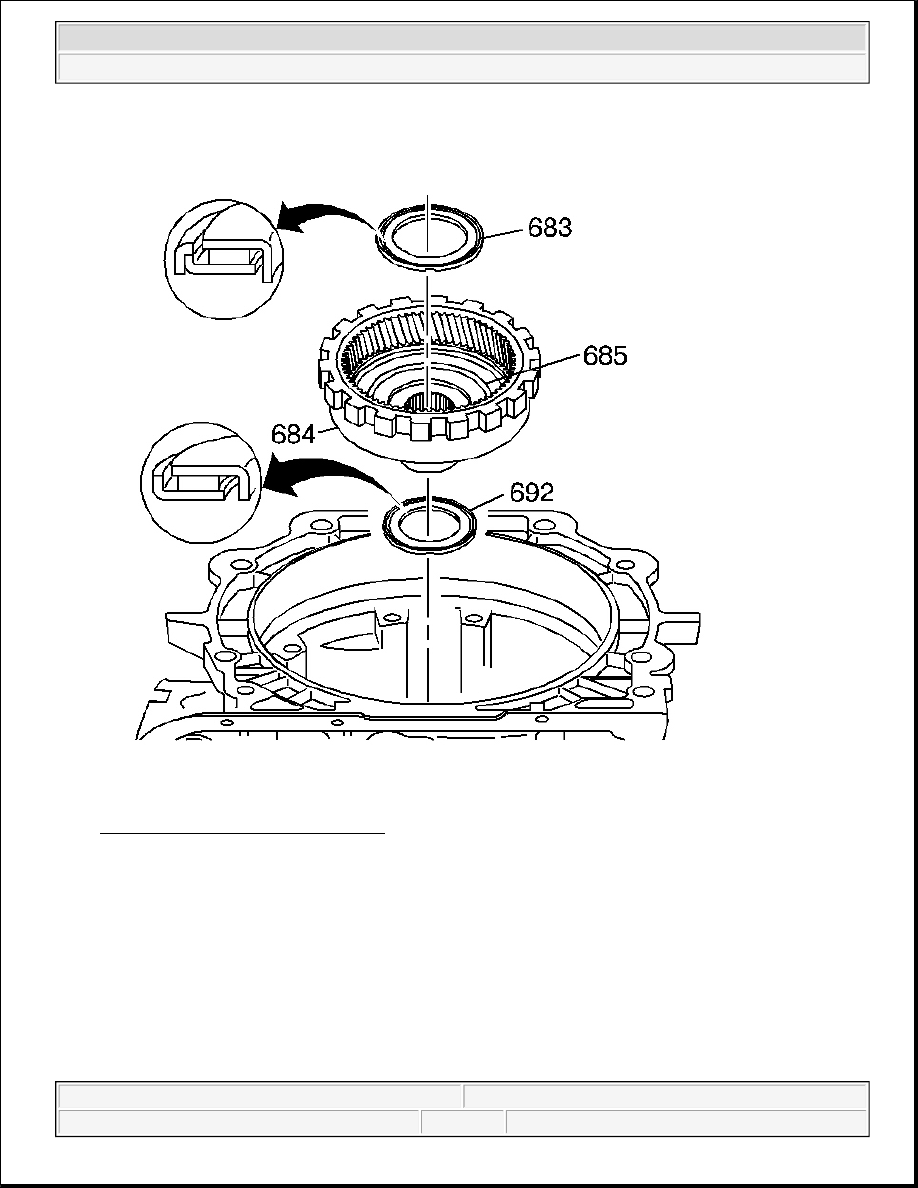

Fig. 235: Reaction Gear Components
Courtesy of GENERAL MOTORS CORP.

10. Remove the following components:

1. The thrust bearing assembly (reaction carrier support) (683)

2. The internal reaction gear (684)

3. The internal reaction gear support (685)

4. The reaction gear support bearing (692)

INNER MANUAL LINKAGE REMOVAL



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



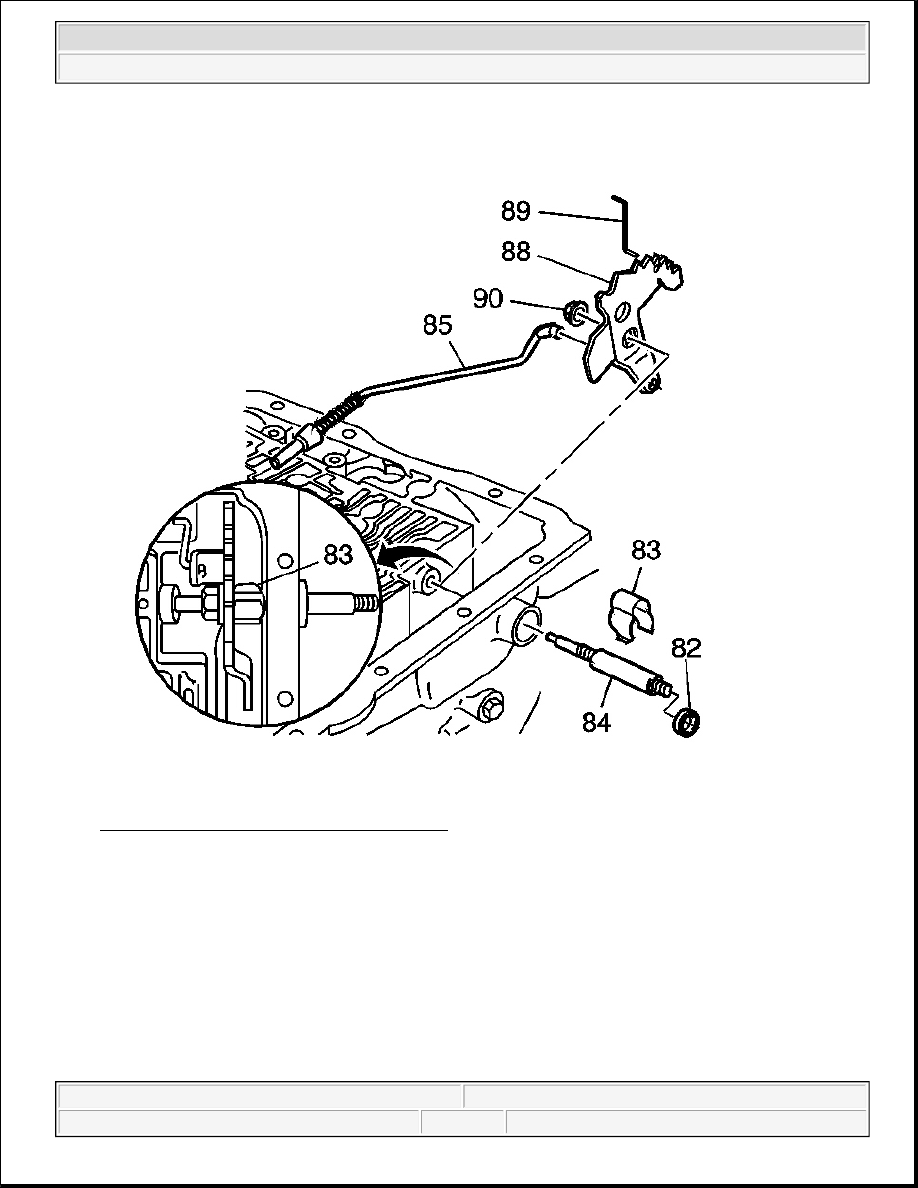

Fig. 236: Inner Manual Linkage Components
Courtesy of GENERAL MOTORS CORP.

1. Remove the following parts:

1. Hex head nut (90)

2. Manual valve link (89)

3. Detent lever (88)

4. Parking lock actuator assembly (85)

5. Manual shaft retainer (83)

6. Manual shaft (84)
