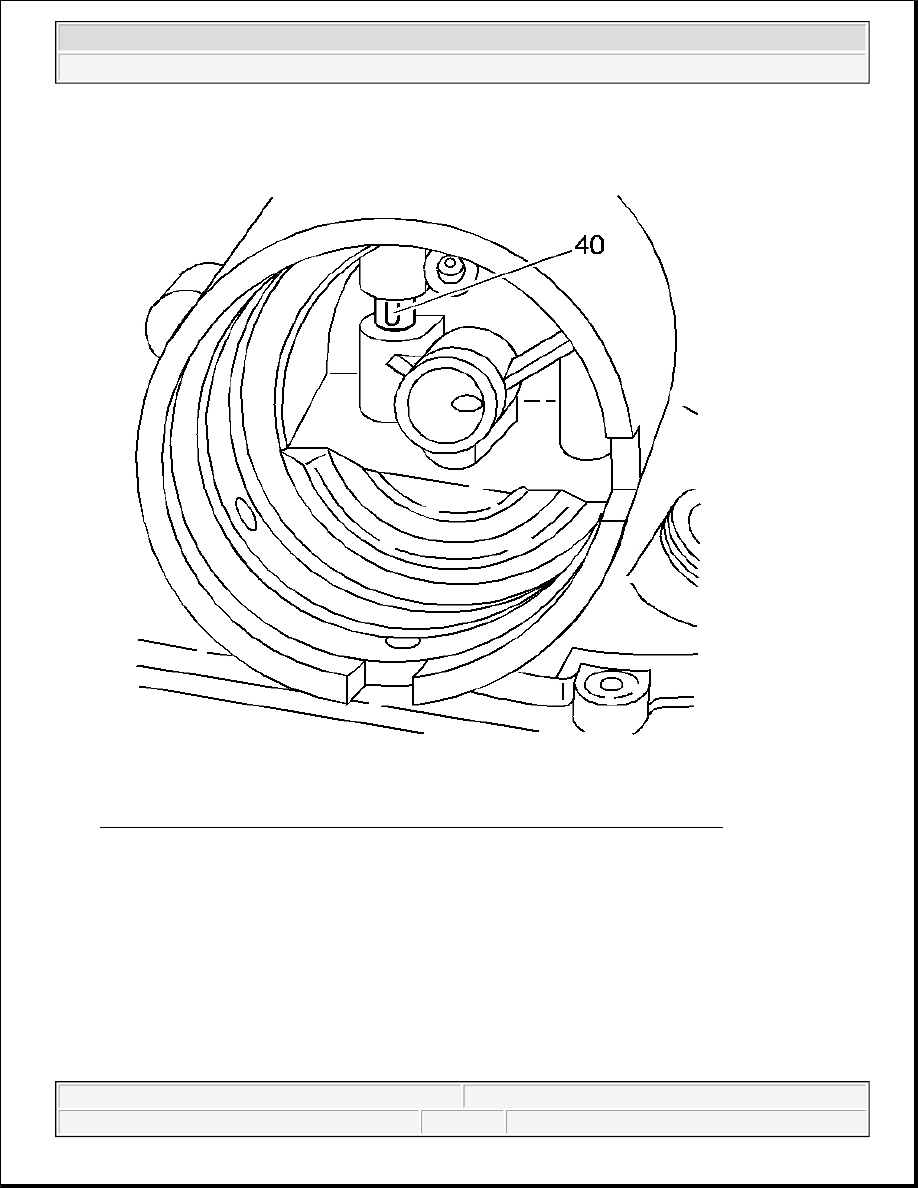

Fig. 253: Checking Third Accumulator Retainer & Ball Assembly For Alignment
Courtesy of GENERAL MOTORS CORP.

5. Check the third accumulator retainer and ball assembly (40) for alignment. The slot in the retainer must

be completely open in the servo bore.

MANUAL SHAFT SEAL INSTALLATION



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



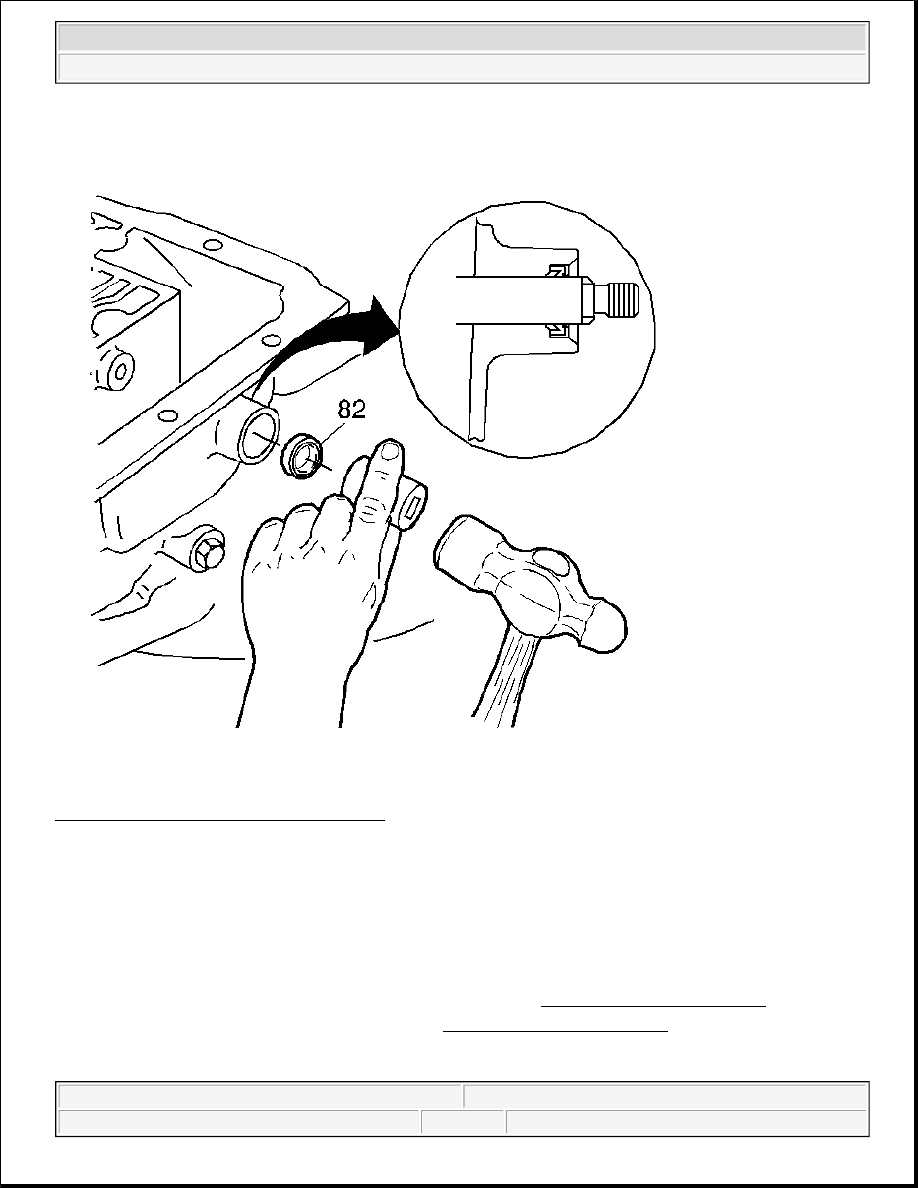

Fig. 254: Installing New Manual Shaft Seal
Courtesy of GENERAL MOTORS CORP.

Install a new manual shaft seal (82).

LOW AND REVERSE CLUTCH PISTON INSTALLATION

Tools Required

z

J 23327-1 Forward Clutch Spring Compressor (Bridge). See Special Tools and Equipment .

z

J 34627 Snap Ring Remover and Installer. See Special Tools and Equipment .

z

J 36850 Transjel Lubricant



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



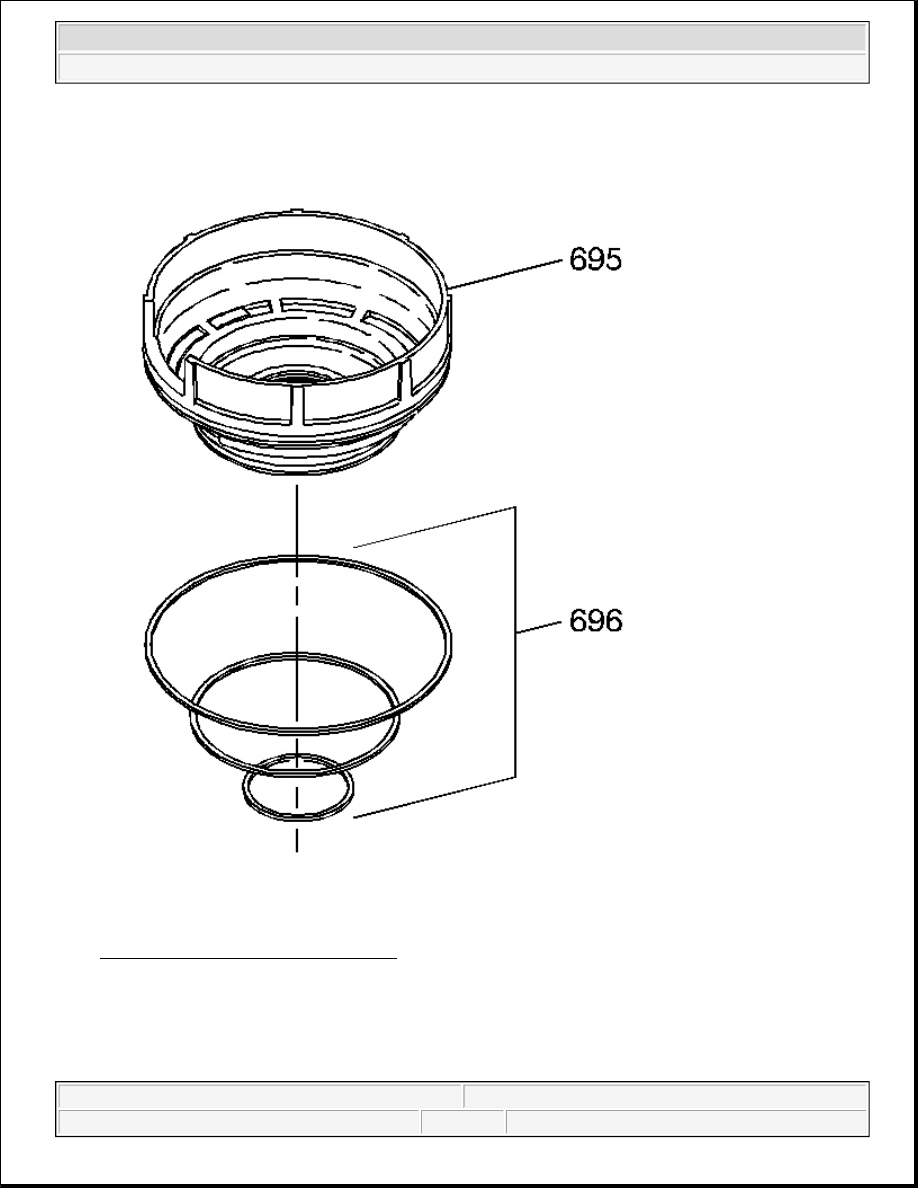

Fig. 255: Installing Transmission Seals
Courtesy of GENERAL MOTORS CORP.

1. Install the transmission (low and reverse clutch outer, center, inner) seals (696) on the low and reverse

clutch piston (695).

2. Lubricate the seals with assembly lubricant J 36850 or an equivalent.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

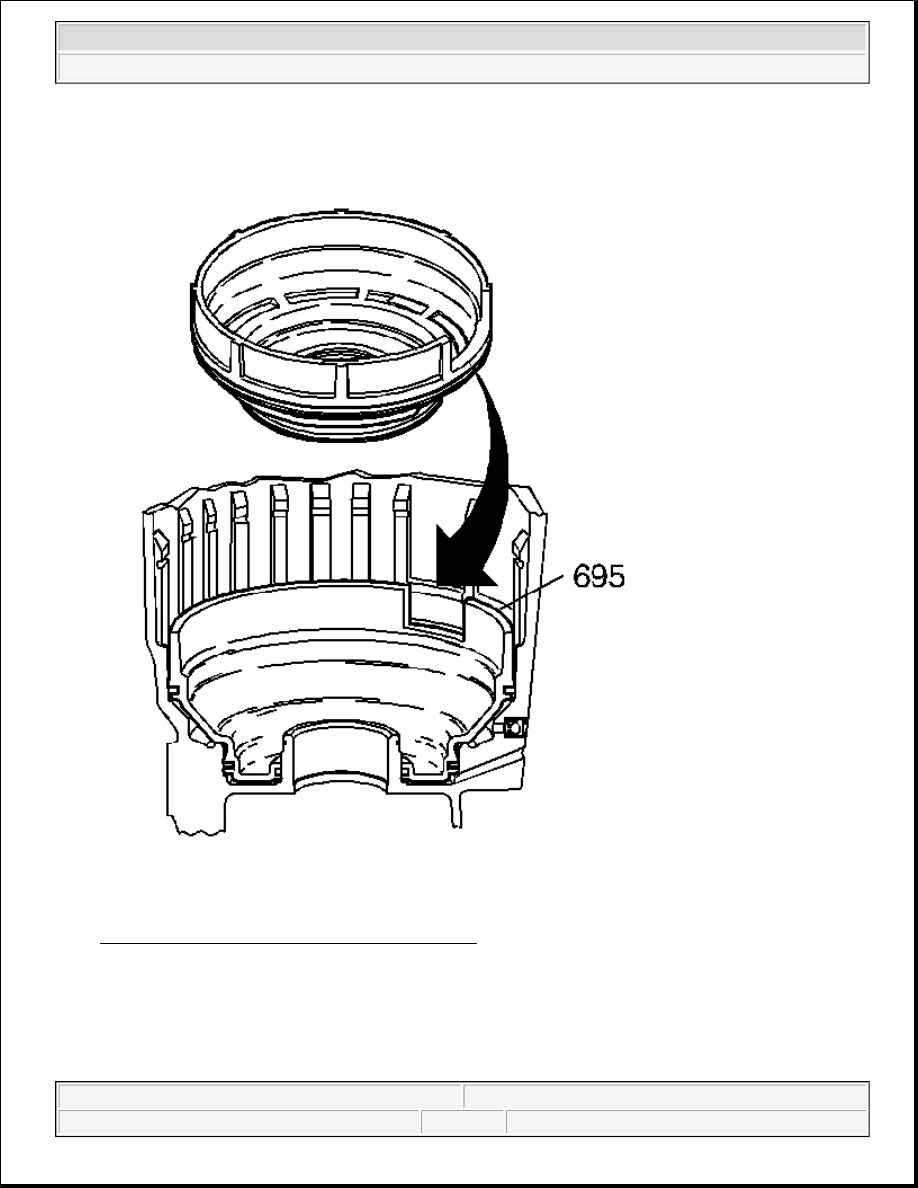

Fig. 256: Installing Low & Reverse Clutch Piston
Courtesy of GENERAL MOTORS CORP.

3. Install the low and reverse clutch piston (695) into the case. The notch in the piston must be aligned with

the parking brake pawl window, in the case.
