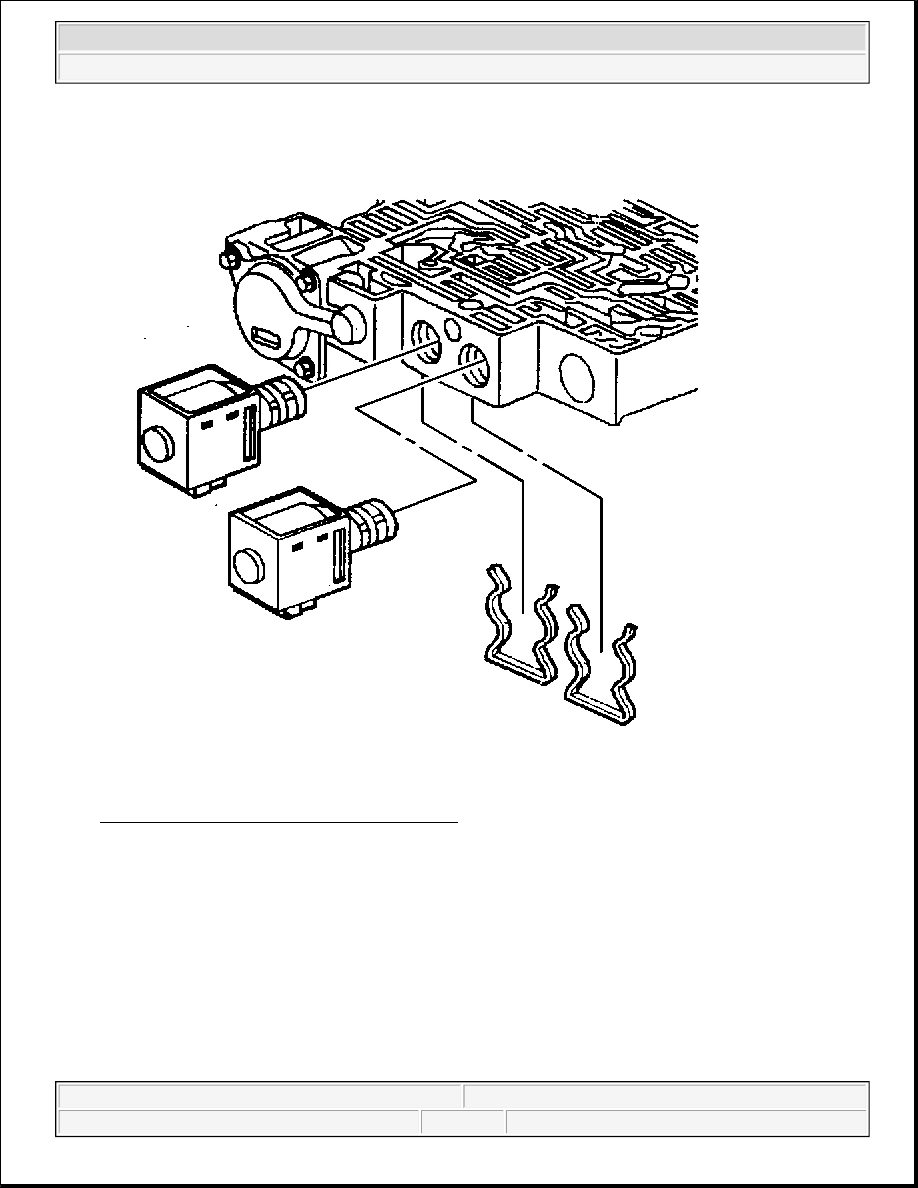

Fig. 129: Shift Solenoids & Retainers (1-2, 2-3)
Courtesy of GENERAL MOTORS CORP.

6. Remove the 1-2 and 2-3 shift solenoid retainers.

7. Remove the 1-2 and 2-3 shift solenoids.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



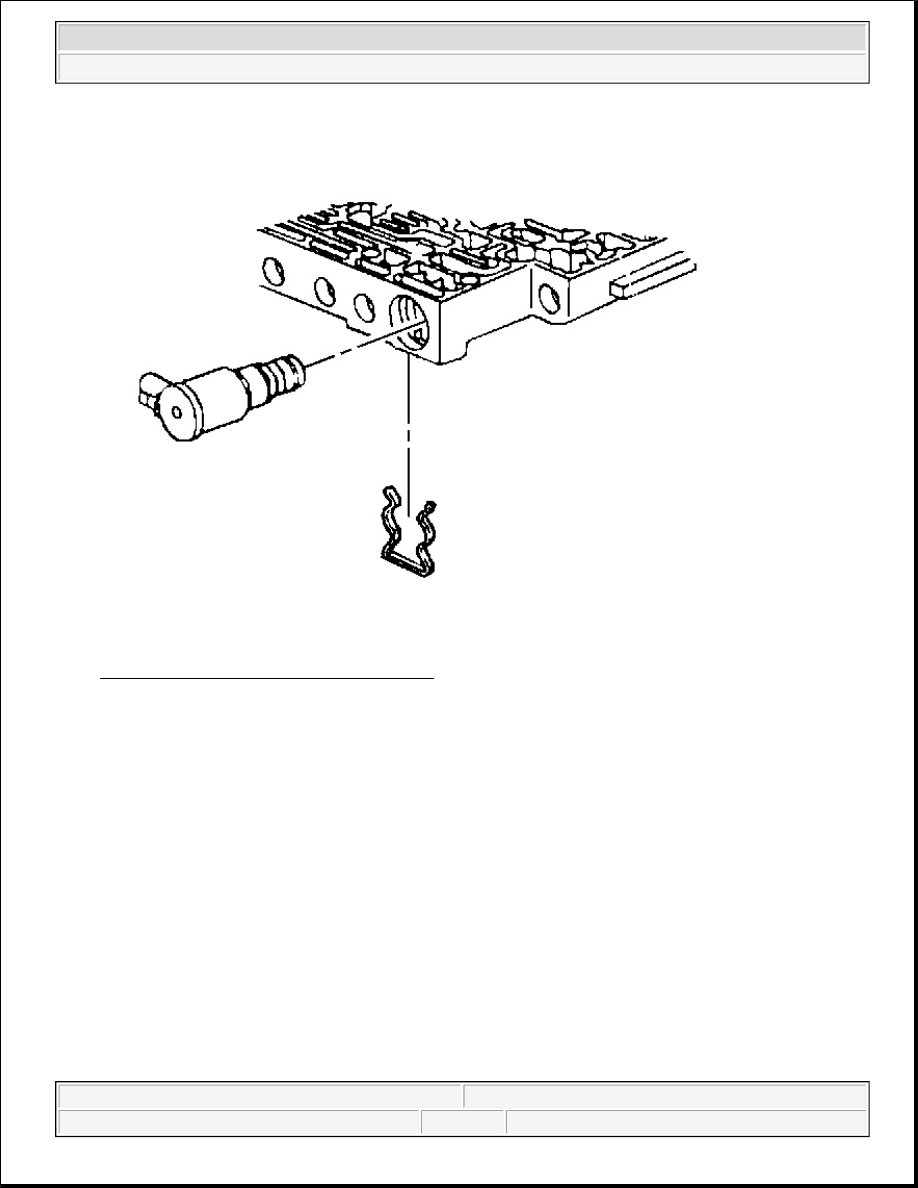

Fig. 130: Control Solenoid & Retainer (3-2)
Courtesy of GENERAL MOTORS CORP.

8. Remove the 3-2 control solenoid retainer.

9. Remove the 3-2 control solenoid.

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 131: Control Solenoid & Retainer (3-2)
Courtesy of GENERAL MOTORS CORP.

1. Install the 3-2 control solenoid.

2. Install the 3-2 control solenoid retainer.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 132: Shift Solenoids & Retainers (1-2, 2-3)
Courtesy of GENERAL MOTORS CORP.

3. Install the 1-2 and 2-3 shift solenoids.

4. Install the 1-2 and 2-3 shift solenoid retainers.
