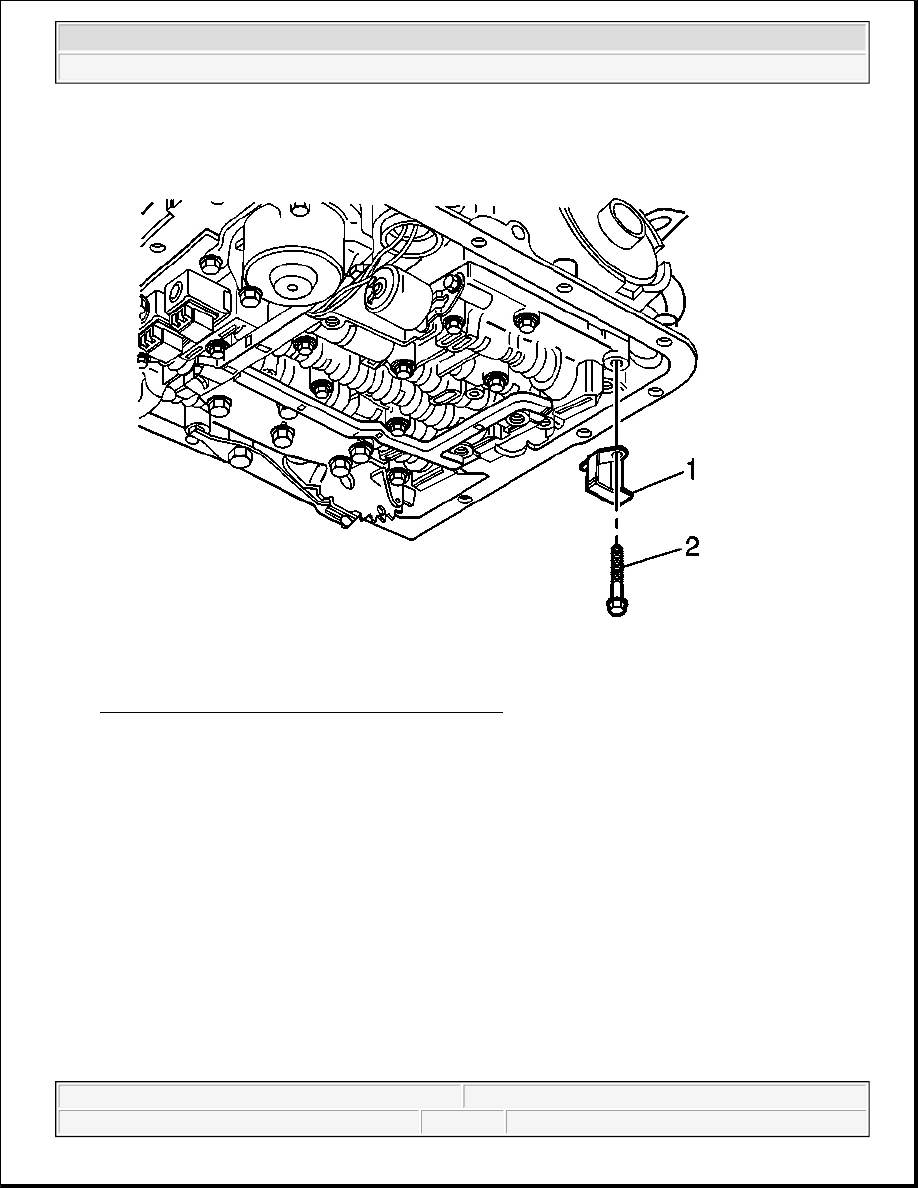

Fig. 125: Transmission Fluid Indicator Stop Bracket
Courtesy of GENERAL MOTORS CORP.

18. Install the transmission fluid indicator stop bracket (1) and bolt (2).

Tighten: Tighten the transmission fluid indicator stop bracket bolt to 11 N.m (97 lb in).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



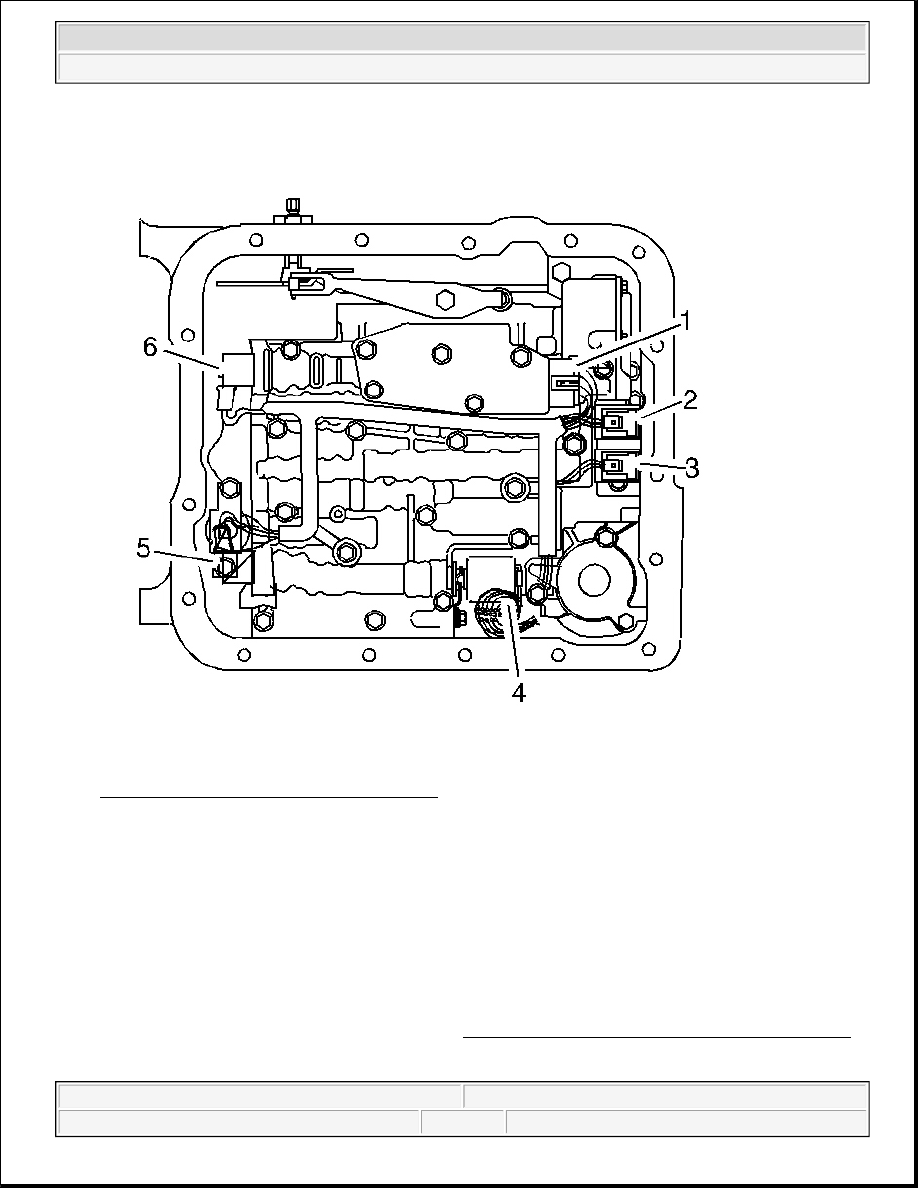

Fig. 126: Valve Body Electrical Connections
Courtesy of GENERAL MOTORS CORP.

19. Connect the internal wiring harness electrical connectors to the following components:

z

The transmission fluid pressure manual valve position switch (1)

z

The 1-2 shift solenoid (2)

z

The 2-3 shift solenoid (3)

z

The pressure control solenoid (4)

z

The TCC PWM solenoid (5)

z

The 3-2 shift solenoid (6)

20. Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .

21. Lower the vehicle.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



22. Fill the transmission to the proper level with DEXRON(R) III transmission fluid. Refer to Transmission

Fluid Checking Procedure .

CONTROL AND SHIFT SOLENOIDS REPLACEMENT

Removal Procedure

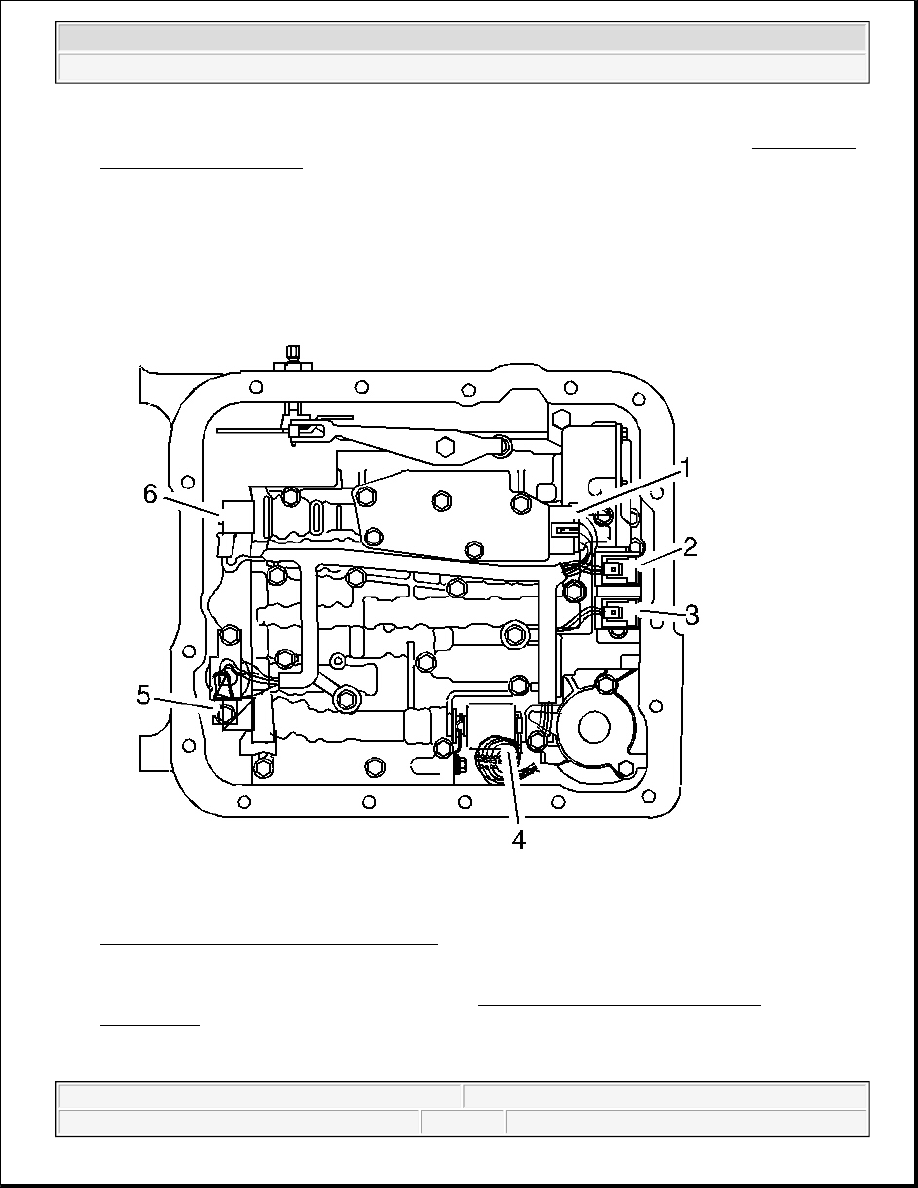

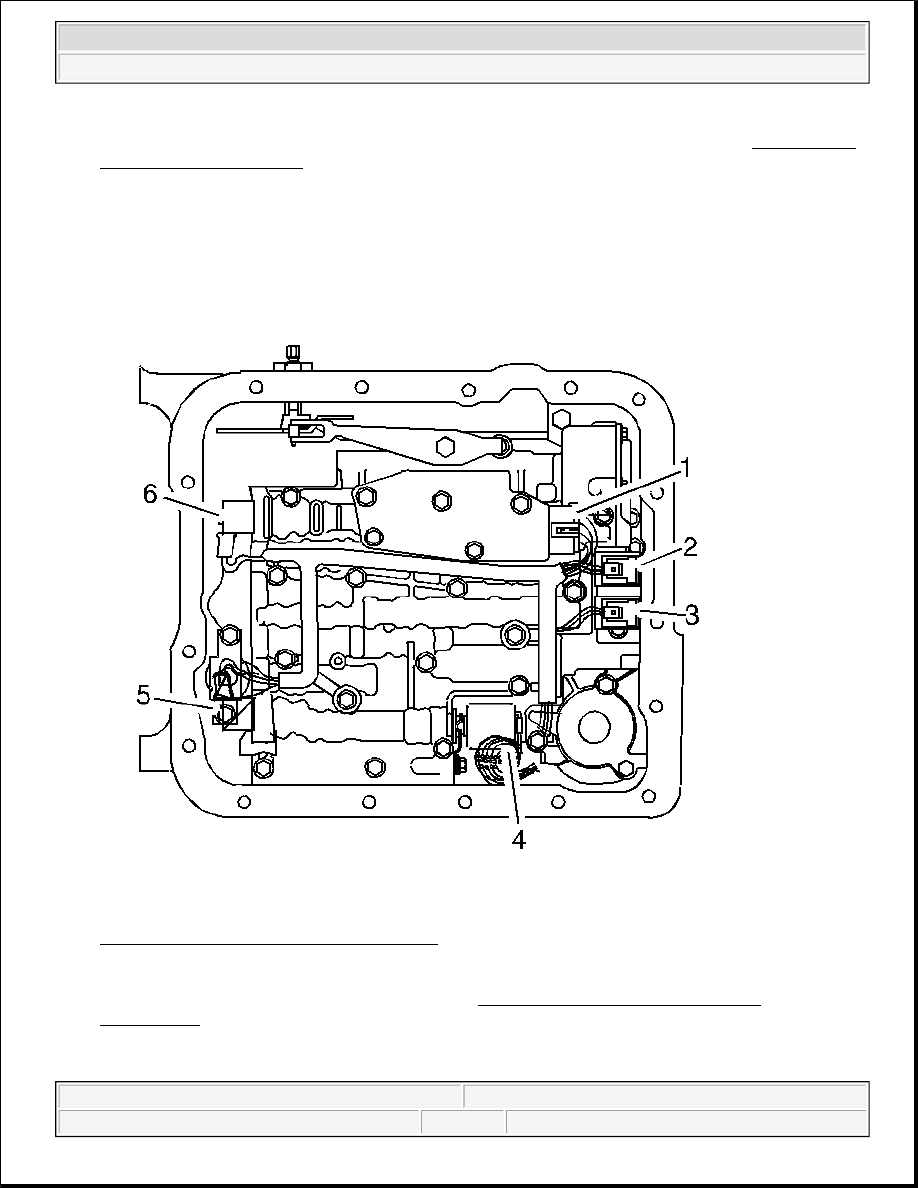

Fig. 127: Valve Body Electrical Connections
Courtesy of GENERAL MOTORS CORP.

1. Remove the transmission oil pan and filter. Refer to Automatic Transmission Fluid/Filter

Replacement .

IMPORTANT: Do not remove the valve body for the following procedures. Removal of



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



2. Remove the 1-2 accumulator if necessary. Refer to Accumulator Assembly, Spacer Plate, and

Gaskets .

3. Disconnect the internal wiring harness electrical connectors from the following components:

z

Transmission fluid pressure switch (1)

z

1-2 shift control solenoid (2)

z

2-3 shift control solenoid (3)

z

Pressure control solenoid (4)

z

TCC PWM solenoid (5)

z

3-2 control solenoid (6)

Fig. 128: Locating Pressure Control Solenoid
Courtesy of GENERAL MOTORS CORP.

4. Remove the pressure control solenoid retainer.

5. Remove the pressure control solenoid.

the 1-2 accumulator is necessary only if servicing the pressure control
solenoid.
