Hummer H2. Manual - part 2271

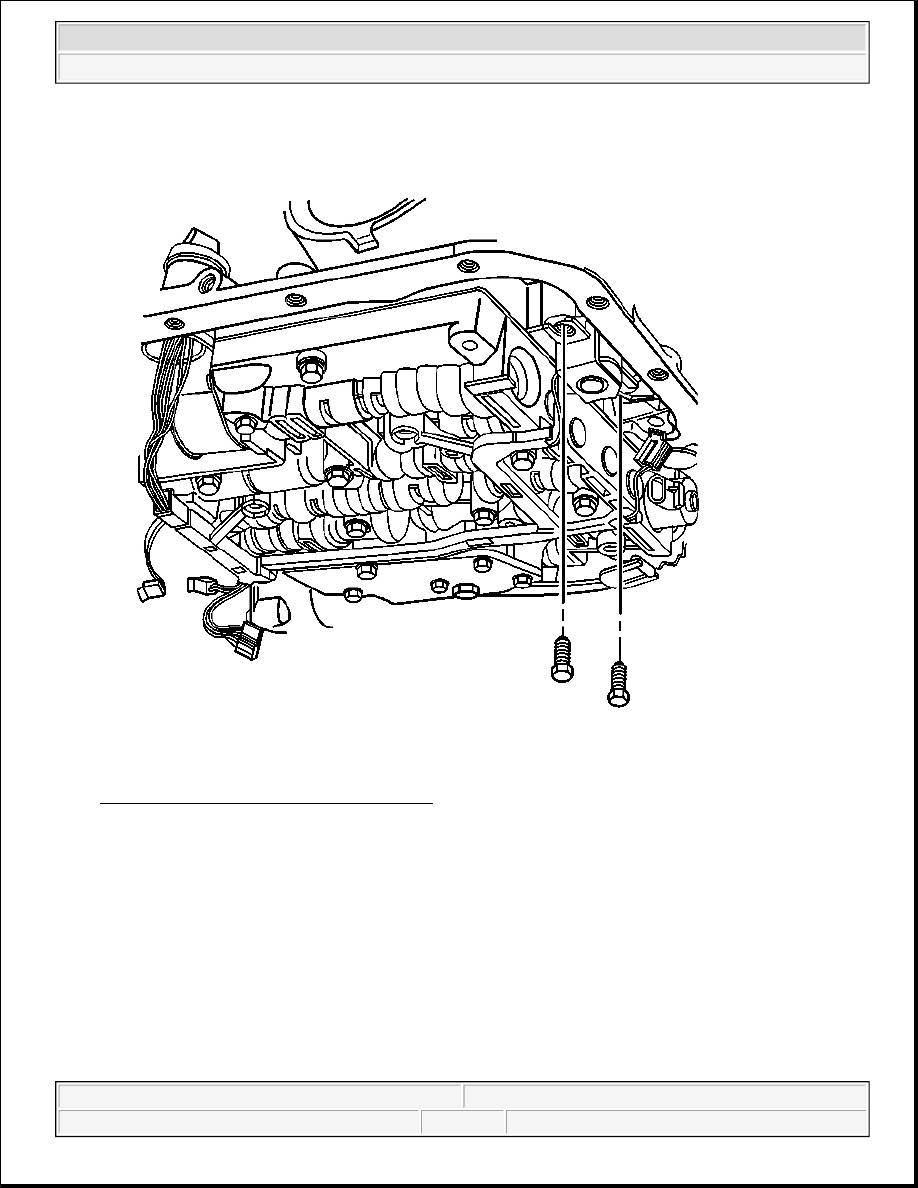

Fig. 121: Identifying TCC Solenoid & Bolts
Courtesy of GENERAL MOTORS CORP.

13. Install the TCC solenoid bolts.

Tighten: Tighten the TCC solenoid retaining bolts to 11 N.m (97 lb in).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



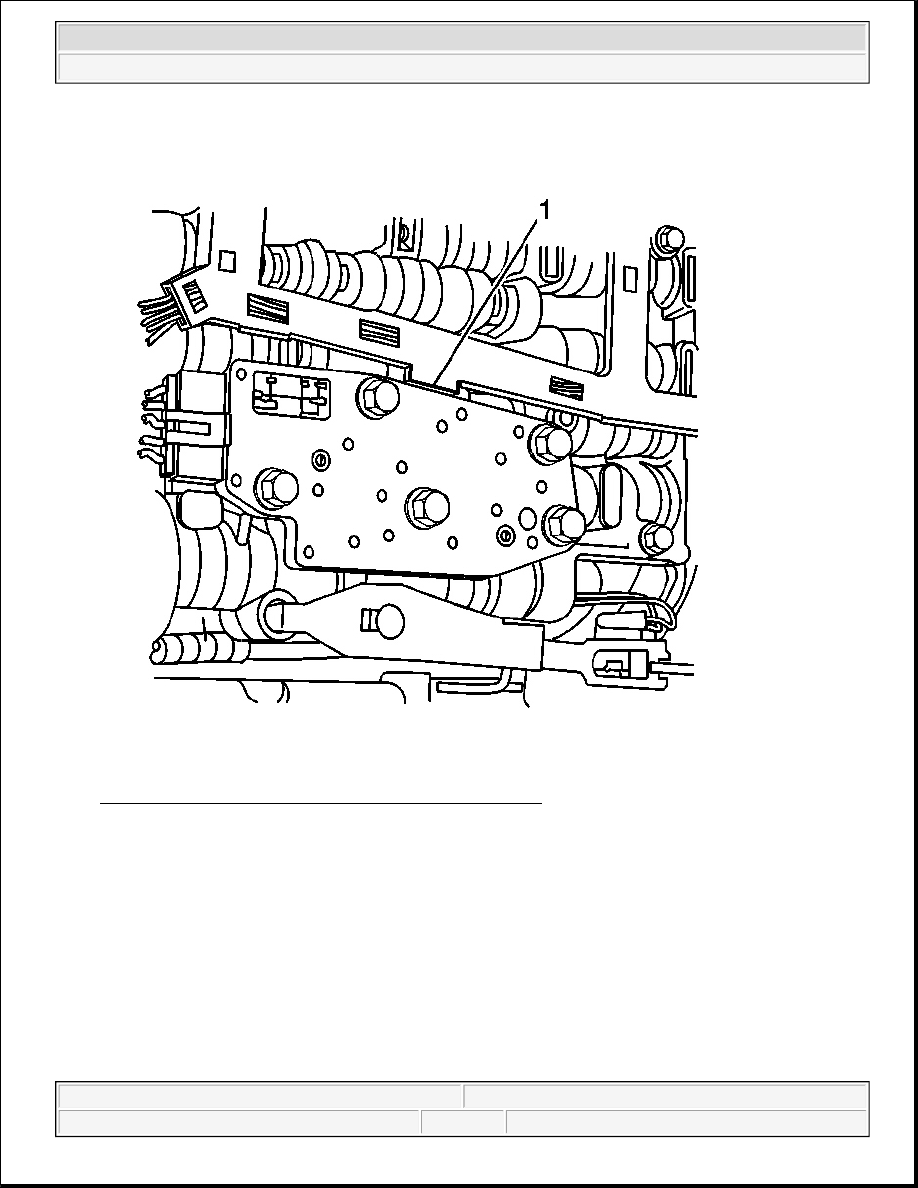

Fig. 122: View Of Internal Wiring Harness & Valve Body
Courtesy of GENERAL MOTORS CORP.

14. Install the internal wiring harness to the valve body. The internal wiring harness has a tab (1) on the edge

of the conduit.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

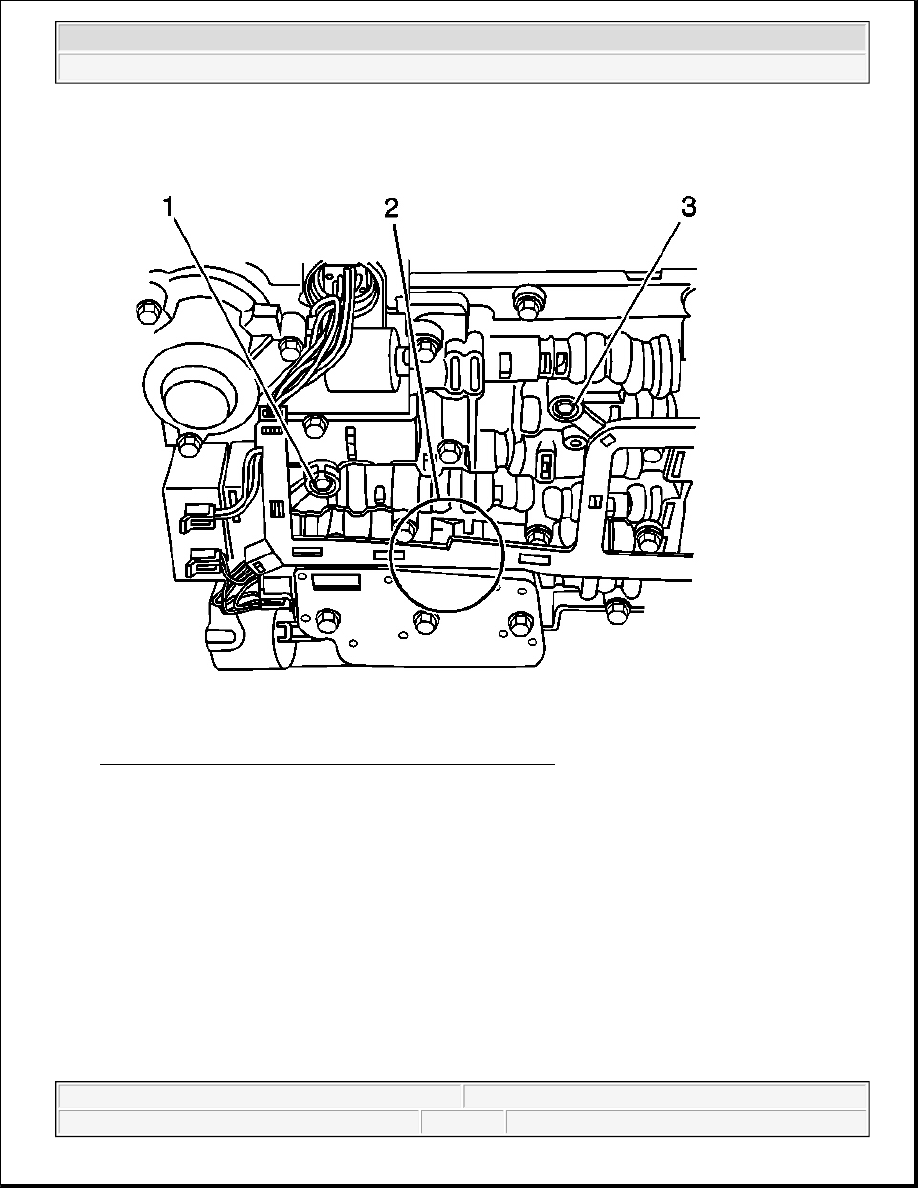

Fig. 123: Placing Tab Between Valve Body Pressure Switch
Courtesy of GENERAL MOTORS CORP.

15. Place the tab between the valve body and the pressure switch in the location shown (2). Press the harness

into position on the valve body bolt bosses (1, 3).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

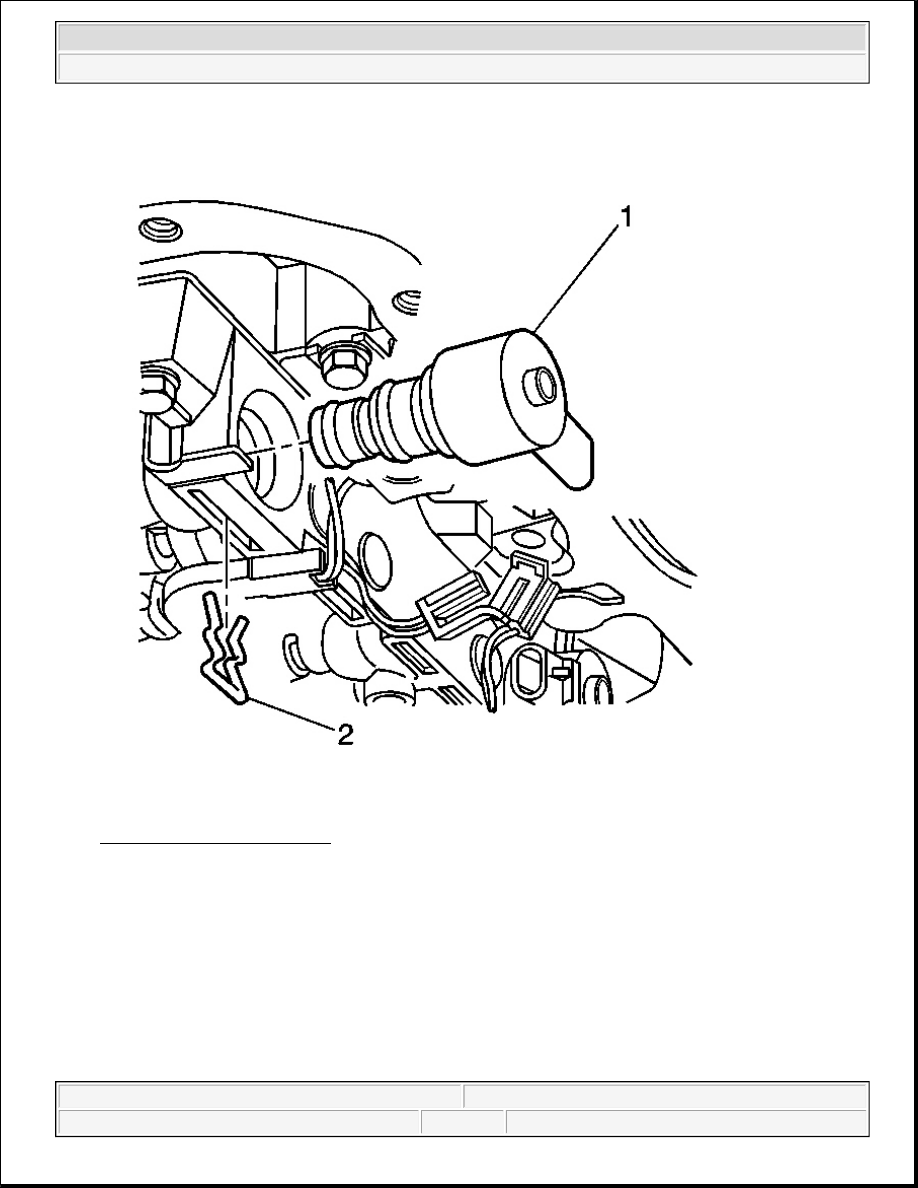

Fig. 124: TCC PWM Solenoid
Courtesy of GENERAL MOTORS CORP.

16. Install the TCC PWM solenoid (1) to the control valve body.

17. Install the TCC PWM solenoid retainer (2).
