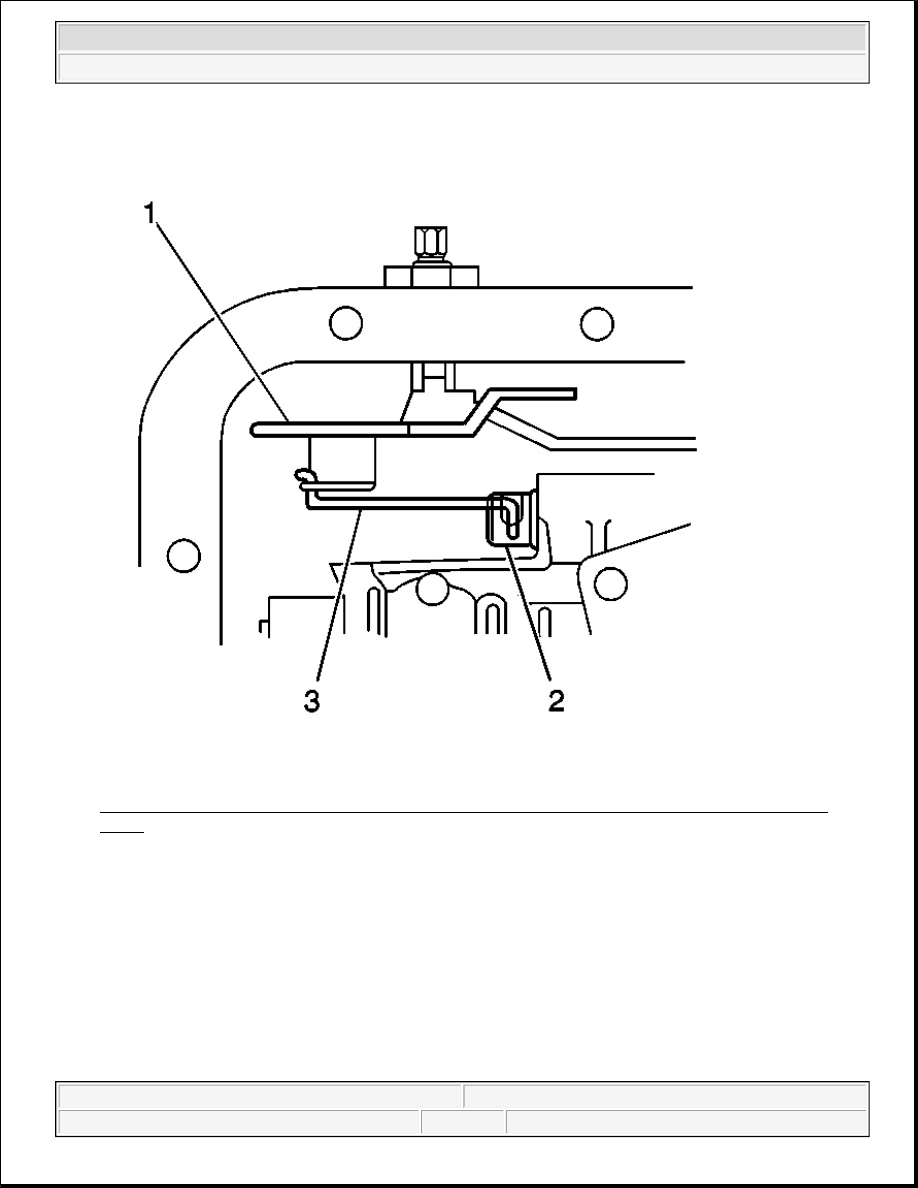

Fig. 113: Verifying Manual Valve Link Is Installed Properly To Inside Detent Lever & Manual
Valve
Courtesy of GENERAL MOTORS CORP.

3. Verify that the manual valve link (3) is installed properly to the inside detent lever (1) and the manual

valve (2).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 114: Installing One Bolt Hand Tight In Center Of Valve Body
Courtesy of GENERAL MOTORS CORP.

4. Install one bolt (M6 X 1.0 X 47.5) hand tight in the center (1) of the valve body to hold it in place.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



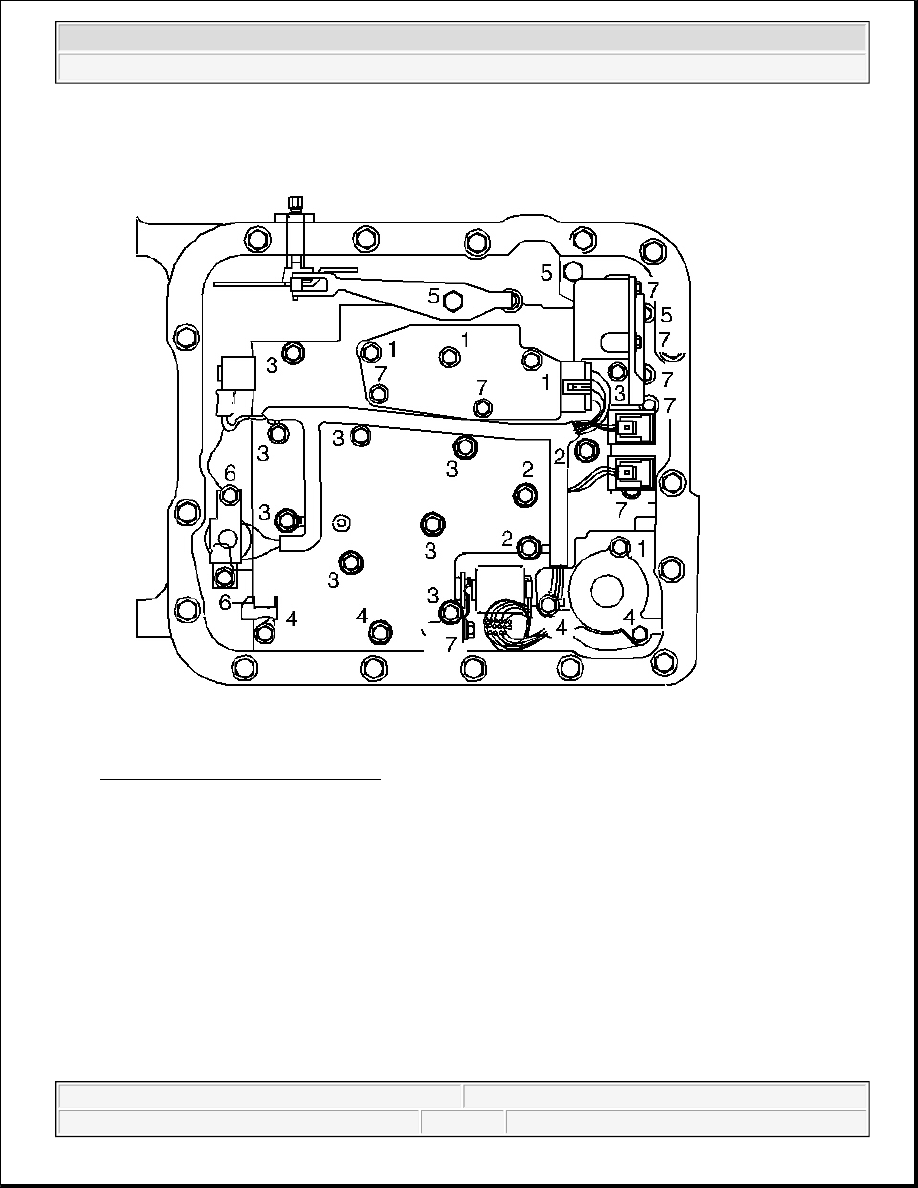

Fig. 115: Installing Valve Body Bolts
Courtesy of GENERAL MOTORS CORP.

5. Do not install the transmission fluid indicator stop bracket and bolt at this time.

Install but do not tighten the control valve body bolts which retain only the valve body directly.

Each numbered bolt location corresponds to a specific bolt size and length, as indicated by the following:

z

M6 X 1.0 X 65.0 (1)

z

M6 X 1.0 X 54.4 (2)

IMPORTANT: When installing bolts throughout this procedure, be sure to use the

correct bolt size and length in the correct location as specified.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



z

M6 X 1.0 X 47.5 (3)

z

M6 X 1.0 X 35.0 (4)

z

M8 X 1.0 X 20.0 (5)

z

M6 X 1.0 X 12.0 (6)

z

M6 X 1.0 X 18.0 (7)

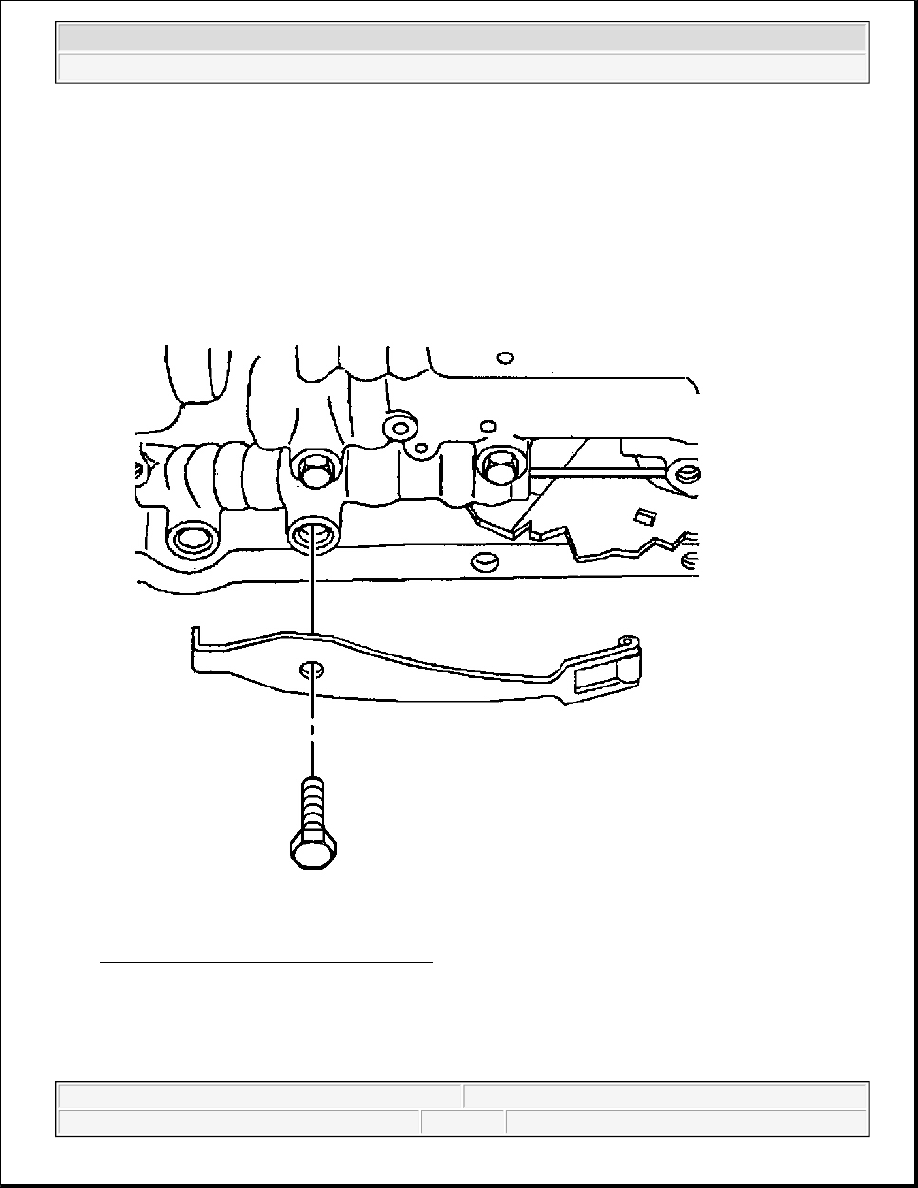

Fig. 116: Identifying Manual Detent Spring
Courtesy of GENERAL MOTORS CORP.

6. Install the manual detent spring.

7. Install but do not tighten the manual detent spring retaining bolt.
