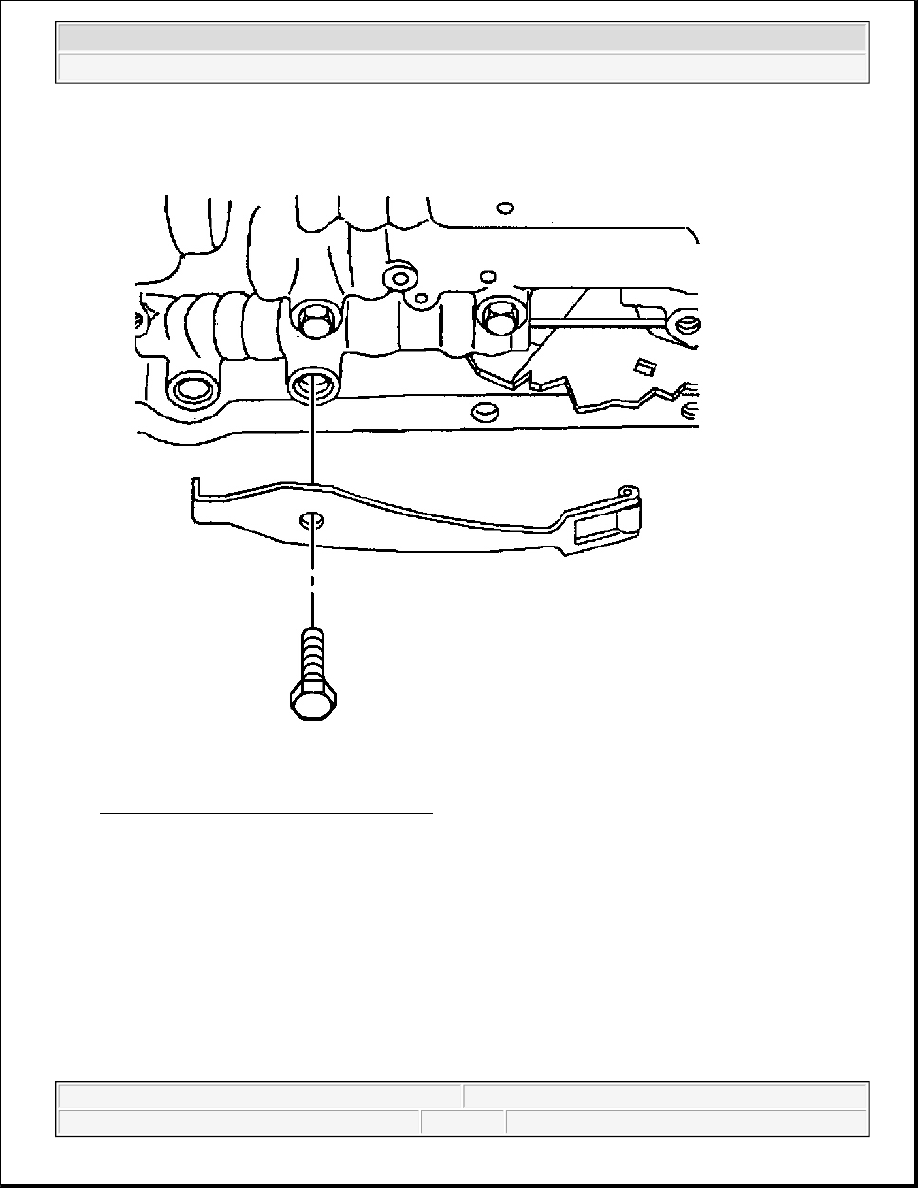

Fig. 109: Identifying Manual Detent Spring
Courtesy of GENERAL MOTORS CORP.

16. Remove the manual detent spring retaining bolt.

17. Remove the manual detent spring.

18. Inspect the manual detent spring for cracks or damage.

19. Remove the remaining control valve body bolts.

IMPORTANT: Keep the control valve body level when lowering it from the vehicle. This

will prevent the loss of checkballs located in the control valve body
passages.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

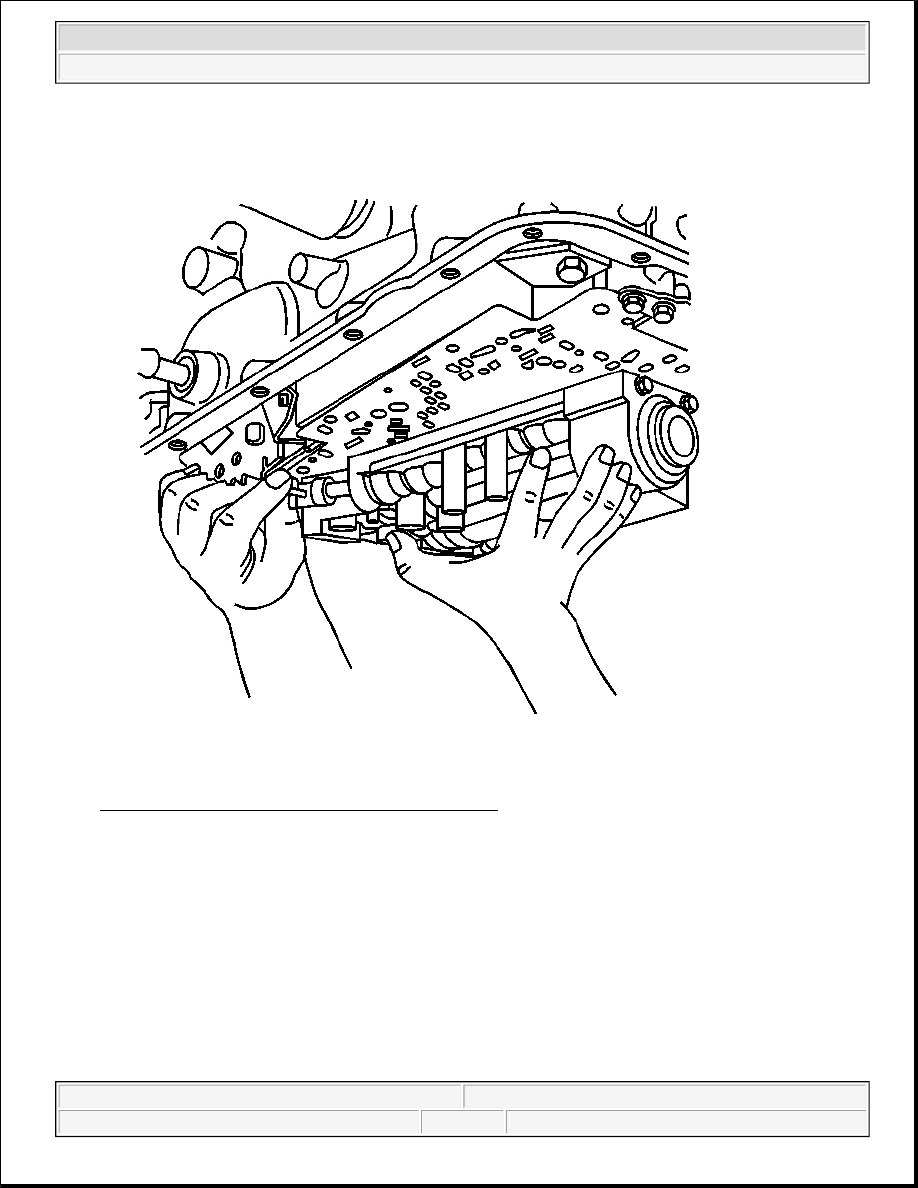

Fig. 110: View Of Valve Body & Transmission Case
Courtesy of GENERAL MOTORS CORP.

20. Carefully begin to lower the control valve body down from the transmission case while simultaneously

disconnecting the manual valve link.

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

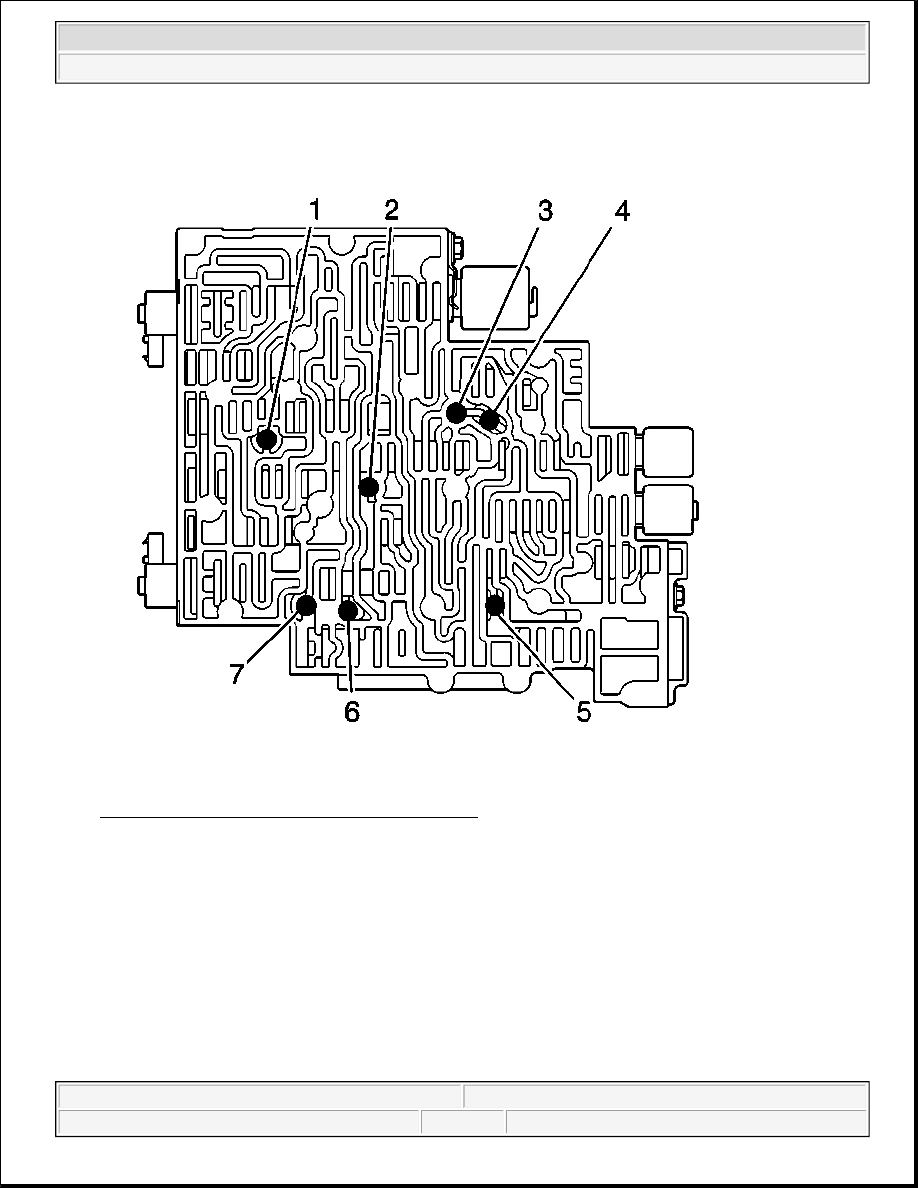

Fig. 111: Locating Seven Valve Body Check Balls
Courtesy of GENERAL MOTORS CORP.

1. Install the checkballs (1-7) in the valve body.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 112: View Of Valve Body & Transmission Case
Courtesy of GENERAL MOTORS CORP.

2. Install the control valve body to the transmission case while simultaneously connecting the manual valve

link to the manual valve.
