Hummer H2. Manual - part 2267

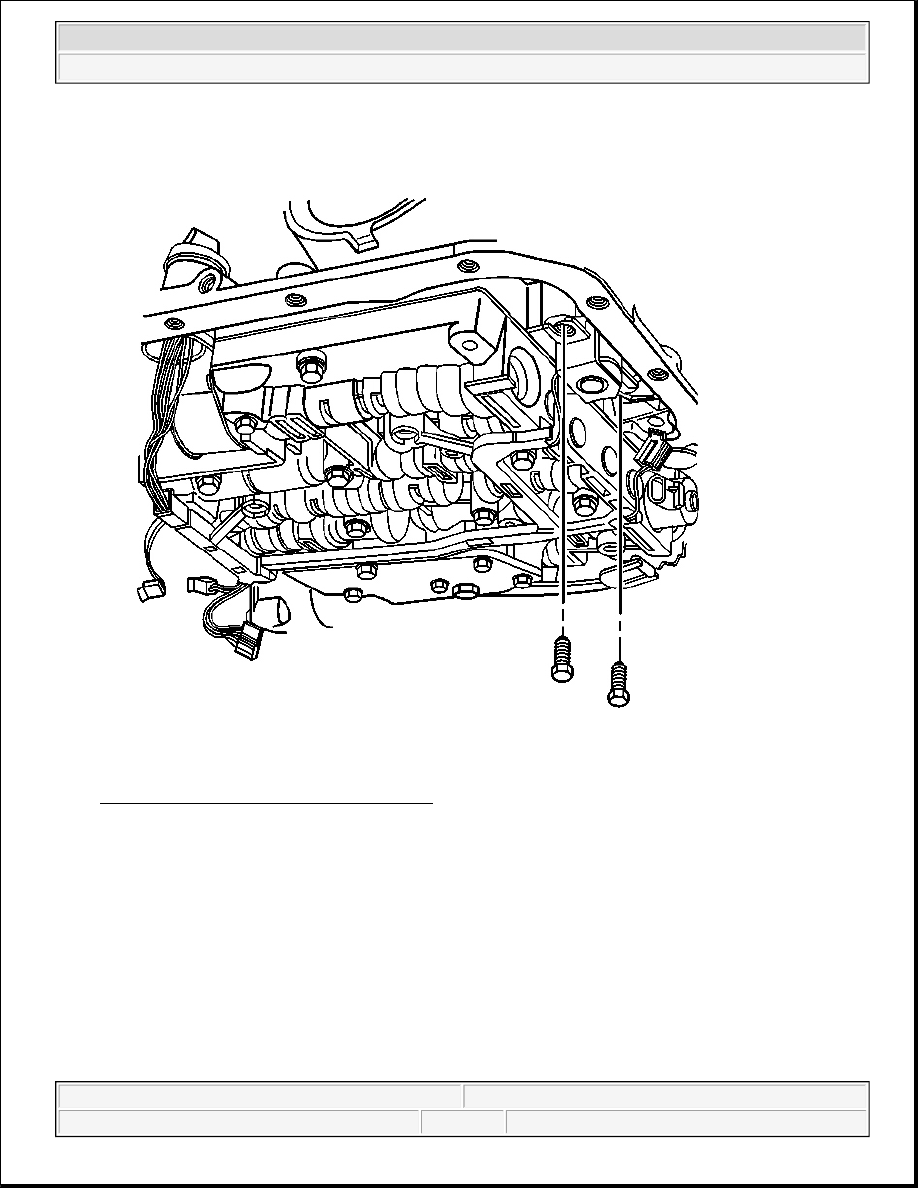

Fig. 105: Identifying TCC Solenoid & Bolts
Courtesy of GENERAL MOTORS CORP.

10. Remove the TCC solenoid retaining bolts.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



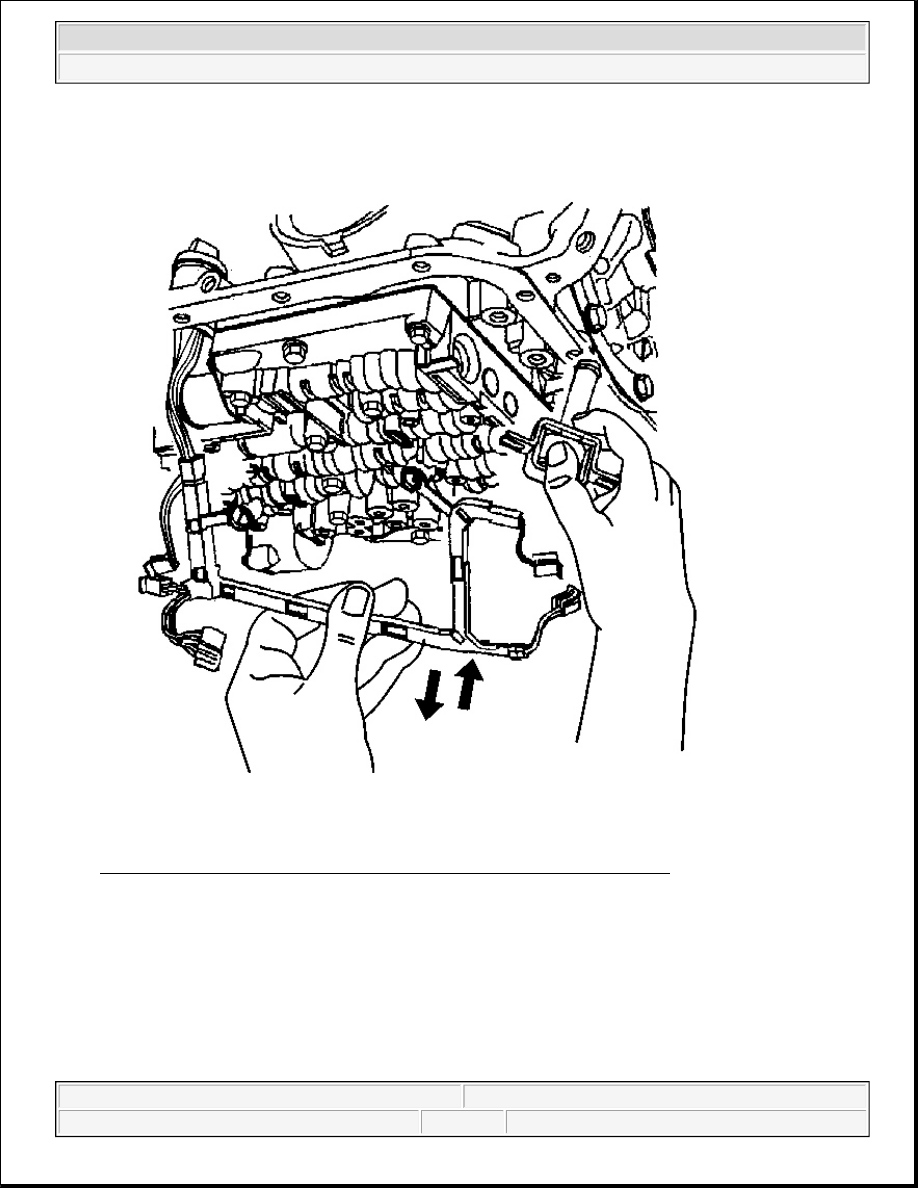

Fig. 106: Identifying TCC Solenoid (With O-Ring Seal) & Wiring Harness
Courtesy of GENERAL MOTORS CORP.

11. Remove the TCC solenoid (with O-ring seal) and wiring harness from the control valve body.

12. Reposition the harness to the side of the transmission case.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



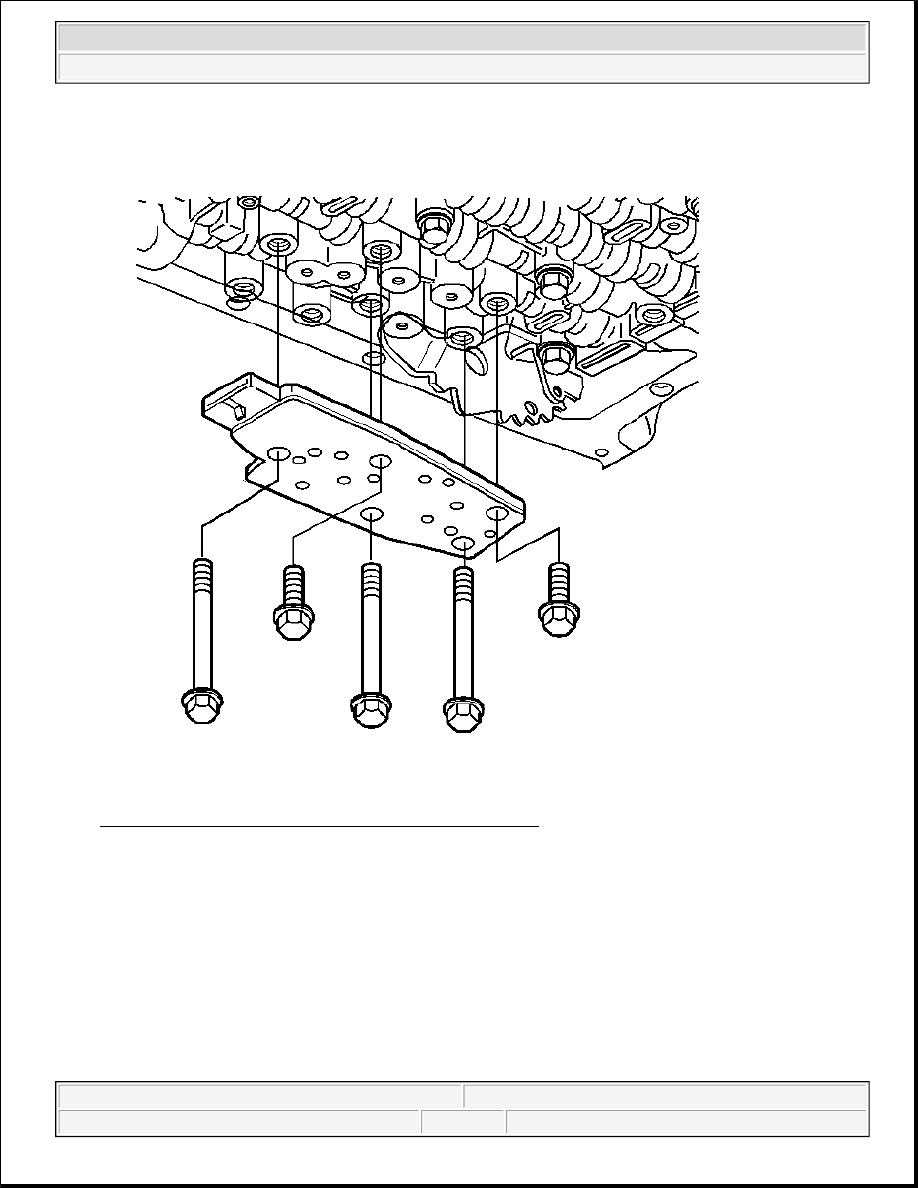

Fig. 107: Identifying Transmission Fluid Pressure Switch
Courtesy of GENERAL MOTORS CORP.

13. Remove the control valve body bolts which retain the transmission fluid pressure switch to the control

valve body.

14. Remove the transmission fluid pressure switch.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



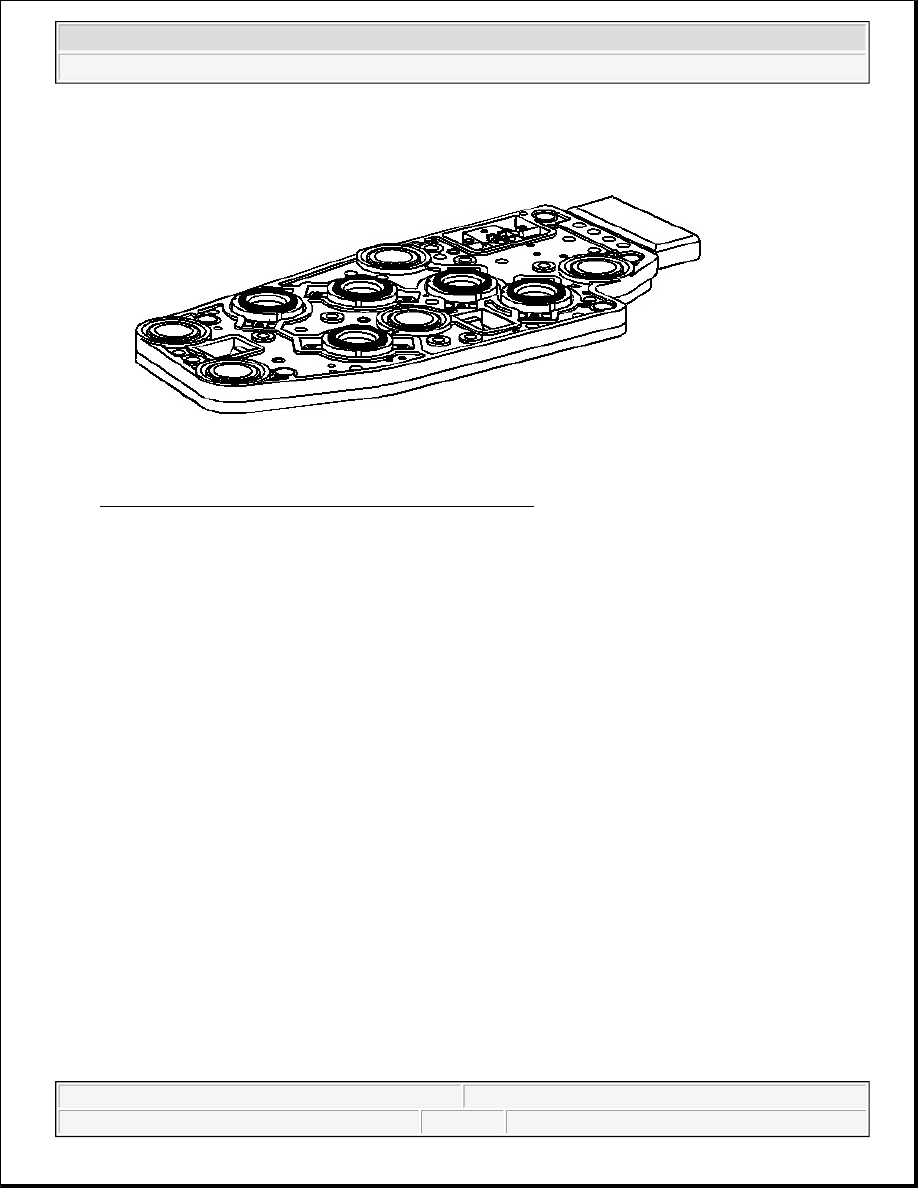

Fig. 108: Inspecting Transmission Fluid Pressure Switch
Courtesy of GENERAL MOTORS CORP.

15. Inspect the transmission fluid pressure switch for damage or debris.
