Tighten: Tighten the bolts securing the switch to 25 N.m (18 lb ft).

6. Remove the J 41364-A from the switch. If installing a new switch, remove the positive assurance bracket

at this time.

7. Connect the electrical connectors to the switch.

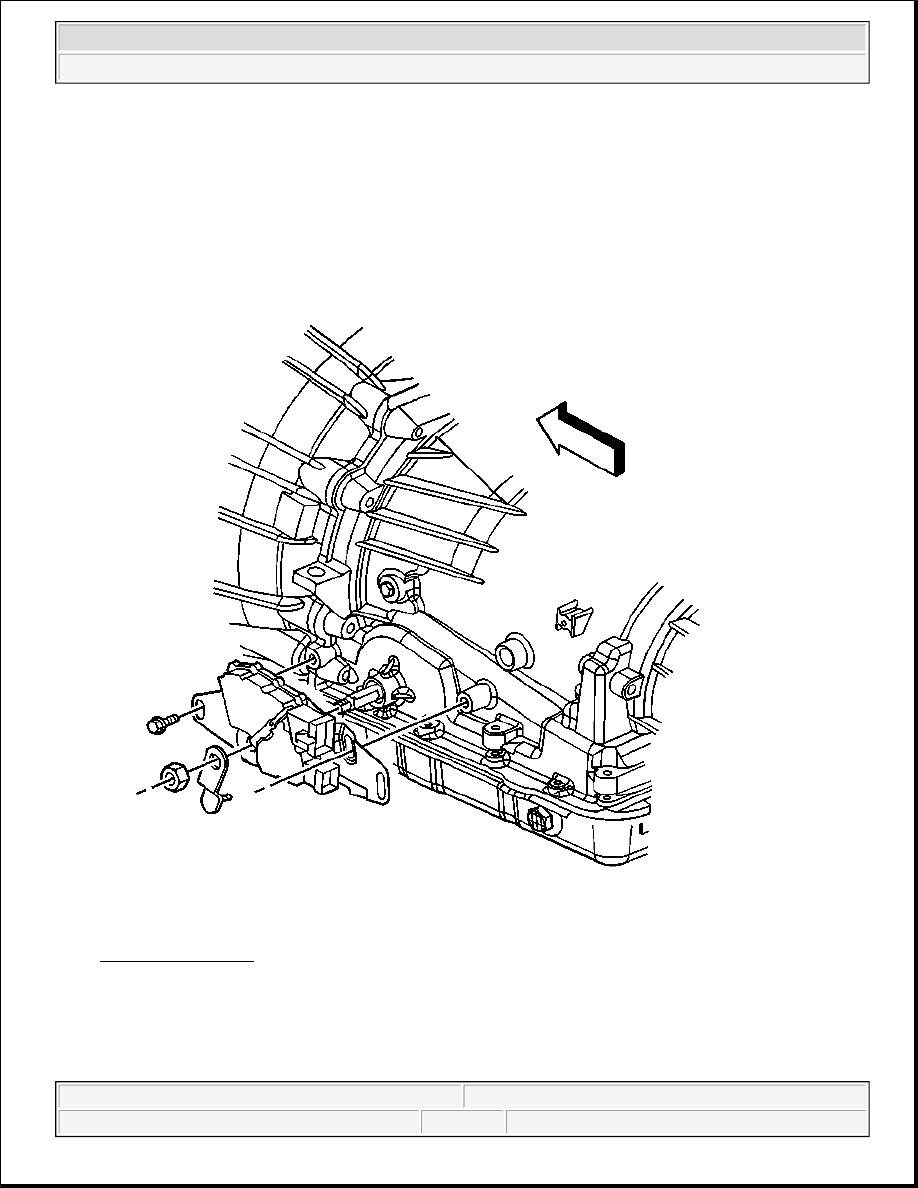

Fig. 46: PNP Switch
Courtesy of GENERAL MOTORS CORP.

8. Install the transmission control lever to the manual shaft with the nut.

Tighten: Tighten the control lever nut to 25 N.m (18 lb ft).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



9. Lower the vehicle.

10. Check the switch for proper operation. The engine must start in the P (Park) or N (Neutral) positions

only. If proper operation of the switch can not be obtained, replace the switch.

PARK/NEUTRAL POSITION SWITCH ADJUSTMENT

1. Place the transmission range selector in the N (Neutral) position.

2. With an assistant in the drivers seat, raise the vehicle. Refer to Lifting and Jacking the Vehicle in

General Information.

3. Loosen the park/neutral position switch mounting bolts.

4. With the vehicle in the N (Neutral) position, rotate the switch while the assistant attempts to start the

engine.

5. Following a successful start, turn the engine off.

6. Tighten the bolts securing the switch to the transmission.

Tighten: Tighten the bolts to 25 N.m (18 lb ft).

7. Lower the vehicle.

8. Check the switch for proper operation. The engine must start in the P (Park) or N (Neutral) positions

only.

9. Replace the park/neutral position switch if proper operation can not be achieved. Refer to Park/Neutral

Position Switch Replacement .

TOW/HAUL SWITCH REPLACEMENT

Removal Procedure

1. Remove the instrument panel trim plate bezel. Refer to Trim Panel Replacement - Instrument Panel

(I/P) Center in Instrument Panel, Gauges, and Console.

IMPORTANT:

z

The following procedure is for vehicles that have not had the switch
removed or replaced. If the switch has been removed or replaced, refer to
Park/Neutral Position Switch Replacement for the proper adjustment
procedure.

z

Apply the parking brake.

z

The engine must start in the P (Park) or N (Neutral) positions only.

z

Check the switch for proper operation. If adjustment is required, proceed
as follows:

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



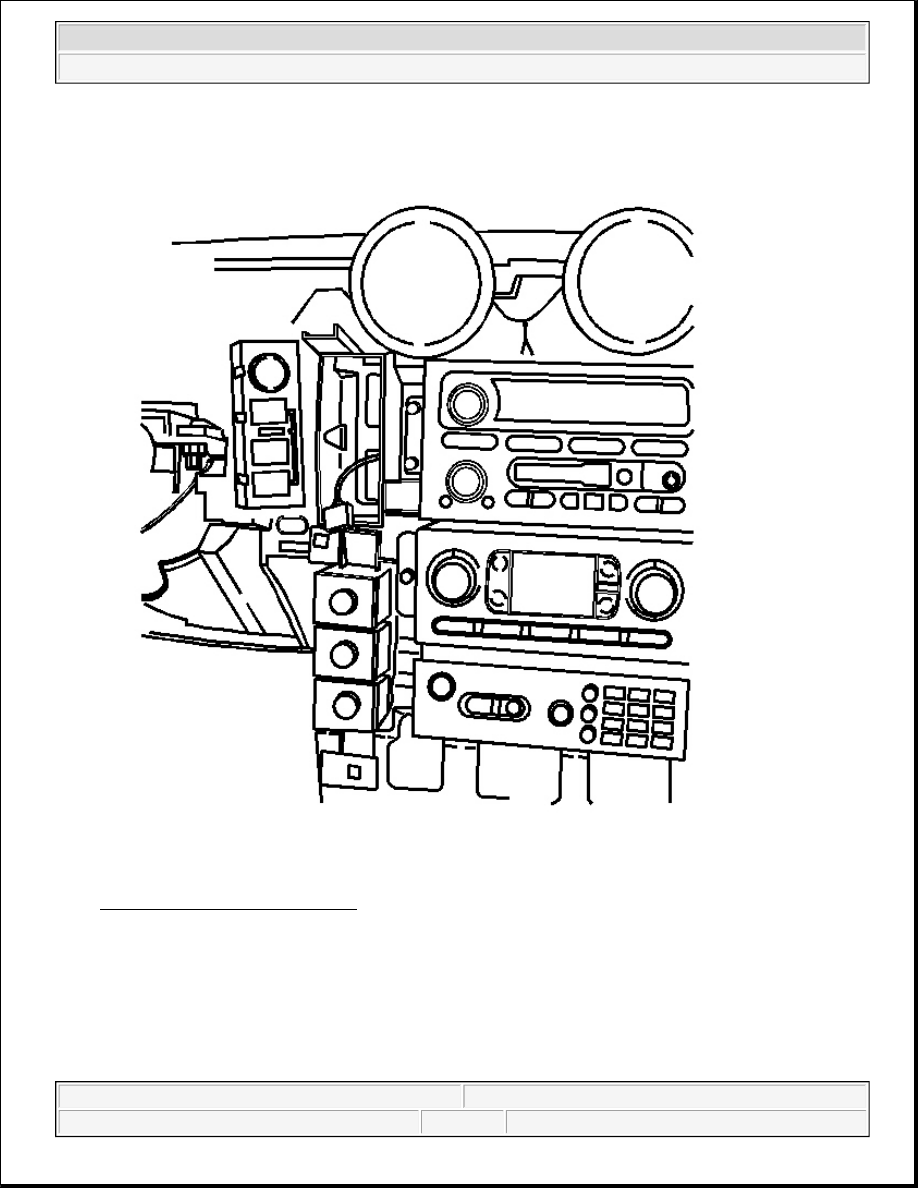

Fig. 47: Switch Recepticle Screws
Courtesy of GENERAL MOTORS CORP.

2. Remove the switch recepticle screws.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



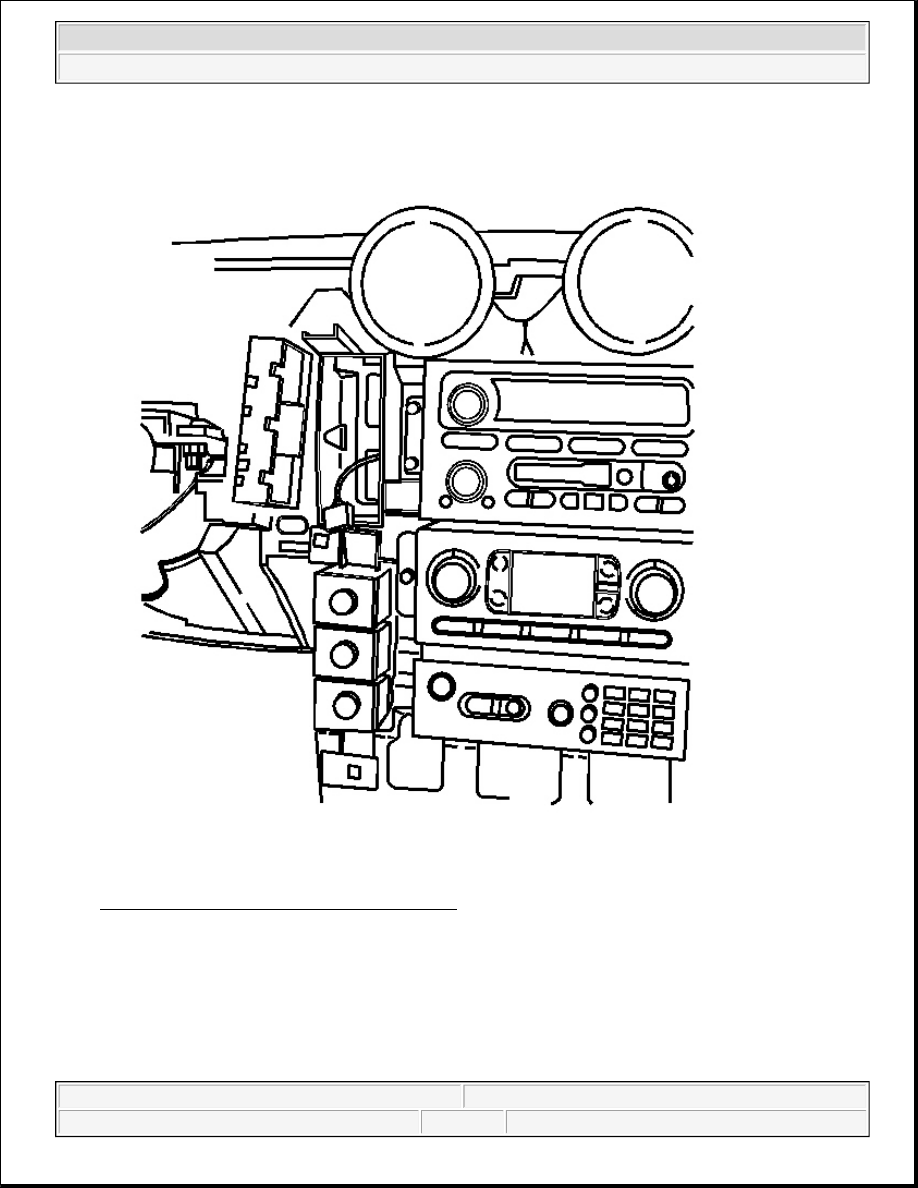

Fig. 48: Switch Recepticle & Instrument Panel
Courtesy of GENERAL MOTORS CORP.

3. Pull the switch recepticle from the instrument panel and disconnect the electrical connectors from the

switch.
