Fig. 49: Tow/Haul Switch
Courtesy of GENERAL MOTORS CORP.

4. Remove the switch from the recepticle.

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



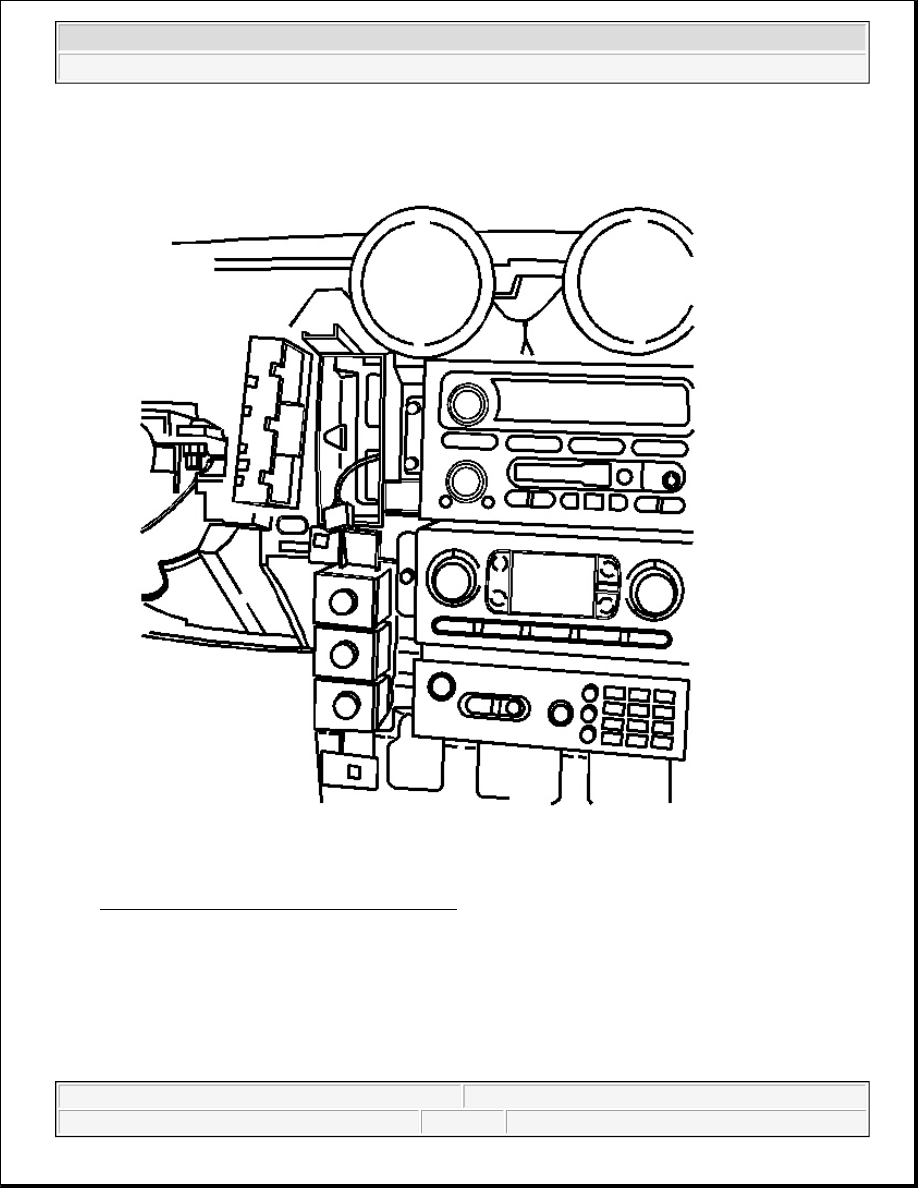

Fig. 50: Tow/Haul Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the switch to the recepticle.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



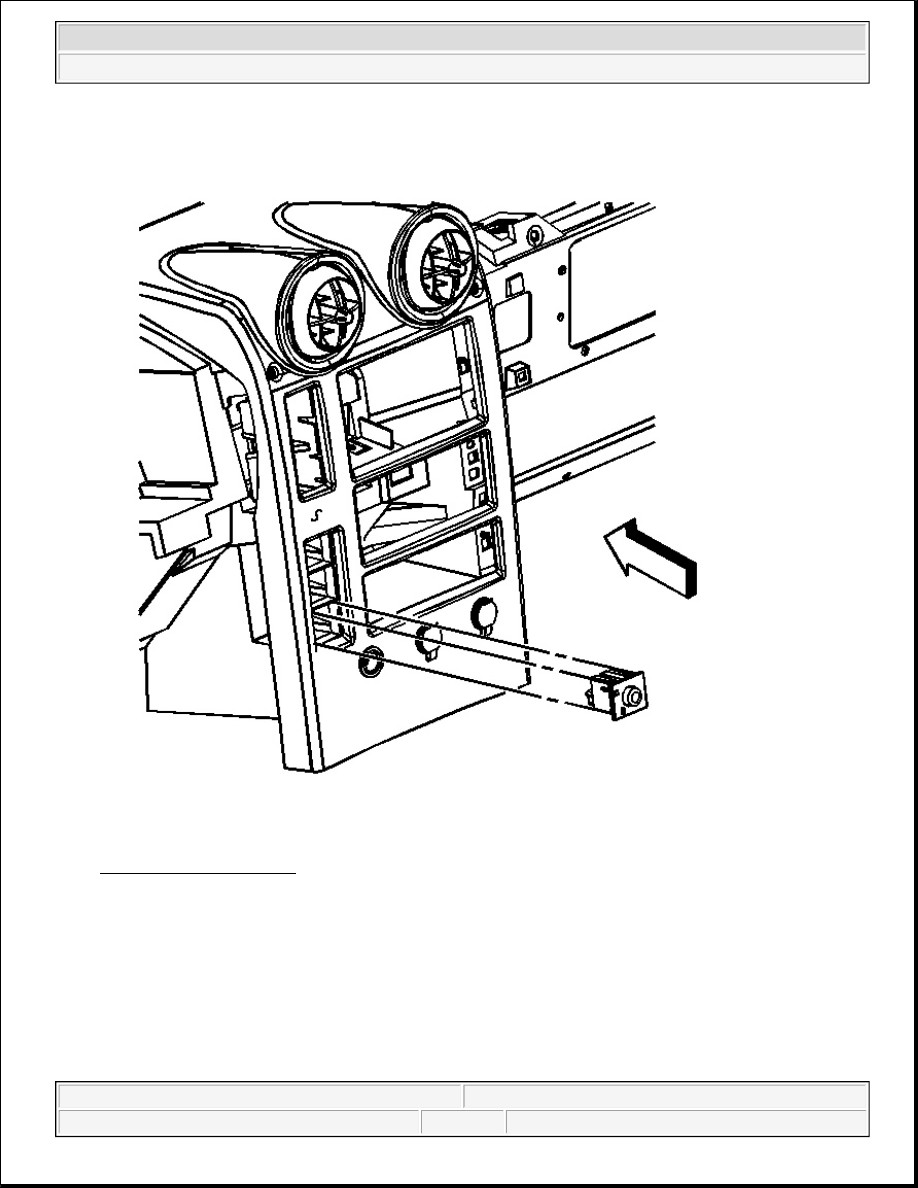

Fig. 51: Switch Recepticle & Instrument Panel
Courtesy of GENERAL MOTORS CORP.

2. Connect the electrical connector to the switch. Install the switch recepticle to the instrument panel.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



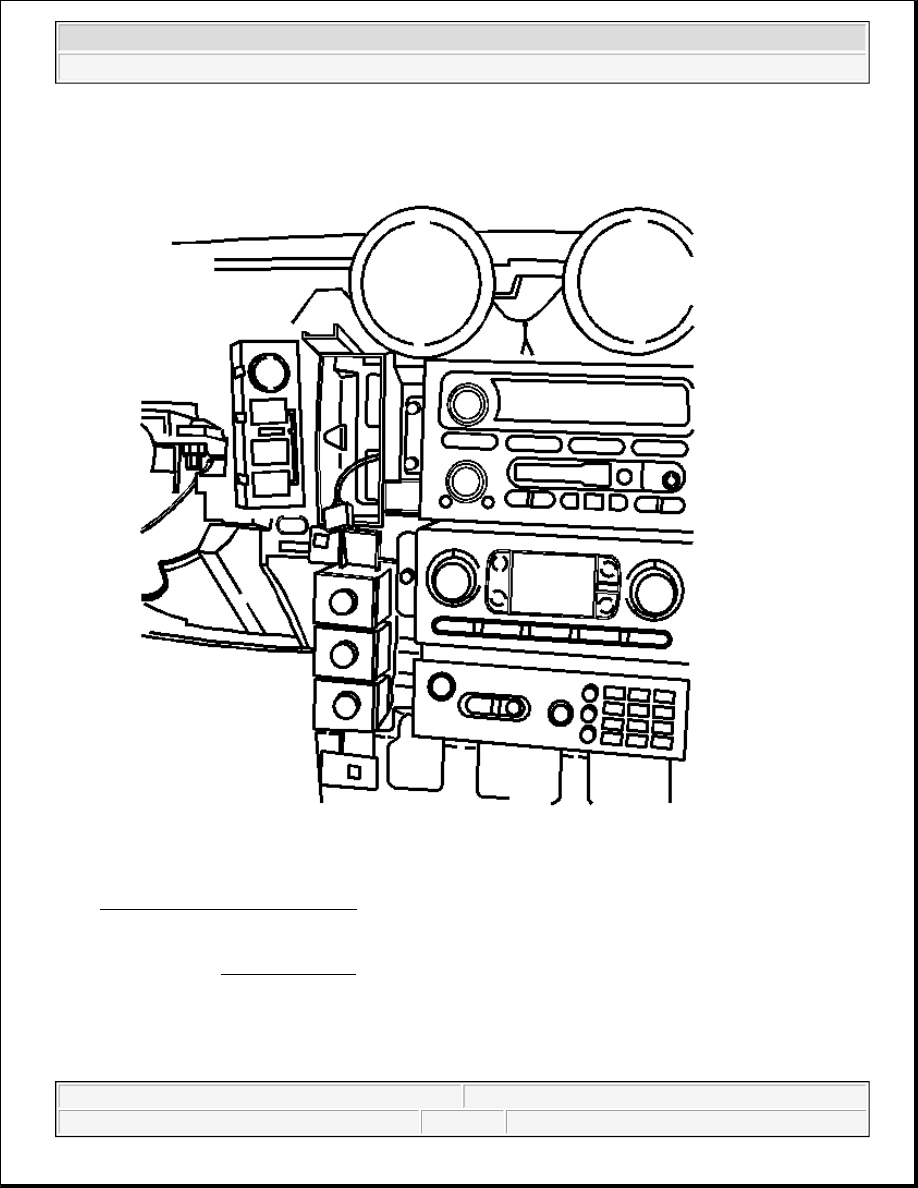

Fig. 52: Switch Recepticle Screws
Courtesy of GENERAL MOTORS CORP.

3. Install the switch recepticle screws.

Tighten: Tighten the screws to 12 N.m (106 lb in).

NOTE:

Fastener Notice in Cautions and Notices
