Hummer H2. Manual - part 2242

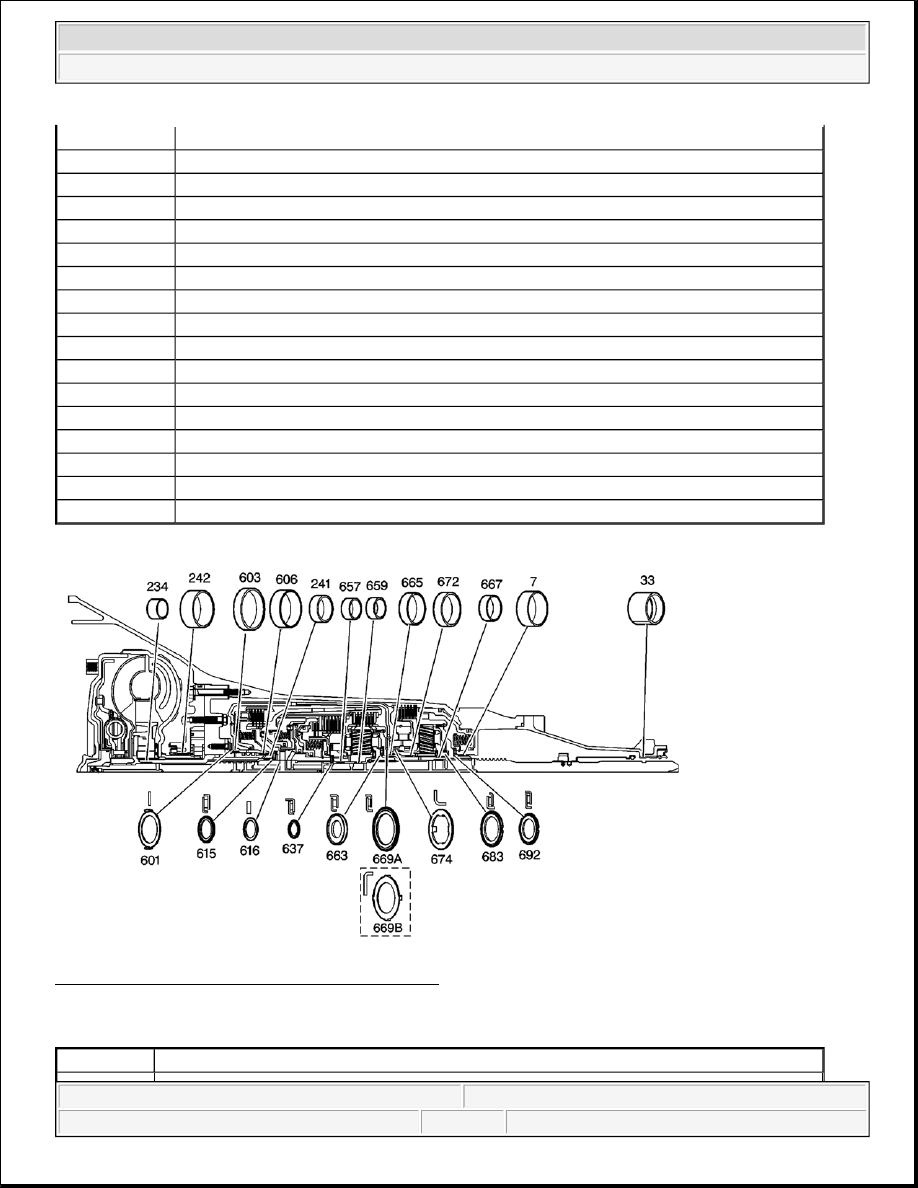

Fig. 21: Bearings and Bushings Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 21

37

O-Ring Seal - Speed Sensor to Case Extension

106

Case Oil Seal Assembly - Y-Car Only

230

Oil Seal Ring - Stator Shaft

243

Oil Seal Assembly

608a

Reverse Input Clutch Seal - Inner

608b

Reverse Input Clutch Seal - Outer

618

O-Ring Seal - Turbine Shaft/Selective Washer

619

Oil Seal Ring - Solid

622

O-Ring Input to Forward Housing Seal

623

3rd and 4th Clutch Piston

630

Forward Clutch Piston

632

Overrun Clutch Piston

636

Input Housing to Output Shaft Seal

691

Output Shaft - Model Dependent Seal

696a

Low and Reverse Clutch - Outer Seal

696b

Low and Reverse Clutch - Center Seal

696c

Low and Reverse Clutch - Inner Seal

Callout

Component Name



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



7

Case Bushing

33

Case Extension Bushing

234

Stator Shaft Bushing - Front

241

Stator Shaft Bushing - Rear

242

Oil Pump Body Bushing

601

Thrust Washer - Pump to Drum

603

Reverse Input Cl. Bushing - Front

606

Reverse Input Clutch Bushing - Rear

615

Stator Shaft/Selective Washer Bearing Assembly

616

Thrust Washer - Selective

637

Input Sun Gear Bearing Assembly

657

Input Sun Gear Bushing - Front

659

Input Sun Gear Bushing - Rear

663

Thrust Bearing Assembly - Input Carrier to Reaction Shaft

665

Reaction Carrier Shaft Bushing - Front

667

Reaction Carrier Shaft Bushing - Rear

669a

Thrust Washer - Reaction Shaft/Shell

669b

Thrust Washer - Reaction Shaft/Shell - Some Models

672

Reaction Gear Bushing

674

Thrust Washer - Race/Reaction Shell

683

Thrust Bearing Assembly - Reaction Carrier/Support

692

Reaction Gear Support to Case Bearing



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



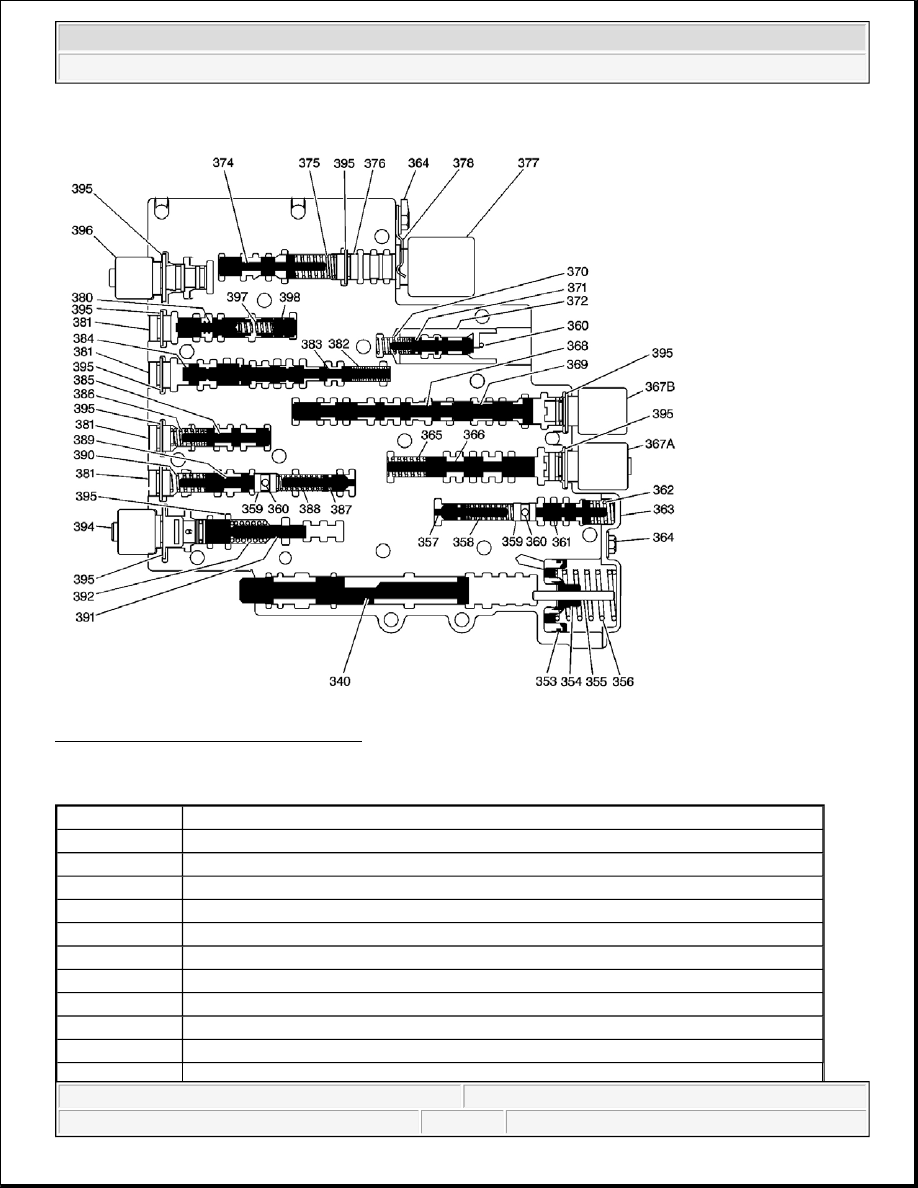

Fig. 22: Valve Trains Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 22

Callout

Component Name

340

Manual Valve

353

Forward Accumulator Oil Seal

354

Forward Accumulator Piston

355

Forward Accumulator Pin

356

Forward Accumulator Spring

357

Forward Abuse Valve

358

Forward Abuse Valve Spring

359

Bore Plug

359

Bore Plug

360

Coiled Spring Pin
