Hummer H2. Manual - part 2241

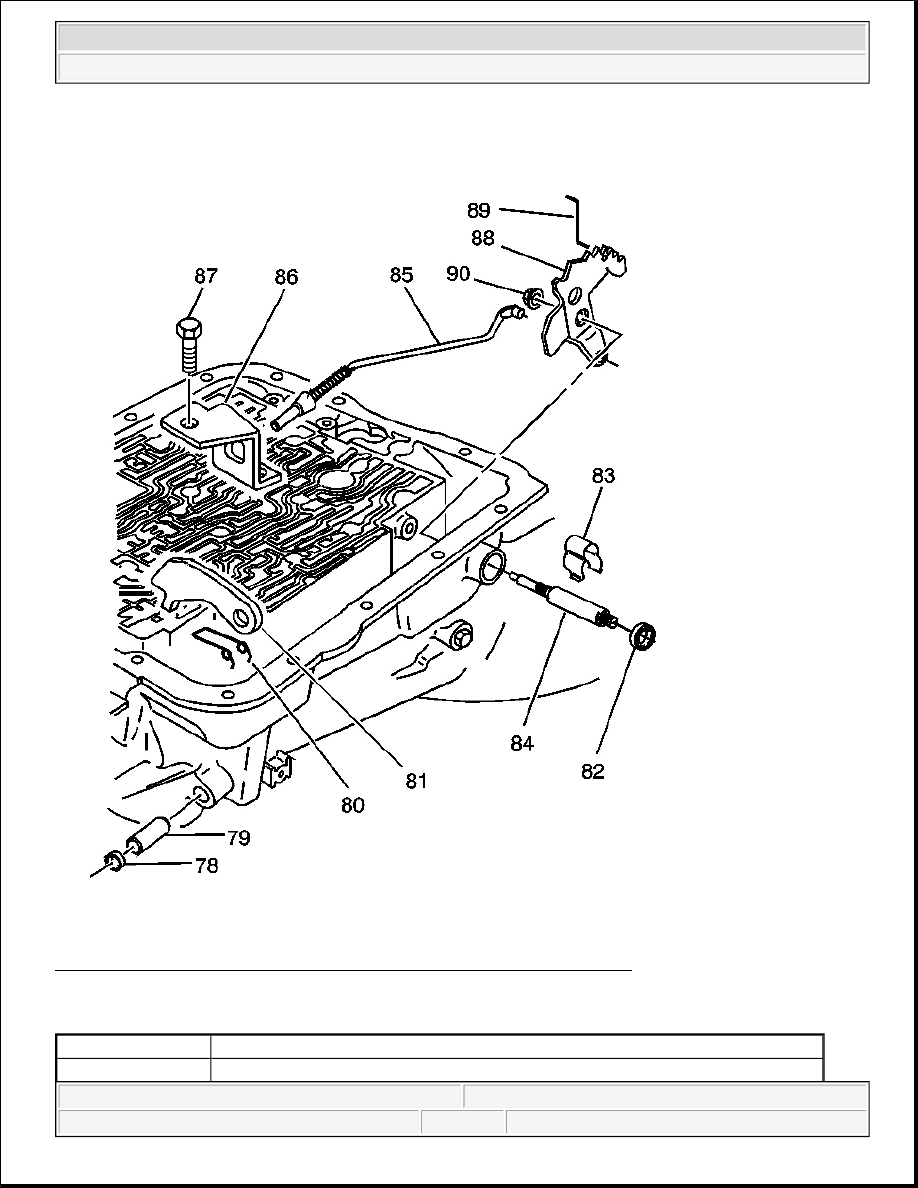

Fig. 18: Parking Lock and Manual Shift Shaft Assembly Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 18

Callout

Component Name

78

Steel Cup Plug



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



COMPONENT LOCATION

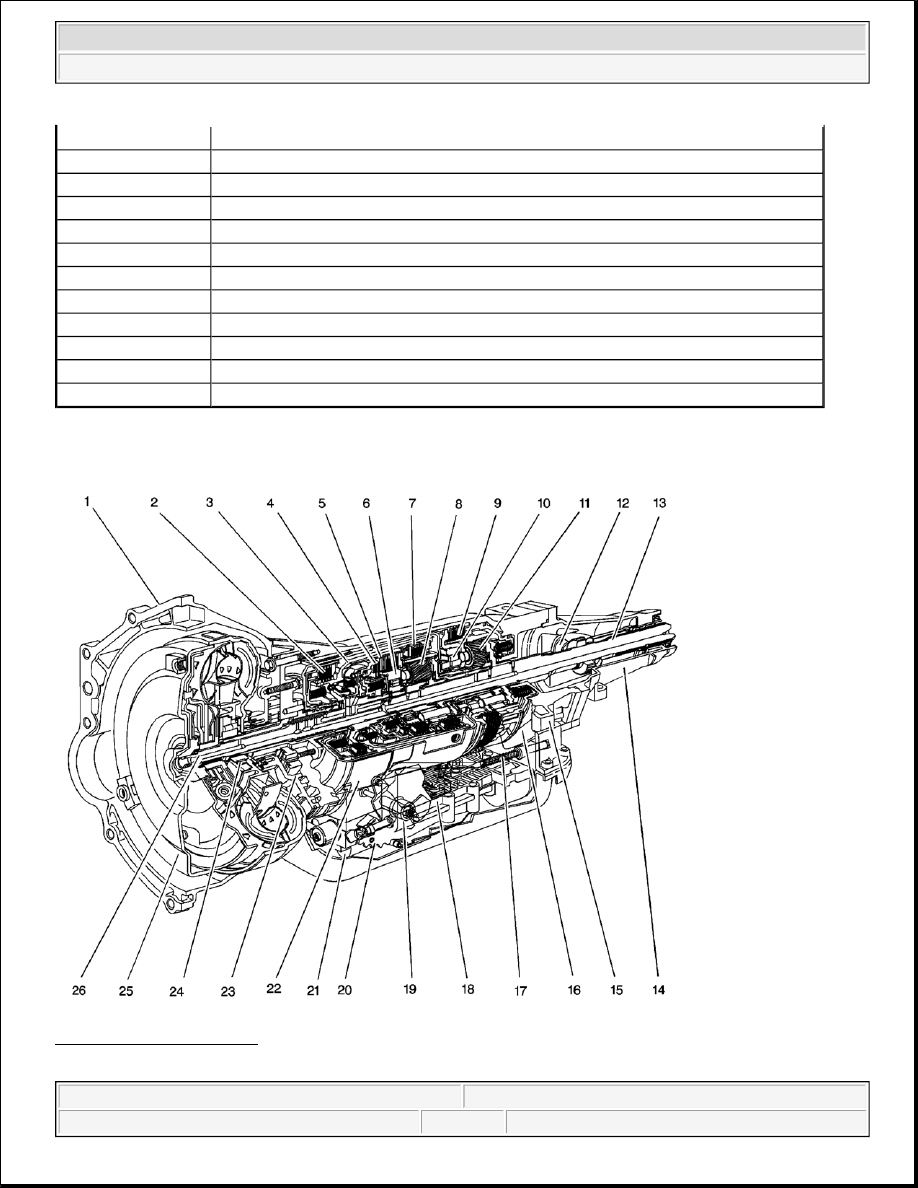

Fig. 19: Component Views
Courtesy of GENERAL MOTORS CORP.

79

Parking Brake Pawl Shaft

80

Parking Pawl Return Spring

81

Parking Brake Pawl

82

Manual Shaft Seal

83

Manual Shaft Retainer

84

Manual Shaft - Model Dependent

85

Parking Lock Actuator Assembly

86

Parking Lock Bracket

87

Parking Lock Bracket Bolt

88

Inside Detent Lever

89

Manual Valve Link

90

Hex Head Nut



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Callouts For Fig. 19

Callout

Component Name

1

Converter Housing

2

Reverse Input Clutch

3

Input Clutch Housing

4

Overrun Clutch

5

Forward Clutch

6

Forward Sprag Clutch Assembly

7

3-4 Clutch

8

Input Planetary Gear Set

9

Lo and Reverse Clutch

10

Lo Roller Clutch Assembly

11

Reaction Planetary Gear Set

12

Speed Sensor

13

Output Shaft

14

Case Extension

15

Main Section Case

16

Parking Pawl

17

Parking Lock Actuator Assembly

18

Control Valve Assembly

19

Manual Shaft

20

Inside Detent Lever

21

Secondary Fluid Pump Assembly - M33 Models Only

22

2-4 Band Assembly

23

Pump Assembly

24

Stator Roller Clutch

25

Torque Converter Assembly

26

Turbine Shaft



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



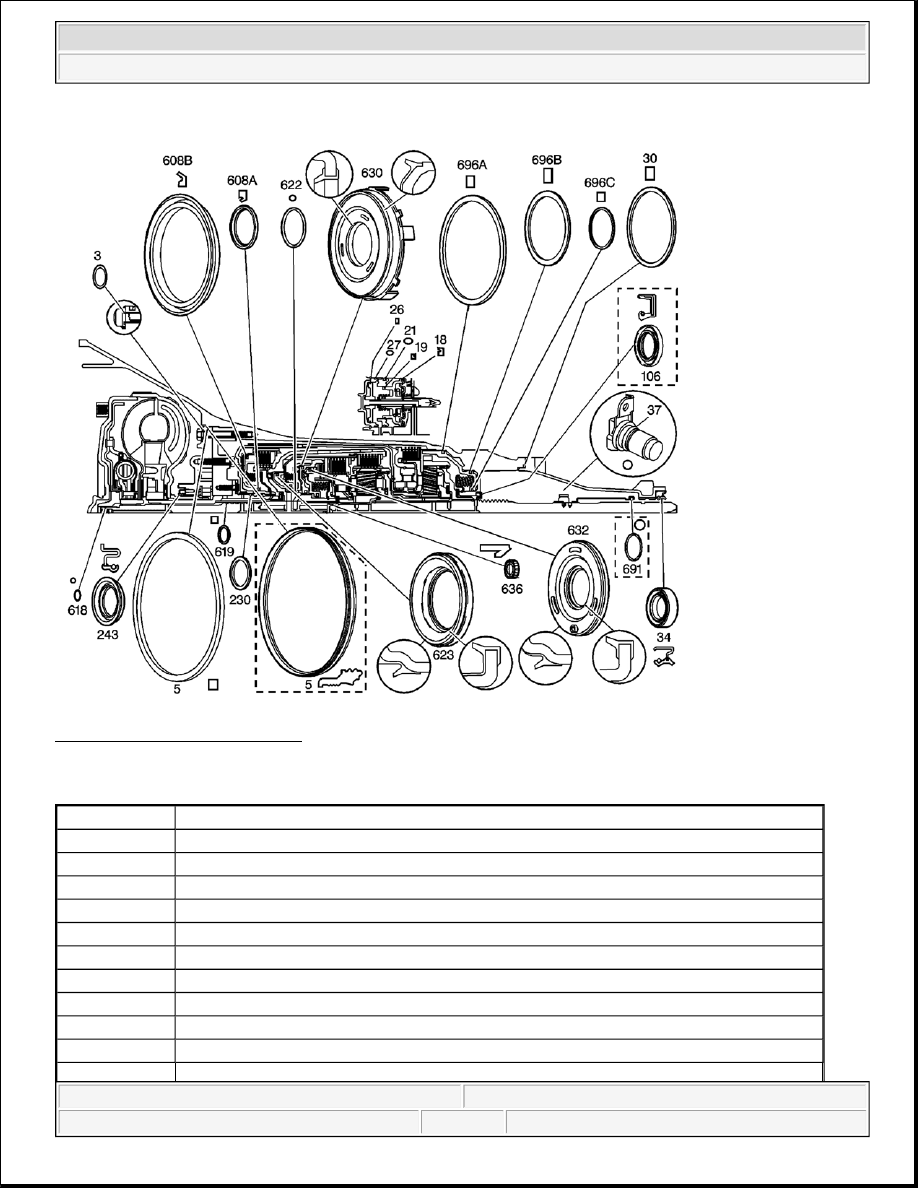

Fig. 20: Seals Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 20

Callout

Component Name

3

Pump to Case Bolt O-Ring

5

Oil Seal - Pump to Case - Model Dependent

5

Oil Seal - Pump to Case - Model Dependent

18

Oil Seal Ring - 2nd Apply Piston-Outer

19

Oil Seal Ring - 2nd Apply Piston-Inner

21

O-Ring Seal

26

Oil Seal Ring - 4th Apply Piston-Outer

27

O-Ring Seal - 2-4 Servo Cover

30

Case Extension to Case Seal

34

Case Extension Oil Seal Assembly



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
